Xhorse Multi-Prog Programmer Pro-level ECU TCU Programmer Update Version of VVDI Prog

Xhorse MULTI-PROG Pro-level  programmer is a reading and writing device for automotive chips, electronic modules, especially ECU modules. It integrates the programming, reading, writing and cloning functions of common automotive MCUs, automotive memory chips, common electronic modules and automotive ECU boards.

Multi-PROG Pro-level  programmer supports batch writing of chips, and batch writing of chips is often used in factories when production requires large-scale writing of chips. The types of writes supported are common memory series and common microcontroller series. For the specific usage of batch writing, please refer to the documentation of the factory usage mode that comes with the software.

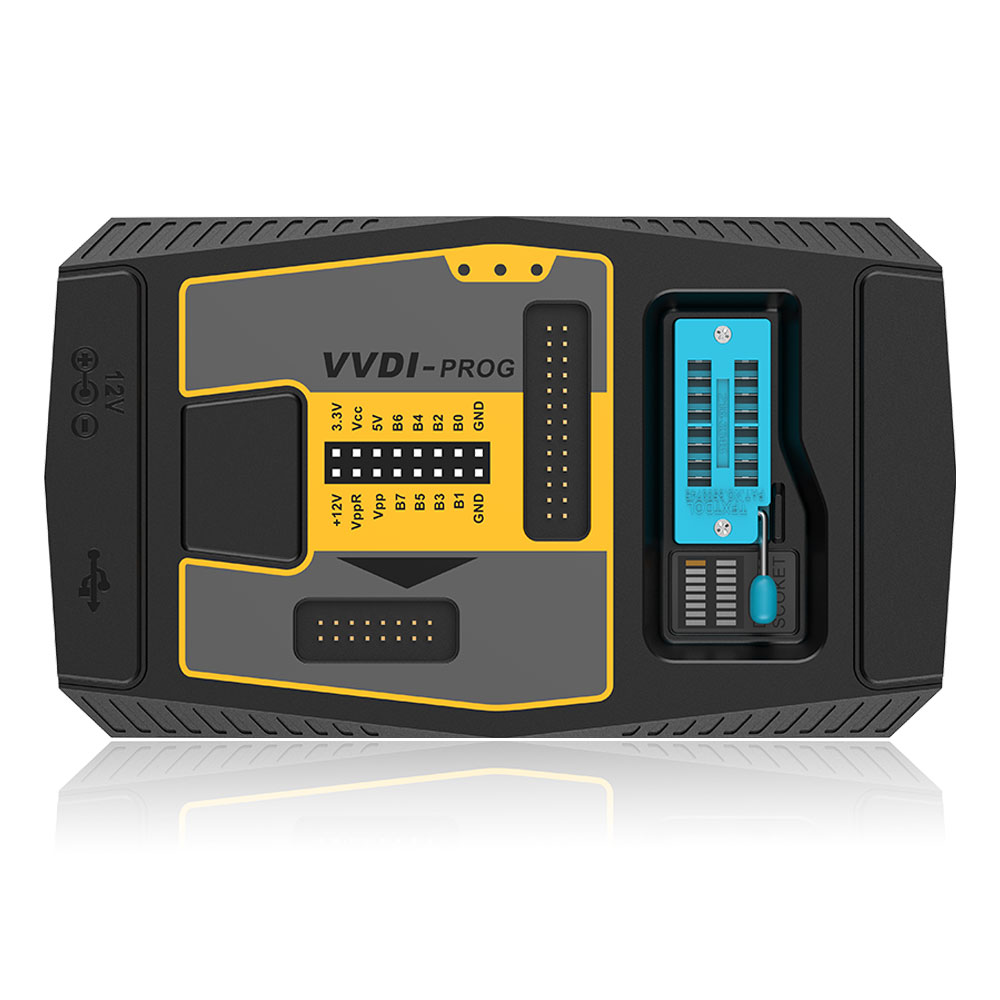

Batch programming function: Multi-PROG devices support factory usage mode for batch programming of chips. In this mode, the functions of batch programming, offline programming, and file offline programming can be realized. The main difference between Xhorse VVDI PROG programmer and Xhorse MULTI-PROG Pro-level  programmer is that  MULTI-PROG Pro-level  programmer has the batch programming function but VVDI PROG programmer does not.

Highlights:

1. Fully Replace VVDI Prog:
Multi-Prog support factory usage mode for batch programming of chips. In this mode, the functions of batch programming, offline programming, and file offline programming can be done easily.
The main difference between VVDI PROG and Multi-Prog: Multi-Prog has the batch programming function but VVDI PROG programmer doesn't.
2. With Free MQB48 License and BMW Ben Read ISN.
Bind with Xhorse VVDI2/ Key Tool Plus PAD account, then your VVDI2/Key Tool Plus PAD can use MQB48 Function too
3. Add Vehicle Engine Data Calculation and Processing (MED17, EDC17 etc)
4. Support Checksum Function
5. Newest Software Version: V1.0.9, Hardware Version: V1.1.5
Xhorse Multi-Prog Free Software Download

Xhorse Multi-Prog Functions:

1. Read, Write and Clone ECU
BMW B48/B58 reading ISN
BMW MSD80/81 /85/87/MSV90
Mercedes-Benz SIM271
BMW MSV80
VW BOSCH MED17 Series ECU
BMW N13/N20/N55/B38/TC17X
Support Marelli, Siemens, Delphi and other ECU manufacturers
With Free MQB48 License. Bind Multi-prog and VVDI2 full version to the same Xhorse app account to use MQB48 NEC35XX function
Also Compatiable with Xhorse MQB Solder-free Adapters

2. Read, Write and Clone TCU
Volkswagen Audi Skoda DQ200, DQ250, VL381 TCU etc.
Porsche DL501 TCU
Ford Dodge and other MPS6 series TCU
BMW DKG, Mercedes-Benz VCS and other models TCU

3. Vehicle Engine Data Calculation and Processing
MEDl 7/EDC17 data processing

4. Support Flexible Extension of Third-party Plug-ins
Support the development of third-party plug-ins and provide data processing and modification services

5. Read & Write MCU
Support reading and writing MCU of various brands including Renesas, Motolora, NXP, Infineon, etc.
Support certain encrypted chip reading and writing

6. Read & Write Vehicle Immo Module
Support Porsche, Land Rover, Mercedes-Benz EZS, VOLVO,
VW MQB dashboard, AUDI BCM2, etc.
Support modules including BMW EWS, CAS1 \CAS2\CAS3\CAS4+, FEM BDC, etc.
Support other common immo modules
Note:Compatible with Xhorse solder-free adapters and cables

7. Read & Write EEPROM
Support EEPROM and FLASH

8. Read & Write Vehicle Dashboard
Support dashboard of VW, Honda, Hyundai, Kia, etc.

Xhorse Multi-Prog ECU and TCU List: (Keep Updating)

ECU (Bench Mode):

VAG
1. SIMOS PCR2.1, EDC17c64
2. BOSCH: MG1CA811
3. BOSCH: MED17.1.6, MED17.1.21, MED17.1.61, MED17.5, MED1 7.5.1, MED1 7.5.2, MED1 7.5.5_TC1 766, MED1 7.5.5_TC1 767, MED1 7.5.20, MED1 7.5.21, MED1 7.5.25
4. BOSCH: EDC17C46, EDC17C74, EDC17CP24, EDC17CP44, EDC17CP54, EDC17U01, EDC17U05
5. BOSCH: MG1CS002一SPC5777, MD1 CP014_TC298TP, MG1 CS001_SPC5777, MG1 CS011 _SPC5777, MG1CS002_TC298TP, MD1 CP004_TC298TP, MD1 CP004一SPC5777, MG1 CS111 一SPC5777, MD1 CS004_TC298TP, MG1 CS008_SPC5777, MG1CS008_TC298TP
6. CONTINENTAL: SIMOS8.3x, SIMOS8.4x, SIMOS8.5x, SIMOS8.6X

BMW
1. CONTINENTAL: MSD80, MSV80, MSD81, MSD85, MSD87, MSV90
2. BOSCH: MD1CP002_SPC5777, MG1 CS003_SPC5777 (B48, B58), MG1 CS201 _TC298TP (B38, B48, B58), MD1CS001_TC298TP, MG1 CS024_TC298TP(B48, B58), MD1CP032_TC299
3. BOSCH: EDC1 7CP09_Fxx_TC1 796, EDC1 7C50_Exx, EDC1 7CP45_Exx, EDC17C06, EDC17C56
4. BOSCH: MEI 7.2.1
5. BOSCH: MEVD1 7.2.3, MEVD1 7.2_Fxx, MEVD1 7.2.4_Fxx(N20), MEVD1 7.2.6_Fxx, MEVD17.2.9_Exx, MEVD17.2.G, MEVD17.2.G (N55), MEVD17.2.H, MEVD1 7.2.6_Fxx, MEVD17.2.P_Fxx, MEVD17.2.K
6. OSCH: MEV17.2_TC1766, MEV1 7.2_TC1 767, MEV17.2_TC1796, MEV1 7.2.1

Mercedes Benz
1. CONTINENTAL: SIM271 DE, SIM271 KE
2. BOSCH: MEI 7.7, MED17.7.3.1, MED1 7.7.1, MED1 7.7.2, MED1 7.7.3, ME1 7.7.8
3. BOSCH: EDC17CP10, EDC17CP57, EDC17CP46, EDC17CP60
4. BOSCH: CRD3x.x_TC1793, CRD3x.x_TC1 797
5. BOSCH: MD1CP001-SPC5777, MG1 CP002_SPC5777, MD1CS006_TC298TP

GM
1. DELPHI: DCM3.7AP
2. DELCO: E37, E38, E39, E39A, E67, E78, E80, E82, E83, E83A, E83B, E84, E87, E92, E98

Nissan
1. DENSO: 23740-3Nxxx_Gen1 SH72531
2. BOSCH:EDC17C84

Hyundai/Kia
1. BOSCH: ME17.9.11, MEI 7.9.11.1
2. BOSCH:EDC17C53
3. BOSCH: MEG17.9.1 2_ECU

Ford
1. BOSCH: EDC17C70, EDC17CP65
2. BOSCH: ME17.0.3, ME17.8.5

Volvo
BOSCH: EDC17CP48, EDC1 7CP48_ver2, EDC1 7CP22

Other
1. AM_ME1 7.8.5,DOO_ME17.8.5
2. BOSCH: MG1CA007, MEI 7.8.8_TC1728, ME1 7.8.8_TC1 728_HW2, ME17.8.8_TC1 767, ME1 7.8.31, ME1 7.9.52
3. BOSCH: EDC1 7C55, EDC1 7C1 0, EDC1 7C1 0_TC1 796, EDC1 7C1 0_TC1 797, EDC1 7CP42, EDC1 7CP14, EDC17c81
4. BOSCH: MEVD1 7.8.4
5. BOSCH: MED17.8.1 0_TC1 728, MED17.8.1 0_TC1 728_Hw2, MED1 7.8.1 0_TC1 767
6. BOSCH: MD1 CS01 8, MG1 CS026_SPC58, MG1 CS032, MG1CS163, MD1CS01 2, MD1CS089, MD1CS069, MD1CS005_TC298TP, MG1 CS01 5_TC277TP, MG1 CS01 6_TC275TP, MG1CS01 7_TC277TP, MG1CS01 8, MG1CS019, MG1CS088
7. CONTINENTAL: SID208, SID209, SID211, SID807EVO ⑧ DENSO: KH, ZY, SH70xx_275xxx-xxx

ECU (Boot Mode):

VW series
1. SIMOS PCR2.1, EDC17c64
2. BOSCH: MED17.1.6, MED17.1.21, MED1 7.1.61, MED17.5, MED1 7.5.1, MED1 7.5.2, MED17.5.5_TC1 766, MED1 7.5.5_TC1 767, MED1 7.5.20, MED1 7.5.21, MED1 7.5.25
3. BOSCH: EDC1 7C46, EDC1 7C74, EDC1 7CP24, EDC1 7CP44, EDC1 7CP54, EDC17U01, EDC17U05
4. BOSCH: SIMOS8.3X, SIMOS8.4x, SIMOS8.5x, SIMOS8.6X

BMW series
1. CONTINENTAL: MSD80, MSV80, MSD81, MSD85, MSD87, MSV90
2. BOSCH: EDC1 7CP09_Fxx_TC1 796, EDC1 7C50_Exx, EDC17CP45_Exx, EDC17C06, EDC17C56
3. BOSCH: ME1 7.2.1
4. BOSCH: MEVD1 7.2.3.MEVD17.2_Fxx, MEVD1 7.2.4_Fxx(N20), MEVD1 7.2.6_Fxx, MEVD1 7.2.9_Exx, MEVD17.2.G, MEVD17.2.G(N55), MEVD17.2.H, MEVD1 7.2.6_Fxx, MEVD1 7.2.P_Fxx, MEVD1 7.2.K
5. BOSCH: MEV17.2_TC1766, MEV1 7.2_TC1 767, MEV17.2_TC1796, MEV1 7.2.1

Mercedes Benz series
1. CONTINENTAL: SIM271 DE,SIM271 KE
2. BOSCH: ME17.7, MED17.7.3.1, MED17.7.1, MED1 7.7.2, MED1 7.7.3, ME17.7.8
3. BOSCH: EDC17CP10, EDC17CP57, EDC17CP46, EDC17CP60
4. DELPHI: CRD2.x_MPC556x

Nissan series
BOSCH: EDC17C84

GM series
1. DELPHI: MT80.MT80.1
2. DELCO: E37, E38, E39, E39A, E67, E78, E80, E82, E83, E83A, E83B, E84, E87, E92, E98

Hyundai/Kia series
1. DELPHI: MT86
2. DELCO: DCM6.2AP

Other
1. CONTINENTAL: SID208, SID209, SID211, SID807EVO, SID310
2. SDI21.1 ,SDI21.2,SDI21.3
3. BOSCH: ME1 7.3.0
4. MARELLI: 8DF, MM10JA

TCU (Bench Mode):

VW
DL382, VL381, DL501 Genl, DL501 Gen2, DQ200Dxx, DQ200-G2, DQ200-G2_PQ, DQ200-MQB, DQ250-MQB, DQ250

Exx/Fxx BMW series
GETRAG DKG 436 Genl, GETRAG DKG 436 Gen2

Mercedes Benz series
VGS-FDCT, VGS2-FCVT, VGS2-FDCT

Ford series
1. ETRAG MPS6GETRAG
2. DPS6, DC4

TCU (Boot Mode)

Ford series
DPS6, DC4

Other
ZF 9HP

Xhorse Multi-Prog Software Display:

Xhorse Multi-Prog Hardware Display:

Product Specifications:

Operating system: Linux
Processor: ZYNQ7020 Dual-core Cortex A9 +FPGA
Memory: 256M* 2 DDR+64M NOR FLASH
Display: 3.5-inch
Input voltage: 15V/4A
Working current: 300mA(14V)
Working temperatures: -20-50℃
Storage temperatures: -30-65℃
External interface: USB/RJ45
Dimensions: 233*150*54mm

Package Includes:

1pc x Multi-PROG
1pc x USB Cable
1pc x Power Adapter (15V 4A)
1pc x 220V Power Cord
1pc x VH13 Interface Adapter Board
1pc x VH20 Interface Adapter Board
1pc x VH23 Interface Adapter Board
1pc x MCU Adapter Multi-PROG Solder Cable
1pc x ECU Adapter Multi-PROG Solder Cable
1pc x MCU DB15 Adapter Cable
43pcs x ECU Cable Plugs
1pc x ECU DB15 Adapter Cable
1pc x Multi-PROG OBD Cable
1pc x USB WIFI Network Card
1pc x Product Manual
1pc x Certificate Of Conformity
