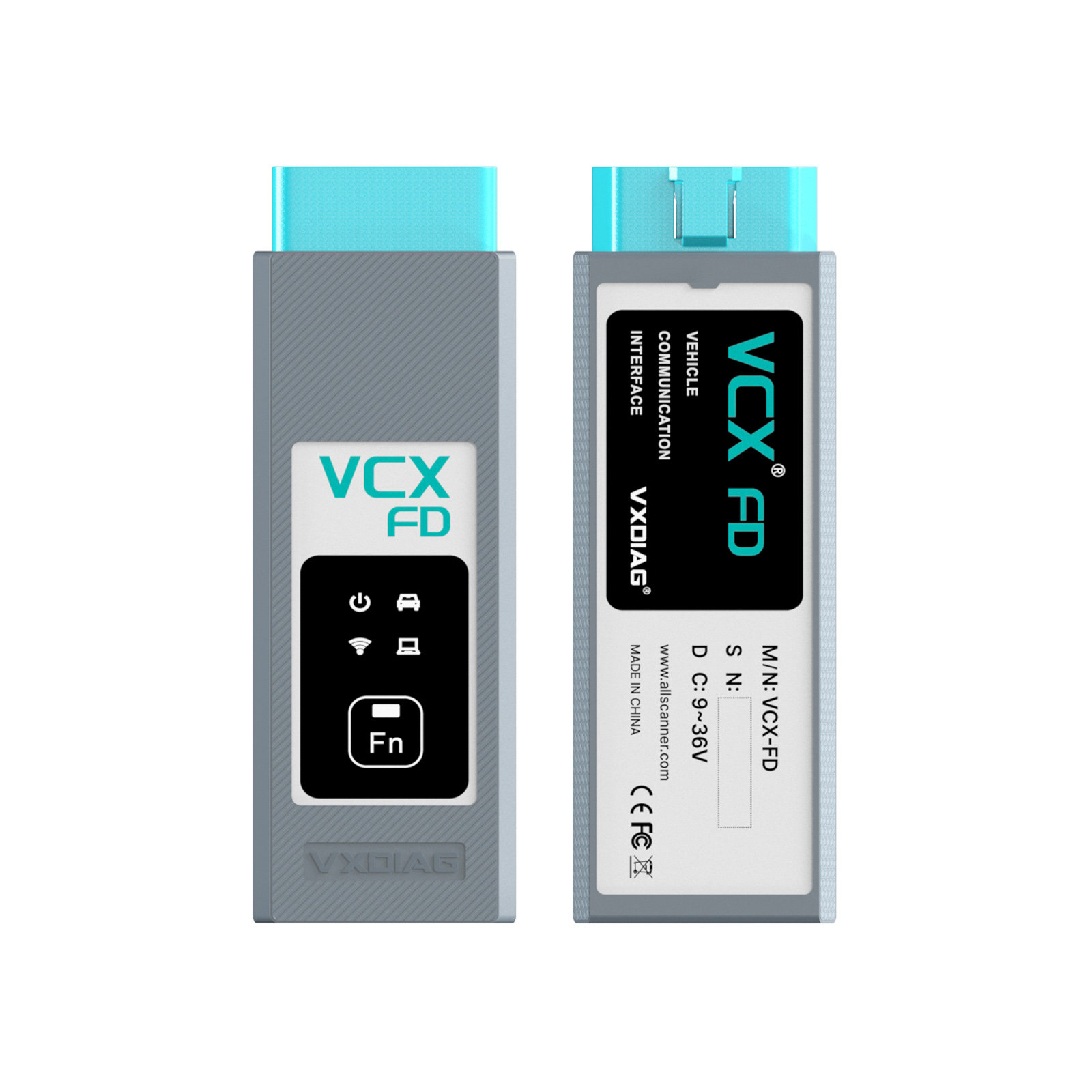

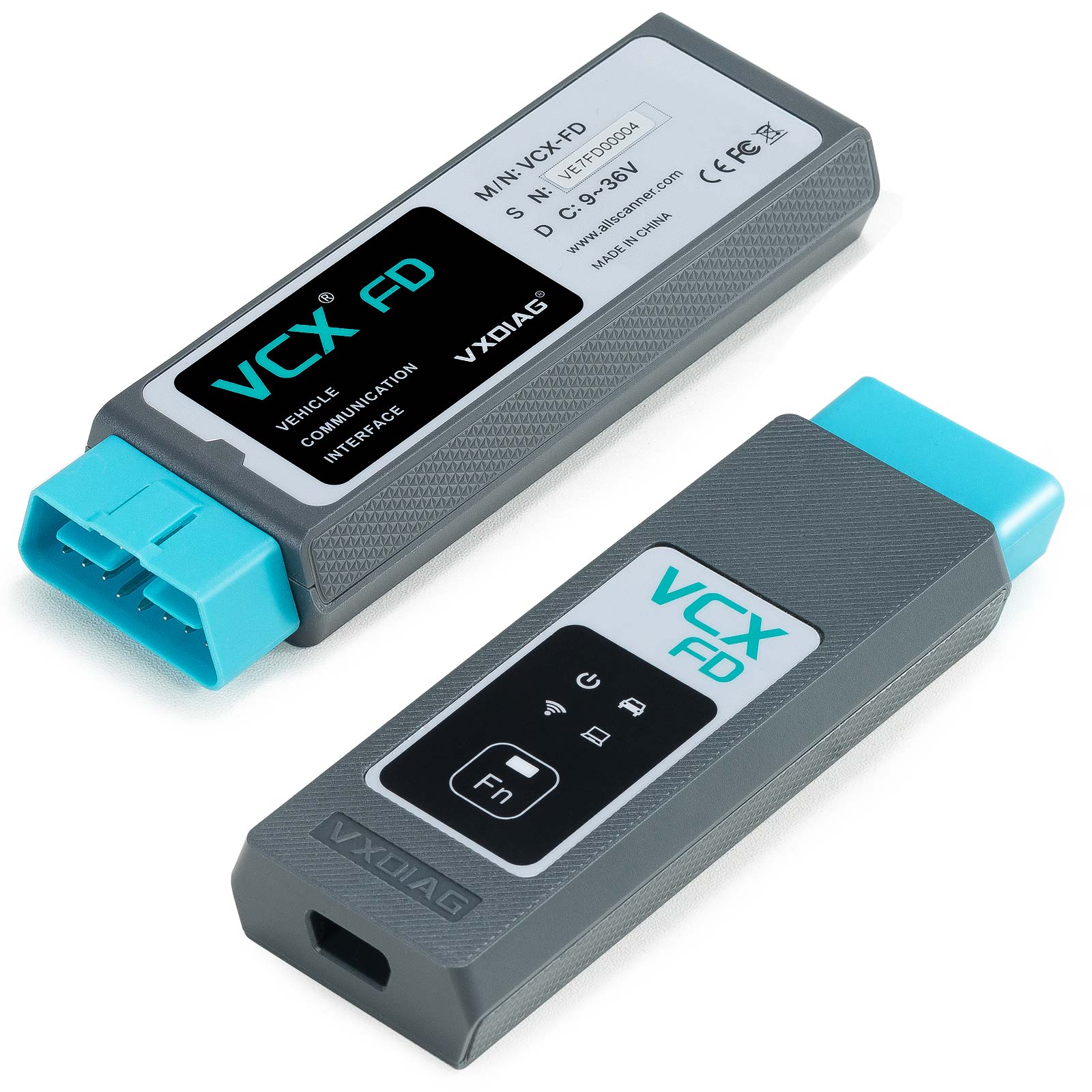

VXDIAG VCX-FD for FM Intelligent Vehicle Diagnostic Interface for Ford/Mazda Diagnostic Tool

VCX-FD intelligent vehicle diagnostic interface represents the next generation of diagnostic technology. The product adopts a newly upgraded dual-core high-speed processor, fully supports multi-channel CAN-FD/DoIP and traditional diagnostic protocols, and is compatible with more original diagnostic software. VCX-FD also supports local and super remote dual-mode diagnostics, providing users with an excellent diagnostic experience.

Product Features:

Dual cores work together to achieve stronger communication performance

The 550MHz ARM protocol processor supports CAN-FD and all traditional vehicle bus protocols.
560MHz MIPS network processor supports DoIP Super Diagnostic Gateway.
Dual-core processor communicates via 100M Ethernet, high bandwidth and low latency
The diagnostic communication speed is several times higher than that of the previous generation product.

Dual operating systems, the software runs more stably

The RTOS real-time operating system ensures multi-task and high-concurrency communication of the vehicle bus protocol.
The OpenWrt network operating system flexibly connects multiple network interfaces and vehicles.

Support a more complete vehicle bus protocol

Integrated OBD smart protocol multiplexer chip, all pins can intelligently switch any protocol.
Supports 3-channel CAN-FD multi-channel concurrent communication, supporting up to 5M Bps high-speed communication.
Supports ISO-13400 standard dual-channel DoIP interface Option 1 and Option 2.

Flexible and easy-to-use connection methods

The host communication interface supports multiple connections such as USB / RJ45 / WLAN, which is flexible and easy to use.
Built-in wireless routing mode, the diagnostic computer can be directly connected to the device wirelessly.
Supports wireless workstation mode, the device can be connected to a wireless LAN, and any computer can connect to the device.
Supports mapping vehicle DoIP Ethernet to WLAN for wireless DoIP diagnostics.

Brand new appearance design

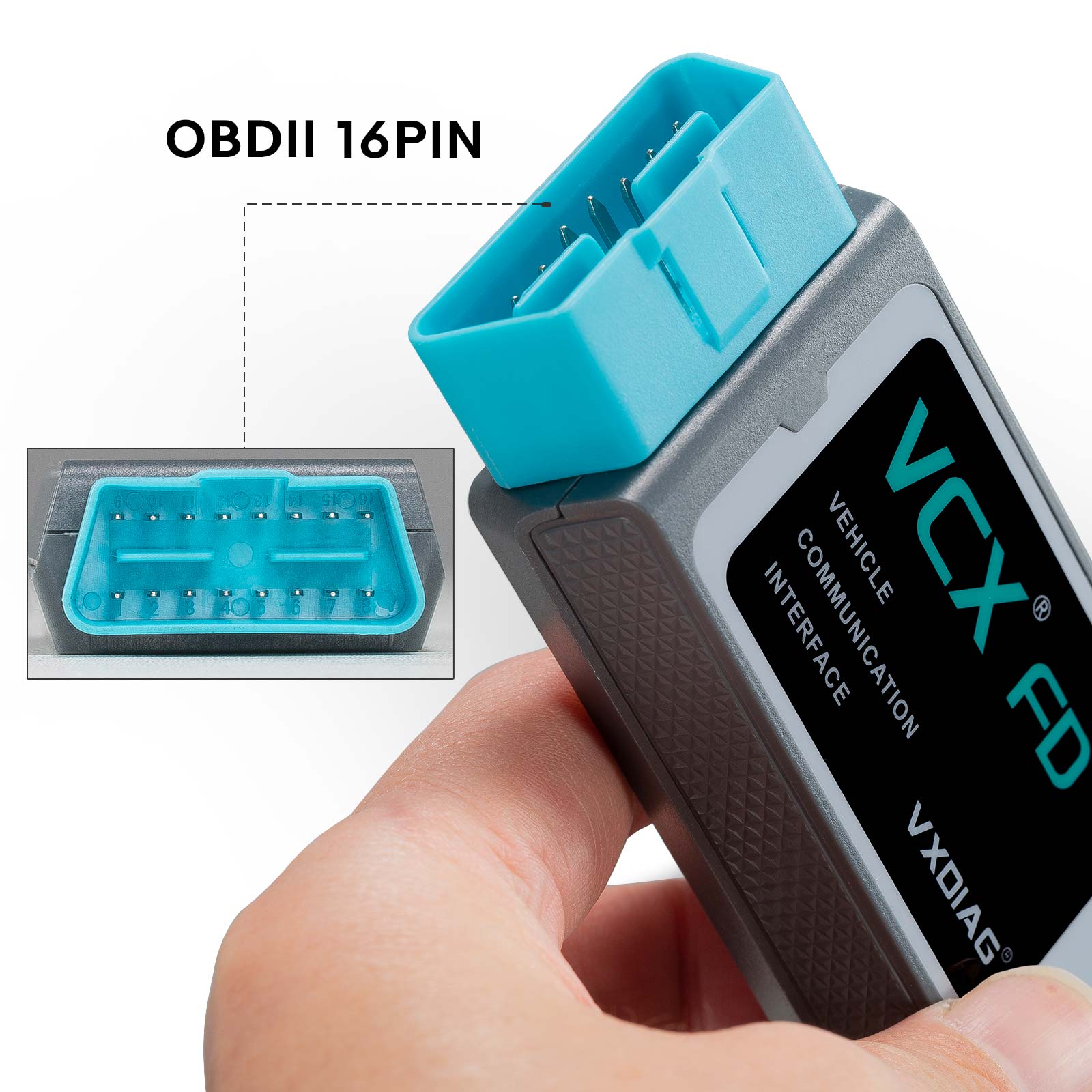

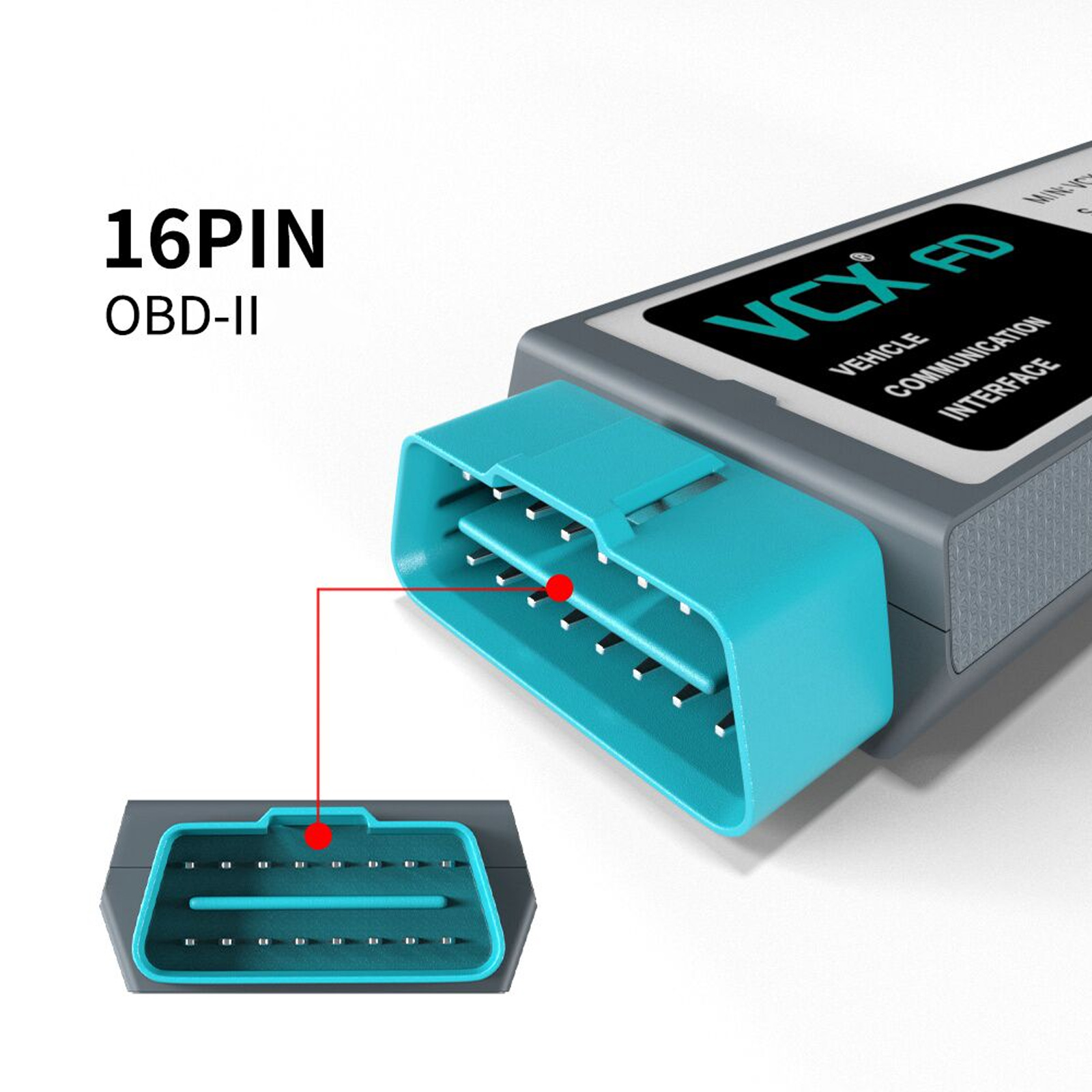

It adopts an all-in-one design with integrated OBD-II interface, making it easy to plug and play.

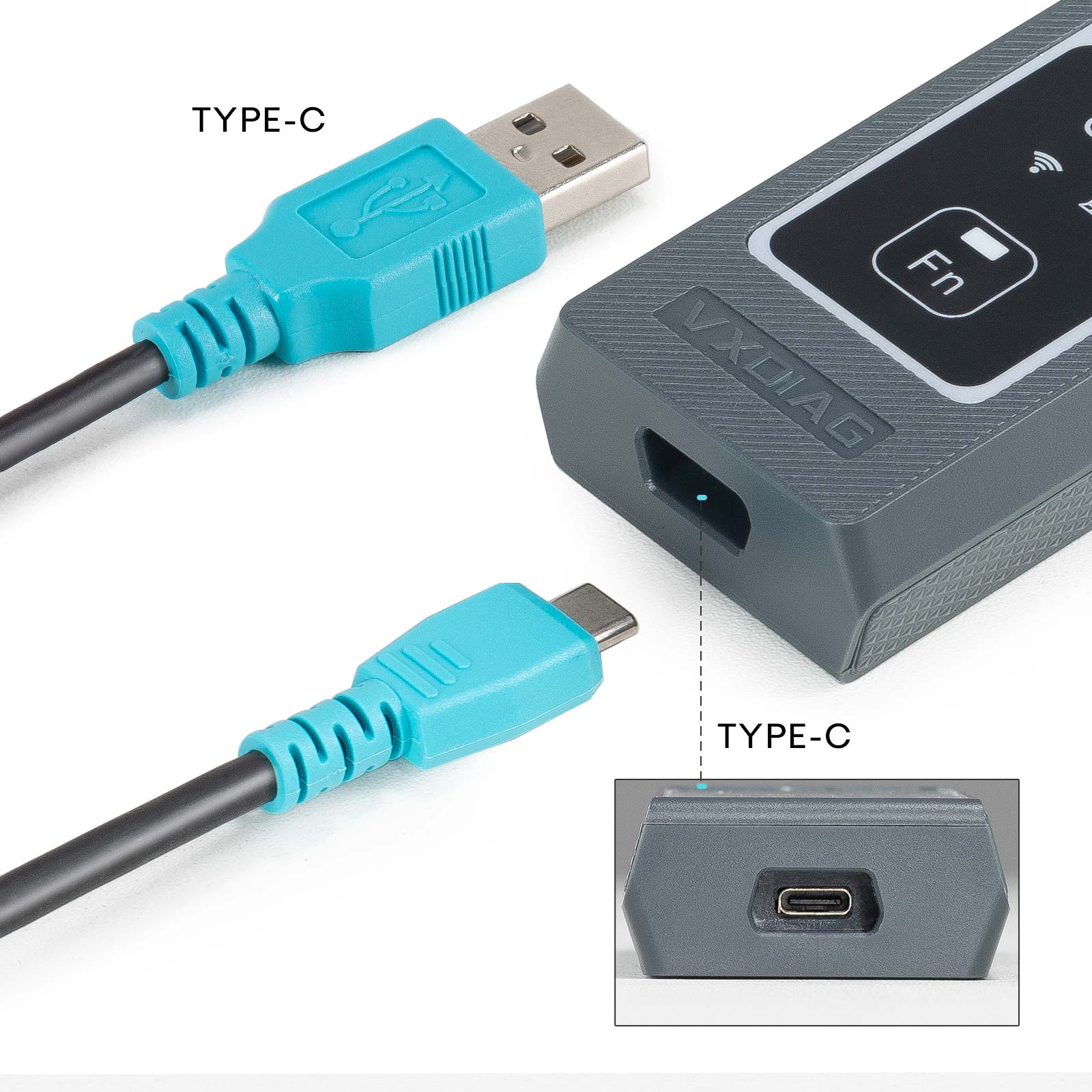

The reinforced Type-C interface prevents shaking and falling off, making the connection more reliable.

More comprehensive original vehicle diagnostics

VCX-FD is currently compatible with 15 original factory diagnostic model brands.
After the hardware update, it fully supports new models and new original factory diagnostic software based on CAN-FD and DoIP.
A variety of advanced diagnostics and programming functions reach factory level, even faster than original devices.
Supports one-click installation, uninstallation and upgrade of original factory supported drivers, easy to use.

Updated international standard API interface

Dual-mode intelligent remote diagnosis

Super remote diagnosis only requires the device to be connected to the Internet to achieve original factory online diagnosis.
Compatible with remote diagnosis, it can support remote diagnosis of a variety of devices with special functions.
The device supports one-click network distribution function and quick access to the remote diagnosis platform.

Product Functions:

Supported original vehicle diagnostic functions:
