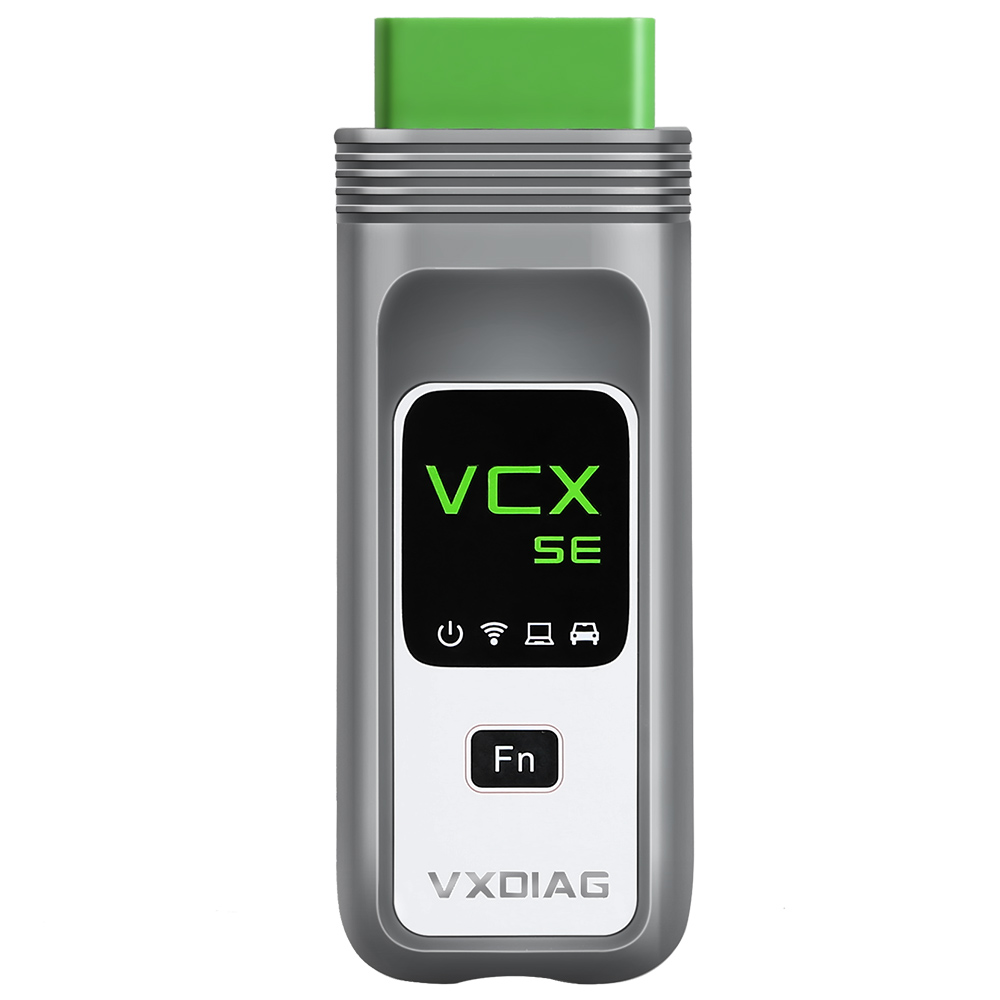

VXDIAG VCX SE for Subaru OBD2 Diagnostic Tool with 2022.1 SSM3 SSM4 Software Support WIFI

Highlights for VCX SE Subaru:

1. Software Version: SSM3 V2022.01, SSM4 V22.6.0, FlashWrite2 V1.3.4
2. Support Multi-languages: English, Japanese, French, German, Spanish, Italian, Russian, Chinese, Polish. (Run SSM3, go to Tool tab- Option – Language, select language desired, and save.)

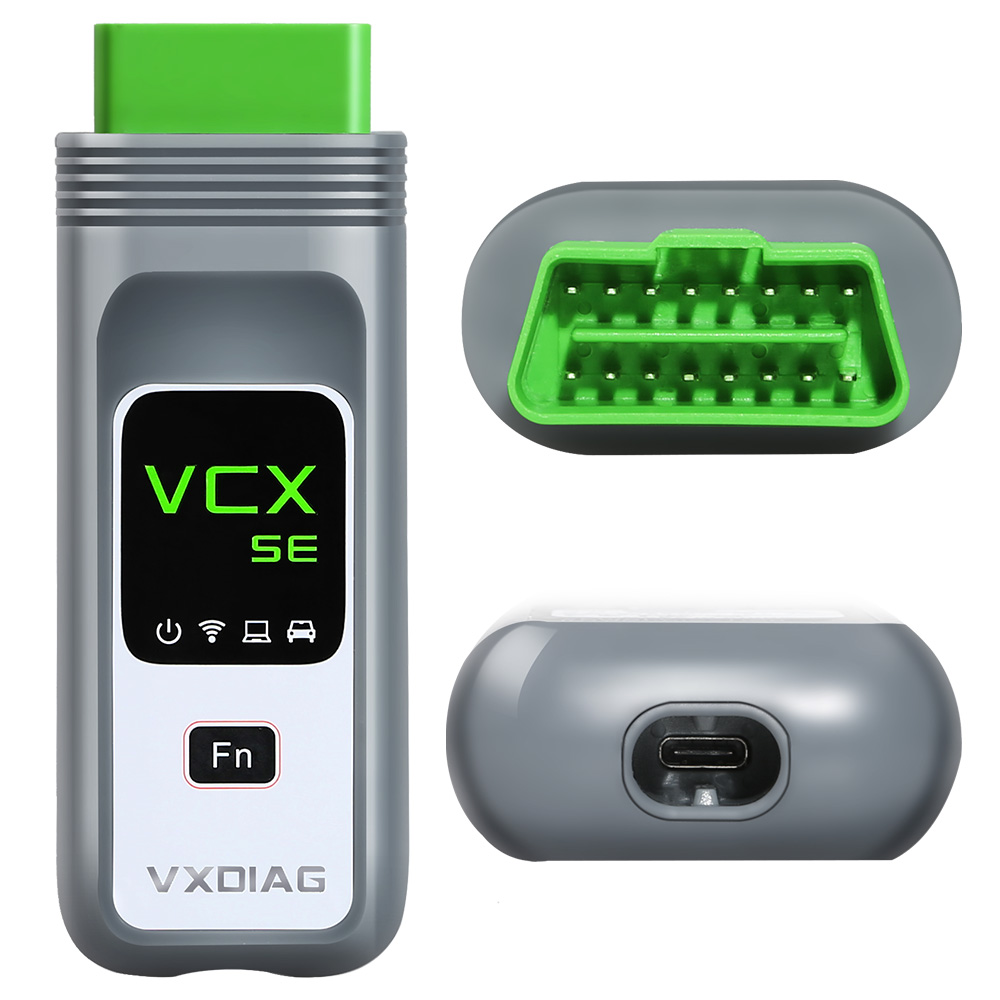

3. Support Type-C USB and WIFI connection
4. Vehicle coverage: 2005-2022
5. Available Systems: Recommend Windows 7/ Windows 10 64bits Professional Edition.
6. Able to add license for more brands
7. Support original functions with online account

Free download V2020.07 SSM3 SSM4 Software

VCX SE Subaru SSM Software Available Functions:

1. All System Diagnosis. Selecting this item displays on a single screen the fault detect status of all control system control modules for which SSMΙΙΙ diagnosis is supported, and memorized diagnostic codes.

2. Each System Check. Selecting this item makes it possible to select a particular system from among the control systems forwhich SSMΙΙΙ diagnosis is supported, and perform fault diagnosis. This item can be used to view input/output data of the system control modules that perform fault diagnosis, memorized diagnostic codes, and other data on the PC display. This menu item is also used after repair work is complete to delete diagnostic codes, to configure control module settings, etc.

3. Saved Data Display. This item can be used to save various data sampled during fault diagnosis operations, and to load data for viewing after work is complete.

4. Immobilizer. This item performs immobilizer registration.

5. Reprogram. This item performs reprogramming of the control module.

6. Read CF application measurement data. This item performs reading stand alone measurement data saved in a CF card to hard disk of your PC.

7. Convert/Save measurement data on driving recorder. Loads data sampled on the driving recorder to the PC from the CF card, and converts and saves that data.

8. Oscilloscope. After attaching the optional pulse/analog cartridge to SDI, connect the pulse/analog box to the SDI and using pulse/analog probe to perform analog sampling. But we do not provide pulse/analog cartridge.

9. Program Subaru smart key (Require online account)

VCX SE is able to access all systems for diagnosing, repairing, programming, instance: read and clear code, read dynamic data stream, action test, activate components, replace and program module, retrofit and modify the car's configuration, replace and upgrade ECU, do personalized settings, etc.

Support Remote Diagnostic function:

Free Donet License--Insert the device to your car and you do the diagnostic in your home or let the engineer to help you do the diagnostic in another place.

Package List:

1pc x VXDIAG VCX SE Subaru
1pc x USB Cable
1pc x Carry Case
