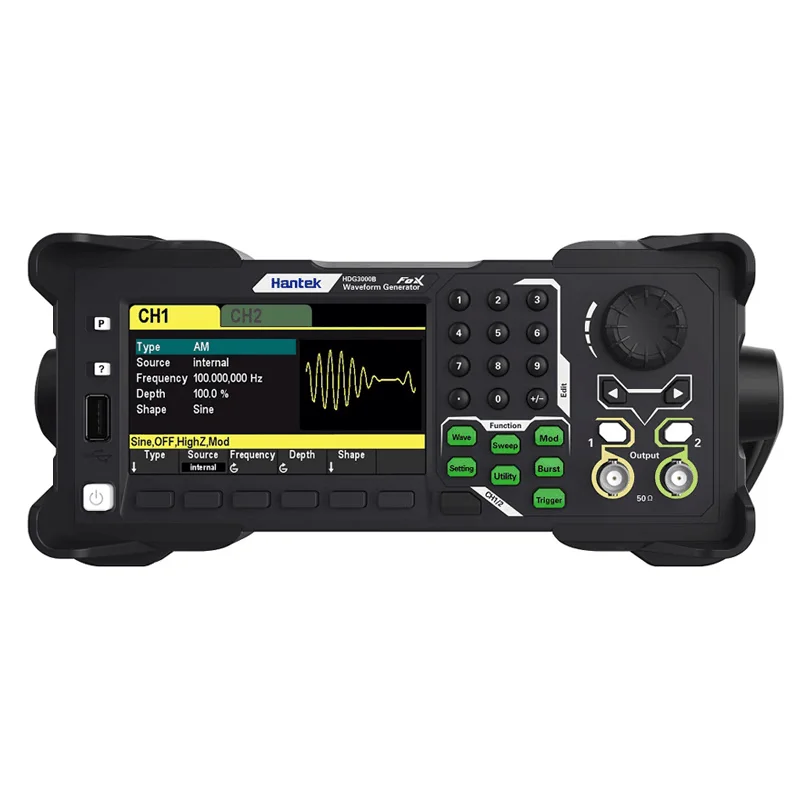

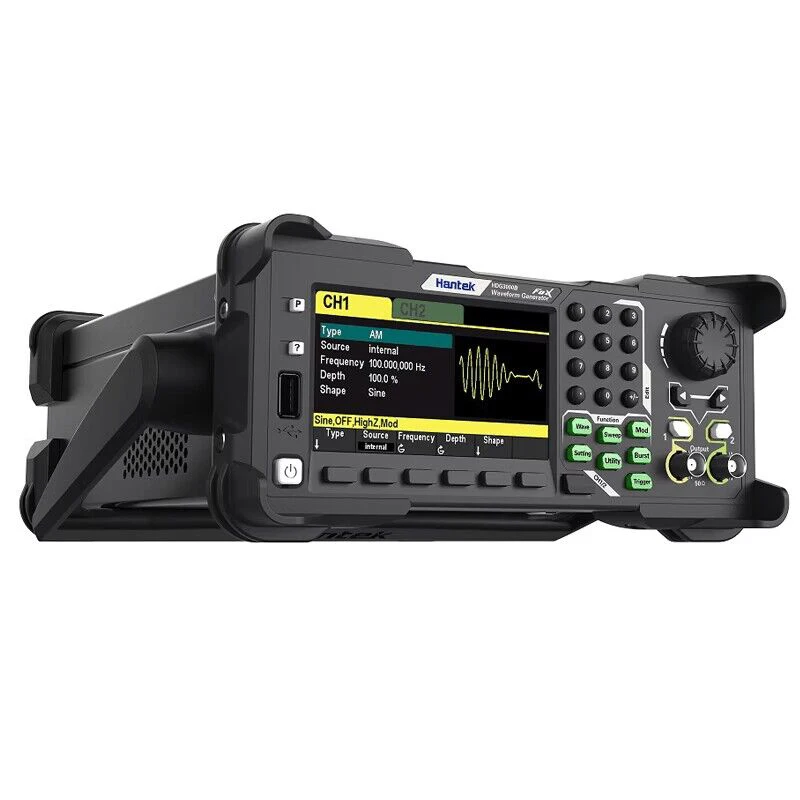

Hantek HDG3012B/HDG3022B/HDG3042B/HDG3062B/HDG3082B/HDG3102B Dual Channel Desktop Signal Source Signal Generator

1.HDG3000B series integrates 5 functions of arbitrary waveform generator,pulse generator,80MHz frequency meter,function generator and harmonic generator.

2.UsingDDS direct digital frequency synthesis technology.

3.Up to 300MSa/s sampling rate,16bits vertical resolution to ensure the accuracy of waveform amplitude.

4.Equivalent performance dual-channel as standard,equivalent to two independent signal sources.

5.The storage depth of up to 2M ensures the creation of more waveform cycles and the creation of better waveform details.

6.4.3-inch color TFT LCD display,the user interface is clear and intuitive.

7.Rich modulation functions,support AM,DSB-AM,FM,PM,ASK,FSK,PSK,BPSK,QPSK,3FSK,4FSK,OSK and PWM,etc.

8.Exponential rise,exponential fall,ECG signal,Gaussian,Haversine,Lorentz,DTMF,DC voltage,etc.A total of more than 160 kinds of arbitrary signals.

Features:

• Frequency range: 1μHz ~ 100MHz/80MHz/60MHz/40MHz/25MHz/15MHz.

• Up to 300MSa/s sampling rate, no distortion of analog waveforms.

• 16-bit vertical resolution ensures the accuracy of waveform amplitude.

• Equip with dual channels with equal performance, equivalent to two independent signal sources.

• The storage depth of up to 2M ensures the creation of more waveform cycles and better waveform details.

• A 4.3-inch color TFT LCD screen, a clear and intuitive user interface.

• Rich modulation function, support for AM, DSB - AM, FM, PM, ASK, FSK and PSK, BPSK, QPSK, 3 FSK, 4 FSK, OSK and PWM, etc.

• 1μHz frequency resolution: When the impedance is high, the amplitude range is 2mV~20Vpp. When the impedance is 50Ω, the amplitude range is 1mV~10Vpp.

• Built-in 80MHz high-resolution frequency meter.

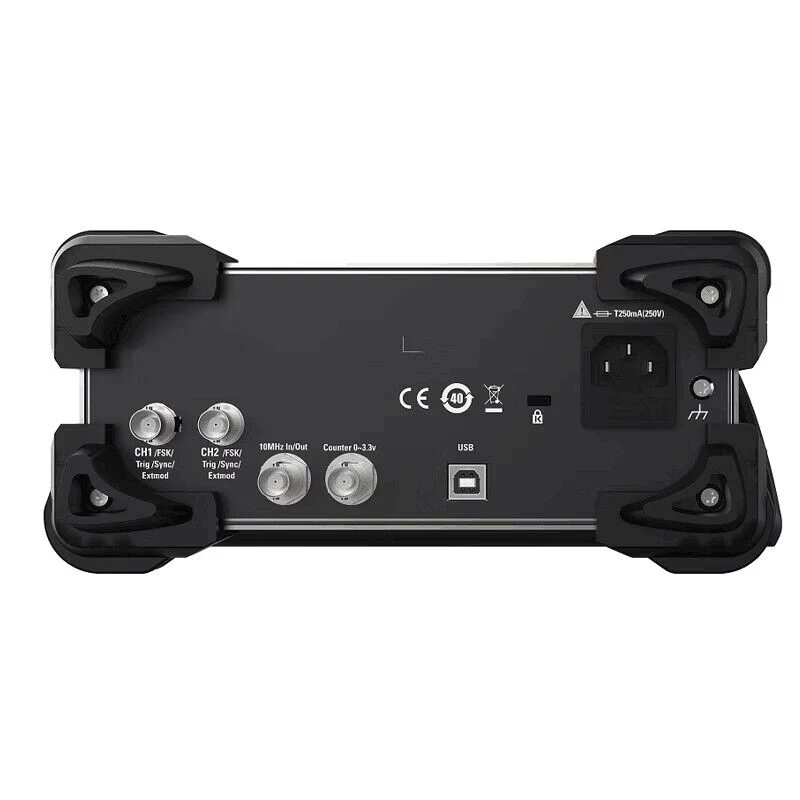

• Standard communication interface: front USB 2.0 high speed (USB Host) and rear USB 2.0 full speed (USB Device).

• More than 160 kinds of arbitrary signals, such as exponential rise, exponential decline, ECG signal, Gaussian, semi-positive vector, Lorentz, dual-tone multi-frequency, DC voltage, etc.

• Built-in 16 harmonic generator function, output with specified frequency, amplitude and phase of harmonics, usually used in harmonic detection equipment or harmonic filter equipment test.

Comparison of Specifications:

Packing List:
