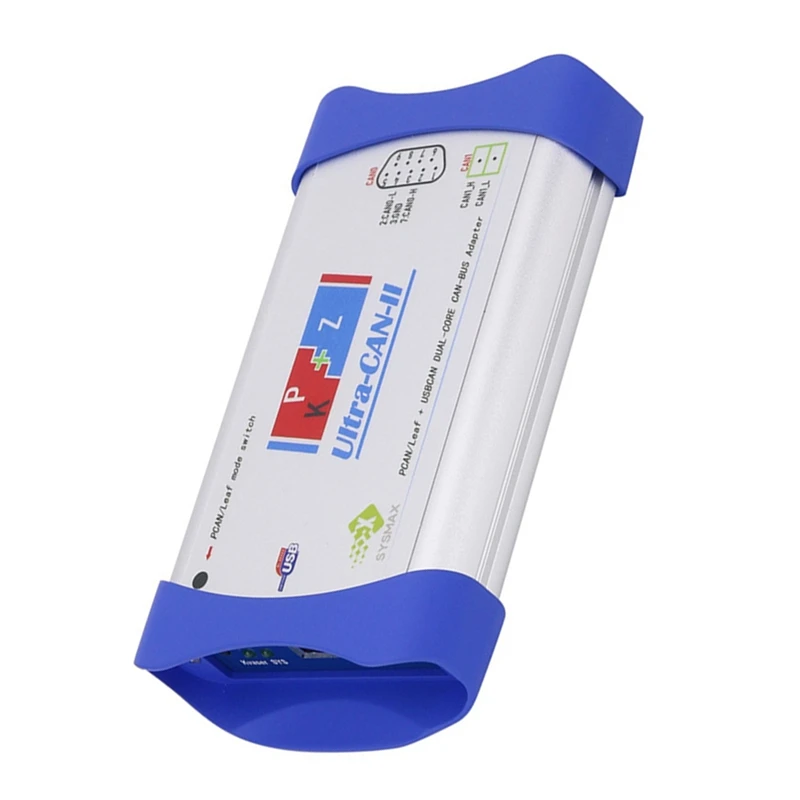

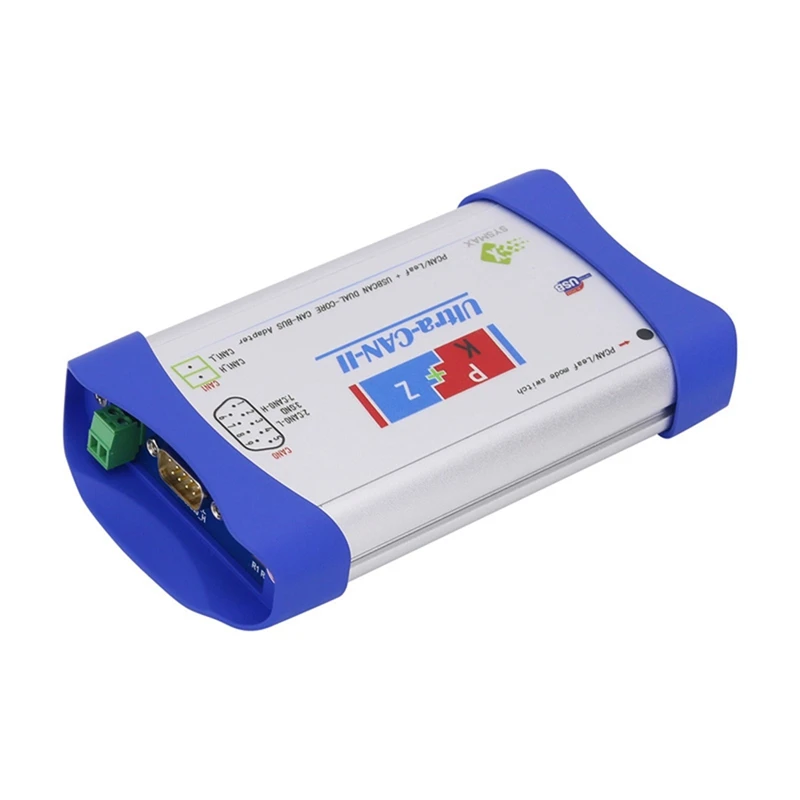

Ultra-CAN-II CAN Analyzer CAN Box New Energy Tool Supports For USBCAN + PCAN/Kvaser + Dual Mode Durable

Product Features:

Ultra-CAN-II is a USB-to-CAN device with dual core and three functions. It has built-in cores for PCAN/Kvaser and ZLG USB-CAN-I. At the same time, it supports drivers for PCAN/Kvaser and ZLG USB-CAN. It can not only directly use various official debugging software for PCAN/Kvaser and ZLG USB-CAN, but also use third-party applications based on secondary development for PCAN/Kvaser or ZLG USB-CAN.

USB-CAN Kernel Features:

Fully compatible with ZLG USBCAN-II (I+/IIA); Supports CAN0+CAN1 channels; Compatible with CAN 2.0A (11-bit ID) and 2.0B (29-bit ID); Baud rate range: 40K~1M
Kernel Features for PCAN/Kvaser: Switch modes (for PCAN/Kvaser) with one button, no need to unplug a USB cable; Fully compatible with PCAN IPEH-002022 and for Kvaser leaf light V2; Compatible with CAN 2.0A (11-bit ID) and 2.0B (29-bit ID); Baud rate range: 40K~1M; Timestamp resolution is approximately 42μs

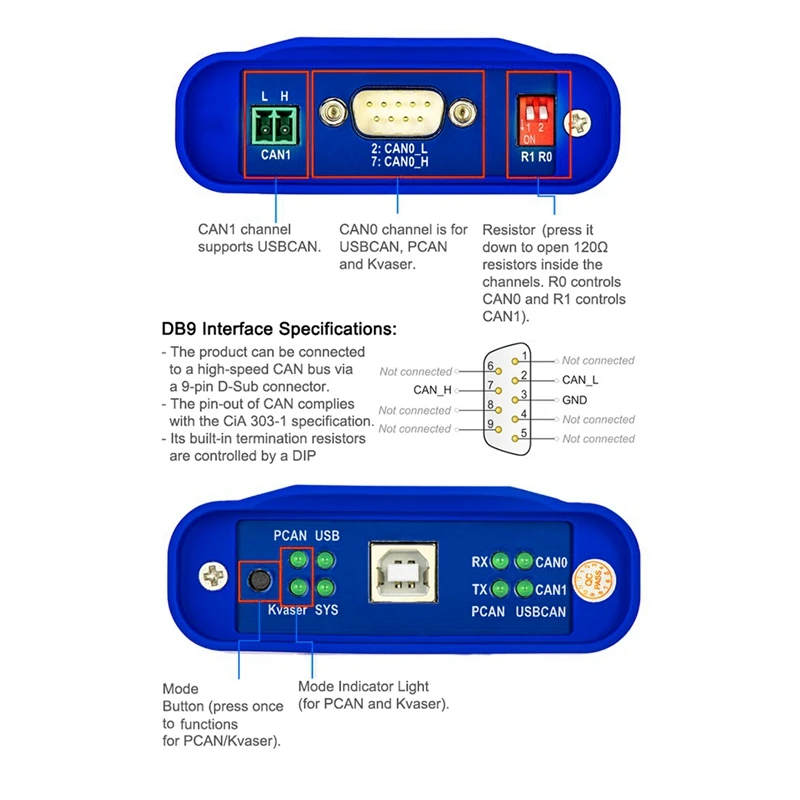

Dual-channel Features:

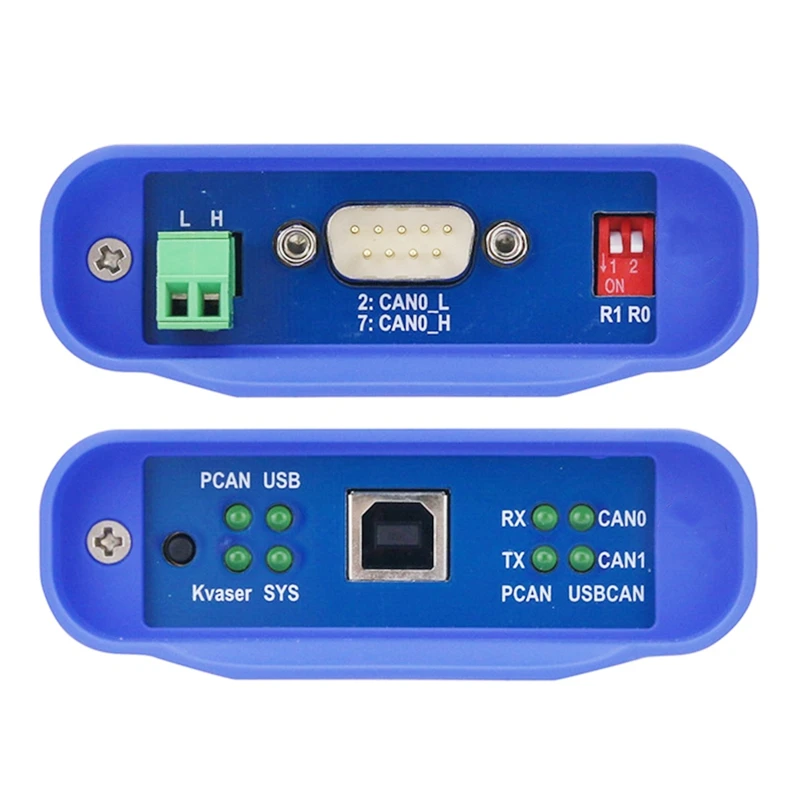

CAN0 is the main channel, DB9 interface, supporting for USBCAN+PCAN/Kvaser; You can switch modes (for PCAN/Kvaser) by pressing a button for CAN0 channel; CAN1 is the secondary channel, which is the second channel of USBCAN-II; the CAN1 channel only supports USBCAN functionality.

Technical Specifications:

Two-way CAN bus interface, compatible with CAN 2.0A (11-bit ID) and 2.0B (29-bit ID)
Support USB (full-speed mode, compatible with USB1.1, USB2.0 and USB3.0)
Support high-speed CAN connection (ISO11898-2)
CAN bus connection via 9-pin D-Sub interface (complies with CiA 303-1)
CAN galvanically isolated up to 1500V

Dual Core and Triple Functions:

* Device Manager recognizes it as devices for PCAN-USB/Kvaser and ZLG-USB CAN

* The core of the CAN0 channel can switch between modes (for PCAN-USB and Kvaser) by pressing a button

* The CAN1 channel is the second channel of the ZLG-USBCAN

* Two cores can communicate simultaneously with CAN, or only one of the cores can be enabled

* Dual core can be used by software at the same time, e.g. PCAN-View and CANtest software can be opened at the same time to communicate

* Inside the device, two cores can communicate with CAN, which is convenient for sending and receiving test and bus simulation

* Dual core can work simultaneously. No frame loss at maximum 1M baud rate and up to 90% load rate

* Material: plastic
* Colour: white+blue

Package Contents:

1 x Ultra-CAN-II
1 x Quality USB Cable
1 x DB9 to CAN Cable
1 x DB9 Universal Adapter(Some accessories are sent randomly, , don't accept the specified. Will not affect the use of the product)
