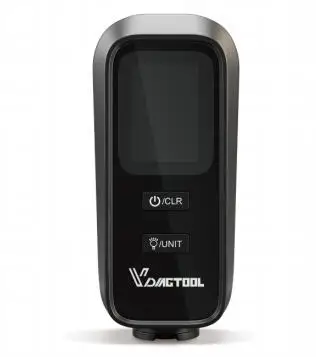

VDIAGTOOL VC100 Digital Coating Thickness Gauge LCD Backlight Car Paint Tester FE & NFE Auto Measuring Meter Automatic Power Off

[Measuring the Thickness of Vehicles' and Other Coating + Used for Car Coating Damage Assessment/Car Accident Detection]: This portable coating thickness gauge can measure the thickness of non-metallic coating(such as paint, film, etc.) on metal substrate quickly, nondestructively and accurately. It is mainly used to measure the thickness of the vehicle's surface paint and other coating.

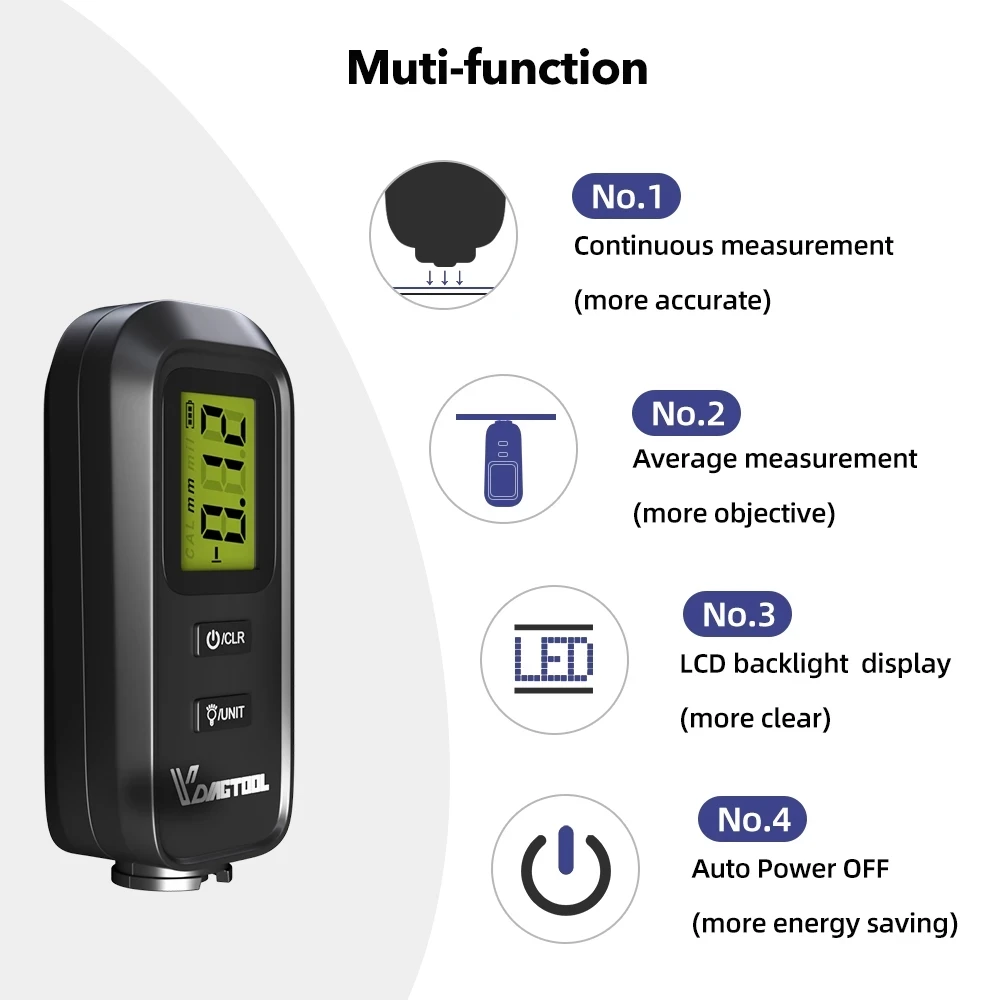

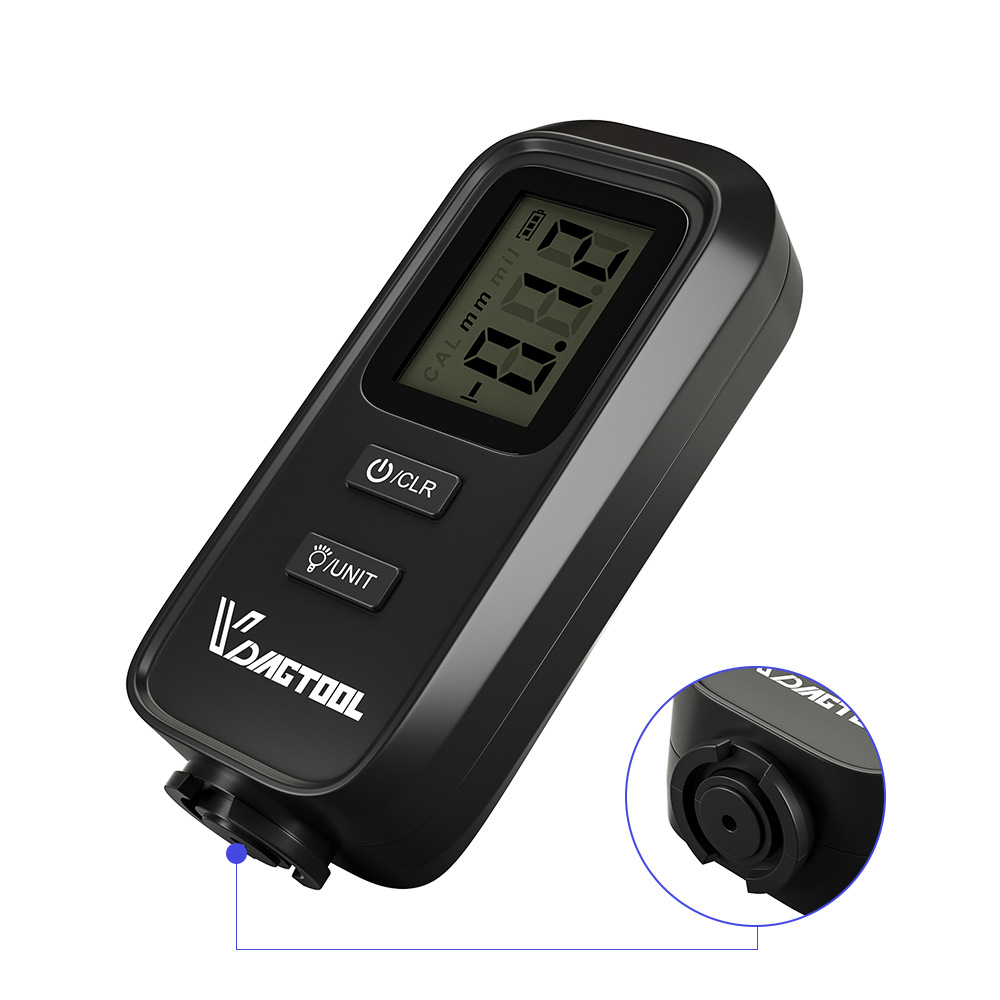

[HD Backlight Mode + 2 Units Conversion + Vertical 90° Test + Highly Sensitive Probe]: ▶▶▶ With digital LCD backlight display, this car paint thickness meter can read data clearly in night or dark environment. ▶▶▶ The measurement unit can be switched between mm and mil to facilitate different measurement requirements. ▶▶▶ When measuring the thickness of the paint, the tester must be perpendicular to the test surface at 90°. ▶▶▶ High sensitivity probe makes measurement quickly and accurately.

[Portable and Easy to Use]: Outline dimension is 1.5*3.43*0.87 inches, weight is 0.14 lb, mini size and lightweight make it easy to carry.

[Working Principle]: This car paint thickness tester uses the Magnetic Induction Measurement Principle. The thickness of the coating is measured by the magnitude of the magnetic flux flowing, from the probe through the non-ferromagnetic coating into the ferromagnetic substrate.

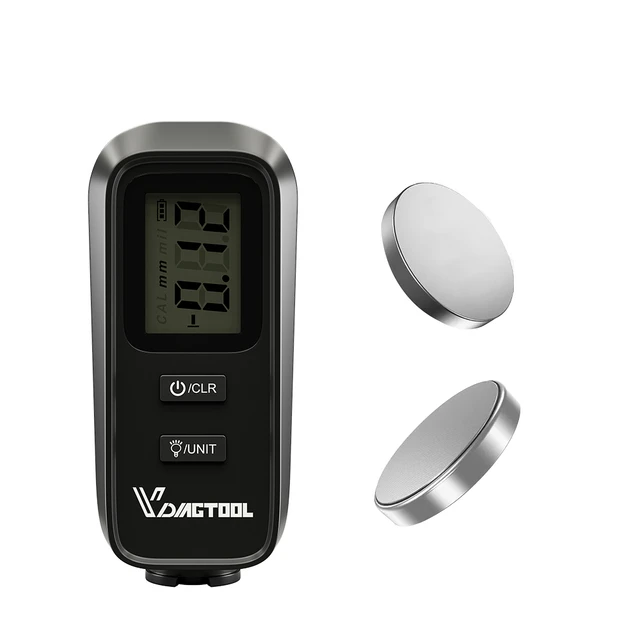

[Please Kindly Note]: This car paint depth gauge DOESN'T include the button batteries (CR2032*2). If you need it with battery, pls choose the "with battery" option for purchasing.

Product Comparison Between VC-100, VC-200 and VC-300

VDIAGTOOL Thickness Gauge
Model Number	VC-100	VC-200	VC-300
Measurement range	0~1.80mm/71.0mil	0-1300μm/51mil	0-1300μm/51mil
Resolution	0.05mm/2mil	(0.1μm(<100μm),1μm(≥100μm)) /0.1mil / 0.001mm	(0.1μm(<100μm),1μm(≥100μm)) /0.1mil / 0.001mm
Measurement error	≤150um, +0.1mm >150μm, +(3%H+ 0.02mm)	≤150μm, +5μm >150μm, +(3%H+ 1μm)	≤150μm, +5μm >150μm, +(3%H+ 1μm)
Measurement Units	mm/mil	mm/mil	mm/mil
Auto FE & NFE	YES	YES	YES
Back light	YES	YES	YES
Auto shut-down	YES	YES	YES
Screen	NO	180°rotation	360°rotation
Power	Two 3V CR2032 batteries	1000mAh built-in Lithium battery USB charging	1000mAh built-in Lithium battery USB charging
Size	38.0×87.0×22.0mm	124.7 x 52.9 x 26.5mm	124.7x52.9x26.5mm
Weight	63.98g(without batteries)	128.8g(including battery)	119.12g(including battery)
Other function	NO	NO	HD LCD display
	NO	NO	Voice broadcast
	NO	NO	Histogram analysis
	NO	NO	Data storage Max.1500 pens

Car Paint Tester Operation Instructions

👉 Measurement preparation

Open battery cover and load two CR2032 button batteries(Not Includes); Pay attention to positive and negative pole.

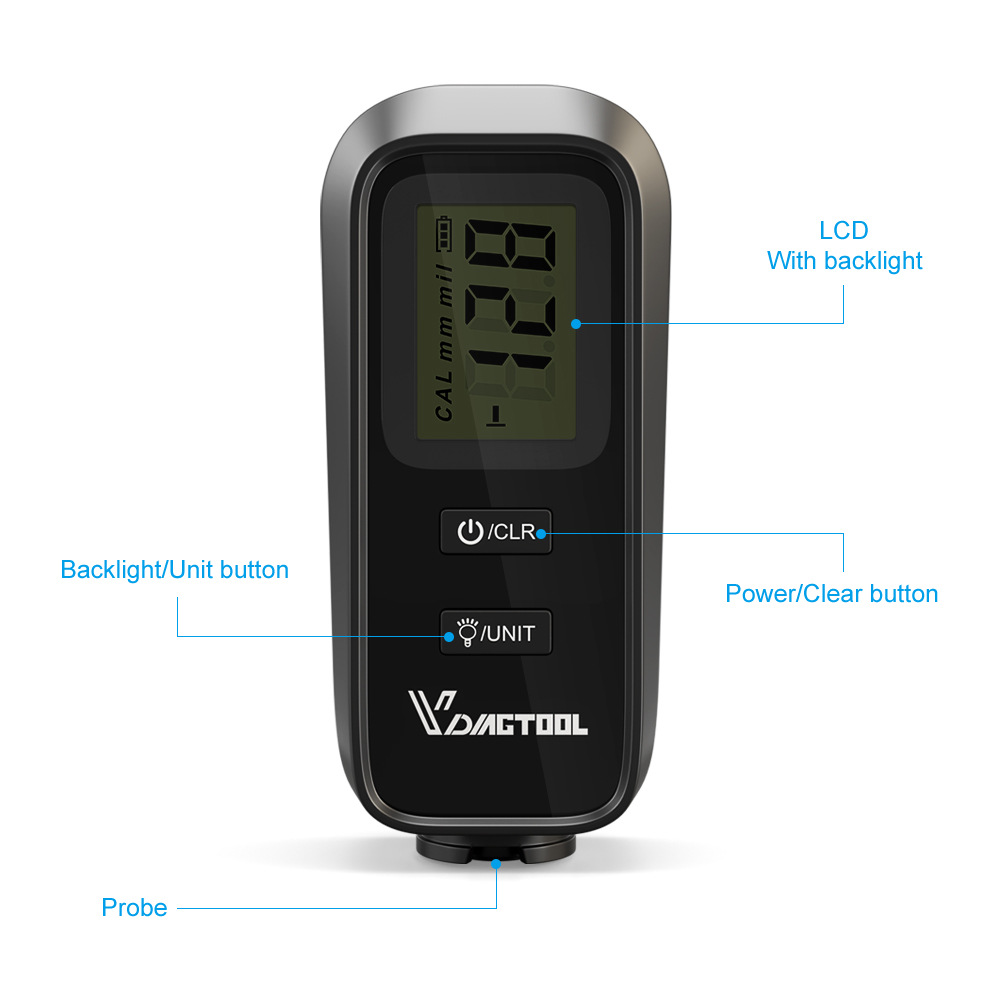

👉 Turn on/off

Leave the instrument hang in the air and press"CLR"button to turn it on,LCD full screen display,which means it enters the measurement state.Then long press"CLR"button to turn it off.

⚠️Note: Keep it away from the substrate when starting up.

👉 Measurement

Press the probe onto the coated metal substrate lightly,ensure that the instrument should be perpendicular to the surface of the object that being measured.

⚠️Note: When the probe was pressed on the substrate,the LCD will display"---",then you must wait unit the measurement value displayed the LCD,then remove it from the substrate.If removing before a value is displayed,it will display the last measured value.

👉 Unit selection

After start-up,short press"UNIT"button to select measurement unit mm or mil.

👉 LCD backlight

After start-up,long press"UNIT"button to turn on/off the backlight.

👉 Clear screen data

After start-up,press"CLR"button to clear the data displayed on LCD screen.

👉 Power off automatically

The Car Paint Tester will power off automatically if two minutes no operation after start-up.And it will power off automatically as well after five minutes start-up,even when you are operating it.

Product Specifications:

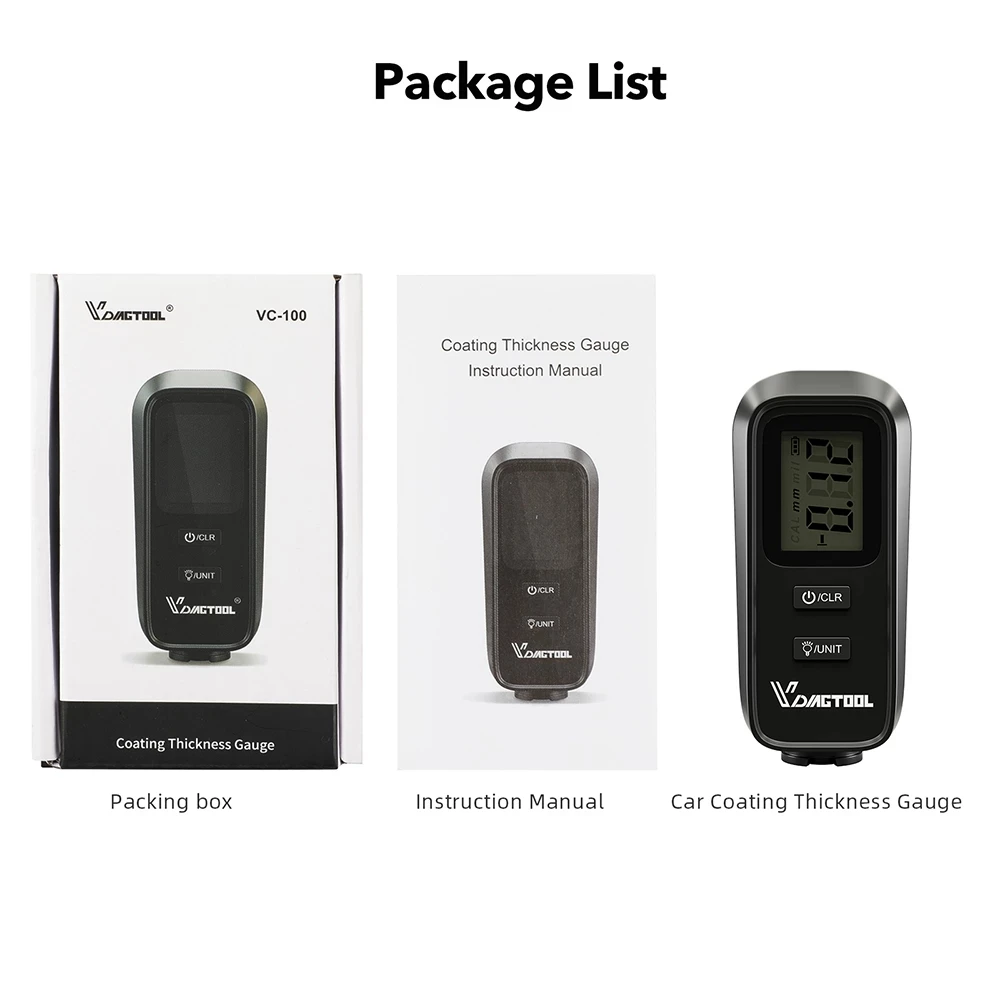

Packing list

1 * VC-100 thickness gauge
1 * user manual

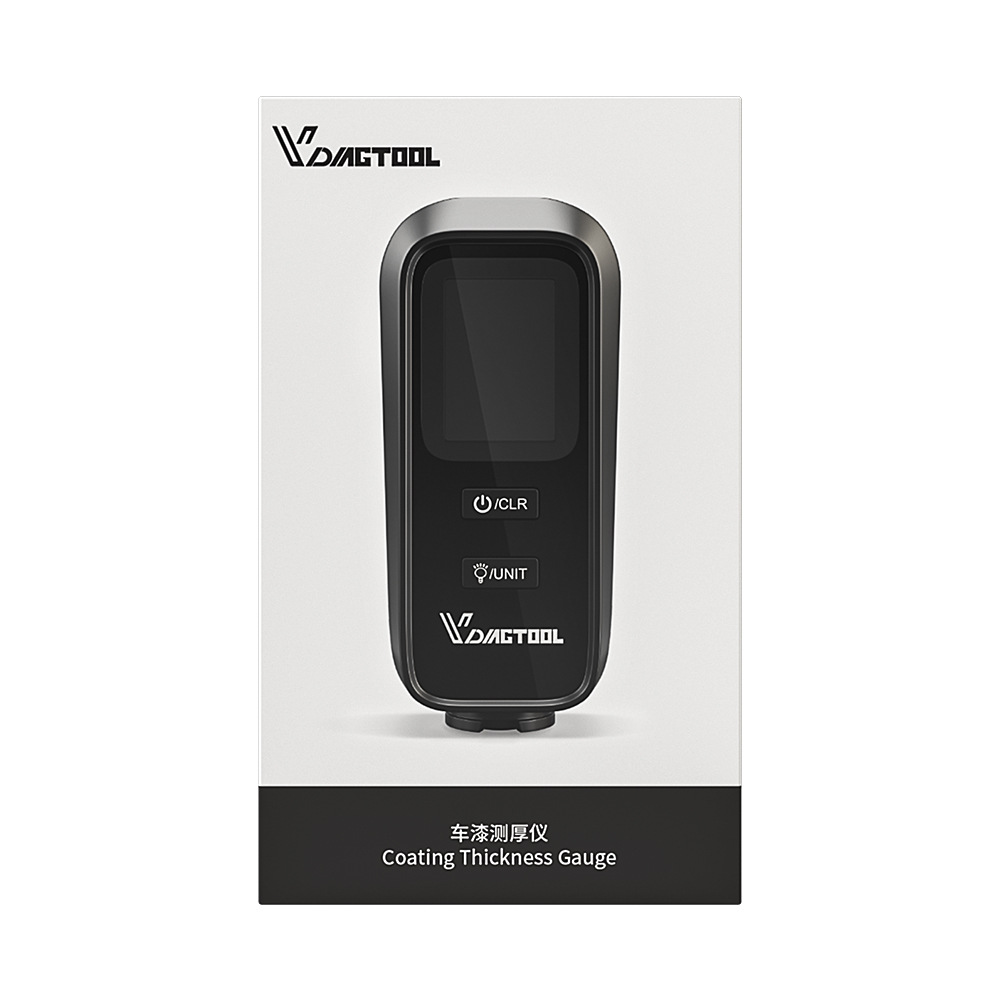

1 * packing box
