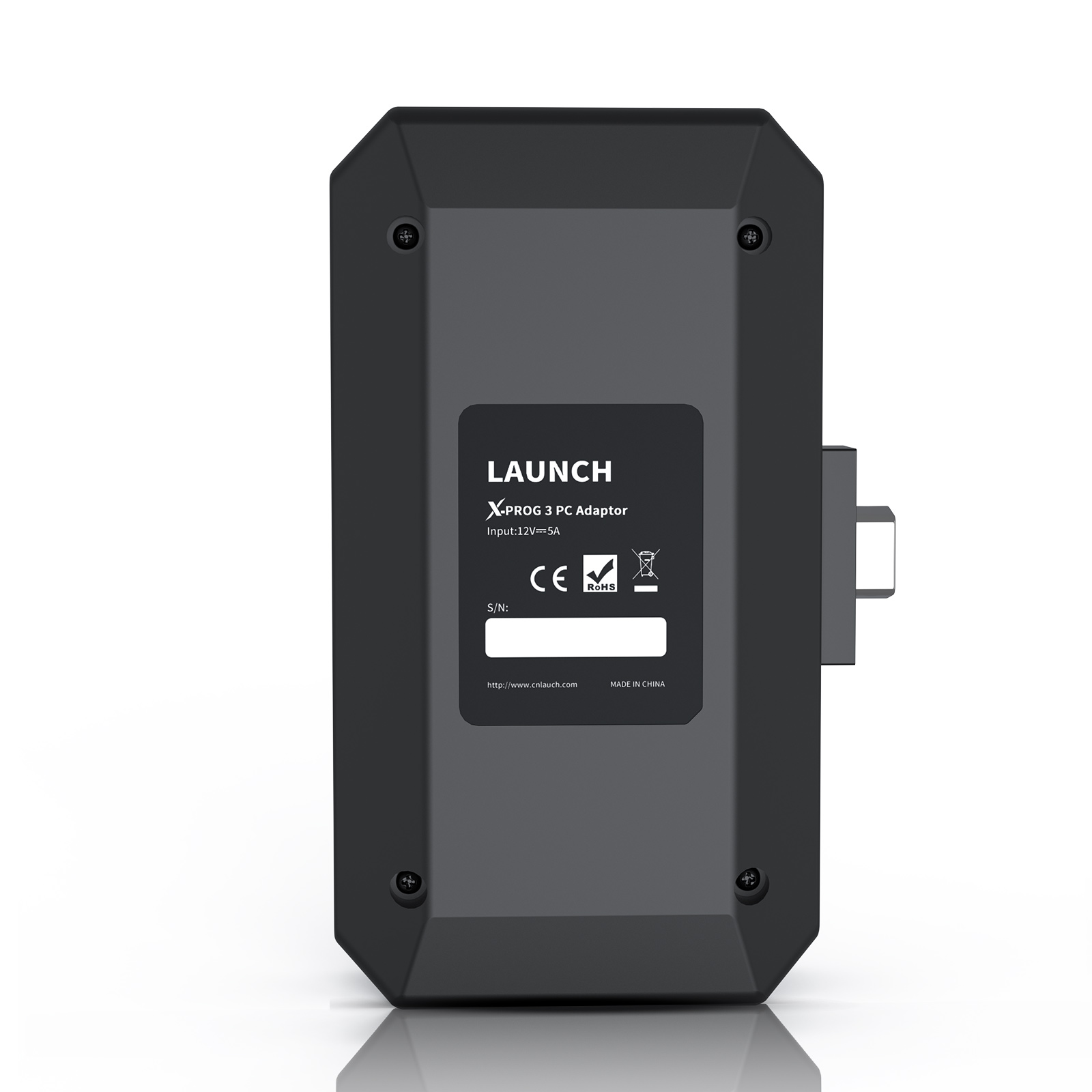

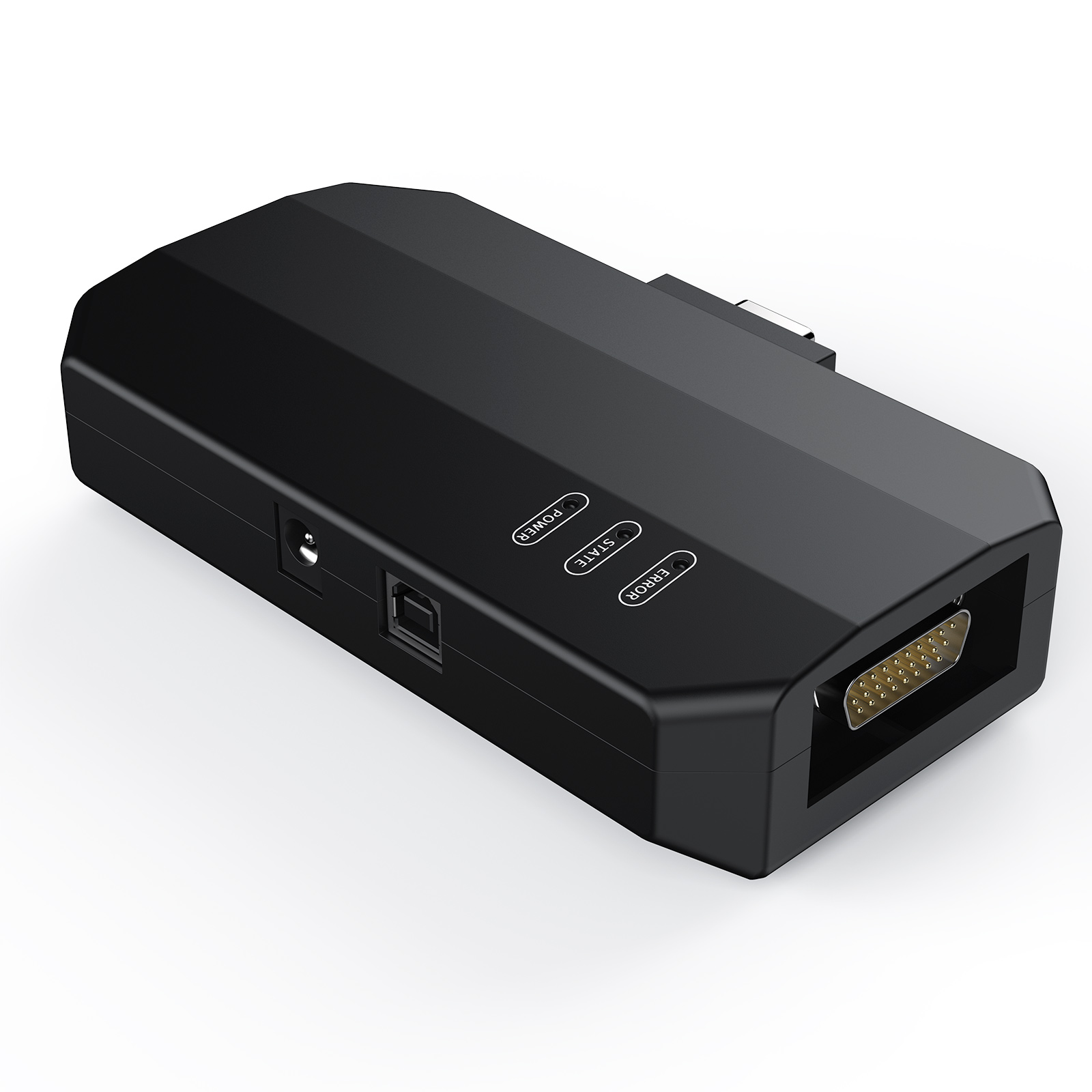

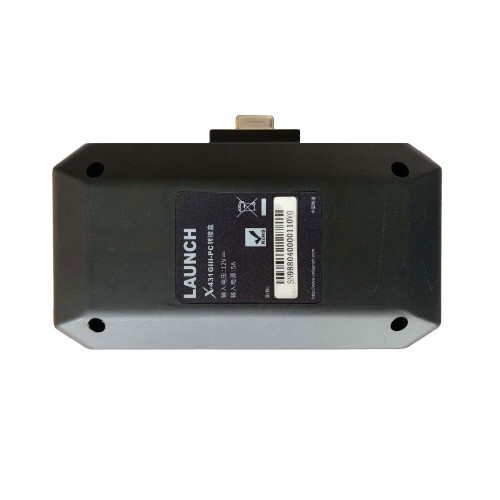

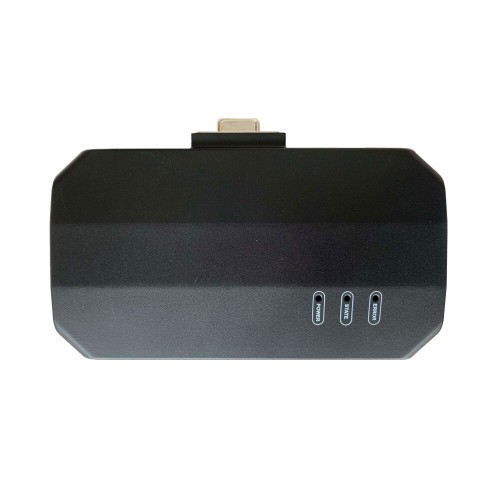

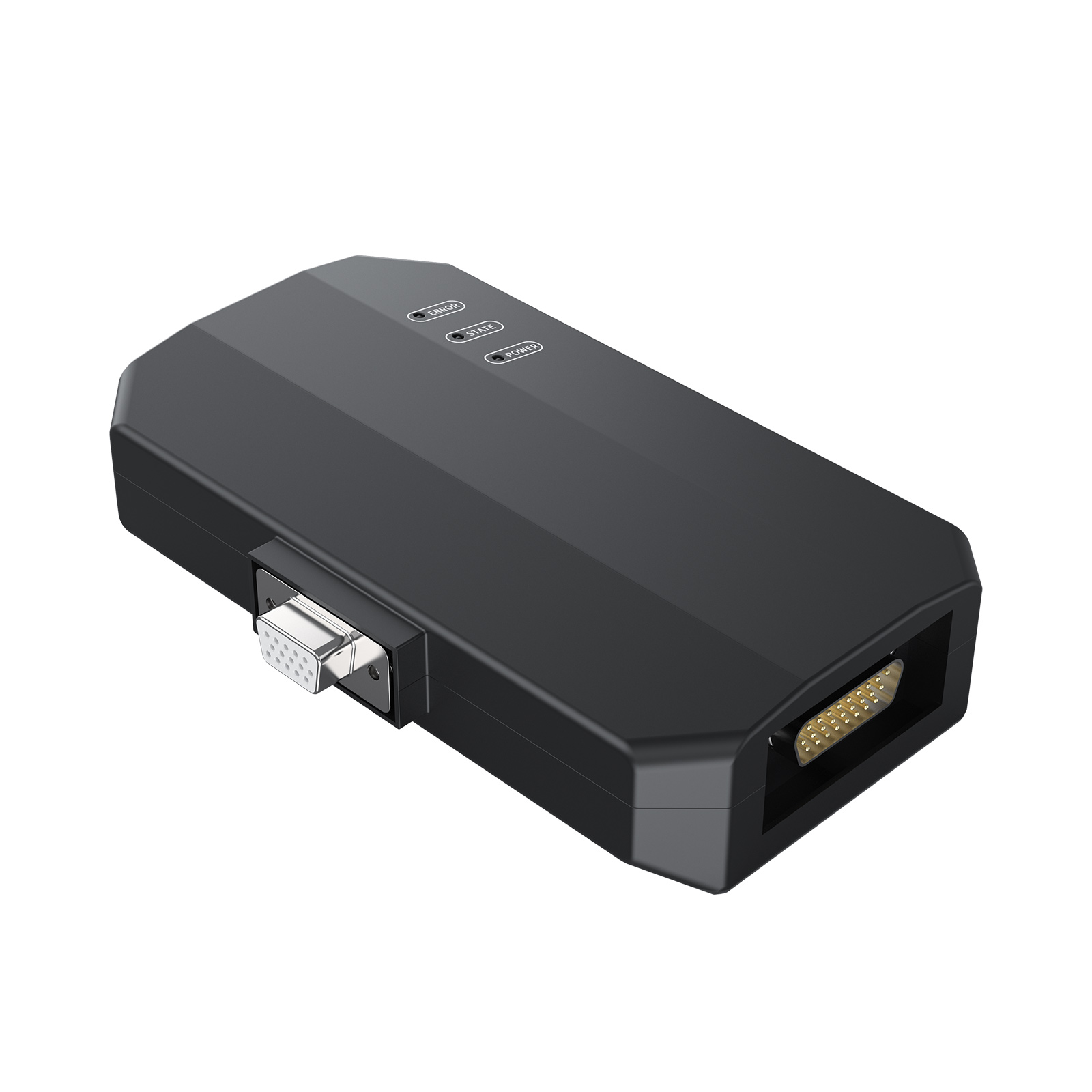

Launch X431 IMMO Programmer GIII X-Prog 3 X-PROG3 PC Adaptor

1. Used in conjunction with X-PROG3 anti lift matching programmer
2. 2D menu, clear and easy to choose
3. Powerful search function
4. Convenient modification of ECU data
5. USB communication, with a speed more than three times that of Android devices, making it more stable
6. Easy to copy data
7. Support engine data validation function

Software download link: https://en.cnlaunch.com/download

PC Software Interface Description:

Firstly, connect the X-PRO G3 PC ADAPTOR to the computer using a cable, and then connect the X-PROG3 PC ADAPTOR to G3. Secondly, click to enter the software (without connecting the X-PROG3 PC ADAPTOR and G3, the software cannot be accessed). The serial number will be automatically recognized from the X-PROG3 PC ADAPTOR. The activation code needs to be obtained from the envelope of the X-PROG3 PC ADAPTOR. Thirdly, click [Activation] (only once,    no need to activate it again later), as shown in Figure 1


I.ECU Data Reading/Writing

1. Obtain the related ECU.

(1) Method 1: Obtain the desired ECU type through brand > model > engine > ECU in turn, as shown in Figure 2.


(2) Method 2: Query the desired ECU by entering a value in the search box. The search categories include brand, Bosch number and ECU type. For example, search for the MED17.5.25 engine by ECU type, as shown in Figure 3.



2. Click [Straight Connection Line Diagram] to obtain the ECU connection diagram, as shown in Figure 4.



3. Connection: Connect the ECU and PCBOX according to the information provided in the connection diagram. The physical connection diagram of MED17.5.25 (using the BENCH mode line) is shown in Figure 5, and the physical connection diagram using the gearbox adapter is shown in Figure 6.

4. Read the chip ID, as shown in Figure 7.


5. Back up the EEPROM data and save it, as shown in Figure 8 (the figure shows the save page of the read data).


6. Back up the FLASH data and save it, as shown in Figure 9 (the figure shows the process of reading FLASH data).


7. Restore EEPROM/FLASH data, as shown in Figure 10 (the figure shows the file selection page).


II. Data Processing
1. Click the [Data Processing] button on the main page, as shown in Figure 11, and select [Immobilizer Shutoff and File Checkout] [Data Cloning] process Volkswagen series and Porsche engine data, as shown in Figure 12.


2. File verification and anti-theft shutdown (process: select file > connect network to obtain > save file), as shown in Figure 13.


Support list June 2023:

ECU NameECU TypeECU BrandG3FLEX
EDC16XXECMBoschSupportSupport
EDC17XXECMBoschSupportSupport
MD1CSXXXECMBoschSupportSupport
MD1CPXXXECMBoschSupportSupport
ME17.X.XECMBoschSupportSupport
MED17.X.XECMBoschSupportSupport
MED9.X.XECMBoschSupportSupport
MEV17.X.XECMBoschSupportSupport
MEVD17.X.XECMBoschSupportSupport
MG1CSXXXECMBoschSupportSupport
MG1CPXXXECMBoschSupportSupport
MSDXXECMCONTINENTAL/SIEMENSSupportSupport
MSVXXECMCONTINENTAL/SIEMENSSupportSupport
SDIXECMContinentalSupportSupport
GM EXX/TXXECMDELCOSupportSupport
SIM271XXECMContinentalSupportSupport
SIMOS12.XECMContinentalNot supportSupport
SIMOS8.XECMContinentalSupportSupport
SIMOS-PCR2.XECMContinentalNot supportSupport
6HPXXTCMZFSupportSupport
8HPXXTCMZFSupportSupport
7DCT300TCMZFSupportSupport
9G TronicTCMBoschSupportSupport
ALXXXTCMZFSupportSupport
TCXXTCMBoschSupportSupport
DPS6/DC4TCMGETRAGSupportSupport
DKGTCMGETRAGSupportSupport
DLXXXTCMTemicSupportSupport
DQXXXTCMTemicSupportSupport
MPS6TCMGETRAGSupportSupport
SPS6TCMGETRAGSupportSupport
VGSXTCMGETRAGSupportSupport
VL381TCMTemicSupportSupport
GM 6TXX/6LXXTCMDELCOSupportSupport
MEDG17.9.8TCMBoschSupportSupport
MEG17.9.2TCMBoschSupportSupport

Optional adapter accessories(Not included in the package):


Accessory
Name
Material
code
function
1X-PROG3 Adapter Cable 1 (DQ200XX)307110077Used to connect the DQ200XX gearbox, and available models include VW, Audi, etc.
2X-PROG3 Adapter Cable 2 (VL381)307110078Used to connect the VL381 gearbox, and available models include VW, Audi, etc.
3X-PROG3 Adapter Cable 3 (DQ380)307110079Used to connect the DQ380/DQ381/DQ500 gearbox, and available models include VW, Audi, etc.
4X-PROG3 Adapter Cable 4 (DQ250)307110080Used to connect the DQ250 gearbox, and available models include VW, Audi, etc.
5X-PROG3 Adapter Cable 5 (DL501)307110081Used to connect the DL501XX gearbox, and available models include VW, Audi, Porsche, etc.
6X-PROG3 Adapter Cable 6 (DL382)307110082Used to connect the DL382 gearbox, and available models include VW, Audi, etc.
7X-PROG3 Adapter Cable 7 (VGS-NAG3)307110083Used to connect the VGS-NAG3 gearbox, and available models include Benz, Nissan, etc.
8X-PROG3 Adapter Cable 8 (VGS2-FDCT/VGS-FDCT)307110084Used to connect the VGS-FDCT/VGS2-FDCT gearbox, and available models include Benz, Infiniti, etc.
9X-PROG3 Adapter Cable 9 (VGS3-NAG2)307110085Used to connect the VGS3-NAG2 gearbox, and available models include Benz, etc.
10X-PROG3 Adapter Cable 10 (8HP_V1(BMW/LR)/8HP_V2/8HP_V3)307110086Used to connect the 8HPXX/AL450/AL551/AL552 gearbox, and available models include BMW, Land Rover, Jaguar, Dodge, Alpina, Chrysler, Rolls Royce, Alfa Romeo, Aston Martin, Great Wall, Jeep, Lamborghini, Maserati, Iveco, etc.
11X-PROG3 Adapter Cable 11 (MPS6)307110087Used to connect the MPS6/MPS6_GEN3 gearbox, and available models include Ford, Renault, Chrysler, Dodge, Land Rover, Volvo, etc.
12X-PROG3 Adapter Cable 12 (DPS6)307110088Used to connect the DPS6 gearbox, and available models include Ford, etc.
13X-PROG3 Adapter Cable Main Line (ML)307110089The extension wire of the gearbox harness, with one end connected to the immobilizer programmer and the other end connected to the gearbox harness

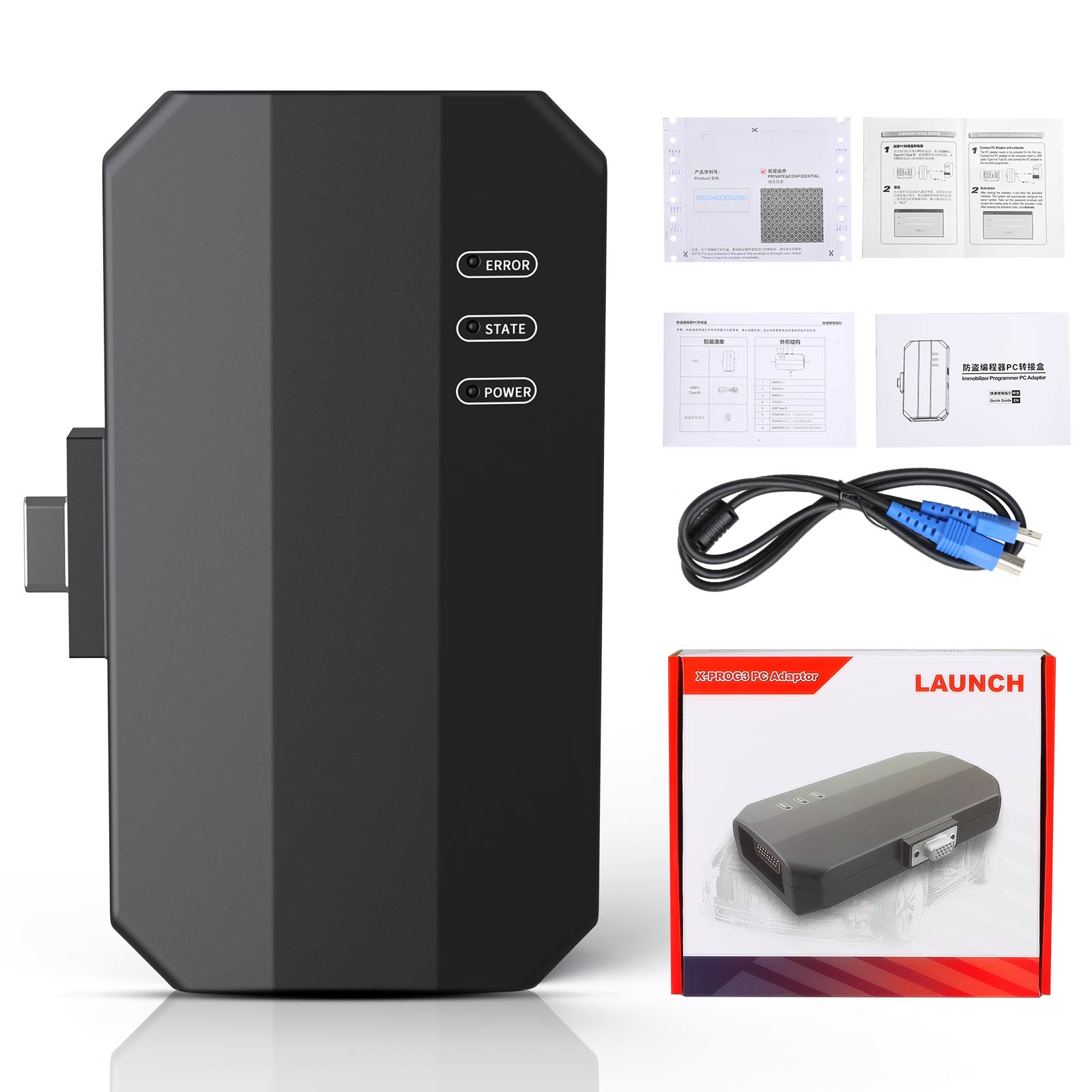

Package Includes:

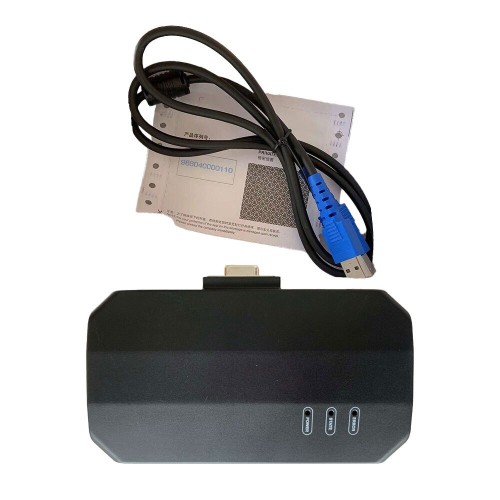

1pc x Launch X431 IMMO Programmer  X-PRO G3 PC Adaptor
