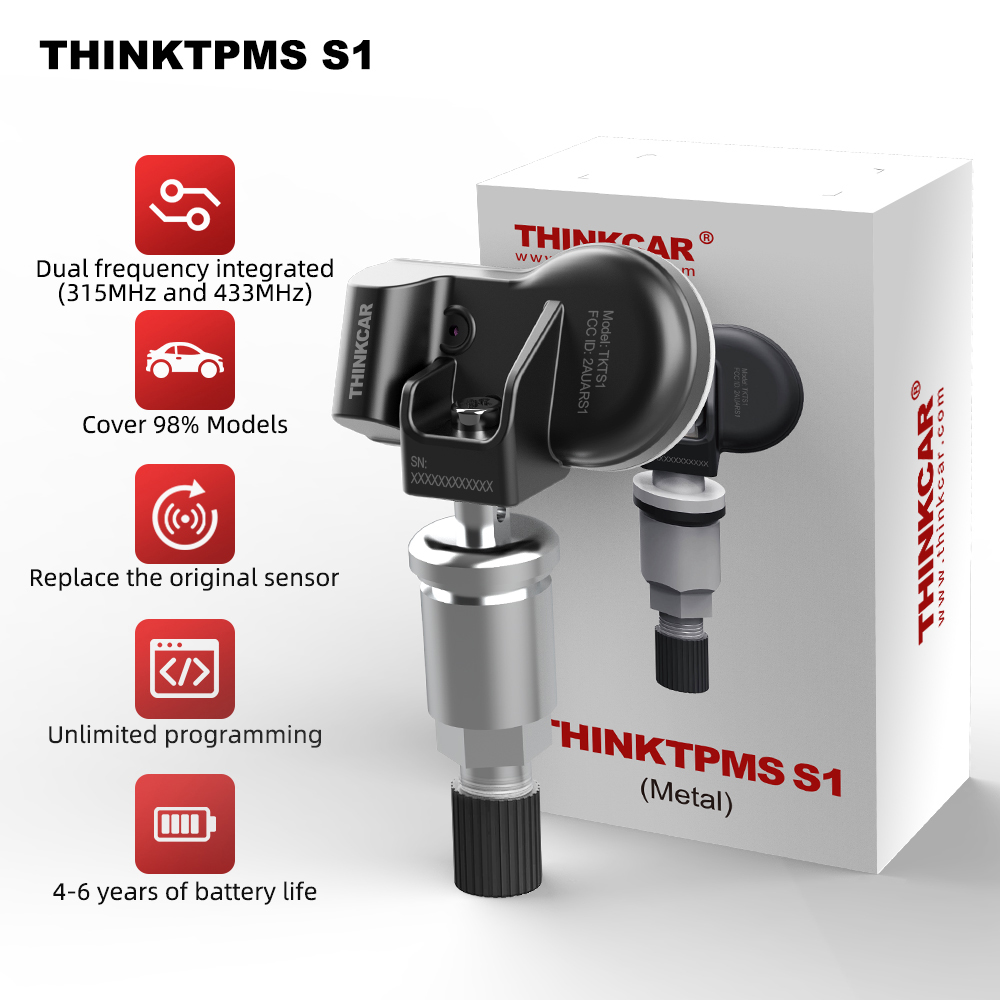

THINKCAR THINKTPMS S1 Tire Pressure Sensor 315MHz 433MHz Tire Pressure Monitoring System Monitors Tire Pressure

Why you need THINKTPMS S1 sensor?

THINKTPMS S1 sensor helps to monitors tire pressure and temperature. It helps you know the situation of four tires and prompts you to take in-time actions to prevent puncture and damage to car parts caused by flat tires. It also helps prevent flat tires, forecast leakage, reduce tire wire, prolong tire life, improve fuel efficiency and increase traffic safety.

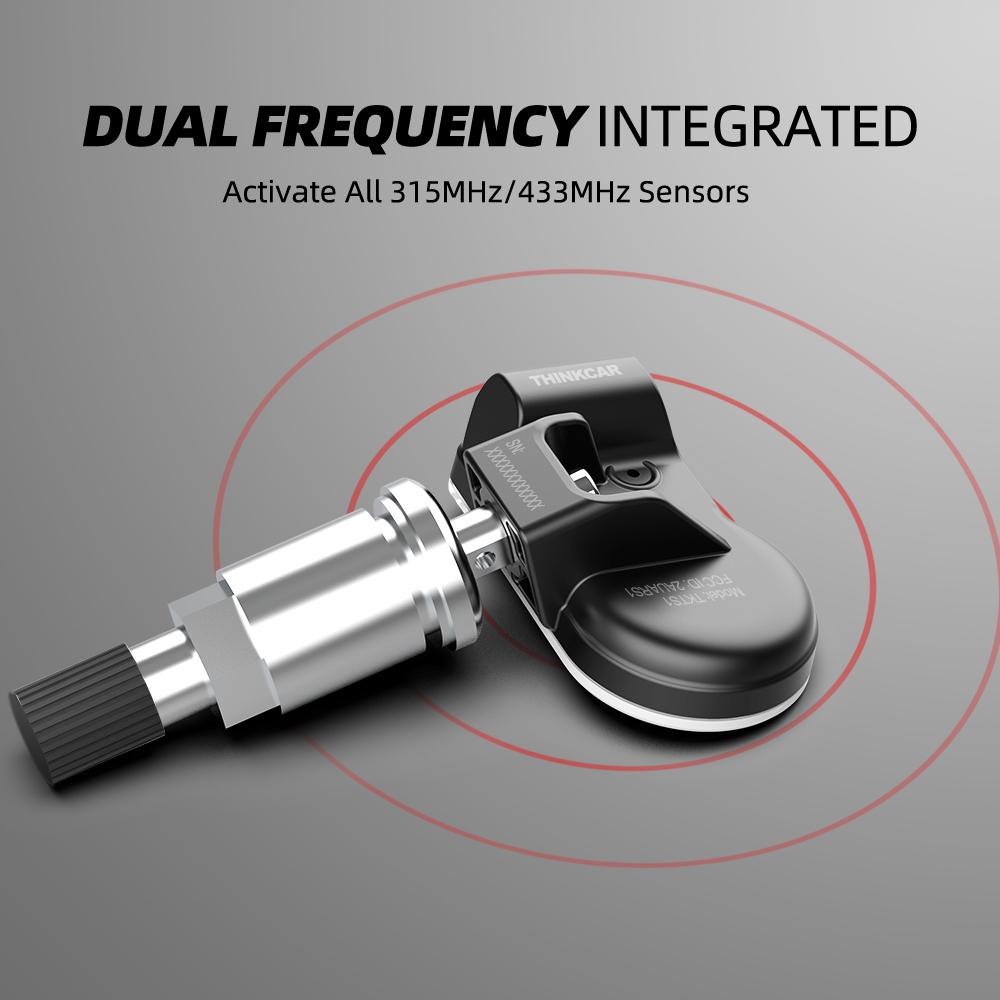

Dual frequency integrated

Activate All 315MHz/433MHz Sensors

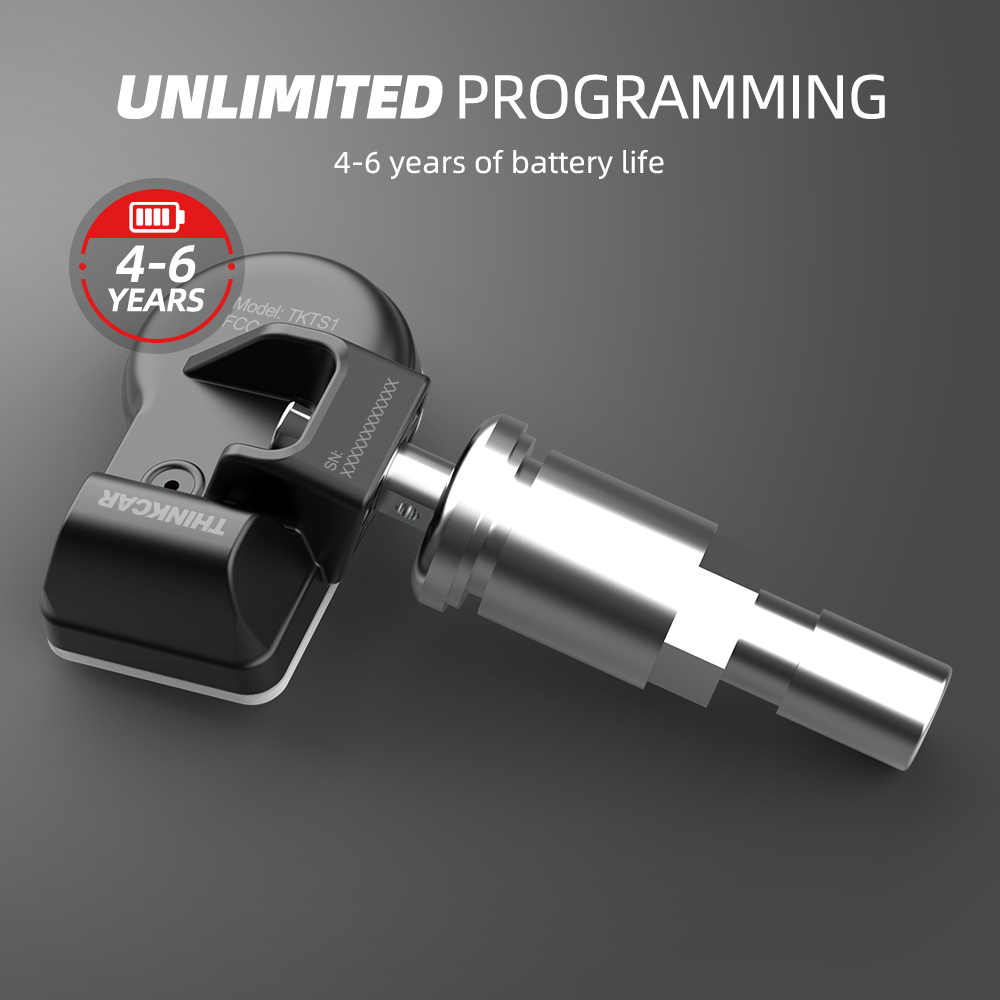

Unlimited programming

4-6 years of battery life

Support more than 115+ brands

For OBDII diagnostics, the obd2 code reader works great for most cars built in 1996 or later, being compatible with following protocols:

-ISO 14230-4 (KWP2000)
-ISO 15765-4 (CAN)
-ISO 9141-2 (iso)
-ISO 14229 (uds)
-SAE J1850 (VPW & PWM)
-Original protocols of makers

For advanced functions as active test, all system diagnostics, and maintenance service, it covers 95% of car models available in the market including:

-Asia:
for Daewoo, for Honda, for JP Isuzu, for Kia, for Mazda, for Mitsubishi, for Nissan, for SGM, for Subaru, for Suzuki, for Toyota,for Hyundai, for Ssangyong
-Europe:
for Aston Martin, for Audi, for Benz, for BMW, for Citroen, for Ferrari, for Fiat, for Land Rover, for Maserati, for Opel, for Porsche, for Renault, for Rover, for Saab, for Seat, for Skoda, for Smart, for Sprinter, for Volvo, for VW, for Peugeot
-America:
for Chrysler, for USA-Ford, for GM

And keep updating.

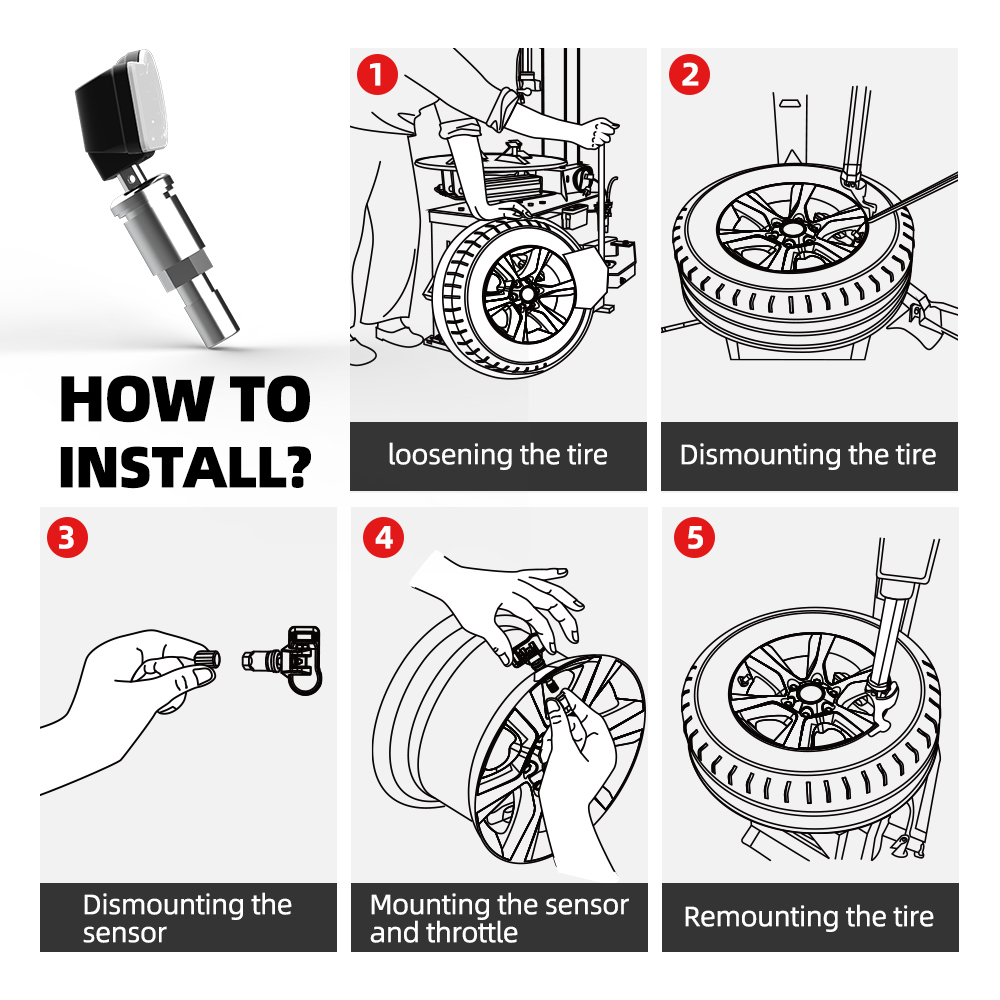

How toTrigger theTHINKTPMS S1 Sensor

1.Remove tire cap
2.Install tire sensor
3.Pump up the tire
4.Put calve cap
5.Test balancing
6.Adjust balance

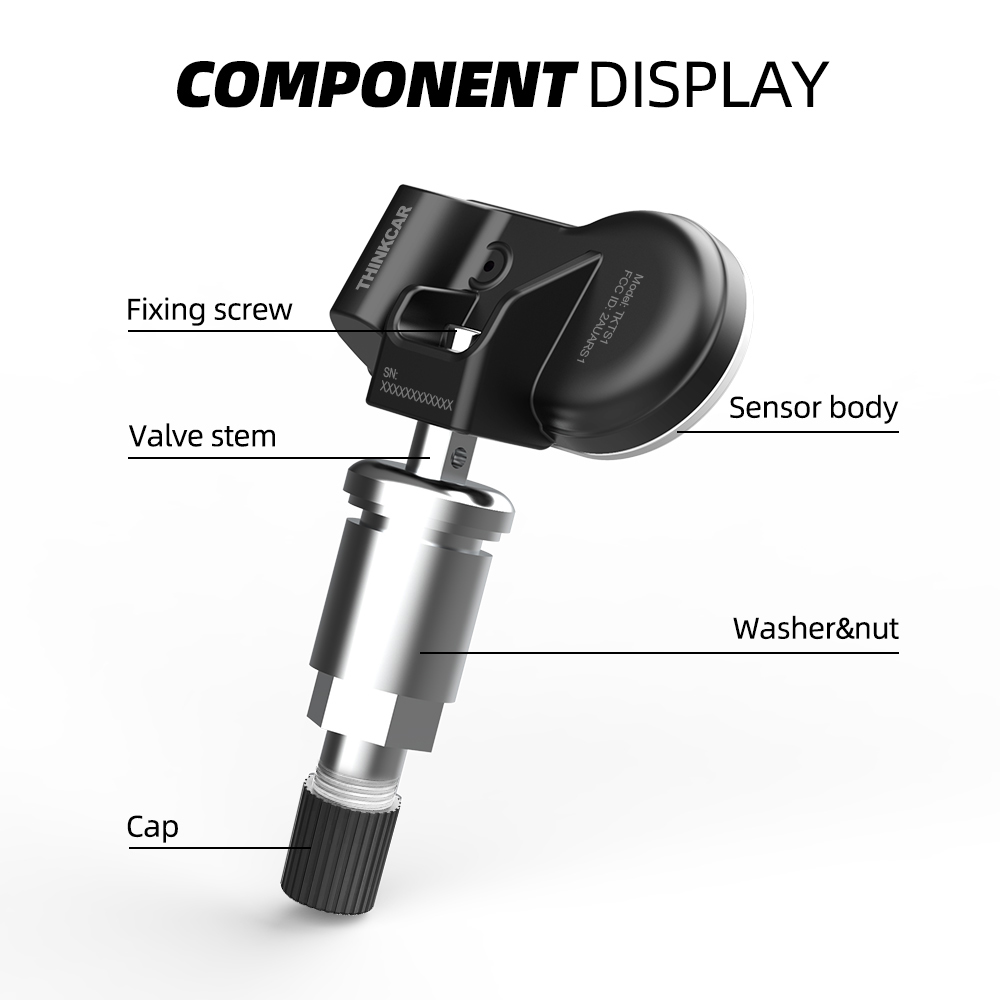

Component Display:

Specifications of THINKTPMS S1:

Battery life:4-6 years / 100,000 km
Working temperature:-40 ℃ to + 125 ℃
Storage temperature:-40 ℃ to + 125 ℃
Working humidity:<=90%
Working frequency:433MHz/315MHz
Pressure monitoring range:0-800kpa
Pressure reading accuracy:±10kPa
Temperature reading accuracy:± 5℃
Acceleration (G) Sensor reading accuracy:± 15%
Transmission power:5-8 dBm
battery:3.0V
Waterproof level:IP67
Size:71.5*40*15mm
Net weight:22g

Packing List:
