THINKSCAN 600 OBD2 Scanner For Car ABS/SRS System Diagnose and Supports 5 Kinds of Reset Services OIL/TPMS/BRAKE/EPB/ABS Reset Functions and Full OBDII Functions/Multi-language Works For More Than 1000+ Car Modes PK X431 CRP123E/CRP129E/NT650

Description
THINKSCAN 600, a portable vehicle diagnostic and maintenance tool, design for the ordinary car owner, it has a complete diagnostic function of OBDII, and supports the diagnosis of 2 major electronic control systems ABS and SRS, as well as 3 common maintenance functions, such as maintenance light zeroing(Reset oil), reset TPMS and reset BRAKE/EPB/ABS.




THINKSCAN 600 Supports 2 Car Systems
Cover most brand cars since 2006 with standard OBD2 protocol.

ABS System
Diagnose an ABS problem should always start with a visual inspection of all brake components, next you will need to retrieve ABS codes to tell you where the problem is, and this is what this scanner does for you.

SRS Airbag System
SRS, safety restraint system, is made up of impact sensors, a control module, and the airbags themselves, and this diagnostic device can detect every electronic parameter to check its health status.

THINKSCAN 600 Supports 5 Reset Services

Oil Service Light Reset: Allow you to perform reset maintenance mileage and data intervals for a new calculation of Engine Oil Life system once changed the oil.

EPB Electronic Park Brake Reset: It is important in the maintenance of electronic braking systemrsquos safety and efficiency when replace brake pad or motor.

Tire Pressure System Reset: Service makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.

ABS Bleeding: ABS brake bleeding to get a firm brake pad after air exhaustion.

SAS Steering Angel Sensor Reset: Clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.

THINKSCAN 600 Supports Full OBD2 Function Diagnostic

This scanner supports all 10 test modes for OBD-II cars which are great for daily repair work.

1. Read dynamic data streams and MIL

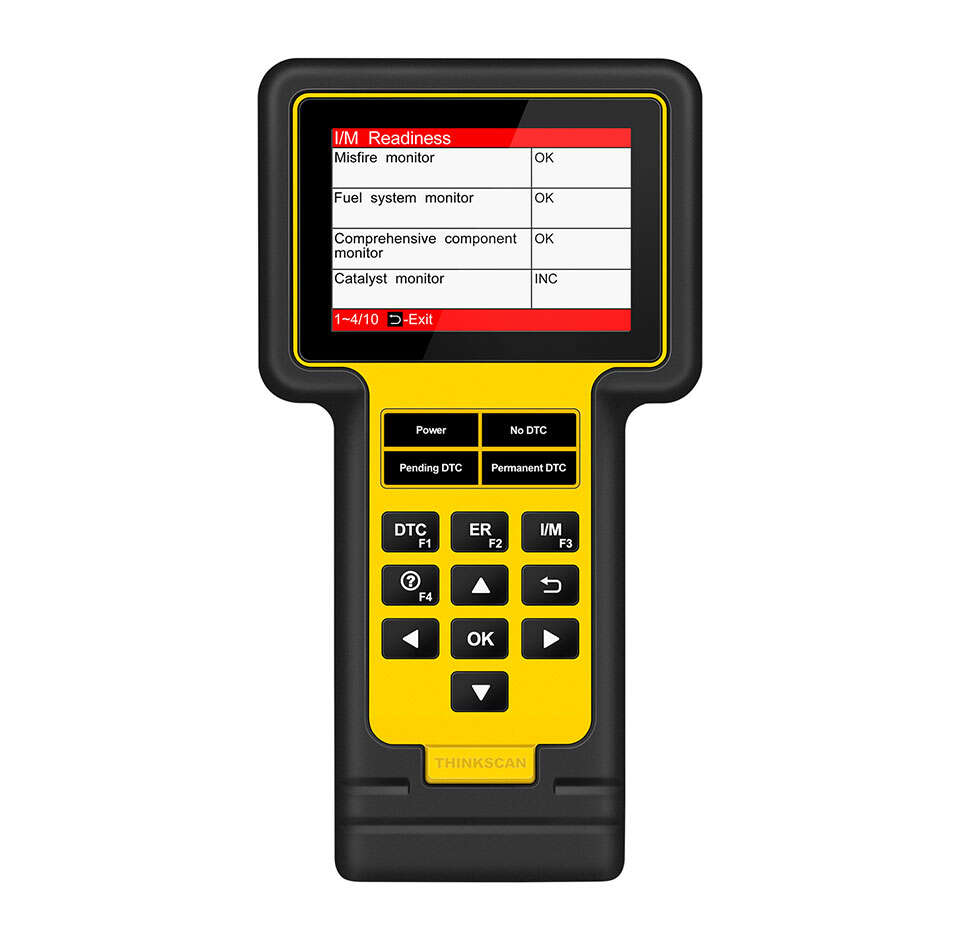

2. Read readiness status
3. Query freeze frame data
4. Read current DTCs
5. Clear DTCs
6. O2 sensor monitoring test
7. On-board monitor test
8. Read pending DTCs
9. On-board system or component control
10. Read vehicle information
11. Read permanent DTCs

THINKSCAN 600 Supports Full OBD2 Protocols 10 modes

1. Request Current Powertrain Diagnostic Data
2. Request Powertrain Freeze Frame Data
3. Request Emission-Related Diagnostic Trouble Codes
4. Clear/Reset Emission-Related Diagnostic Information
5. Request Oxygen Sensor Monitoring Test Results
6. Request On-Board Monitoring Test Results for Specific Monitored Systems
7. Request Emission-Related Diagnostic Trouble Codes Detected During Current or Last Completed Driving Cycle
8. Request Control of On-Board System Test or Component
9. Request Vehicle Information
10. Request Emission-Related Diagnostic Trouble Codes with Permanent Status

THINKSCAN 600 Register & Update Guide:

Prerequisite conditions
1. Go to http://www.mythinkcar.com to download the update tool and install it on the computer.
2. System requirements: Windows XP, 7, 8 or Windows 10.

Follow the below steps to update the tool:

1. Note down the serial number and register code.
1). Connect the THINKSCAN 600 tool with the computer via USB cable.
2). After the tool has been powered up and entered the main menu screen, move the highlight bar on the "Help" icon and press [OK].
3). Highlight the "Tool Information" in Fig. 1 and press [OK].
4). Write down the serial number and register code for later use.

2. Register the scanner on the update tool(initial use).
1). Launch the update tool, a screen similar to Fig. 3 will appear(Note: Once the S/N is entered, "Restore System" becomes activated, which is used to restore system if a new memory card is replaced).
2). Select the target language and enter the Product Serial Number, click [Device Upgrade], a screen similar to Fig. 4 will appear.
3). Enter the required email address and Register Code, click [Submit] to finish the sign-up.
Note: For initial use, user needs to go through a registration process, once you finished it, the registration screen will not appear again each time you click the [Device Upgrade] button in the future.

3. Copy the update package into the memory card.
1). Install the memory card from the tool into the supplied memory card adaptor and insert into the USB port of the computer.
2). Reopen the update tool, select the updates you would like to performor click "Select All", and then click [Download] to start downloading the update package into the memory card.

4. Reinsert the memory card into the tool and start update.
1). Once all steps are complete, find the mem
2). Connect the tool to the computer via USB cable.
3). The tool starts verifying the consistence of the local files with the files in the memory card, if difference exists, the tool will automatically start updating and a green update progress bar will appear on the bottom of the screen, please be patient to wait until the update is completely finished.

Statement: All information and illustrations in this Quick Start Guide are based on the latest information available at the time of printing, due to continuing improvements, actual product may slightly differ from the product described herein, and this Quick Start Guide is subject to change without prior written notice.

THINKSCAN 600 Supports Car Models
AUDI, BENZ, BMW, CHRYSLER, CITROEN, DACIA, DAEWOO, FIAT, GM, HOLDEN, HONDA, HYUNDAI, JAGUAR, JPISUZU, KIA, LANDROVER, MAHINDRA, MARUTI, MAZDA, MINI, MITSUBISHI, NISSAN, OPEL, PEUGEOT, PORSCHE, RENAULT, SAAB, SEAT, SKODA, SMART, SPRINTER, SUBARU, SUZUKI, TATA, TOYOTA, USAFORD, VOLVO, VW

THINKSCAN 600 Parameters
Screen: TFT LCD true color display
Input voltage: 9-18V

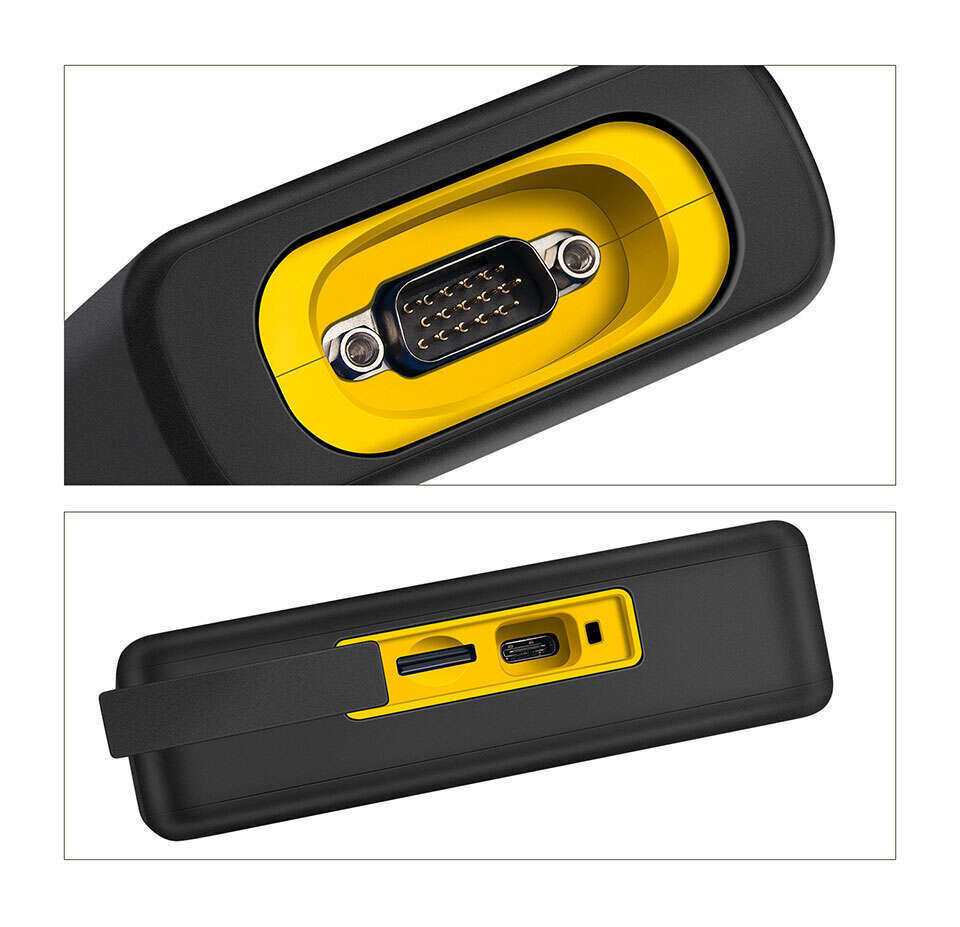

Connection: Standard 16 PIN OBD diagnostic interface
Working temperature: 0-50ºC
Storage ambient temperature: - 20 to 70ºC
Dimension: 150 * 73 * 22(mm)
Weight: 500g

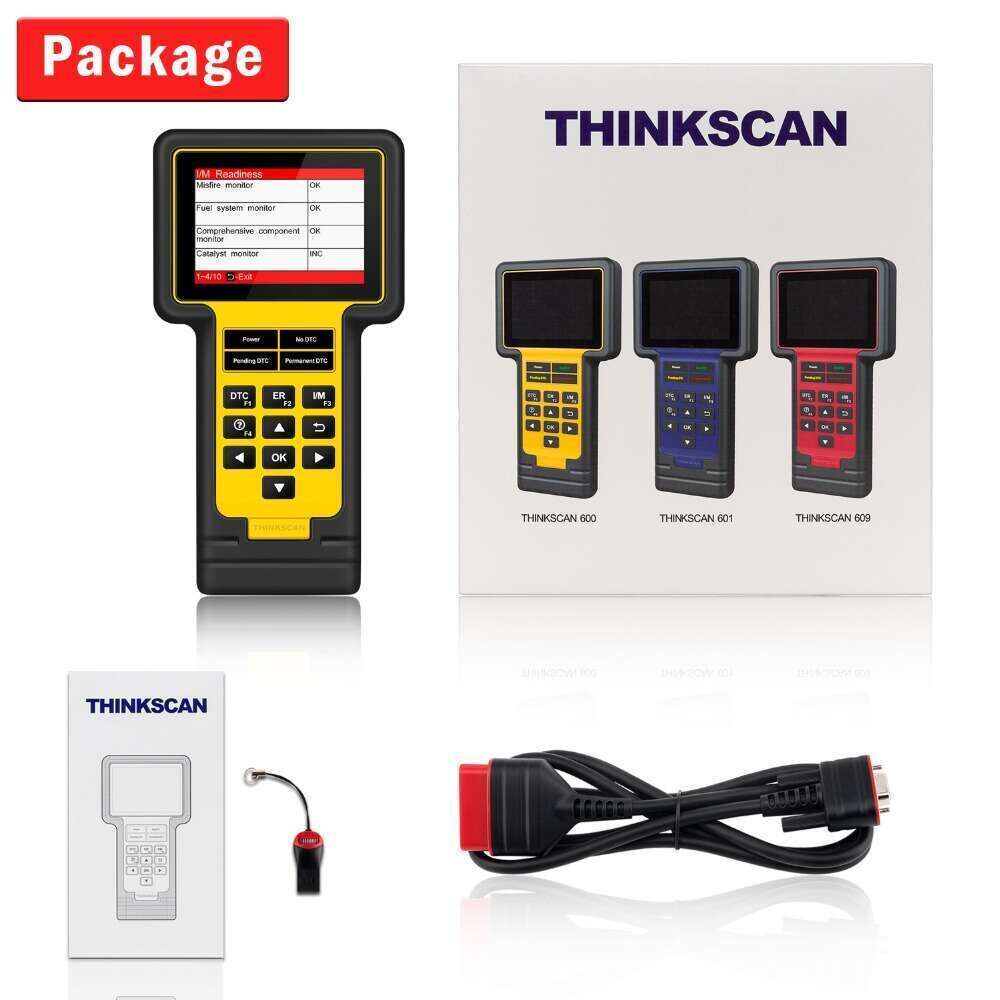

THINKSCAN 600 Packing List
1PC * THINKSCAN 600

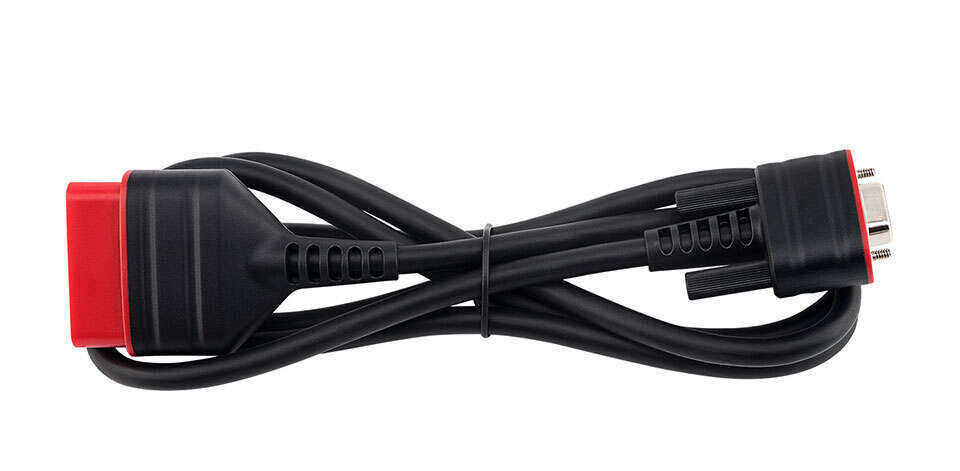

1PC * OBD2 Cable

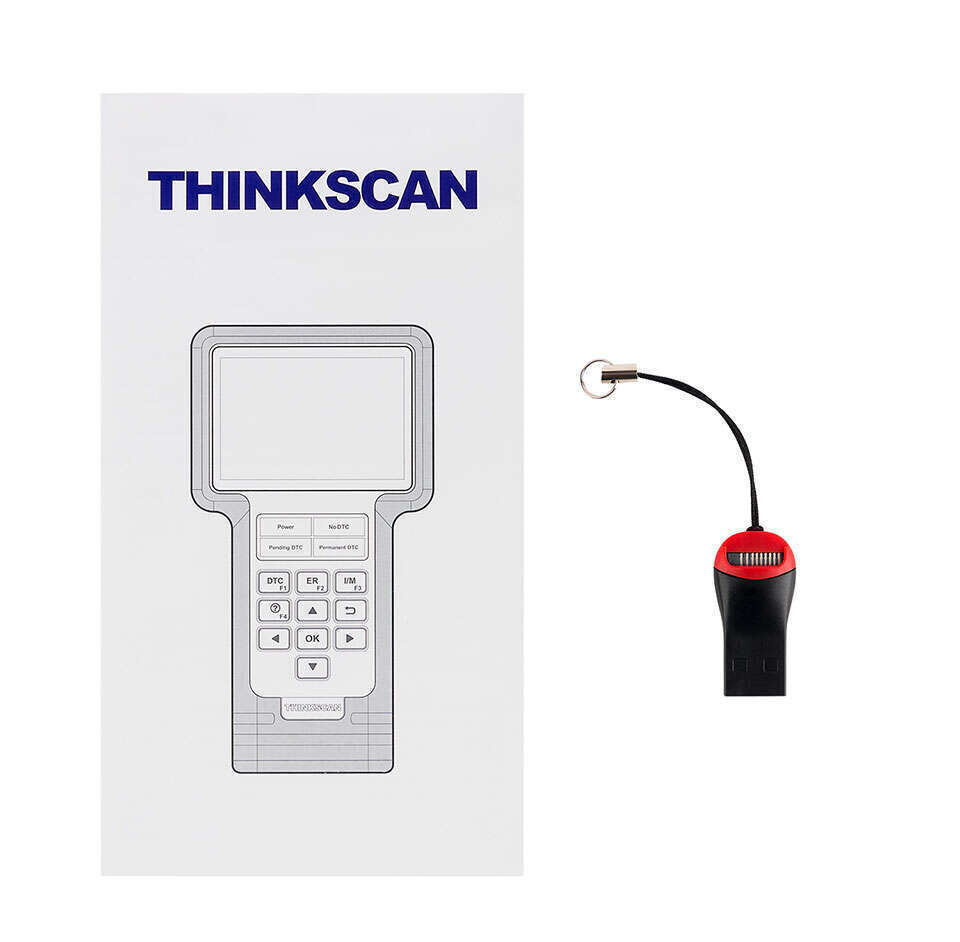

1PC * Card Reader
1PC * User Manual
