LAUNCH OBD2 Scanner Creader Elite 302, Engine SRS ABS Scan Tool Code Reader, 2 Special Function Diagnostic Scanner, Auto VIN, 4 Inch Touchscreen, Android System, WiFi Free Update, Diagnostic Report

Whether you’re a mechanic who owns a small repair shop to make bucks, a car enthusiast who delves into car repairs, or just a car owner who wants to avoid expensive diagnostic and repair fees at your local dealership, Launch OBD2 scanner CRE302 is one of the best investments you can make. This rationally cost scan tool features a bunch of functional characteristics:

Engine/ARS/ABS Systems Diagnostics

perform 4 functions: Read DTCs, Clear DTCs, Display Live Data, and Vehicle Info for comprehensive diagnostics.

OBDII Full Functions

isolate the cause of the illuminated Malfunction Indicator Lamp (MIL), verify repairs, and perform other services that are emission-related.

2 Optional Special Maintenance Functions

provide accustomed functions for every user.

Free One-Click Wi-Fi Update

Auto VIN

saves time in acquiring vehicle information and diagnostics.

Diagnostic Reports

for systematic and comprehensive faulty issues diagnostics.

Powerful Configuration

for a smoother and more agile operation.

Android System

saves tedious and complex registration procedures.

Touchscreen

offers faster response and more agile operation experiences.

All the basic needs of car diagnosis can be met by this OBDII diagnostic scanner -Launch Creader Elite302.

3 Systems Diagnoses Make Scanner CRE302 More Functional

Engine: LAUNCH diagnostic scan tool helps you to identify the engine-related issues by reading parameters such as engine RPM, engine coolant temperature, air intake humidity, airflow, the voltage of O2 sensor, misfire data, intake manifold pressure, oil pressure, etc.

Anti-Lock Braking System (ABS): This OBD2 scanner can assist you to check the ABS, tell you whether the parameters such as front-wheel speed, rear-wheel speed, lateral acceleration, brake pressure, steering angle sensors, etc. are normal, and thus provide a basis for your analysis of the problematic parts of the ABS.

Supplemental Restraint System (SRS): You can use Launch CRE302 to address the SRS problems that existed on the components such as the seat occupancy sensor, airbags, seat belt or airbag sensor, etc., and examine the health status of the SRS system and ensure safe driving.

Independently Select 2 Special Functions out of Your Needs

The special functions supported by LAUNCH Creader Elite 302 are ups to 16 (See details below). Every user can select 2 from them as your customized special functions. For individual users or small auto repair shops, the 2 special functions of the diagnostic scanner might be enough to meet your daily repair needs. Owning this OBDII scan tool can save unnecessary costs spent on some unusable functions.

Note: The 2 special reset functions cannot be changed once selected.

Brake Reset: help you to replace and reset the brake pad. + Oil Reset: enable you to reset the oil service lamp for the engine oil life system.

SAS Reset: reset the steering angle to zero to keep the car running straight. + BMS Service: reset the monitoring unit of the car battery to rematch the battery.

TPMS Reset: reset the tire pressure after replacing the tire or sensor. + DPF Regulation: help remove particulate matters from the trap.

IMMO Service: Add new k eys or match k eys. + Throttle Matching: initialize the throttle actuators to the default state.

Gear Learning: help to do the calibration after replacing the crankshaft position sensor. + ABS Air-Clearing: enable you to perform tests to check the operating conditions of the Anti-L ock Braking System (ABS).

Air Suspension Matching: adjust the vehicle body height sensor for level calibration after replacing the vehicle height sensor or control module.

Injector Coding: write injector actual code or rewrite code in the ECU to the injector code of the corresponding cylinder.

Gearbox Reset: help to do the calibration after replace crankshaft position sensor. + Sunroof Reset: set the sunroof l-ock off, close in rain, memory function of sliding/tilting sunroof, outside temperature threshold, etc.

Headlamp Fitting: Initialize the adaptive headlamp system. + EGR Adaption: reset the EGR system to restore it to a normal working state after replacing the EGR valve or related components.

You can choose 2 of the above 16 functions as the special functions of your OBD2 scan tool. This function makes the OBD2 diagnostic scanner in each user's hand are unique and suitable for your personal repair needs.

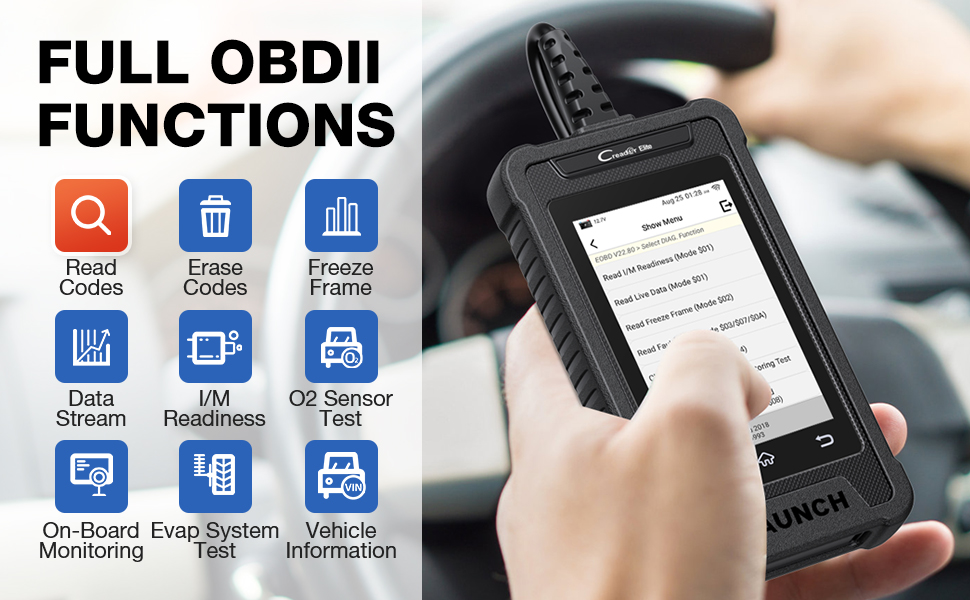

Full OBD2 Functions Troubleshoot All Diagnostic Trouble Codes

The OBD2 full functions make Launch CRE302 the easy-to-use and functional scan tool to figure out the issues that caused your engine lights on, take up remedial steps and get the malfunctioned lights to turn off. Moreover, CRE302 is also a useful scan tool to keep your vehicle under constant monitoring, thus keep up a healthy vehicle condition. These full OBD2 functions are compliant for all after-1996 US-Based, after-2000 EU-Based, and Asian cars, and it continues renewing to be compatible with the latest vehicles.

Read Codes: display detailed information of DTC records retrieved from the test vehicle’s ECU.

Clear Codes: erase DTC records and other data from the test vehicle’s ECU.

/M Readiness: check the readiness of the monitoring system. LAUNCH CRE302 code reader supports displaying the status of monitors since the last time the DTCs are erased or since the beginning of the current drive cycle.

Live Data: provide real-time, clear, accurate, comprehensive PID data from ECU and help you to find any possible issue in time. The live data include analog inputs and outputs, digital inputs and outputs, and system status information broadcast on the vehicle data stream.

Freeze Frame: freeze frame data includes the snapshots of critical parameter values at the time the DTC is set.

On-Board Monitor: view the results of On-Board Monitor tests. The tests are useful after servicing or after erasing a vehicle’s control module memory.

Component Test: enable bi-directional control of the ECM so that the diagnostic tool is able to transmit control commands to operate the vehicle systems.

Vehicle Information: display the vehicle identification number (VIN), the calibration identification, and the calibration verification number (CVN), and other information of the test vehicle.

Vehicle Status: check the current condition of the vehicle, including communication protocols of OBD II modules, amount of codes, the status of the malfunction Indicator Light (MIL), and additional information.

O2 Sensor Test: allow retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s onboard computer.

Auto VIN

Through auto VIN, the OBD2 scanner CRE302 can get information of the vehicles such as manufacturer, year, model, body type, engine code, assembly location, and other information within a few seconds, which greatly saves your repair time, improve the diagnostic accuracy and provide you with more convenience.

4 in 1 Live Data Graph + Real-time Battery Voltage Graphing +Live Data Record & Payback

Graphical Display of Data

This option retrieves and displays live data and parameters from the vehicle’s ECU, providing a live data stream in a graphical way for better monitoring and analysis.

Diagnostic Report Printing

The LAUNCH CRE300 makes report printing possible, which means that you can present a comprehensive diagnostic report to your customers to demonstrate professionalism.

DTC Library

This option enables you to retrieve the detailed description of DTCs from the local DTC database. Swipe the screen upwards / downwards to alter the value, then press the [OK] button, the touchscreen will display a definition of the DTC.

WIFI Automatic Upgrade & Generate Diagnostic Report:

With just one click, the diagnostic app and software will automatically update once the scanner connects WIFI and saves you from complex traditional update procedures. The 4-inch touchscreen makes the display clearer and the operation more convenient. The diagnostic module of the OBD2 scanner stores all diagnostic reports generated in process of vehicle diagnosis. All the diagnostic reports are sorted by Date and Make.

Applicable to a Wide Range of Users:

The OBD2 Launch scan tool CRE302 is suitable both for small local dealers and car owners for it perfectly combines the characteristics: functional, portable, and affordable. The scanner is equipped with an Android system, 4-inch touchscreen, easy-to-operate software. This OBD2 scanner is an ideal gadget for mechanics and DIYers to pinpoint vehicle problems with ease.

Broad Vehicle Compatibility:

USA: Chry-sler, GM, Ford

Europe: Audi, Mercedes-Benz, BMW, Citroën, Fiat, Land Rover, Opel, Peugeot, Porsche, Renault, Saab, Seat, Skoda, Smart, Volvo, VW

Asia: Daewoo Motors, Honda, Hyundai, ISUZU, Kia, Mazda, Mitsubishi, Nissan, Subaru, Suzuki, To-yo-ta

AU: Holden
