    LAUNCH X431 EV Diagnostic Upgrade Kit + Activation Card Compatible with X431 PAD V & PAD VII

    The Launch X431 new energy battey Diagnostics Upgrade Kit includes activation card and adapters for specific electric vehicles to perform battery pack analysis.
    The battery package is compatible with the X431 PAD V and PAD VII
    Use the Launch EV Diag Upgrade Kit (EV DIAGKIT) to diagnose battery pack State of Charge and State of Health on Tesla, BYD and many other electric vehicles.



    How to use it?


    1. User has already purchased new energy battery pack diagnostic configuration of the X-431 PAD V/X-431 PAD VII from the seller and received the Activation Card of new energy detection expansion package and diagnostic adaptor cables.
    2.Choose either of the following methods to activate it on diagnostic scanner.

    Method 1 - Via Job Menu

    1).Update the main diagnostic app of the diagnostic scanner to V7.03.025 (X-431 PAD V) / V7.00.021 (X-431 PAD VII) or above and a new module “New Energy Diagnose” will appear on the Job menu. Refer to figure 1.

    2).Tap New Energy Diagnose to enter the following screen. Refer to figure 2.

    *Note: Vehicle Diagnosis in figure 2 covers all new energy vehicle diagnostic software included in the original product configuration. See figure 3.

    3).Tap Battery Pack Detection, the system will identify whether the current user account has activated the battery pack diagnostic configuration or not.

    A.If not activated, it will navigate to the Mall module directly. See figure 4. Tap Subscription Renewal Card Pay and enter the 24-digit password to activate it. After it is successfully activated, please go to Software Update to download and install the diagnostic software of the battery pack.

    B. If already activated but not downloaded the battery pack diagnostic software, it will go to Software Update to download. See figure 5.

    C. If already activated and downloaded the battery pack diagnostic software, it will enter the battery pack brand selection screen. See figure 6.

    Method 2 - Via Mall

    1).Update the main diagnostic app of the diagnostic scanner to V7.03.025 or above and tap Mall on the Job menu. See figure 7.


    2).Tap Other Software Packages, and then tap New energy battery pack diagnostic software package to enter figure 8.

    3).Tap Subscription Renewal Card Pay to enter figure 9.

    4).Tap Subscription Renewal Card Pay, enter the 24-digit password and tap Confirm to activate it. See figure 10 & 11.
    5).After it is successfully activated, please go to Software Update to download and install the diagnostic software of the battery pack. See figure 12.
    6).After downloading is completed, tap New Energy Diagnose and then tap Battery Pack Detection. The system will enter the battery pack brand selection screen. See figure 6.

    *Note: All illustrations and descriptions in this operation instruction are based on the latest information available at the time of publication. Due to continuing improvements, actual product may differ slightly from the product described herein.

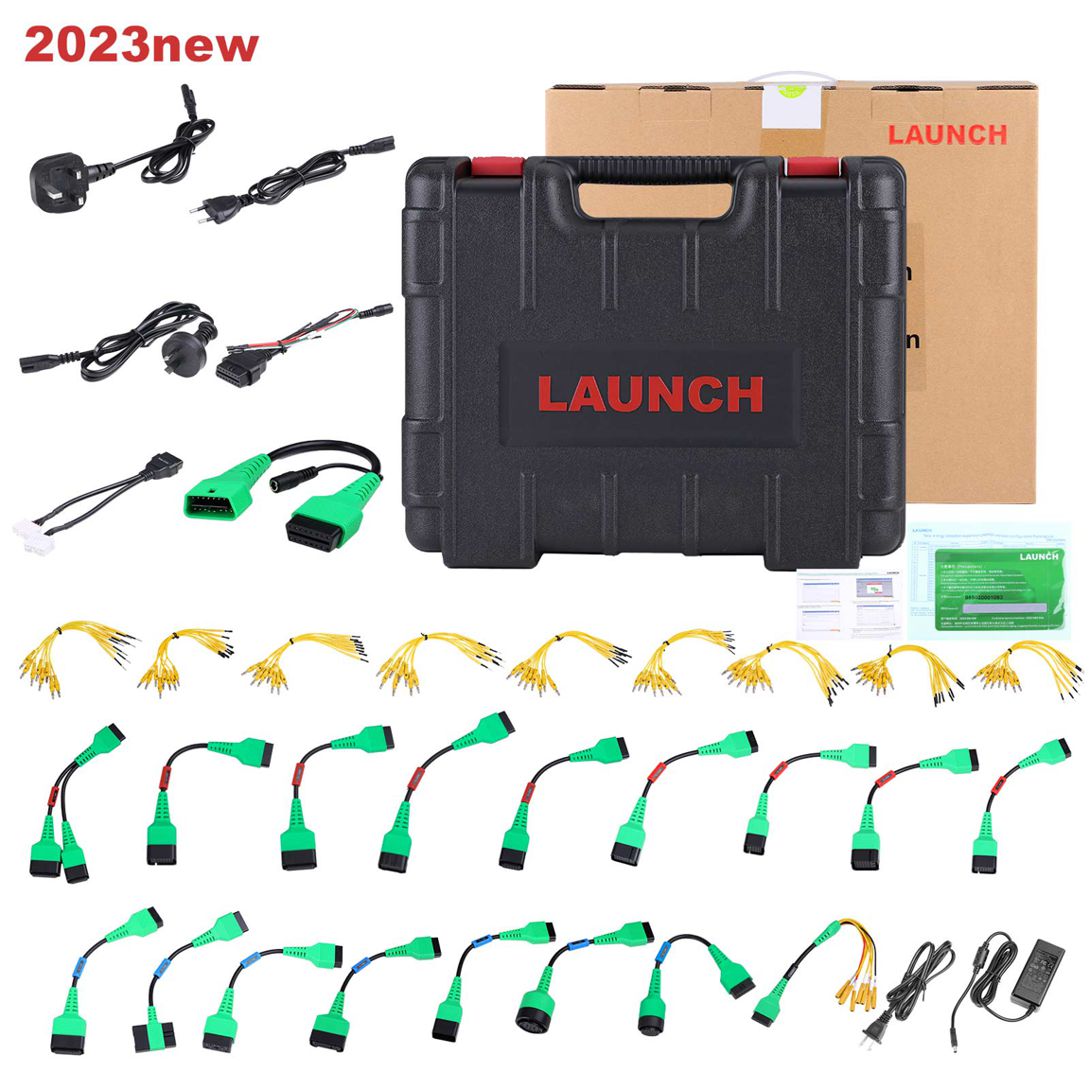

    Package Includes:


    1pc x Tesla-12+20 connector, RoHS
    1pc x Special connector for Tesla airbag repair, RoHS
    1pc x (PAD VII) 220V/1.3A, 8-suffix British AC wire, 1M, Pengshengye, RoHS
    1pc x OBD16 male to female new energy extension cable, with DC cable, RoHS
    1pc x X431 EV MAX battery pack detection 8PIN diagnostic connector, RoHS

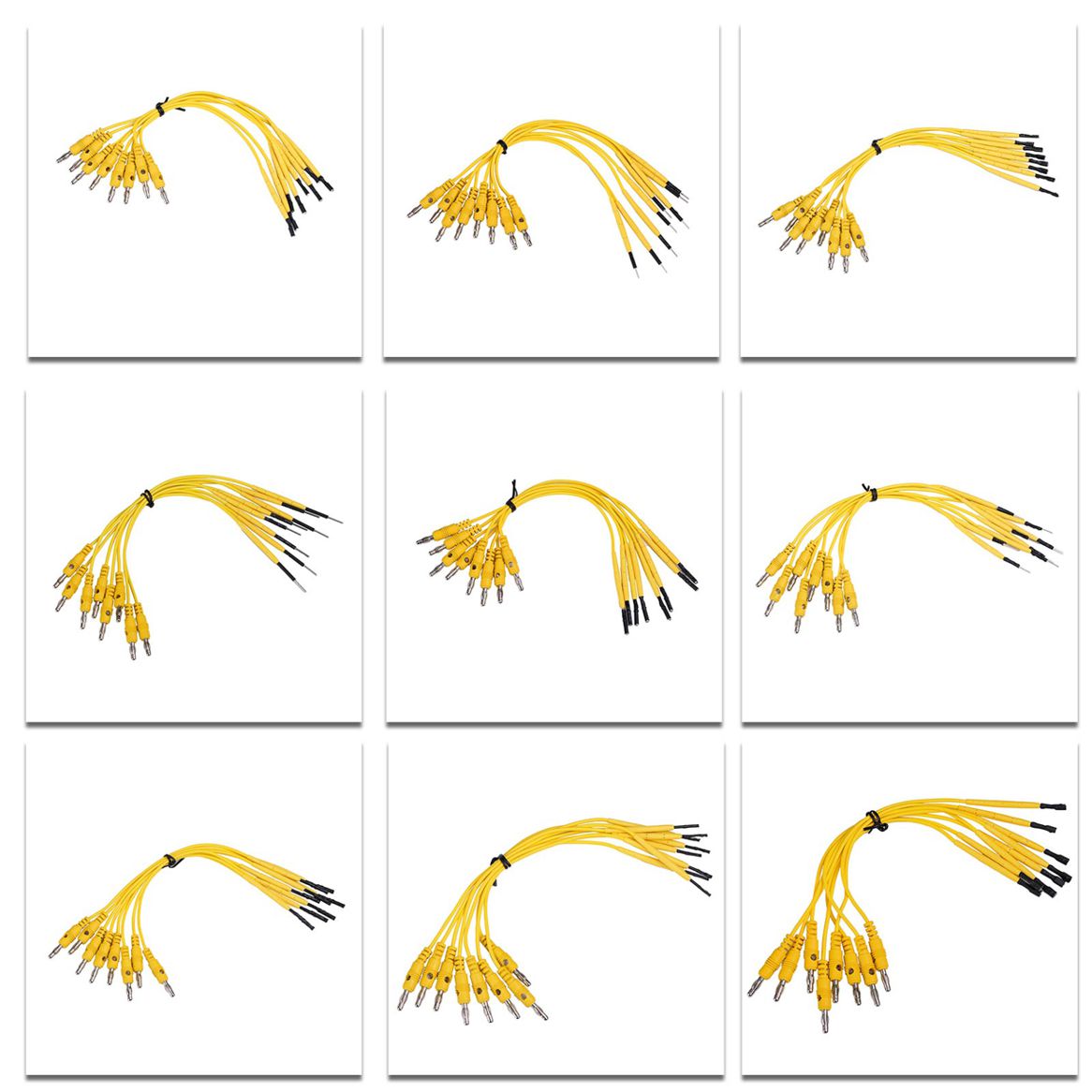

    1pc x X-431 PAD IV electric control adapter cable 1, RoHS
    1pc x X-431 PAD IV electric control adapter cable 10, RoHS
    1pc x X-431 PAD IV electric control adapter cable 11, RoHS
    1pc x X-431 PAD IV electric control adapter cable 12, RoHS
    1pc x X-431 PAD IV electric control adapter cable 2, RoHS
    1pc x X-431 PAD IV electric control adapter cable 3, RoHS
    1pc x  X-431 PAD IV electric control adapter cable 6, RoHS
    1pc x X-431 PAD IV electric control adapter cable 7,RoHS
    1pc xX-431 PAD IV electric control adapter cable 8, RoHS
    1pc x Battery pack test line 100 models, RoHS
    1pc x Battery pack test line 101, RoHS
    1pc x Battery pack test line 102, RoHS
    1pc x Battery pack test line 103, RoHS
    1pc x Battery pack test line 104, RoHS
    1pc x Battery pack test line 105, RoHS
    1pc x Battery pack test line 106, RoHS
    1pc x Battery pack test line 107, RoHS
    1pc x Battery pack test line 108, RoHS
    1pc xBattery pack test line 109, RoHS
    1pc xBattery pack test line 110 models, RoHS
    1pc xBattery pack test line 112 models, RoHS
    1pc xBattery pack test line 113, RoHS
    1pc xBattery pack test line 114, RoHS
    1pc xBattery pack test line 115 models, RoHS
    1pc x Battery pack test line 116, RoHS
    1pc x Battery pack test line 119, RoHS
    1pc x1pc x Battery pack test line 124 types, RoHS
    1pc xBattery pack test line 126 models, RoHS
    1pc x Battery pack test line 127 models, RoHS
    1pc x Battery pack test line 130 models, RoHS
    1pc x Battery pack test line 152 models, RoHS
    1pc x (PAD VII), 8-suffix Australian standard AC wire, 1M, Pengshengye, RoHS
    1pc x(PAD VII) 220V/1.3A, 8-suffix European standard AC wire, 1M, Pengshengye, RoHS
    1pc x Power adapter, 12V4A, 48W desktop, 8-suffix DC connector 5.5, US standard AC cable, 2M, Pengshengye, RoHS
    1pc x New Energy Detection Extension Pack Overseas Configuration Operation Guide, RoHS

    1pc x Activation Card
