LAUNCH X431 OBD2 Scanner Elite CRE205 Auto OBD2 ABS SRS Code Reader Diagnostic Tools Oil TPMS DPF 5 Reset Service CRP123E CR3001

LAUNCH Creader Elite CRE205 Advantage

1. Read Version Information, Read DTCs, Clear DTCs and Read Data Stream for ABS and SRS System.live data stream, stores and playbacks data stream, helps to quick analysis and diagnosis, and turning off the system warning lights.

2. Any 5 Free Services you choose: RESET SAS, RESET BRAKE, RESET GEAR, RESET OIL, RESET IMMO, RESET INJEC, RESET TPMS, RESET BMS, RESET BLEED, RESET ETS, RESET DPF, AFS RESET, SUN ROOF, GEARBOX LEARN, EGR Adaption

3. Auto-Detect and diagnostic report will be automatically generated and sent to your email box ,AUTO VIN technology that can identify vehicle make, model, and year information to shorten the vehicle navigation process.

4. Full OBD II Diagnosis, including EVAP, O2 Sensor, I/M Readiness, MIL Status, VIN Info, and On-board monitors testing etc.

5. Live Data Stream Analysis on Graphing ( Value, Graph and Merged)

6.One Click Free Update Diagnostic Software and APK

7. One Click I/M Readiness , One Click Diagnostic Battery ,one click Health Report , one click check DTC Library, One Click check History and Report

8. The battery voltage test, able to monitor the battery voltage timely

9.Support OBD1 and OBD2 Vehicles , 64+ Car Brands , 10000+ Models

10. Online Maintenance Resources: Operating skills, DTC Help, Automotive Technology Handbook, Repair Case, and How-to Videos. Let you master and understand car breakdown problems faster

And more

Multi-Language

English, Spanish, French, German, Italian, Russian, Portuguese, Japanese, Korean, Traditional Chinese

ABS System Diagnose

ABS (anti-lock braking system) enables the wheels of a vehicle to maintain tractive contact with the ground, helping drivers retain steering control by prevents unexpected skidding of the car on slippery roads, thus reducing the risk of crashing.

SRS Airbag System Diagnose

A supplemental restraint system, an extra safety measure that is commonplace in vehicles, is designed to improve occupant protection in some ways of crushes. Check the SRS (Airbag) system to ensure passenger safety in certain types of collisions.

Graphical display of data

LAUNCH CRE205 displays sensor data in real time for you, provides data graphics, facilitates intuitive diagnosis and monitoring of your vehicle performance, and helps you better analyze abnormal parameters.

The data recording function is amazing, customers can record real-time data streams of multiple synchronized PIDs. Once these are recorded, they can be played back in text format and/or graphical format. Playback supports two graphics (independent) or four PID graphics (combination). The playback timeline can be scrolled, paused, viewed, etc. The chart has a considerable effect.

Fast AUTO VIN Scan

After connecting the vehicle, turn the ignition key on and the system enters auto-detect mode ( Note: Please make sure the “Automatic detection on connect” in “Settings” is set as ON). Once the system successfully obtains the VIN (Vehicle Identification Number) information of the currently identified vehicle, it will continue scanning the vehicle systems. After the scanning is complete, a diagnostic report will be automatically generated in the Settings -> Data -> Diagnostic Report.

DTC Lookup

Allows you to retrieve the definition of the diagnostic trouble code from the abundant DTC database.Once you pull a code or DTC , it can link to web sites via Google search when searching for more information on DTCs.

Diagnostic report generation and sharing

LAUNCH CRE205 OBD2 scan tool provides you with reliable, accurate, and rich diagnostic information along with automatic generation of diagnostic reports. You can share this email with a mechanic, colleague or friend who is familiar with solving vehicle problems for help, providing you with a shortcut to solving problems.Once the tool and the vehicle are properly connected, the system starts auto-detect process. Once the whole process is successfully finished, a diagnostic report will be automatically generated.

Five Free special functions

You can choose 5 kinds of resets for 1 year free. After 1 year, it need US$19.95 update.

1. Oil Lamp Reset Service

Allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.

2. EPB Electronic Park Brake Reset

It is important in the maintenance of electronic braking system's safety and efficiency.

3. BAT battery service

Allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.

4. DPF Diesel Particulate Filter Reset

Specially works for Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.

5. SAS Steering Angel Sensor Reset

Helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.

6. TPMS Tire Pressure Monitoring System Reset

Makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.

7. IMMO Key Programming

The unique car key programming and read pin code function, it is mainly used to disable the lost vehicle keys and program a new replacement key fob.

8. ABS Bleeding

ABS brake bleeding to get a firm brake pad after air exhaustion after repair ABS pump system.

9. Sunroof Reset

The sunroof needs to be reset when the sunroof control unit have communication problem or changed.

10. Suspension Reset

Try reset electronic suspension air ride with the massage system close all doors koeo flip through messages system go to suspension reset or on off.

11. Gearbox (Transmission )Reset

Procedure Reset Transmission Adaptive Learning DIY. Start the car and drive. Once you perform this procedure the Engine Control Unit (ECU) and Transmission Control Unit (TCU) will work together to learn how you drive by monitoring your driving pattern. After you follow this programming method of the TCU / ECU drive the car.

12. AFS Headlamp Reset

'AFS' means Adaptive Front lighting System (at night with the Bi-Xenon headlights) it swivels either side, pressing that button means they stay pointing straight ahead and don't turn when you turn the steering wheel.

13. Injector Coding

Leaking injectors and some dead injectors can be missed even when an injector is disabled. Other problems with the ignition system and mechanical components also may not show an rpm loss when an injector is turned off.

14. Throttle Adaptation

The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount of air entering an engine. In an electronically fuel injected car, a throttle position sensor and air flow sensor communicate with the computer, which supplies the corresponding amount of fuel needed at the injectors. It must need re-learning throttle sensor position after clearing or repair.

15. Gear Learning

The scan tool monitors certain camshaft position sensors signals to determine if all conditions are met to continue with the procedure for Engine running.

16. Air Level calibration

Full OBD2 Functions are Ready for Engine System Diagnostic

$01 - Request Current Powertrain Diagnostic Data

$02 - Request Powertrain Freeze Frame Data

$03 - Request Emission-Related Diagnostic Trouble Codes

$04 - Clear/Reset Emission-Related Diagnostic Information

$05 - Request Oxygen Sensor Monitoring Test Results

$06 - Request On-Board Monitoring Test Results for Specific Monitored Systems

$07 - Request Emission-Related Diagnostic Trouble Codes Detected During Current or Last Completed Driving Cycle

$08 - Request Control of On-Board System Test or Component

$09 - Request Vehicle Information

$0A - Request Emission-Related Diagnostic Trouble Codes with Permanent Status

LAUNCH CRE205 Support 64+ Car Brand, Over 1000 Models

Technical Specifications :

Screen : 4 inch Touch Screen with a resolution of 480*480
CPU : 4-core 1.3 GHz Processor
Memory : 1GB RAM + 16GB ROM
Wifi : 802.11b/g/n 2.4GHz
USB : Type C
OBDII input voltage range : 9-18V
Working Temperature : -10 to 50 °C ( 14 to 122 °F )
Storage Temperature : -20 to 70 °C ( -4 to 158 °F )

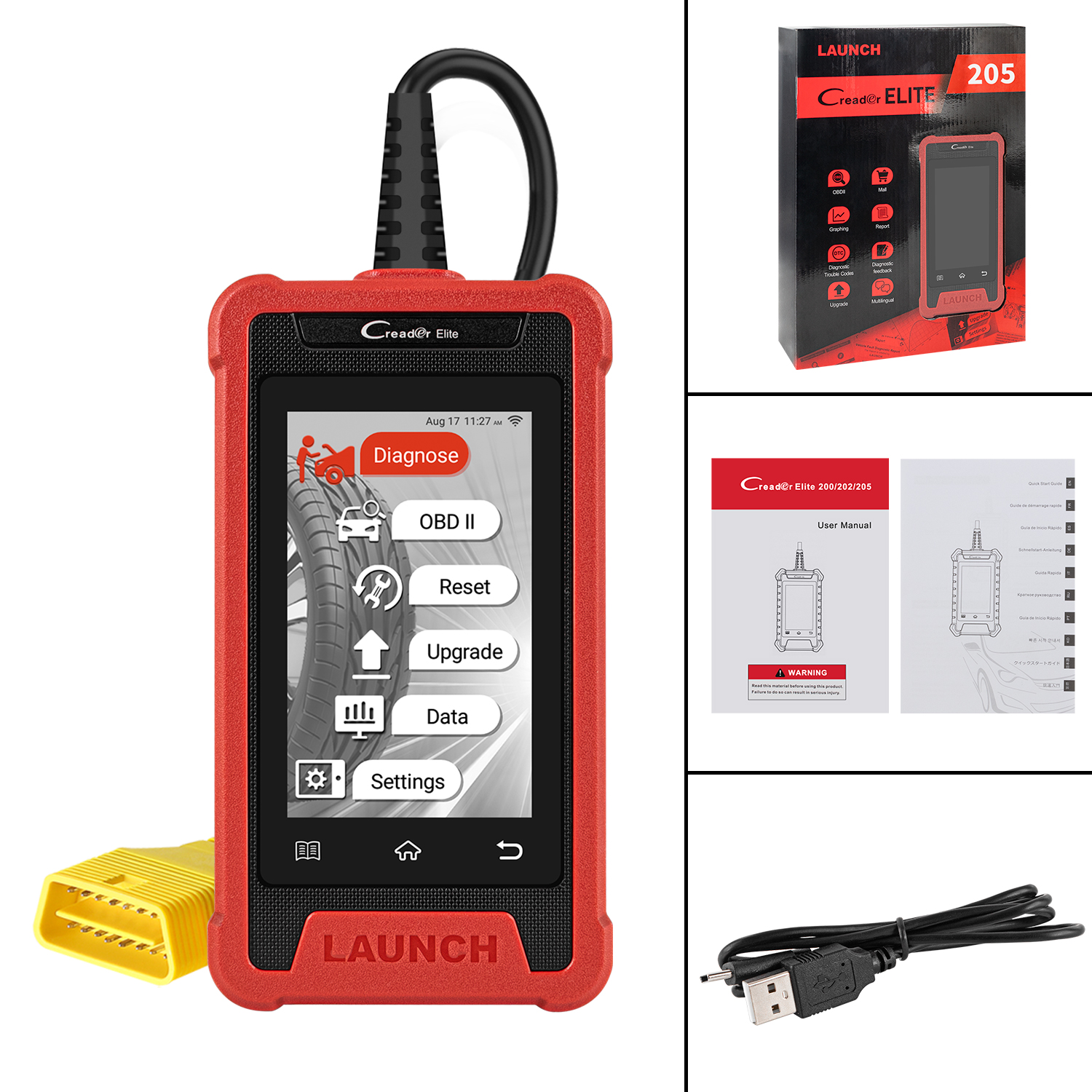

Packing list

1pc * LAUNCH X431 Creader Elite CRE202 Main unit

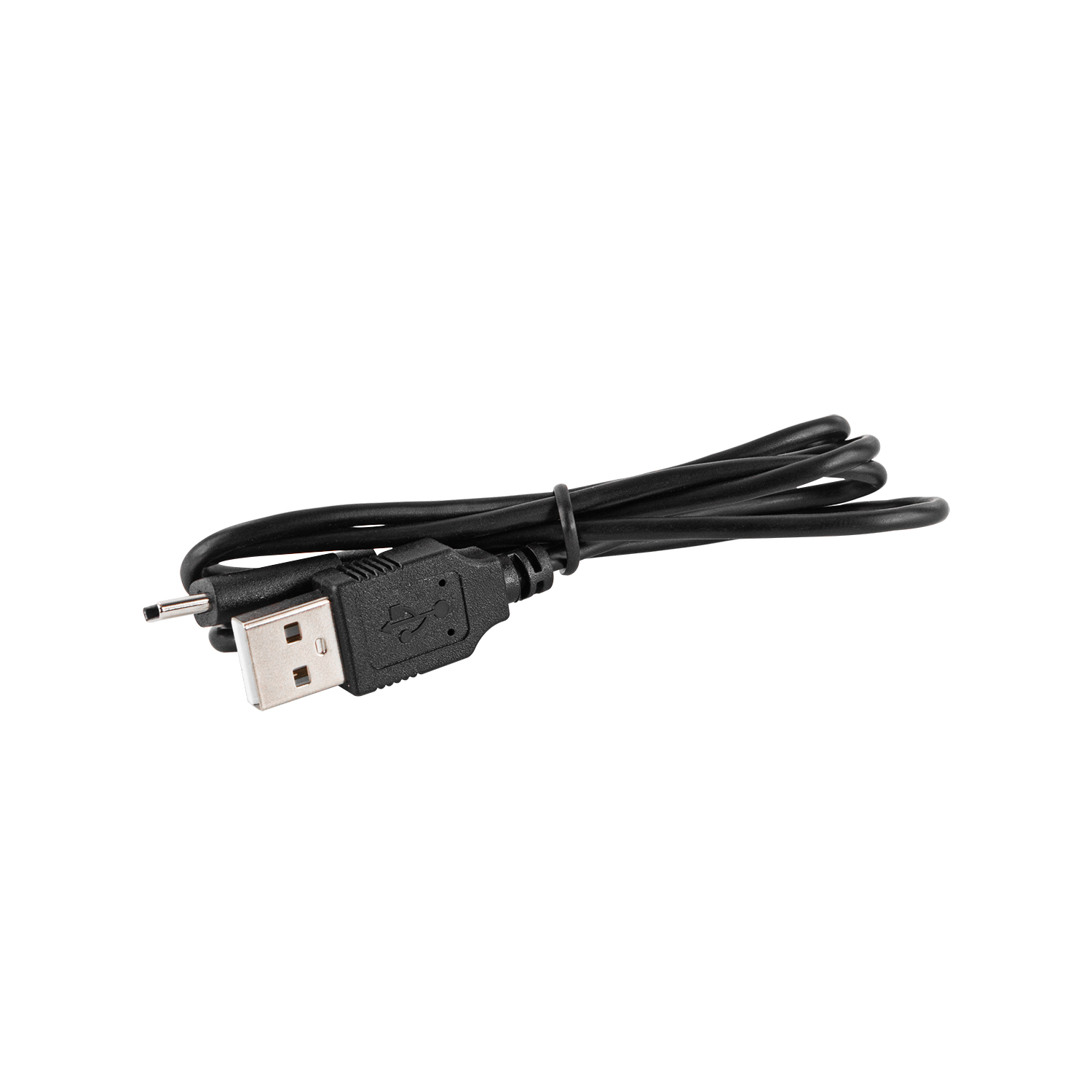

1pc * USB Cable
2pc * Manual book
