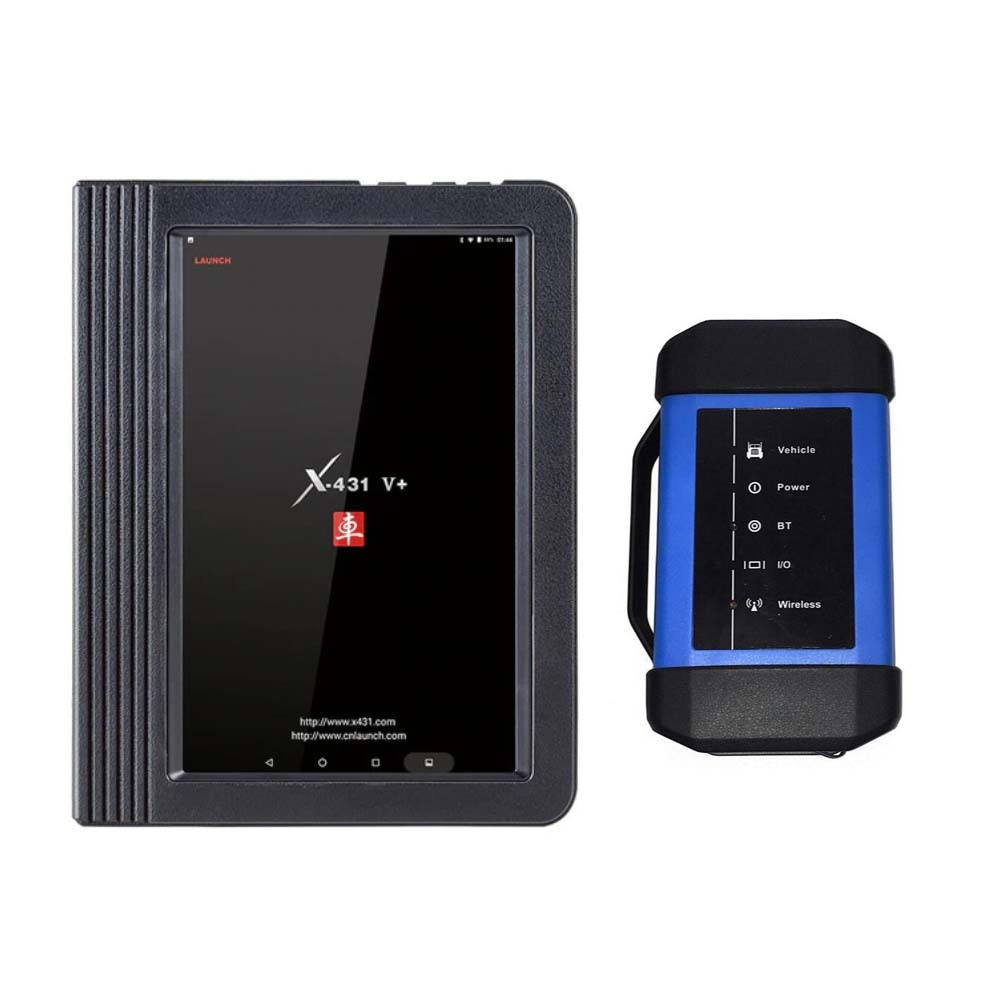

Launch X431 V+ HD3  Wifi/Bluetooth Heavy Duty Truck Diagnostic Tool

Launch X-431 V+ HD3  is a modified version of the multi-brand scanner Launch X-431 Pro which, in its  new edition, received a more powerful tablet and a diagnostic function for heavy  duty vehicles. The device includes all the advantages of the Pro series and is  presented with advanced diagnostic algorithms that allow you to quickly and  deeply test the car. The complete set HD - is intended for trucks  diagnostic.

The HD package is a  set of Launch x431 V+ plus the diagnostic module of trucks Launch HD Box 3.0, it  turns out cheaper than buying everything separately.

X-431 V+ is a brand  new advanced automotive fault diagnostic tool based on Android system. It passes  on Launch advantages in automotive fault diagnostic technology, such as wide Car  and Truck model coverage, powerful function, abundant special function and  accurate test data, etc.

X-431 V+ and HD3  achieves full diesel truck model and full system fault diagnosis through the  Bluetooth communication between Data Link Connector (DLC) and smart mobile  terminal.

Launch X-431 V+  HD3 Functions：

Identification of  control units

Adaptation of  control units

Reset service  intervals

Reading vehicle data  streams

Display of current  system parameters

Check  actuators

Reading and erasing  vehicle fault codes

Launch X-431 V+  HD3 Applicable  models

1.China: Dongfeng  Commercial Vehicle, FAW Jiefang, China National Heavy Duty Truck, Futian  Commercial Vehicle, Shaanxi Heavy Duty Truck, Jianghuai Commercial Vehicle,  Hongyan Heavy Duty Truck, Beiben Heavy Duty Truck, Jinlong Bus, Xiamen Golden  Passenger Car, Haige Bus, Wuzhou Dragon Bus , Yutong Bus, etc.;

2.Asia: Hino, Fuso,  Isuzu, UD Truck, Hyundai Truck, Ashok Leyland, etc.;

3.Americas:  Freightliner, IWC, Kenworth, Peterbilt, Sterling, etc.;

4.Europe:  Mercedes-Benz commercial vehicles, Mann, Iveco, Volvo, Renault, Duff, Scania,  Kamas and so on.

Launch X-431 V+  HD3 Supported heavy duty  vehicle list
Software Package  list:

1  X431, USA FORD  Diagnostic Software diesel

2  After the X431,  heavy card processing system diagnostics software

3  ASTRA diagnostic  software

4  Benz heavyduty  diagnostic software

5  Bosch diesel  diagnostic software

6  BREMACH  diagnostic software

7  China heavyduty  diagnostic Software

8  Cummins heavyduty  diagnostic software

9  DAF diagnostic  software

10  ERF diagnostic  software

11  FAW Liberation  diagnostic software

12  Foton Auman  diagnostic software

13  FUSO diagnostic  software

14  Hino diagnostic  software

15  Hyundai  heavyduty diagnostic software

16  Isuzu heavyduty  diagnostic software

17  Iveco heavyduty  diagnostic software

18  JAC heavyduty  diagnostic software

19  Mack heavyduty  diagnostic software

20  MAN diagnostic  software

21  OBD heavyduty  diagnostic software

22  SCANIA  diagnostic software

23  Shangchai  diagnostic software

24  Volvo heavyduty  diagnostic software

25  WP diesel  diagnostic software

26  X431, Airbus  diagnostic software

27  X431, ALLISON  transmission box diagnosis software

28  X431, Ashok  Rejlander the diagnostic software

29  X431,  Caterpillar heavy vehicles Diagnostic Software

30  X431, Chai heavy  vehicle diagnostic software

31  X431, Chaoyang  Diesel diagnostic software

32  X431,  construction machinery diagnostic software

33  X431, CREDO  heavy vehicle diagnostic software

34  X431, DETROIT  engine diagnostic software

35  X431, Dongfeng  commercial vehicle diagnostic software

36  X-431, Dongfeng  Yufeng diagnostic software

37  X431,  Freightliner heavy-duty truck diagnostic software

38  X431, full  diesel diagnosis software

39  X431, HD ABS  system diagnostic software

40  X431,  hd_goldendragon diagnostic software

41  X431,  hd_international vehicle diagnostic software

42  X431, HD_TATA  diagnostic software

43  X431,  hd_western_star vehicle diagnostic software

44  X431, heavy  truck presentation software

45  X431, heavy  vehicles Jiangling diagnostic software

46  X431, IRISBUS  heavy vehicle diagnostic software

47  X431, IRIZAR  heavy vehicle diagnostic software

48  X431, NEOPLAN  heavy vehicle diagnostic software

49  X431, Renault  diagnostic software for heavy vehicles

50  X431, SETRA  heavy vehicle diagnostic software

51  X431, SITCAR  heavy vehicle diagnostic software

52  X431, Stannic  bavin diagnostic software

53  X431, Sterling  heavy vehicle diagnostic software

54  X431, Sunlong  bus ( SUNLONG ) diagnostic software

55  X431, sunwin bus  ( SUNWIN ) diagnostic software

56  X431, UD Trucks  2F Nissan Diesel Diagnostic Software

57  X431, Yang Chai  engine diagnostic software

58  X431, Zhongtong  bus ( ZHONGTONG BUS ) diagnostic software

59  X431,BONLUCK  diagnostic software

60  X431,HD_KENWORTH  deagnostic software

61  Yuchai  diagnostic software

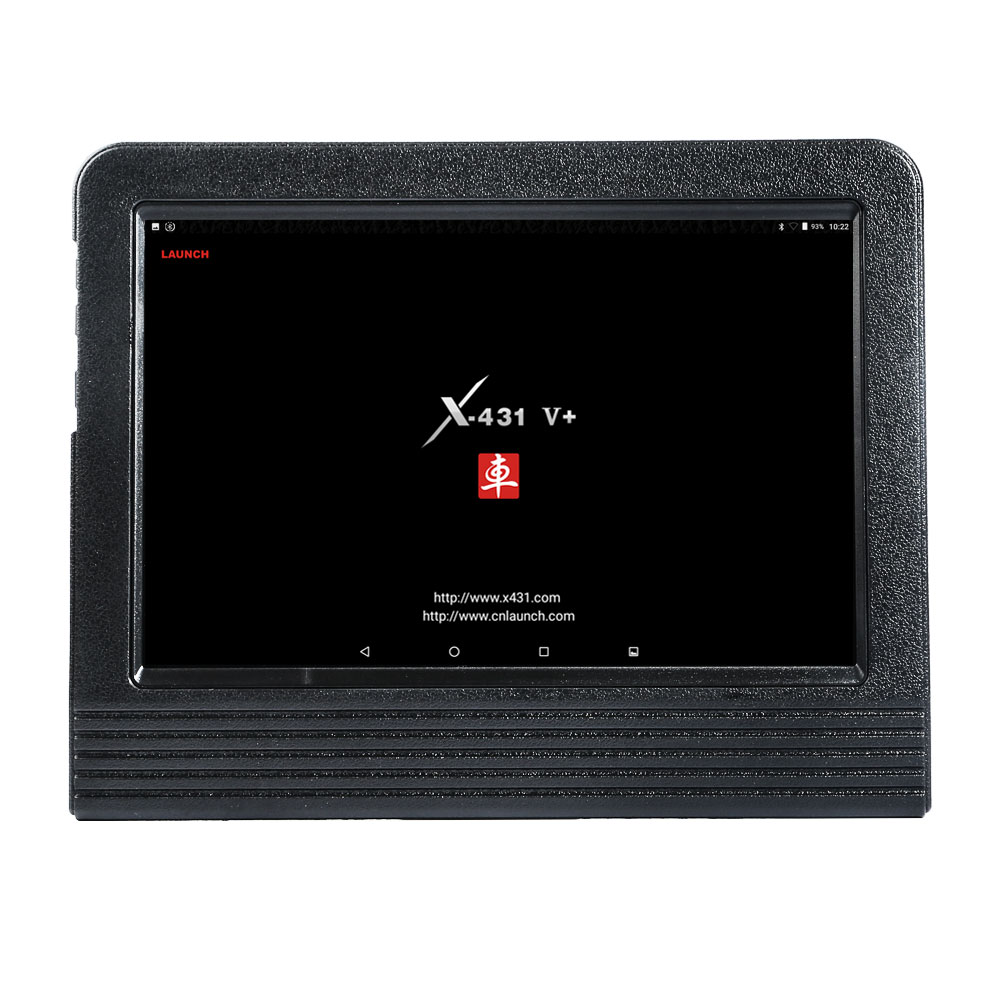

Launch X-431 V+  HD3 Host  parameter:

CPU: 1.4GHz quad  core

Operating system:  Android 7.1

Memory:  2G

Storage: 16GB,  support 128G expansion

Display: 10.1-inch  capacitive screen

Screen resolution:  1280×800

Camera: 5 million  pixels behind

Weight: about 0.50  kg

Size: 264x210x30  (mm)

Working temperature:  -10 ° C ~ 50 ° C

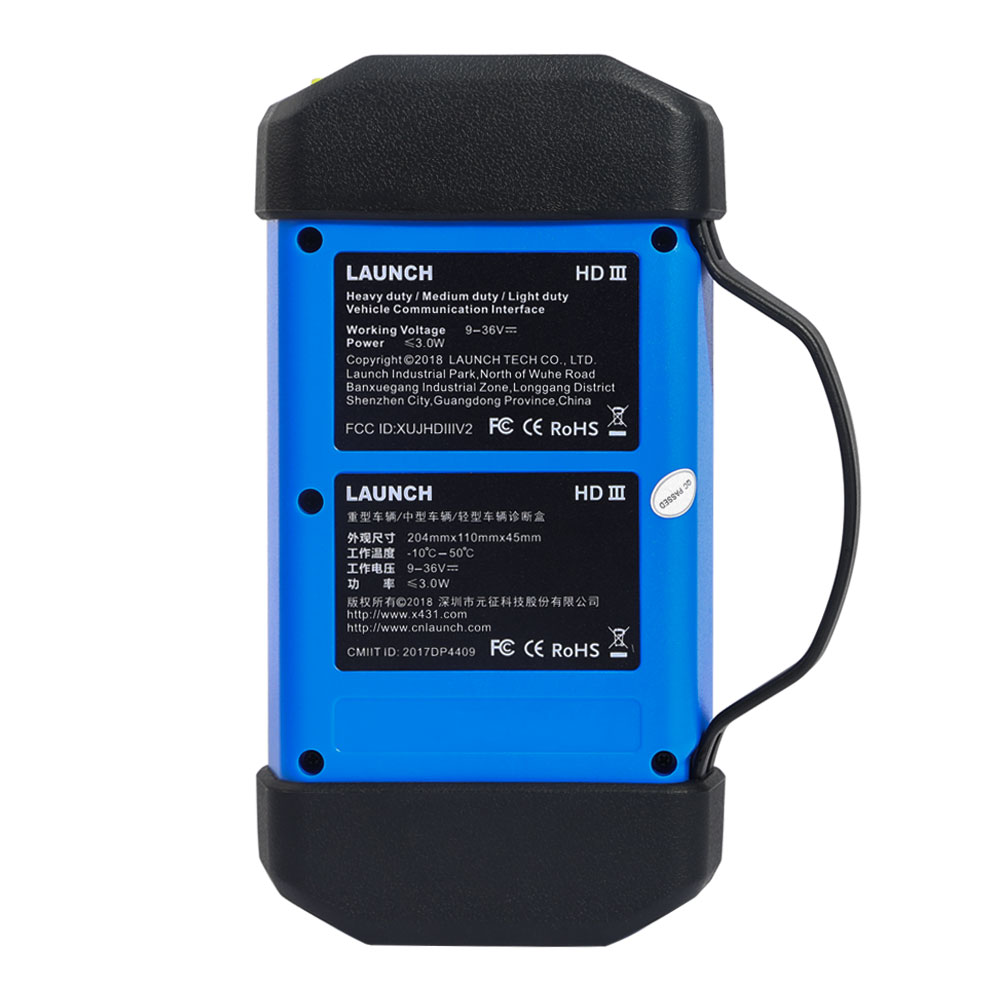

Launch X-431 V+  HD3 Diagnostic box  parameters

CPU:  120MHz

Power consumption:  ≤3W

Working voltage: DC  9-36V

Working temperature:  -10 ° C ~ 50 ° C

Communication  method: USB+ Wi-Fi+ Bluetooth

Size: 204x110x45  (mm)

Launch X-431 V+  HD3 Product  Features：

1.Intelligent  diagnosis: In the state of networking, it can automatically identify vehicle  information and complete rapid diagnosis. It can also check the history record  of vehicle maintenance online, which is the first in the industry;

2.Remote diagnosis:  The self-developed and patented IM remote diagnosis technology can be quickly  accessed remotely through terminals such as mobile phones, tablets, computers,  etc., and the network broadband and system resources occupation rate is  low;

3.Diagnostic  feedback: In the process of using the vehicle and function abnormalities under  special circumstances, you can feedback the problem to Yuanzheng Company, and  there will be special technicians to track and handle it;

4.Maintenance  information: More than 1600 models, more than 10,000 GB of maintenance database,  including online video, circuit diagram, maintenance manual, maintenance cases,  operation skills, etc., online inquiry at any time, can also provide detailed  fault code help, improve diagnostic efficiency;

5.Traditional  diagnosis: When in a network-free environment, intelligent diagnosis cannot be  used. At this time, traditional diagnosis can be selected, and the vehicle and  vehicle models can be manually selected for vehicle fault detection.

6.Diagnostic record:  record the local vehicle maintenance record, you can check the vehicle record  that the machine has diagnosed, and you can quickly enter the system of the  vehicle for detection when it is diagnosed again;

7.Software upgrade:  support one-click upgrade of operating system, client, model software and  firmware;

8.Personal Center:  Personal data center, including my report, my connector, diagnostic connector  connection management, connector activation, firmware repair, personal  information, modify user password, settings, etc.

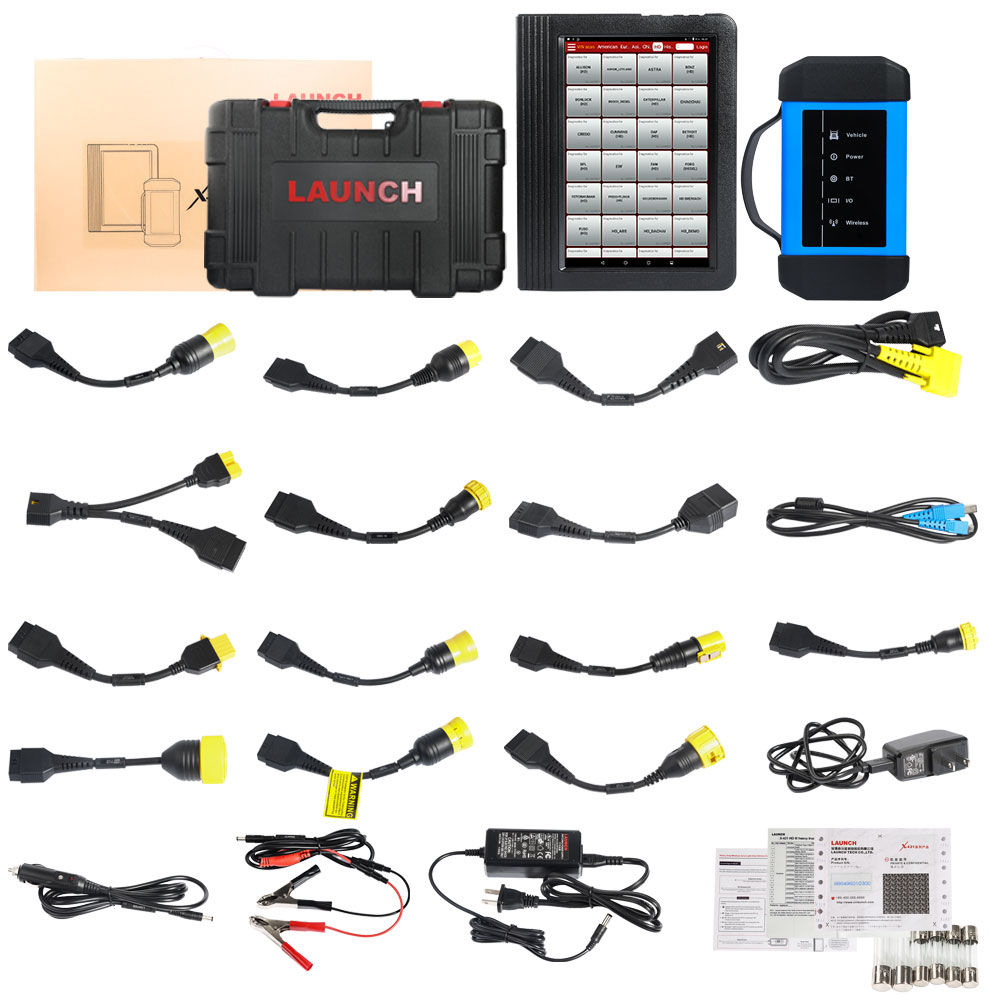

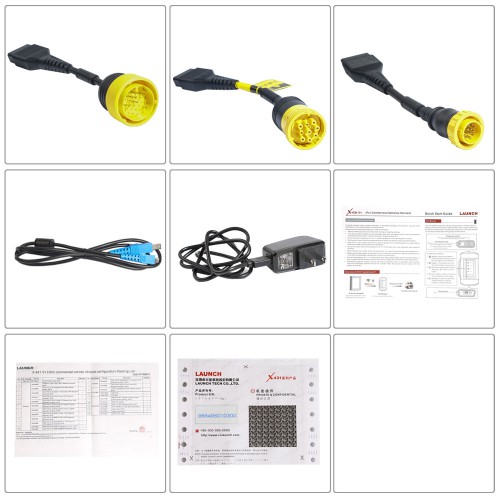

Launch X-431 V+  HD3 Packing  List:

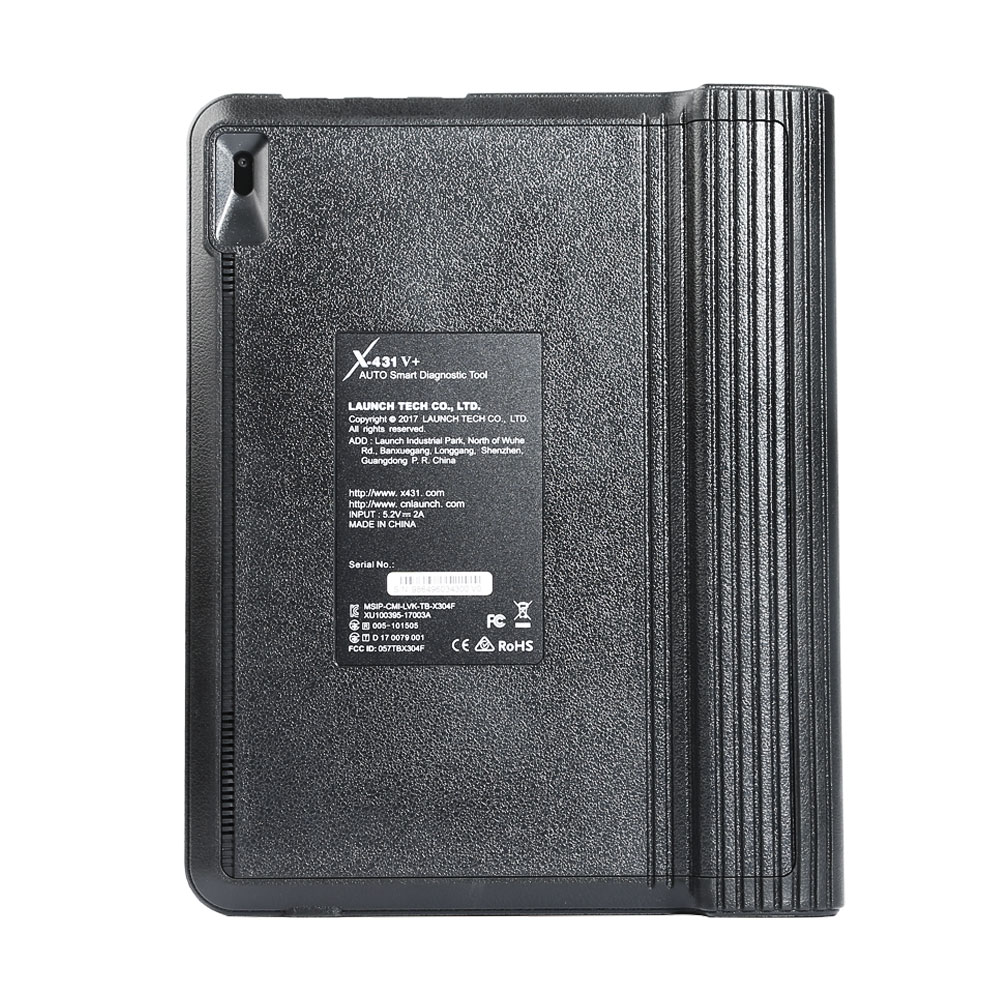

1pc x 201025842   X-431 V+(V3.0) host

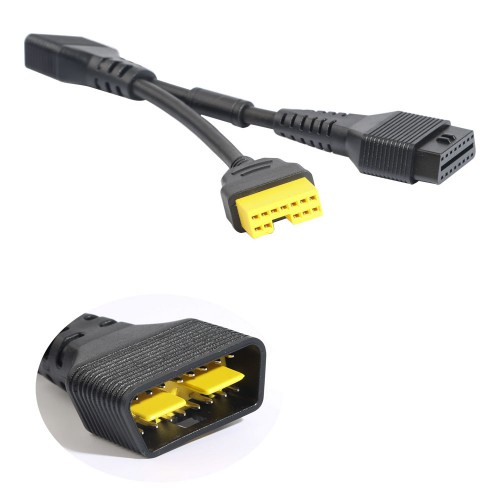

1pc x 105045595   PAD4HD- Type II OBD-9 X431 diagnostic connector

1pc x 201026060   X-431 HD_III_VCI diagnostic kit Business Edition (RM08)

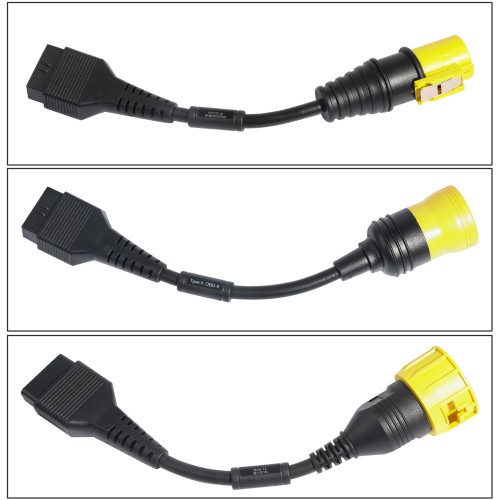

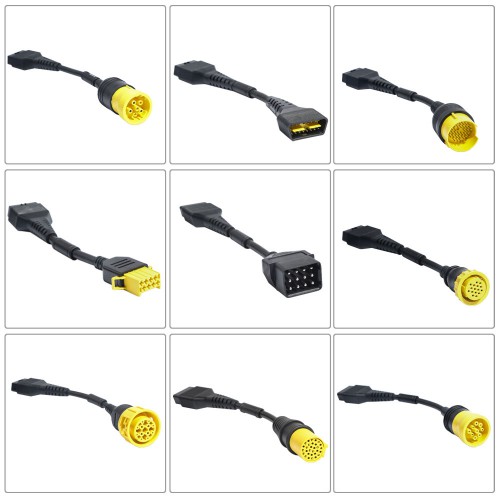

1pc x 105045568   X431 PAD IV HD-BENZ-14 / Mercedes 14PIN diagnostic connector

1pc x 105045572   X431 PAD IV HD-CAT-9 / Carter 9PIN diagnostic connector

1pc x 105045590   X431 PAD IV HD-HYUNDAI-16 / Modern truck 16PIN diagnostic connector

1pc x 105045584   X431 PAD IV HD-IVECO-30 / In Victoria Ho 30PIN diagnostic connector

1pc x 105045585   X431 PAD IV HD-IVECO-38 / In Victoria Ho 38PIN diagnostic connector

1pc x 105045586   X431 PAD IV HD-MAN-12 / Man 12PIN diagnostic connector

1pc x 105045587   X431 PAD IV HD-MAN-37 / Man 37PIN diagnostic connector

1pc x 105045569   X431 PAD IV HD-MITSUBISHI-12 + 16 / Fuso 12 + 16PIN diagnostic  connector

1pc x 105045566   X431 PAD IV HD-OBD-16 diagnostic connector

1pc x 105045582   X431 PAD IV HD-OBD-6 diagnostic connector

1pc x 105045589   X431 PAD IV HD-RENAULT-12 / Renault 12PIN diagnostic connector

1pc x 105045588   X431 PAD IV HD-VOLVO-8 / Volvo 8PIN diagnostic connector

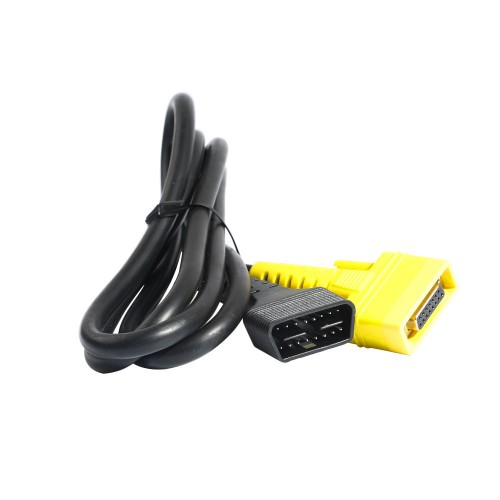

1pc x 105022244   Heavy truck diagnostic X431 PAD4HD mainline

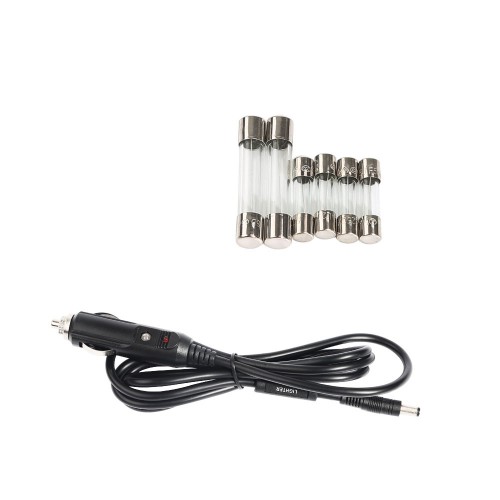

1pc x Y203010242   LIGHTER

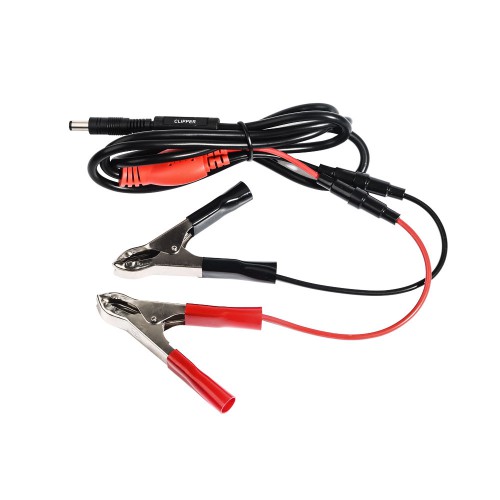

1pc x Y203010270   CLIPPER

1pc x102210138   Adapter, 5V/2A, American Standard (Lenovo plate supporting)

1pc x 107022213   X431 PIN envelope

1pc x 107012819   X-431 V+ HD3 English quick start

1pc x 105022289   X431, PRO3S+, B, USB, Micro, USB

1pc x 102150010   Clipper fuse 5*20mm

1pc x 102150012   Lighter fuse 6*30mm

1pc x 102210031   X-431 Power supply

Launch X431 V+ HD3  FAQs:

1.Communication  error with vehicle ECU?

Please  confirm:
1) Whether the VCI  is properly connected.
2) Whether the  vehicle ignition switch is ON.
3) If all checks are  normal, send vehicle year, make, model and VIN number to
us using Dia.  Feedback feature.

2. Failed to enter  into vehicle ECU system?

Please  confirm:
1) Whether the  vehicle is equipped with the system.
2) Whether the VCI  is correctly connected.
3) Whether the  vehicle ignition switch is ON.
4) If all checks are  normal, send vehicle year, make, model and VIN number to
us using Diagnostic  Feedback feature.

3. How to save  power?

1) Please turn off  the screen while X-431 V+ keeps idle.
2) Set a shorter  standby time.
3) Decrease the  brightness of the screen.
4) If WLAN  connection is not required, please turn it off.
5) Disable GPS  function if GPS service is not in use.

4. How to handle  when you encounter “Insufficient storage space”?

If this happens  while downloading the diagnostic software, please proceed as
follows:
1. Get your X-431 V+  username and password ready. If you forgot the
password, please  dial our after-sales support center hotline to retrieve it with
the product Serial  Number.
2. Reset the X-431  V+ to the default factory settings (For details, please refer to Item 5 in this  Chapter).
3. Tap “Settings”  -> “WLAN”, slide the switch to ON and then choose the
desired WLAN network  to connect.
4. Open the browser  and visit www.dbscar.com to download and install the
latest  App.
5. After the  installation is complete, launch the application and login with  your
username and  password.
6. Tap“Update” to  download the diagnostic software.
Note: For new App,  the software structure and storage space occupied by the vehicle
software have been  optimized so as to avoid the occurrence of insufficient storage.

5. How to reset  X-431 V+?

Resetting may cause  data loss. Before doing so, please make sure important data
and information has  been backed up.
Do the following to  reset X-431 V+:
1. Tap “Settings”  -> “Back & Reset”.
2. Tap “Factory data  reset”.
3. Tap “Reset  tablet”.
4. Tap “Clear all  data” to start resetting until the tool automatically reboots.
6. The diagnostic  application is failing.
1. Press the Home  key on the tool.
2. Select  “Settings”-> “Apps”.
3. Select the  application name from the Apps list.
4. Select “Force  Stop”, and then press “OK” to confirm.
5. Select “Clear  Data”, and then press “OK” to confirm.
