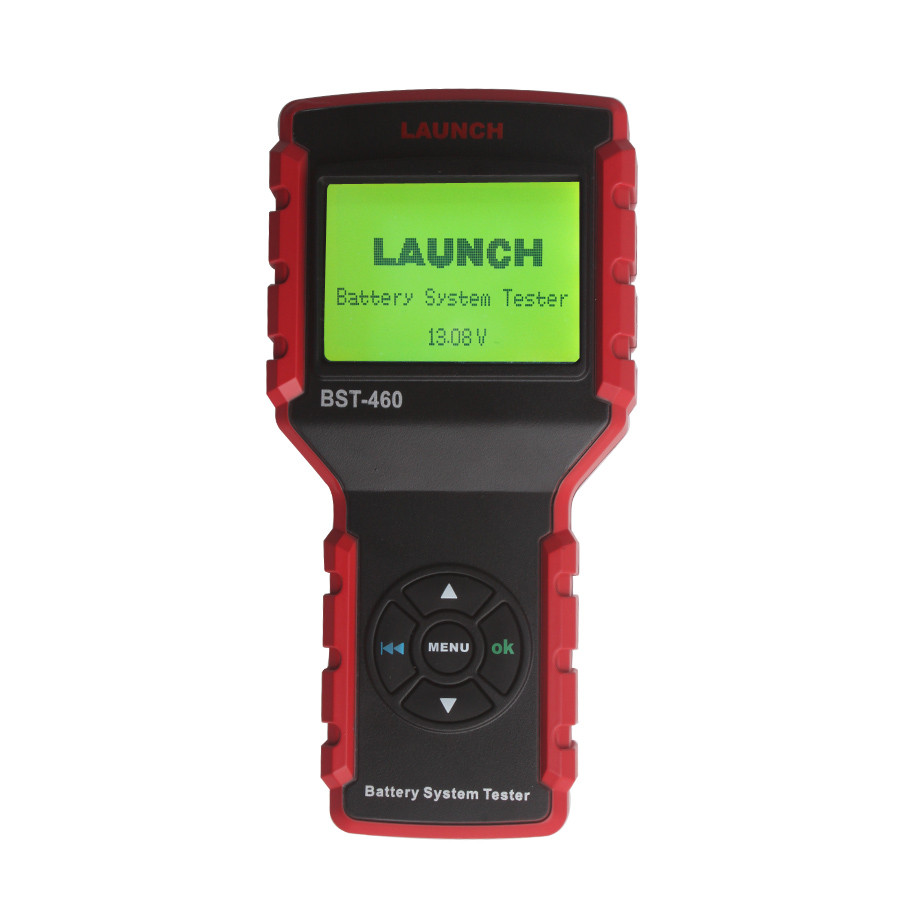

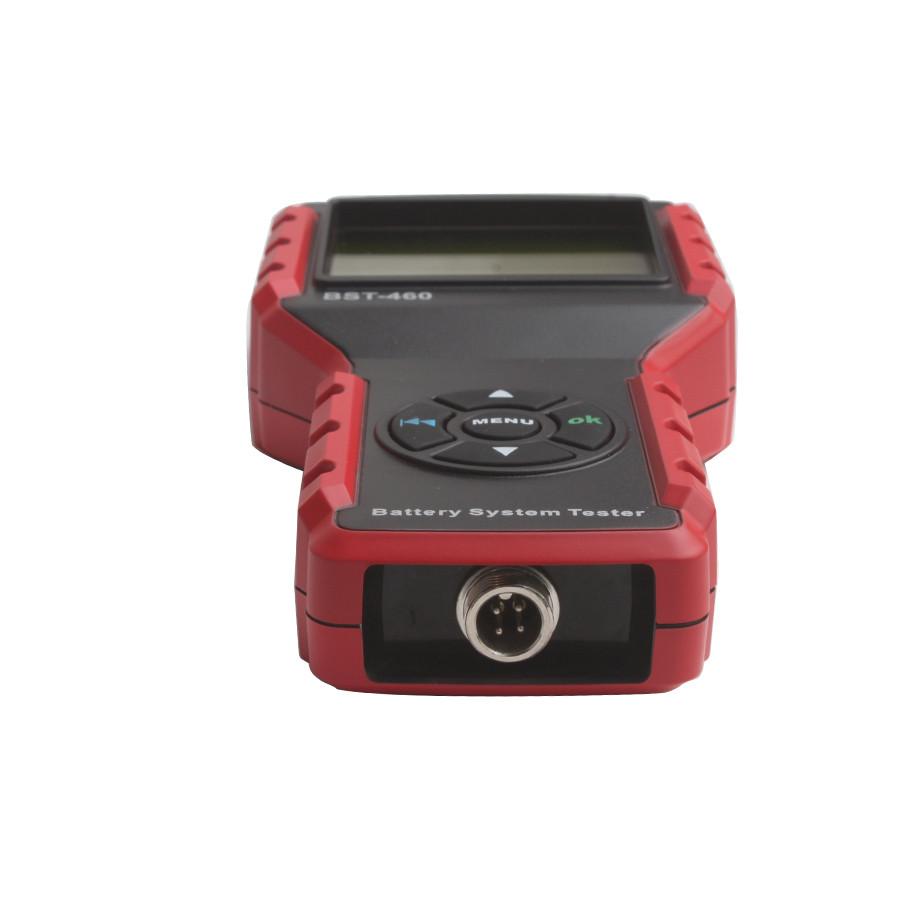

Original Launch BST-460 Battery System Tester

Three kinds of languages for selection:
1.Language: Chinese simplified, Chinese Traditional, English, Russian
2.Languages:English, Spanish, German, French and Italian, etc
3.Languages: English/ Russian/ Japanese/ Chinese

Launch BST-460 Battery System Tester Description:
Launch battery system tester, with world's most advanced conductance testing technology, can easily, quickly and accurately measure the actual cold cranking current capability to judge the health status of the battery itself, and to detect common faults of both starting and generator charging systems, which help maintenance personnel to achieve quick repair to the vehicle trouble.

BST-460 Battery System Tester  advantage:
Simple, secure, fast, and accurate display test results ( the test takes about 3 seconds)
Eight lines with backlight LCD display and humane language prompted interface
Does not emit light, no heat, no discharge, no spark, no operating dangerous
Configuration 0-900A AC and DC current clamp
Built - in thermal printer
Can store 100 groups of test results
Automatic temperature compensation function
With ripple voltage test function
Powerful auxiliary functions
Multi- language menu display
Replaceable test lines
Dedicated Kelvin test clip

BST-460 Battery System Tester Advanced functionality:
Applicable to a variety of models, all kinds of batteries , and a variety of system mode
Directly detected in the car , do not need t remove the battery
Directly test the battery of the loss of electricity , bad cell battery
Testable starting / charging current
Advanced starter / alternator detection
Powerful auxiliary functions
View / Print
Ammeter Function
Thermometer
QC mode
License plate number input function
Time and time format Adjustment
User information input
Display backlight brightness adjustment function
Print sharpness adjustment
Standby power function

BST-460 Battery System Tester Test criteria and scope :
suitable for 6V & 12V battery system and 12V & 24V starting and charging system detects
CCA 100-2000 (SAE & BCI to develop the standard most commonly used : the cold-start battery rating )
BCI 100-2000 ( international battery Committee standards )
CA 100-2000 ( when the effective starting current rating)
MCA 100-2000 ( ships standard effective starting current rating ,  )
JIS 26A17 - 245H52 ( Japanese Industrial Standard)
Standard DIN 100-1400 ( German Automobile Industry Committee )
The IEC 100-1400 ( International Electrotechnical Commission standard )
EN 100-2000 ( European Automobile Manufacturers Association standards )
SAE 100-2000 ( U.S. Engineers Standard)
GB 100-1400 ( Chinese National Standard )

BST-460 Battery System Tester Specification:
1. Shell ABS anti - acid plastic , two-tone green rubber oil
2. 128 * 64 dot matrix , large backlit display screen (3 inches ) , adjustable backlight brightness LCD display
3. Test standards , including the most commonly used battery standard in the world , such as CCA, BCI, CA, MCA, JIS, DIN, IEC , EN , SAE , GB
4. Operating temperature : -20-55 (-4-131 )

Launch BST-460 Battery Tester Main Parameters:
1 Shell ABS anti - acid plastic,two-tone green rubber oil ;
2.128 * 64 dot matrix,large backlit display screen (3 inches ),adjustable backlight brightness LCD display ;
3 test standards,including the most commonly used battery standard in the world,such as CCA, BCI,CA,MCA,JIS,DIN,IEC,EN,SAE,GB
4 Operating temperature:-20-60 ℃ (-4-140 ℉)

Launch BST-460 Battery Tester Package List:
1pc x Launch BST-460 Battery Tester Main Unit
1pc x Removable test cable
1pc x User Manual
1pc x Carry case
