HT-8A heavy equipment Multi-diagnostic tool for Trucks excavators construction vehicles and generators


Quick Details

Type: Engine Analyzer
Power: 28W

Applicable Models: All series of CATERPILLAR excavator, All equipment with Cummins engine, KUMATSU PC200-8 to PC2000-7, HITACH ZAX-3 ,VOLVO all series,  KOBELO-8 all series.

Brand Name: HOLYHANDS or OEM
Model Number: HT-8A
Brand: HOLYHAND
Input voltage: DC24V
USB: 2.1/1.1
Application 1: Hydaulic system
Application 3: EFI engine system
Application 2: Electro control system


Packaging

Items per Carton: 1 Sets /
Package Measurements: 40X50X20 CM
Gross Weight: 18.00 KG
Package Size per Unit: 40X50X20 CM
Gross Weight per Unit: 18.00 KG/ Set

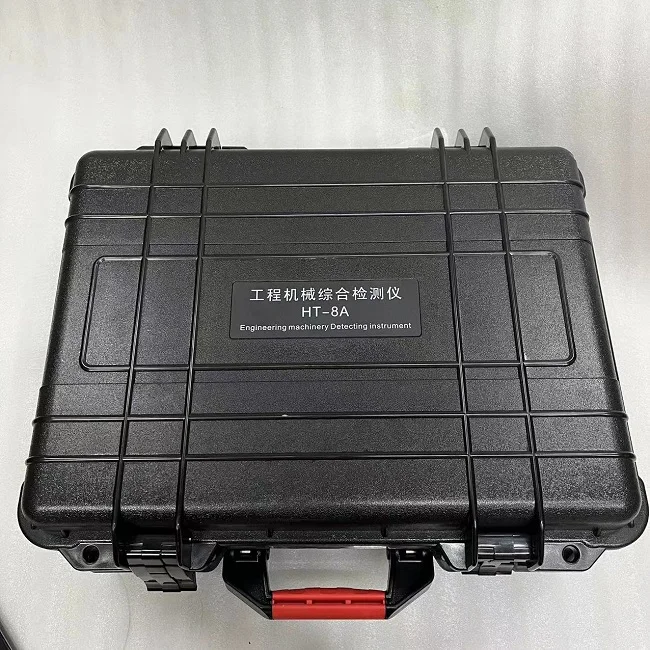

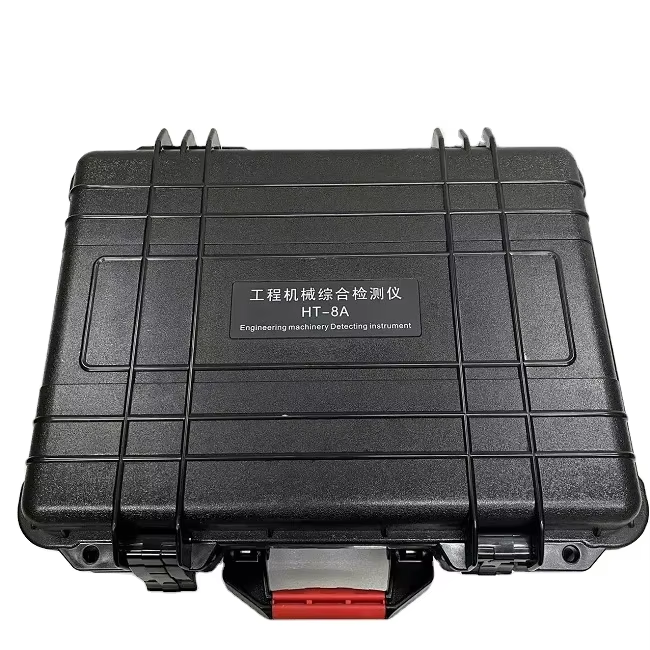

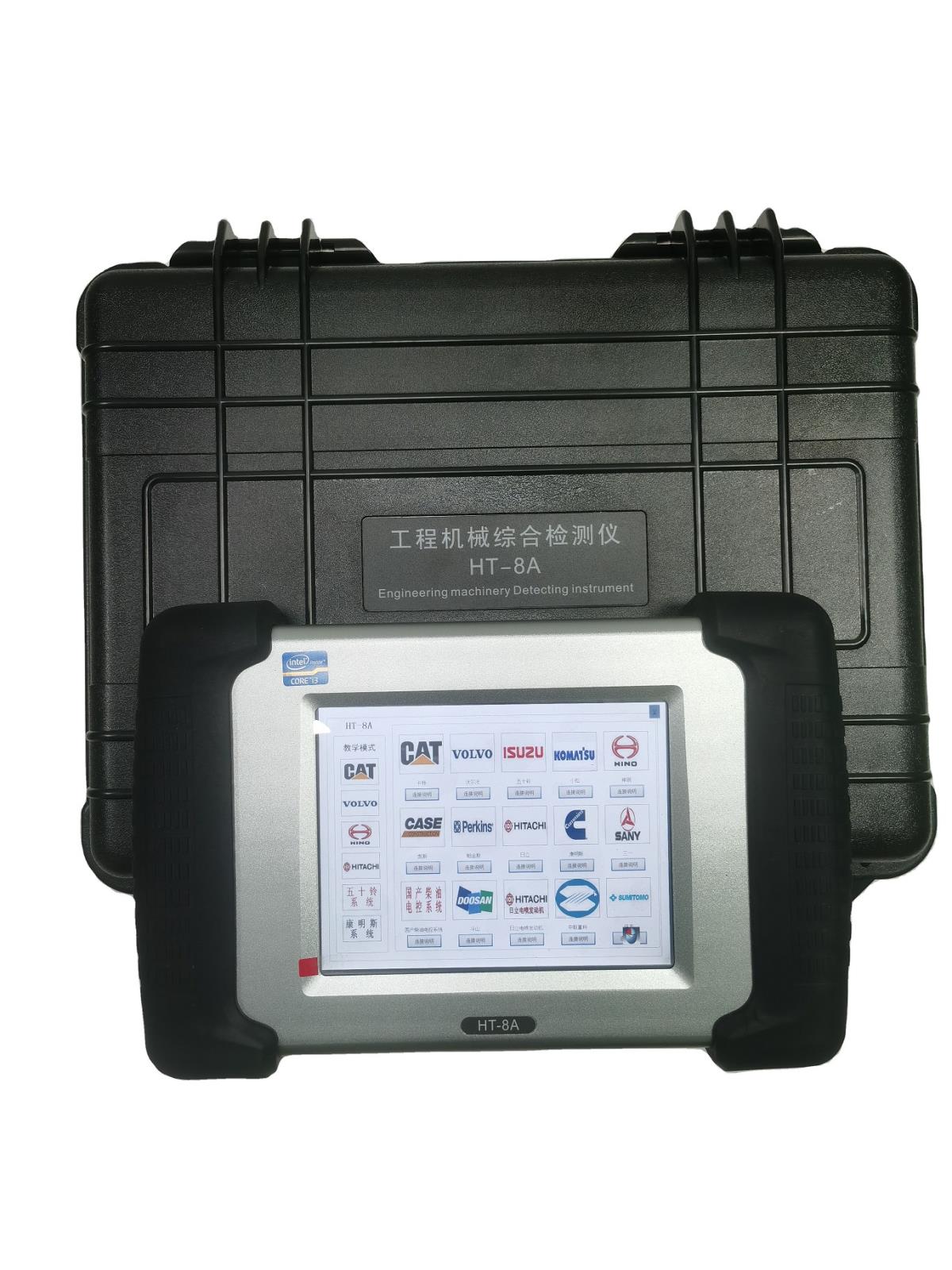

Package Type: all packed in portable case, and in carton

HT-8A excavator diagnostic tool Specifications

1,Widdly usded for famous excavators
2,Vehicles of CAT,KOMATSU,HITACH..
3,Independent develop

HT-8A heavy equipment Multi-diagnostic tool for excavators

HT-8A is an multi brand diesel engine diagnostic tool with many functions. It contains detecting software system for trucks, excavators, construction vehicles and generators with different brands. Brands such as CATERPILLAR, VOLVO, CUMMINS, KOMATSU, ISUZU, KOBELCO, HINO, HITACHI, CASE, DOOSAN, Sumitomo, Hyundai-9 are all available. It can be used to scan and diagnose the hydraulic system, electronic control system, and engine system (EFI). Special functions such as data analysis, fault code reading & clearing, calibration of throttle, time and hydraulic flow, off-cylinder test, injector QR coding, ECM & ECU programming are supported.

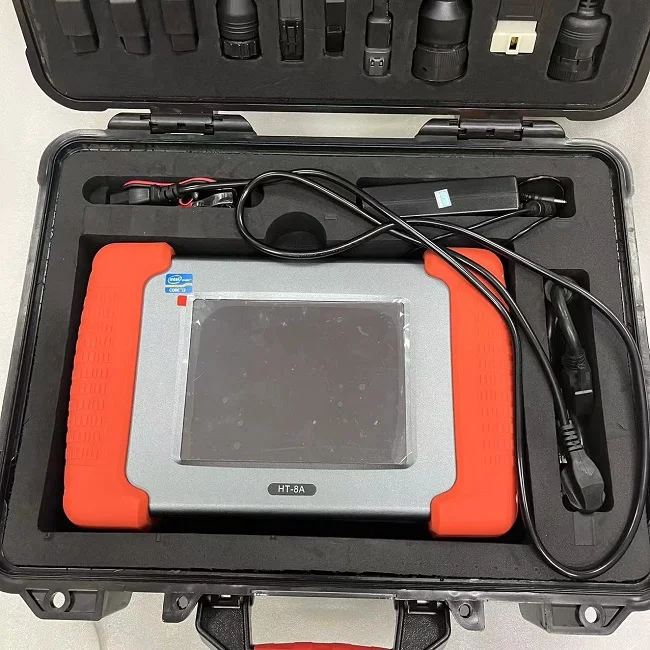

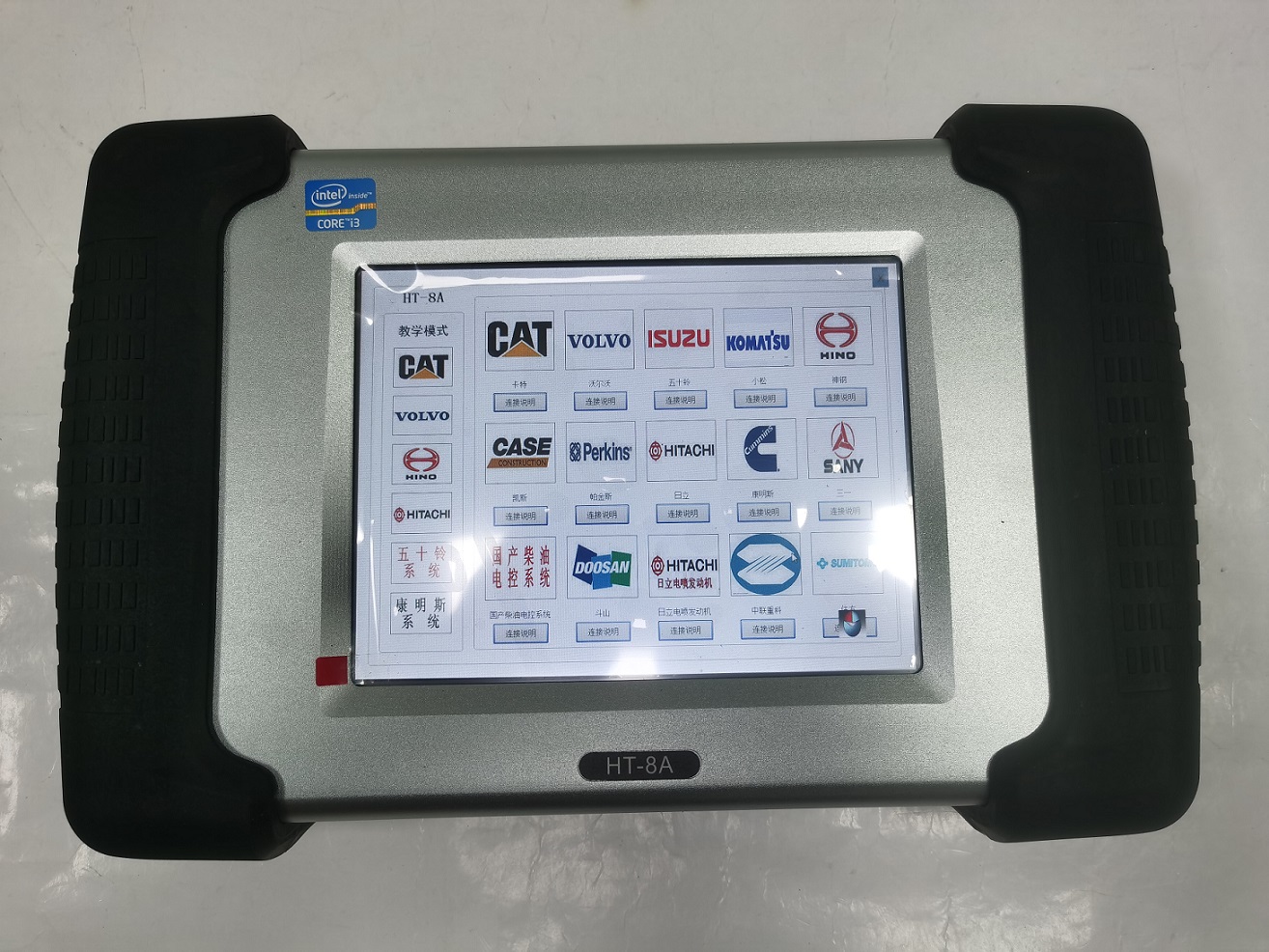

The HT-8A installed Windows XP operating system. 8" TFT display with touching screen operate. Core i3 CPU ensure fast working speed. Software versions in different languages are provided according to customer’s requests. All the industrial designs allow the tool works steady in temperature range from -30 °C to 60°C and other bad conditions.


Applications:


1, CATERPILLAR. Vehicles and equipment that support SAEJ1939 or 1708 communication protocol.

Application: Hydraulic system, Electronic control system, EFI engine system.

Functions: data analysis, fault code reading & clearing, calibration of throttle/time/hydraulic flow, off-cylinder test, injector QR coding, ECM & ECU programming.

2, KOMATSU. Equipment with CUMMINS engines.

Application: EFI engine system. Engines such as SAA6D107-1, SAA6D125-5, SAA6D140-5, SAA6D170-1 are supported.

Functions: ECM & ECU programming, data analysis, fault code reading & clearing, off-cylinder test, GPS setting.

3, CASE. Equipment with CUMMINS engines.

Application: EFI engine system.

Functions:  data analysis, fault code reading & clearing, off-cylinder test, injector QR coding, ECM & ECU programming.

4, HITACHI. All Hitachi series vehicle.

Application: Hydraulic system, Electronic control system, EFI engine system.

Functions: data analysis, fault code reading & clearing, calibration of throttle/time/hydraulic flow, off-cylinder test, injector QR coding, ECM & ECU programming.

5, VOLVO. All Volvo vehicle.

Application: Hydraulic system, Electronic control system, EFI engine system.

Functions: data analysis, fault code reading & clearing, off-cylinder test, calibration of hydraulic flow, GPS setting.

6, ISUZU. All series EFI engine.

Application: engine system

Functions: data analysis, fault code reading & clearing, off-cylinder test, injector QR coding, ECM & ECU programming.

7, KOBELCO. Excavators with HINO EFI engine.

Application: engine system, electronic system

Functions: data analysis, fault code reading & clearing, injector QR coding, ECM & ECU programming.

8, SUMITOMO.

Application: engine system.

Functions: data analysis, fault code reading & clearing, off-cylinder test, injector QR coding, ECM & ECU programming.

PC Specifications:

CPU: Core i3 1600MHz (dual core)
Memory: 2GB
HD: 60GB
Display: backlit 8 " TFT with touching screen
Operating system: Windows XP

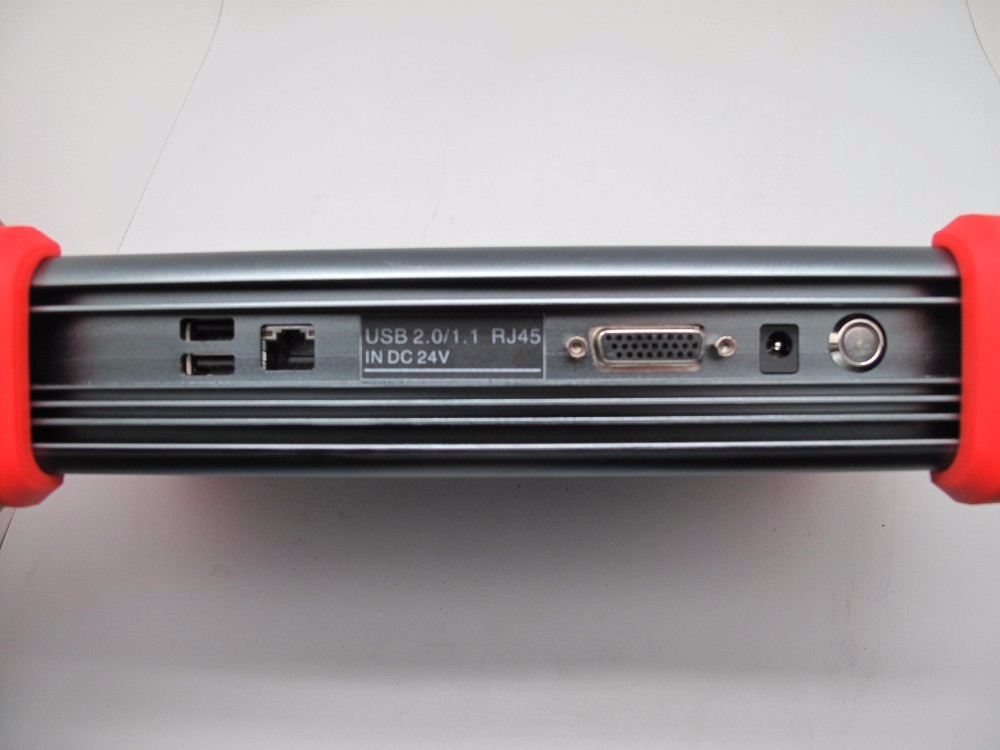

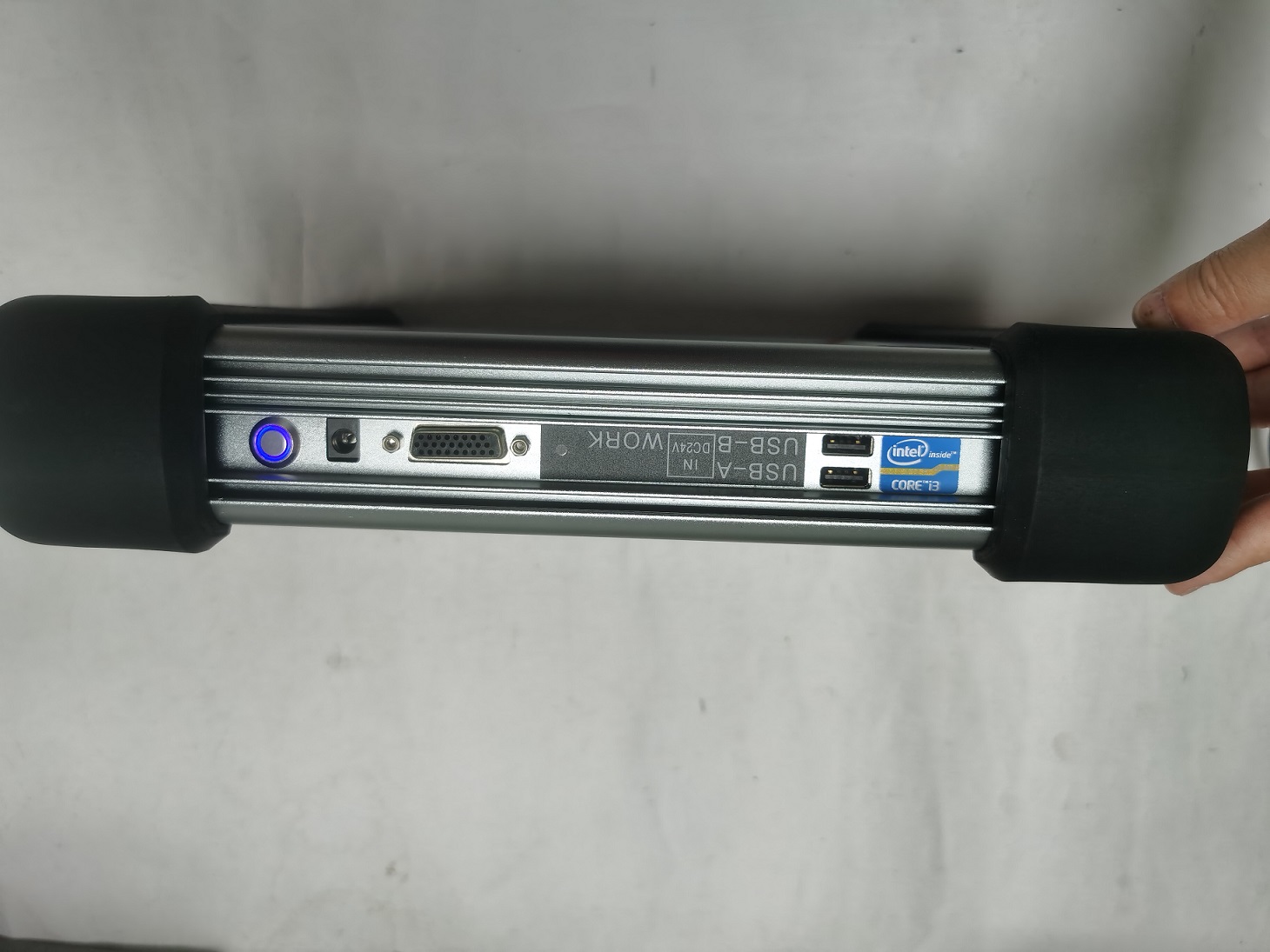

Communication interface: RS232, OBD and USB Ethernet
USB: USB2.0/1.1×2
RJ45: 100M
Battery: 3600mA lithium battery inside
Housing: Strong Aluminum housing with protective rubber boot
Input voltage: DC 12V-24V provided by vehicle battery

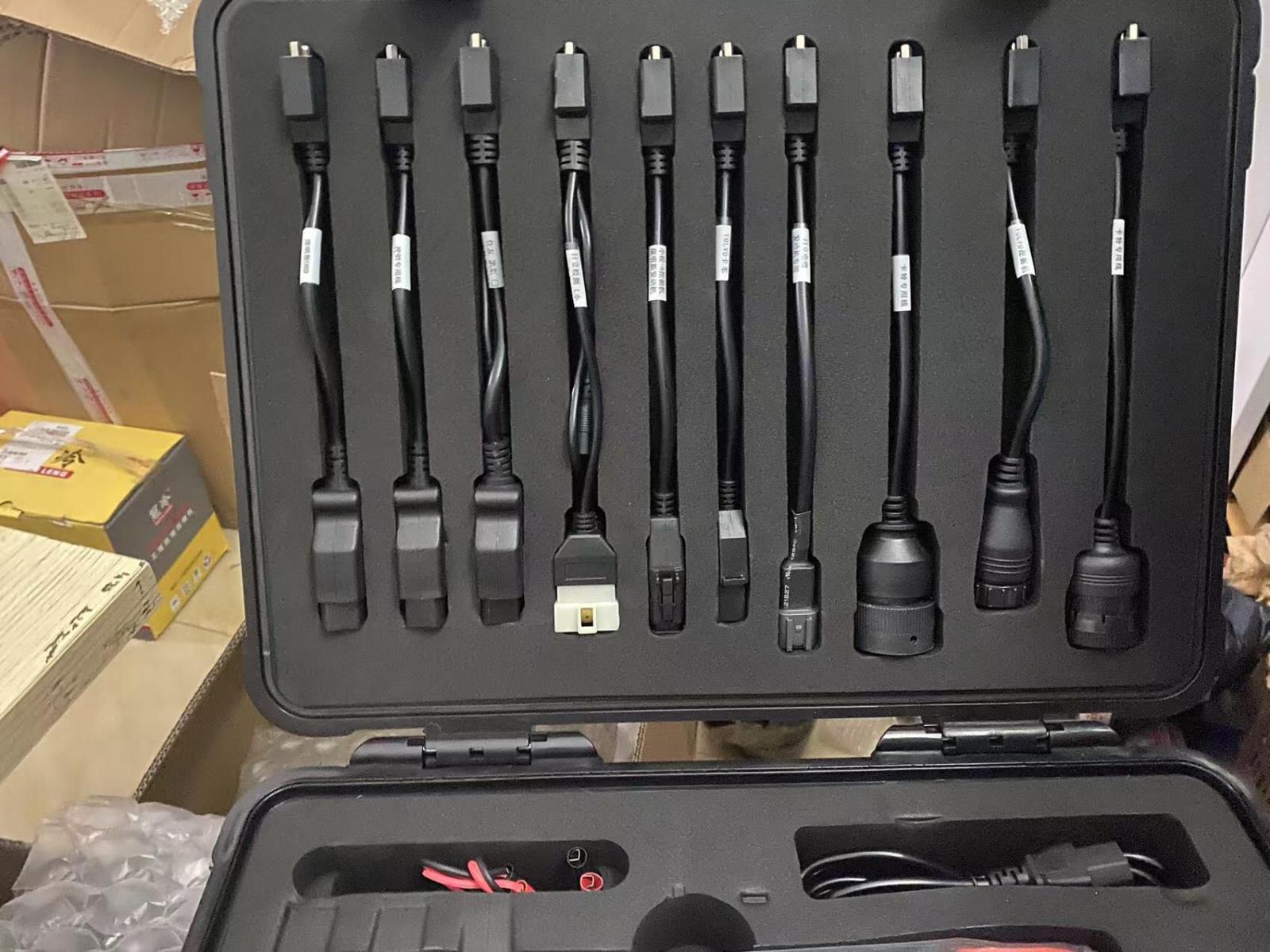

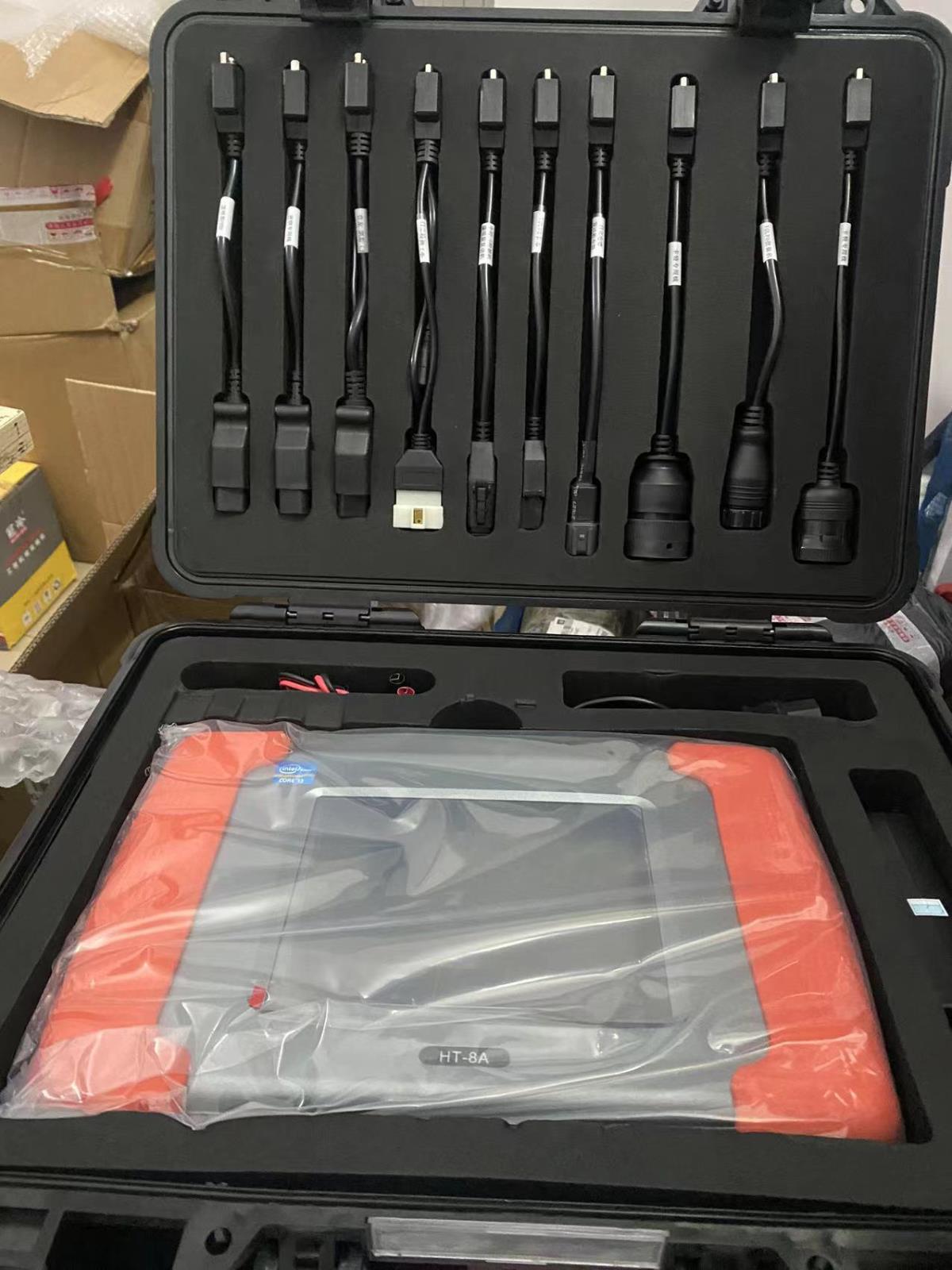

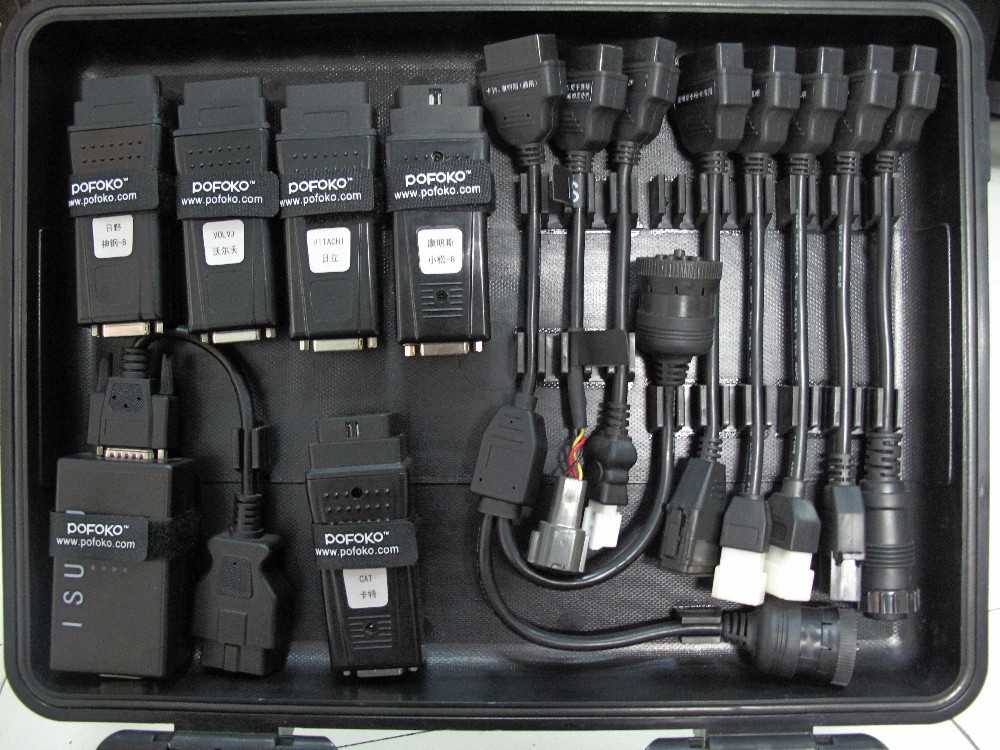

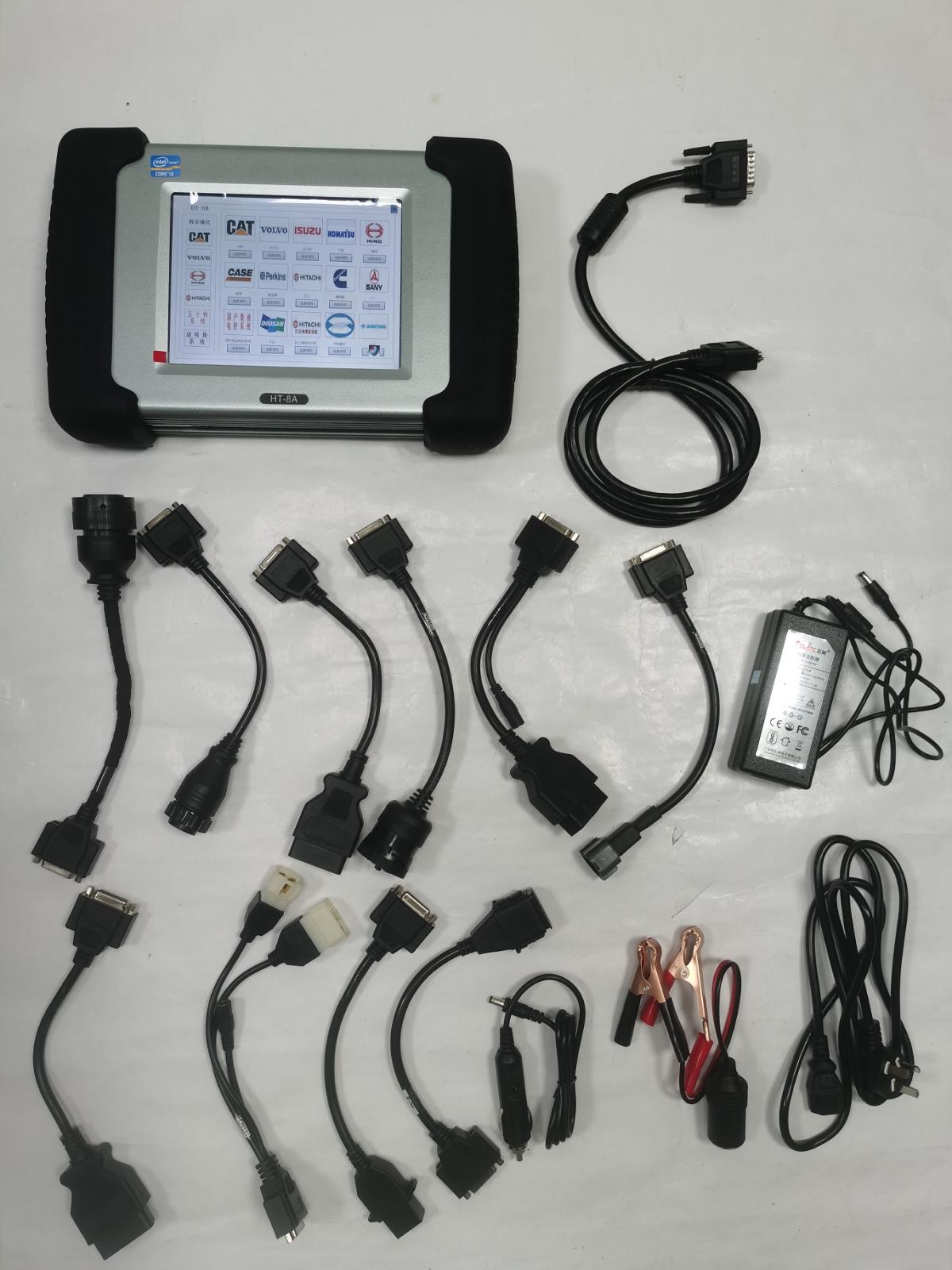

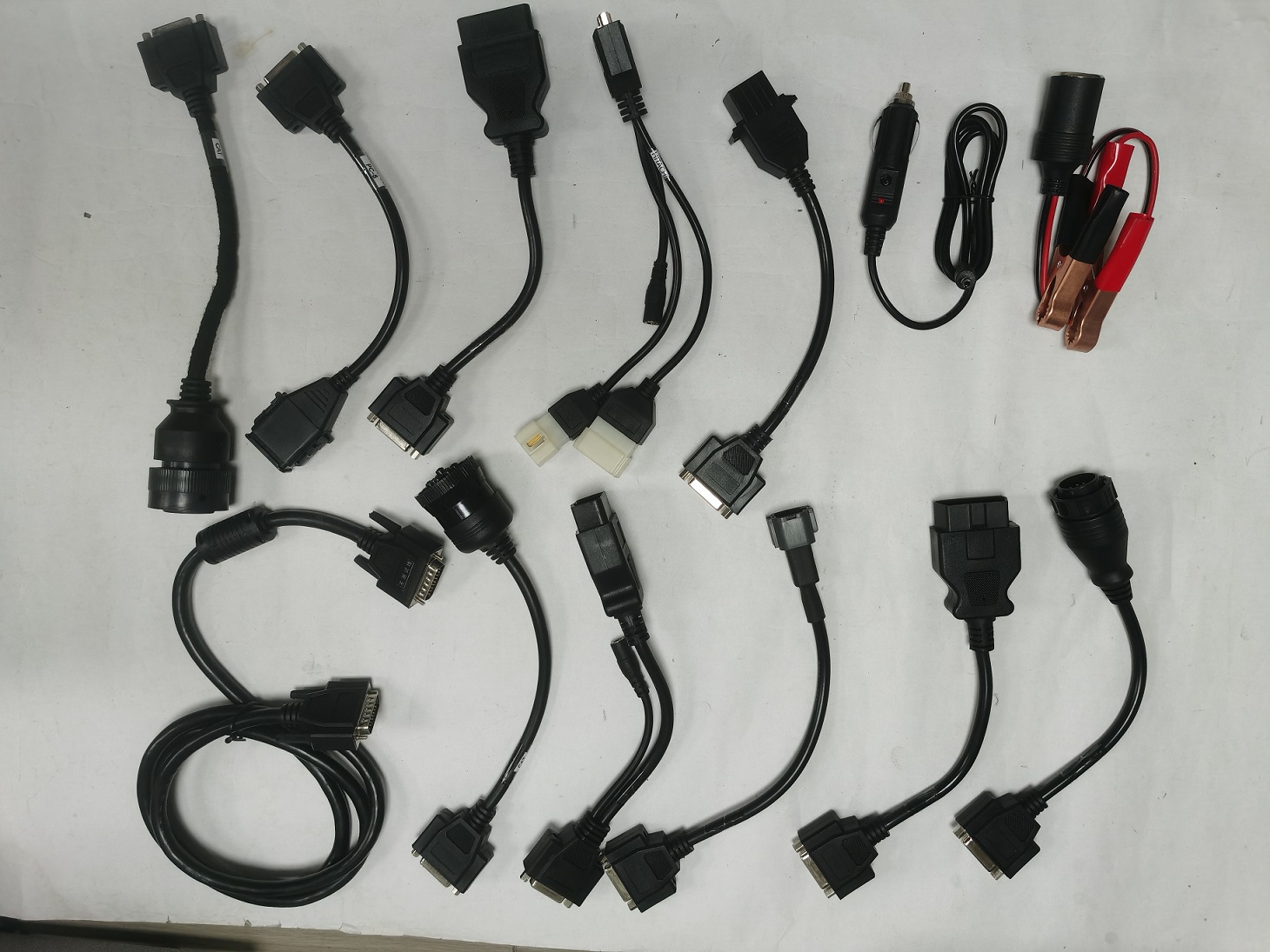

Paking list:
