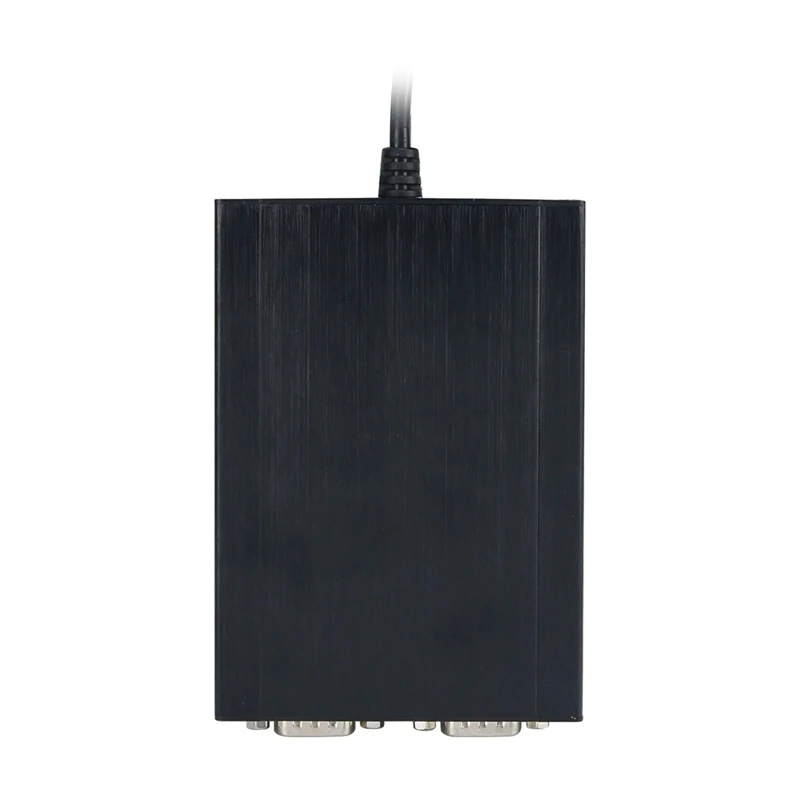

PCAN-USB Pro PCAN FD PRO USB To CAN Adapter 2CH CAN FD Compatible With IPEH-004061 For PEAK

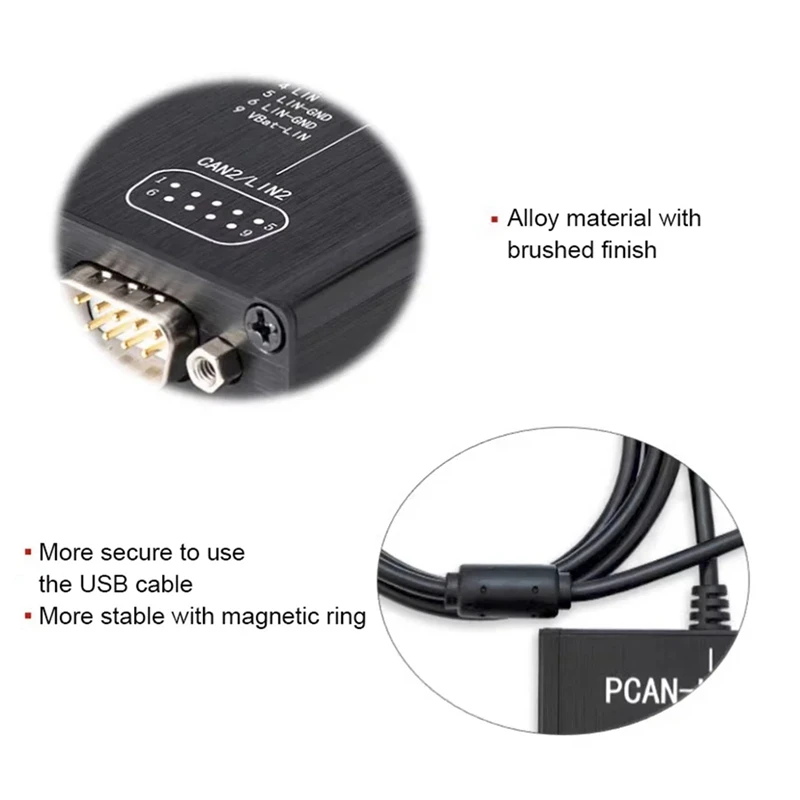

Premium Materials:High-end FPGA solutions: the pursuit of superior performance, regardless of the cost, Alloy shell: high-end brushed finish, High quality USB cable with magnetic ring, Solid gold-plated DB9 connector, Imported high-end FPGA main chip for Lattice Semiconductor, Cutting-edge design solutions, Higher working rates

Professional Automotive Bus Development Tool:1. For PCAN-Explorer: Professional Windows software for communication with CAN bus.2. For PCAN-Trace: It enables CAN messages to be quickly recorded and even played back on the CAN bus.3. For BusMaster & TSMaster: It supports for ETAS and TOSUN bus development and simulation software (installation package provided).

Standard Industry Software Programming Interface:

1. PCAN-Basic provides more features and extended language support. It offers a variety of features for developers under C++, C#, C++/CLR, VB.NET, Java and Python 3.x.

2. For Linux operating systems: Many Linux distributions or Linux kernels already include drivers for PEAK-System CAN interface. CAN bus can be accessed as a network device through the SocketCAN framework.

3. For MacOS operating system: PCAN-USB library program and monitoring software for MacOS are provided, and CAN can be accessed through this product under MacOs.

4. For Labview: Provide sub-VI interface and example VI of Labview that supports PCAN devices.
Supports a Wide Range of Industry Applications and Software:

Diesel/natural gas - commercial engine services

For Cummins Insite: Provides RP1210 driver for PCAN. Support for Cummins ECU diagnostics - flashing.

For INCA: provides XCP and CCP protocol drivers for PCAN. It can support for INCA ECU diagnosis-flashing.

For Woodward: OH6 gas ECU diagnostics - flashing (only for Win1)

Colour:Black
Material:ABS
type:8Mbit/12Mbit

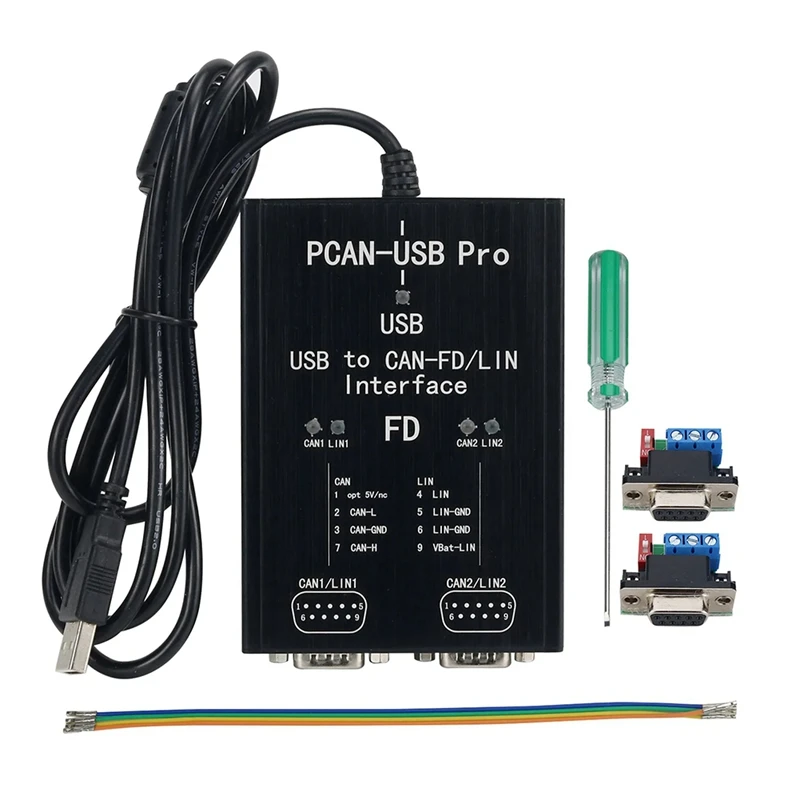

Package Contents:

1 x USB to CAN adapter
1 x DB9 junction box adapter
1 x DB9 terminal resistor (120Ω)/>1 x USB to CAN adapter
1 x DB9 junction box adapter
1 x DB9 terminal resistor (120Ω)

Only the above package content, other products are not included.

Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
