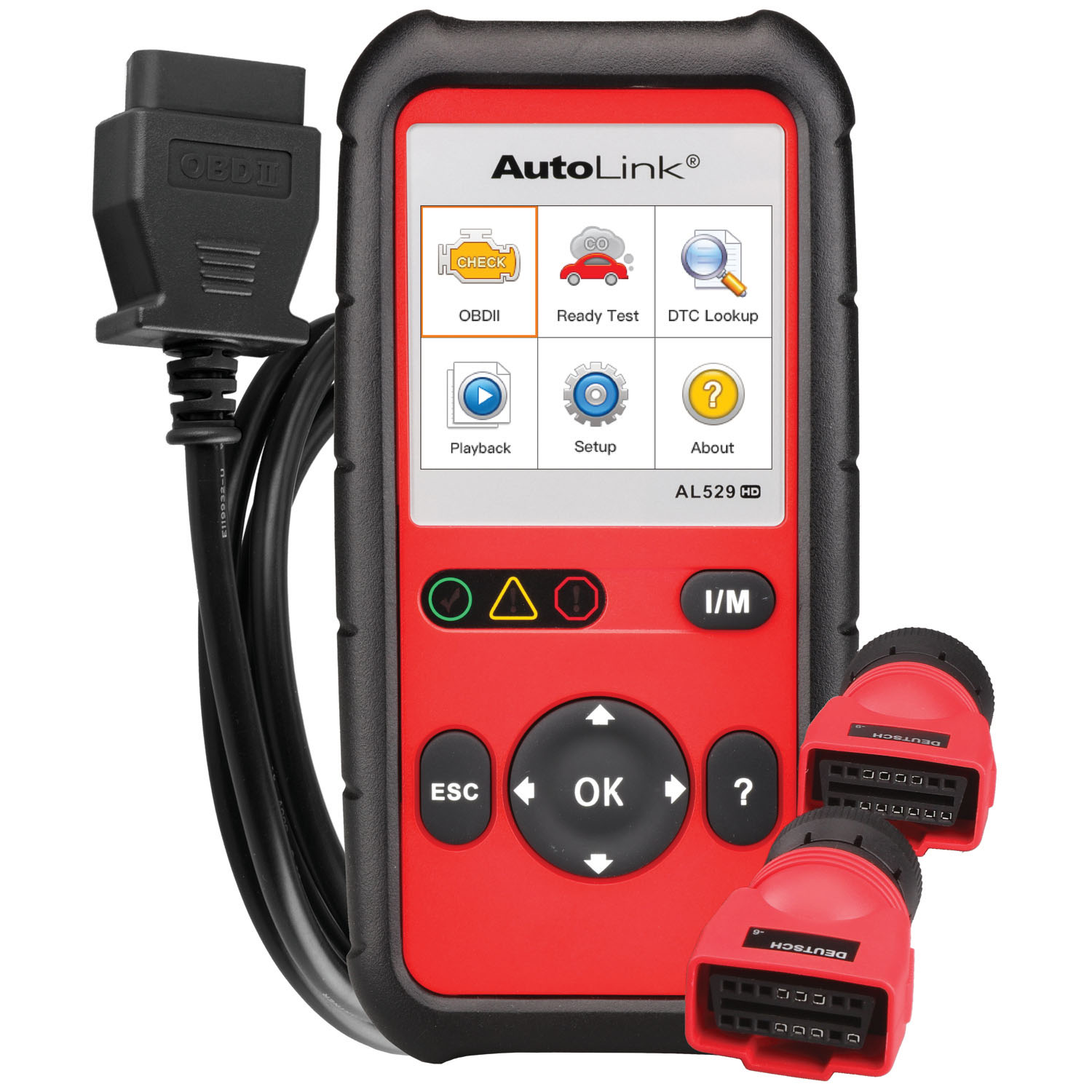

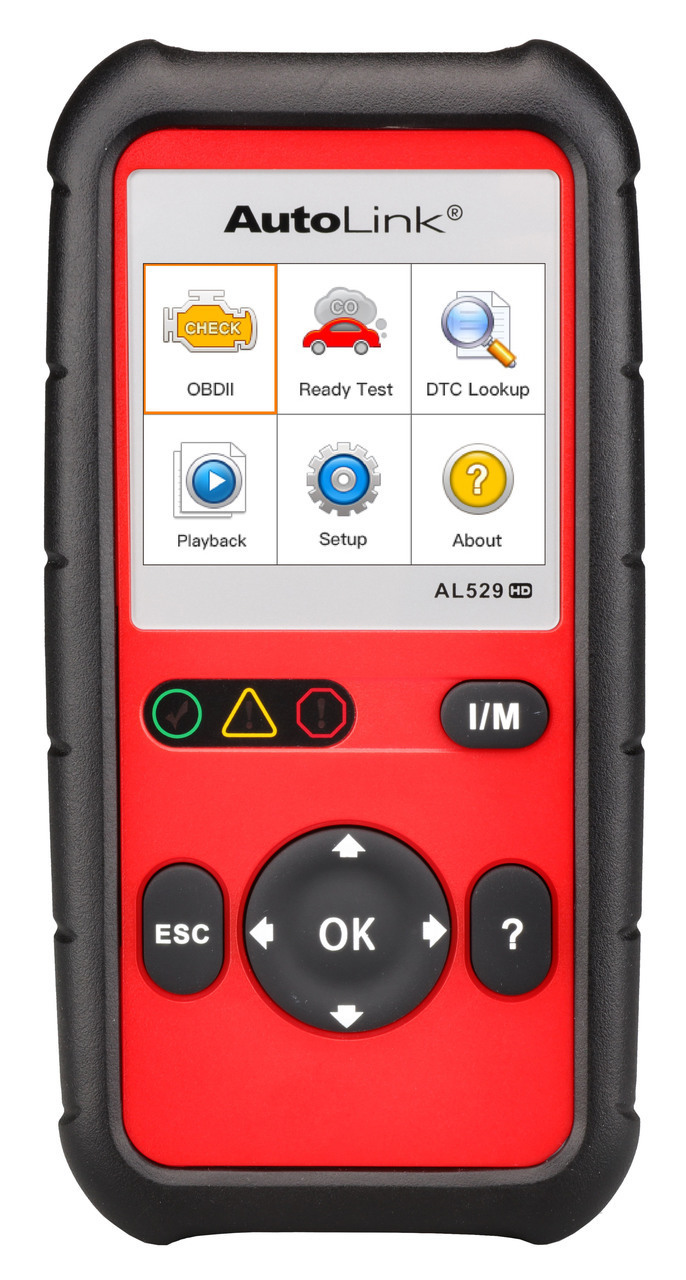

Autel AL529HD  Enhanced Heavy Duty Vehicle scan TooL AutoLink AL529HD Diagnostic  Scanner

Autel’s latest  member of its code reader family of tools, the AL529HD can not only diagnose  OBDII/EOBD-compatible vehicles but also heavy duty vehicles utilizing SAE-J1939  and SAE-J1708 protocols.

Autel  AL529HD Features:

1.Compatible with  Heavy Duty Vehicles utilizing SAE-J1939 and SAE-J1708 protocols

2.Compatible with  domestic, Asian and European vehicles, 1996 and newer. OBDII/EOBD compatible  vehicles (ISO9141, ISO14230, ISO15765, SAE-J1850 VPW, SAE-J1850 PWM)

3.AutoVIN function  for quick manufacturer-specific code identification

4.Reads enhanced  codes in Powertrain system for Ford, GM and Chrysler

5.Enhanced OBDII  Mode 6 access

6.Retrieves generic  (P0, P2, P3 and U0), manufacturer-specific (P1, P3 and U1) and pending  codes

7.Retrieves vehicle  identification information (VIN, CALID and CVN)

8.Easily determines  the cause of the Check Engine Light/ Malfunction Indicator Light  (MIL)

9.Turns off Check  Engine Light, clears codes and resets monitors

10.Views freeze  frame data

11.Reads live PCM  data stream

12.Displays live O2  sensor test data

13.Graphs  data

14.Reads, stores and  plays back live sensor data

15.Troubleshooter  code tips aid technician in efficient vehicle diagnostics and repair.

16.Patented  One-Click Readiness Key for quick State Emissions readiness check and drive  cycle verification

17.Color-coded LEDs  and built-in speaker provide visual and audible tone for readiness  verification

18.Multilingual  (including English, Spanish and French) menus and DTC definitions.

19.Internet  Updatable

20.Prints data via  Windows PC

Autel  AL529HD Specifications:
Display 2.8-inch LCD  (320x240 dpi)

Connectivity USB  mini 2.0 OBD II DB15

Operating Temp. 0℃  to 60 ℃ (32℉ to 140℉)

Storage Temp. -20℃  to 70 ℃ (-1℉ to 158℉)

External Power 9.0  to 28.0 V power provided via vehicle battery

Dimensions (LxWxH)  183 mm (7.2”) x 91 mm (3.58”) x 33 mm (1.3”)

Weight 242 g (0.533  lb.)

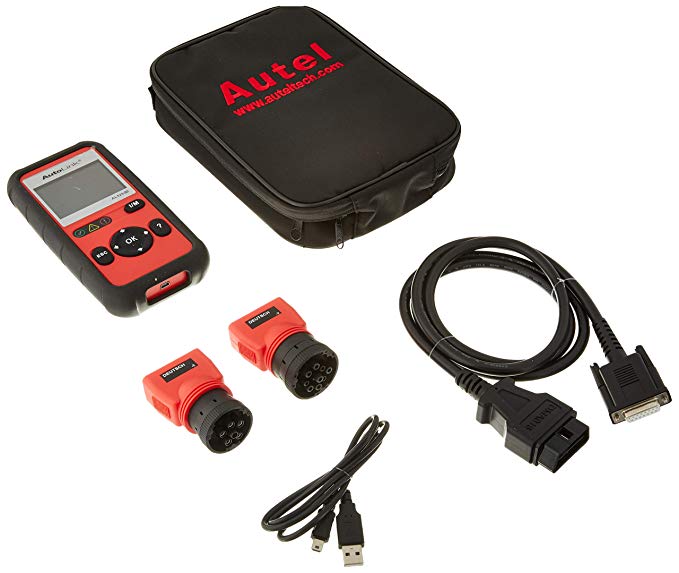

Autel  AL529HD Accessories:
Code  Reader

DEUTSCHE-6  Adapter

DEUTSCHE-9  Adapter

User  Manual

Carrying  Case

Quick Reference  Guide

Main  cable

Mini USB  Cable
