Autel MaxiAP AP200
Bluetooth OBD2 Code Reader with Full Systems Diagnoses AutoVIN TPMS IMMO Service
for Family DIYers
Top 10 Reasons to
Get Autel MaxiAP AP200:
1. Simplified Edition of MK808, Firmware Version:
V2.01
2. Convenient Usage:
Bluetooth pairing
3. All OBDII functions are available and
free
4. With One Free
Vehicle Software + More Maker ($21.99 for IOS/ $15.99 for
Android)
5. Support up to 19 specific functions, including Oil
Reset, EPB, BMS, SAS, DPF, TPMS, IMMO, etc.
6. Expand coverage with additional in-app
purchase
7. Auto VIN technology
identifies vehicles automatically (AutoVIN Retrieval Boost in
Effectiveness)
8. Generate repair reports of tested vehicles and
support PDF format for easy sharing and printing
9. Keep records of vehicles tested
previously
10. 13 Languages Switch
Freely: English, traditional
Chinese, French, German, Spanish, Portuguese, Dutch, Polish, Swedish, Korean,
Japanese, Russian, Italian
Autel MaxiAP AP200
Descriptions:
The wireless diagnostic
interface MaxiAP AP200 is a small interface adapter used to connect to a
vehicle's diagnostic connector (DLC) and connect with the Android or iOS device
for vehicle data transmission, making your Android or iOS devices (hereinafter
referred to as device or devices) a powerful diagnostic tool. The MaxiAP AP200
package includes a Bluetooth (BT) OBDII connector and a MaxiAP200 app. It is the
perfect Do-It-Yourself tool for customers looking for quick and easy diagnostic
functions of all systems. It is almost compatible with all vehicle models of
European, Asian, and North America makes.Autel AP200, as an
innovative Bluetooth OBD2 scanner, equipped with its own App -“Maxi AP200”,
complete OBD2 functions, along with various reset services (Oil/EPB/BMS/TPMS/SAS
Resets, DPF Regeneration and IMMO Service etc.), is a compact option for family
DIYers to troubleshoot vehicle's issues in no
time.Autel MaxiAP
AP200Highlights:
1. BLUETOOTH
CONNECTION: This portable OBD2
scanner is characterized by Bluetooth connection, and you can download the free
APP “MaxiAP200” on your iOS or Android devices to get the car diagnosis going on
without any worries about the
compatibility.
2. VERSATILE CAR
DIAGNOSIS: As an innovative obd2
scan tool, this AP200 includes but is not limited to OBD2 functions, it also
provides users with a wide variety of reset services including
Oil/EPB/BMS/TPMS/SAS Resets, DPF Regeneration and IMMO
Service.
3. HIGH COST
PERFORMANCE: This obd2 scanner
offers one free vehicle-specific software allowing you to diagnose one car for
free, and you need to spend only $15.99(Android) /$21.99(iOS) buying 12-month
use permission of one more car model.
4. SPECIAL AUTOVIN
FEATURE: The Auto VIN function of the AP200 helps quickly
reveal car’s info, including the vehicle type, country of origin, engine size,
etc. and the report about the car info can be transformed as PDF file for better
PC Printing.
5. HISTORY RECORDING
DISPLAY: While offering you detailed diagnostic result, this
car scanner is capable of recording history diagnostic information and the
history recordings can be used as an effective data reference in the period of
car diagnosis.6. Unrivalled
Economical Scanner: As tempting as this
obd2 scanner looks, you might just further stimulate appetite when you see its
price tag (much lower than MK808's while sharing almost the same powerful
features). Along with the 12-month nationwide , it is ideal for any family Dyers
looking for quality yet effective diagnostic
device. Autel MaxiAP AP200
Functions:1. SUPERIOR SYSTEMS
DIAGNOSES1). With superior
systems diagnoses, this multipurpose obd2 scanner can be used to read all
available systems' ECU information to facilitate the vehicle diagnosis. The
complete systems vary from different cars and they usually include Engine,
transmission, ABS, SRS, SAS, TPMS, EPB and Fuel systems
etc.2). Read DTCs from the
vehicle's control systems to locate problem areas, and offer
solutions;3). Erase the codes
easily after DTCs retrieving and certain repairs have been carried
out;4). Live data shows
each parameter item displayed in analog, text, waveform graph modes
etc.;5). The active test
used to access vehicle-specific subsystem and component
tests.2. ADVANCED RESET
SERVICES:This Bluetooth OBD2
scanner is specially designed to provide you with quick access to the vehicle
systems for various scheduled service and maintenance performances. There is
some commonly-used special reset services are listed for your
reference:1). Oil Reset – Perform reset for the Engine Oil Life
system, which calculates an optimal oil life change interval depending on the
vehicle driving conditions and climate.2). EPB Reset – Maintain the electronic braking
system safely and effectively by deactivating and activating the brake control
system, setting brakes after disc or pad replacement,
etc.3). BMS Reset –
Evaluate the battery charge state, monitor the close-circuit current, register
the battery replacement, and activate the rest state of the
vehicle.4). SAS Reset – perform
calibration for the Steering Angle Sensor, which permanently stores the current
steering wheel position as the straight-ahead position in the sensor
EEPROM.5). TPMS Reset –
quickly look up the tire sensor IDs from the vehicle's ECU, as well as to
perform TPMS replacement and sensor test.6). IMMO Service - Disable the lost vehicle keys and
program the replacement key fob.7). DPF Regeneration – Manage DPF regeneration, DPF
component replacement teach-in and DPF teach-in after replacing the engine
control unit.3. COMPLETE OBD2
FUNCTIONS:1. Read extensive
current, pending and permanent codes in OBD system
quickly2. Clear detected fault
codes and turn off the Check Engine Light
efficiently3. View graphical live
data of vehicle's computer module(s) for easy
analyses4. View the vehicle's
operating parameters at the moment a DTC is
detected5. Read I/M readiness
status to have a vehicle inspected for state emissions
compliance6. Perform O2 sensor
test to check fuel efficiency and vehicle
emissions7. Read the results of
on-board diagnostic monitoring tests for specific
components/systems8. Retrieve the vehicle information of VIN, CINs, and
CVNs completely9. Perform the component Test by allowing initiating
a leak test for the vehicle's EVAP system4. 10 Modes of OBD2:
The fast-access option "EOBD" for OBD II/EOBD vehicle diagnosis to check for
DTCs, isolate the cause of an illuminatedmal function indicator lamp (MIL),
check monitor status prior to emissions certification testing, verify repairs,
and perform a number of other services that are
emissions-related.DTC&
FFDI/M
ReadinessLive
DataOn-Board
MonitorComponent
TestVehicle
InformationVehicle
Status5. Autel MaxiAP AP200
Other Functions:AutoVIN technology
identifies vehicles automatically.Generate repair reports of tested vehicles and
support PDF format for easy sharing and printing.Keep records of vehicles tested
previously.How to Use Autel MaxiAP
AP200 (OPERATING PROCEDURES):1.Download and install
the app-MaxiAP200 in Google Play or App Store to your
device;2.Register and log in
the MaxiAP200 APP;3.Get one free car software through Mall after
binding VCI for the first time;4.Plug the MaxiAP200 tool into the vehicle’s Data
Link Connector (DLC);5.Turn on the vehicle ignition while turn the engine
off;6.Tap Me/Setting button
of your device to pair the MaxiAP AP200 with your
device;7.Start to diagnose
your car.How to Update Autel
MaxiAP AP200?1. The installed
vehicle-specific software can be seen on the Home Screen. When a new version is
available, an update button will display. Tap the button to update the
software. 2. Tap Me -> VCI
Management -> Detect firmware to update the firmware if a new version is
available. Autel MaxiAP AP200
Print Function:1. For iOS devices, the
saved report can be printed via the Print function on the
device. 2. For Android devices,
download and install a third-party Print app to print the saved
reportNote: The device needs
to be connected with a printer to printAutel MaxiAP AP200 Vs.
Autel MK808 Comparison Table: DIY
Service Functions
Comparison | All Module Diagnostic
for All makers Autel
MK808 | Phone
APP AP200 for One Vehicle
Software |
Features |
MIL | Read Mil
Status | Read Mil
Status |
Live
Data | View All Live
Data | View All Live
Data |
Testing | 02
Monitor | 02
Monitor |
Coverage | Most Makes &
Models | Most Makes &
Models |
Read/ Erase
DTCs | All
System | All
System |
Engine
Service | Oil Reset/ DPF
Service | Throttle
Match |
Braking
Service | EPB
Service | EPB/ ABS
Bleed |
Report | Generate Repair
Reports | Generate Repair
Reports |
Operating
System | Android | IOS/
Android |
Body
Service | SAS
Service | SAS/ WIN/ DR/ Roof/
Seats |
Modification
Service | Language Change/Tire
& Battery replacement/ Key Coding | Odmeter change/ Change
Tire |
Autel MaxiAP AP200

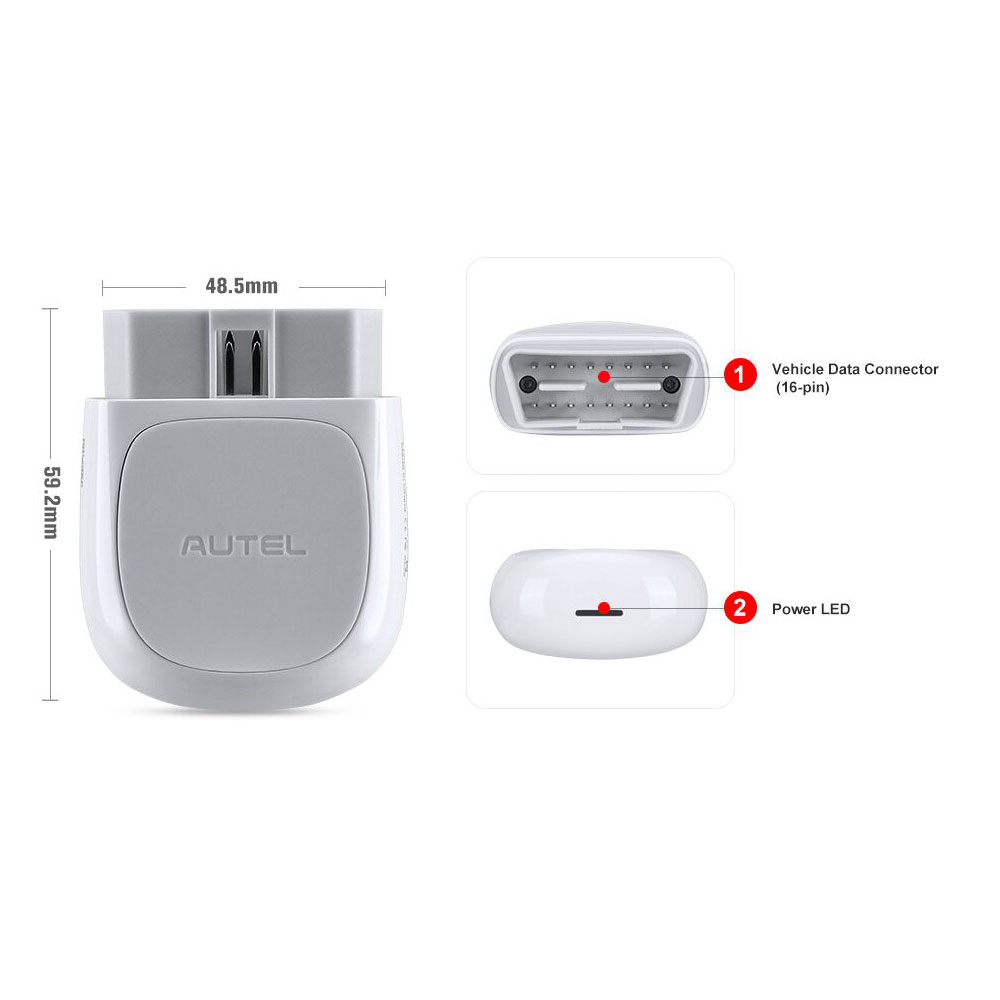

Specifications:Commnications: BL 4.2
Dual-ModeWireless Frequency:
2.4 GHzInput Voltage Range:
9VDC to 26 VDCSupply Current: 100mA@12
VSleep Mode Current:
3 mA@12 VOperating
Temp: 0℃ to 50℃Storage Temp: -20℃ to
70℃Dimensions(L*W*H):
59.2mm(2.33")*48.5mm(1.91")*24.6mm(0.97")Weight: 35g
(0.07lb.)Autel MaxiAP AP200
FAQs:Q1: Will this support
audi/BMW electric parking brakes?A1: Yes, Autel AP200 obd2
scanner comes with EPB functions, which allows you to deactivate and activate
the brake control system, assisting with brake fluid control, opening and
closing brake pads, and setting brakes after disc or pad replacement, etc.
Please provide us your detailed car info to further
confirm.Q2: Does it have 06 volvo
xc70 srs code capabilityA2: Yes, Autel AP200 has 06
volvo xc70 srs code capability.Autel MaxiAP AP200
Package List: 1pc x Autel MaxiAP
AP200
