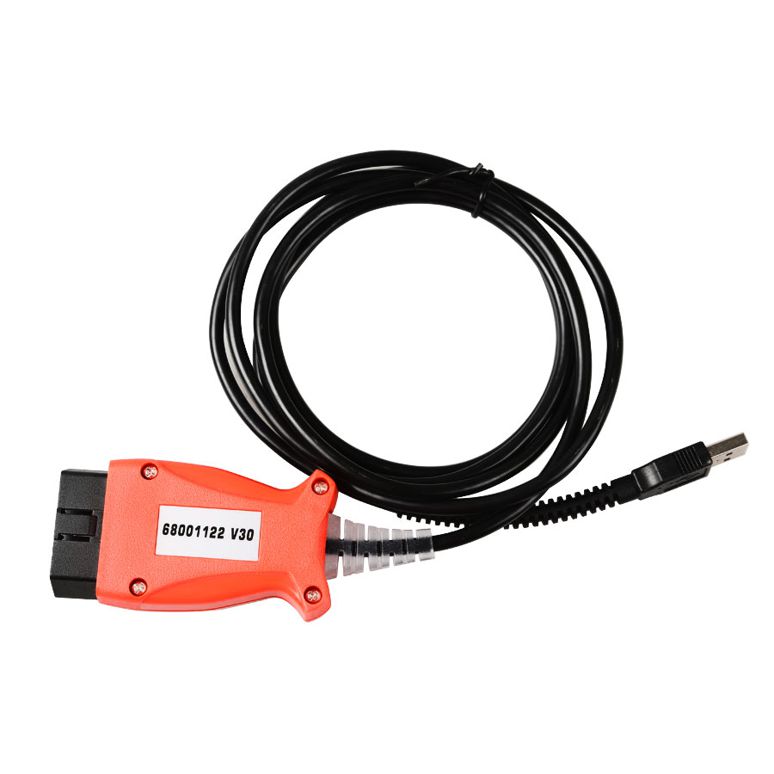

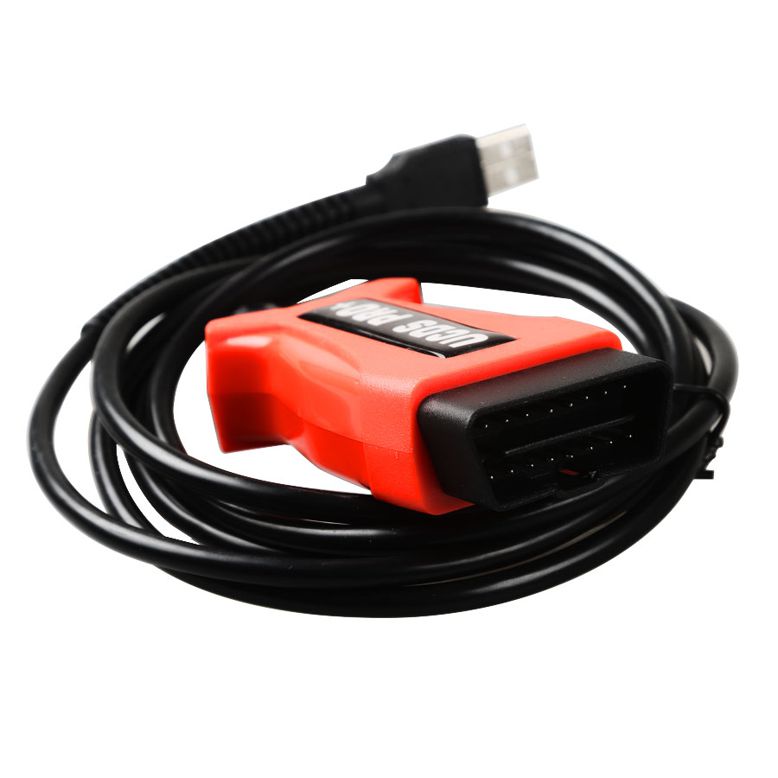

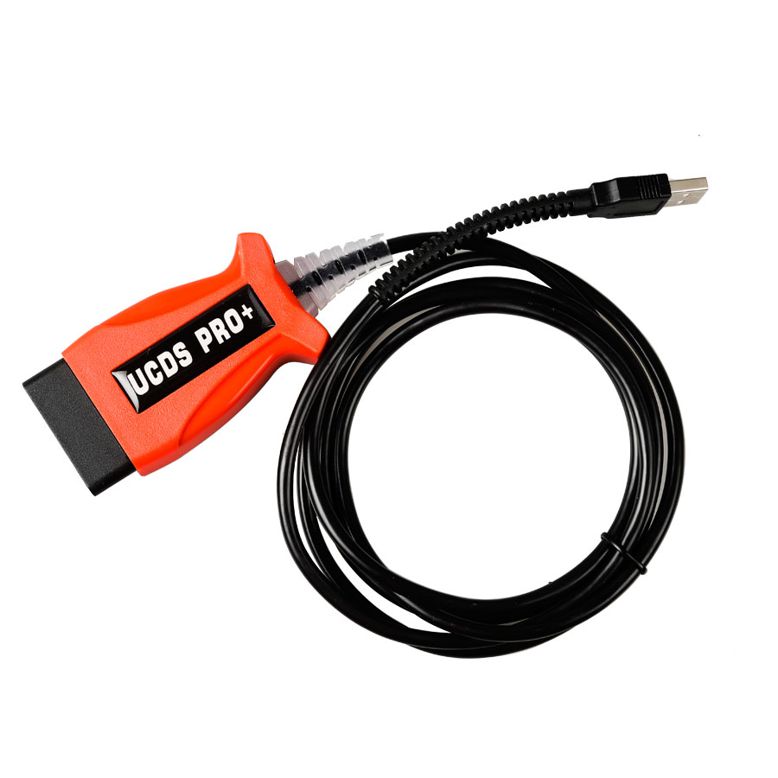

Ford UCDS Pro+ Ford UCDSYS Full Function Type With UCDS V1.2.7.001 Software Replace Ford VCM II Diagnostic Tool

UCDS-Ford New Features:

The dashboard can be displayed from English to Chinese; the new Mondeo power can be upgraded from low to high; the navigation OPS of Escape can be flashed; the SCT program can be input; the SCT device (token limited) can be replaced.


UCDS-Ford  Functions:

UCDS allows the user to:
– Diagnose the majority of car parts and components that are connected to a central electrical module (GEM, BCMii) through the data bus (CAN);
– Receive data embedded in the car components and modules, including their part number, version, calibration, serial number;
– Make the necessary changes to the central configuration of the car, and change the configuration of the modules and components if necessary;
– Update the calibration (firmware) of the modules and components of the vehicle, including the engine (the so-called chip tuning);
– Perform regular language adaptation of the audio modules manufactured by SONY (Russian language only);
– Other…

The UCDS consists of drivers of the serial bus USB-serial (recommended drivers FTDI), hardware adapter and the actual  UCDS-programm.

The software interface of the UCDS interface has main window’s mode. You need to select the type of the vehicle or select the service mode for adapter`s firmware update or other service functions.

UCDS currently works with the following platforms: Focus II 2004-2011; Focus III 2011, 2015 ; Kuga I, Kuga II; C-MAX; S-MAX; MONDEO IV; Mondeo 2015 ; Galaxy ; Tansit; Fiesta 2008, 20015 etc..

NEW v1.26.005 software is Available:

Package List:

1pc x UCDS-Ford
