Supported Languages: English/ Chinese/ Spanish/ French/ Korean/ Portuguese/ Indonesian
Operating System: Windows XP SP3
Update: Via CD

HDS Diagnostic Cable Function:

Supports most 1996 and newer vehicles with OBDII/DLC3 diagnostics
Support Honda HDS OEM diagnostic software
Supports Diagnostics and Active tests
Easy to install and carry
Cost-effective
High performance with ARM chip inside
Status LED

HDS Diagnostic Cable Specification:

1.Construction

Diagnostic Interface:16 PIN
USB Interface: USB 2.0
Power: DC 5 V - 36 V
Consumption: 0.3 W
Dimensions: 76 mmx 43 mm x 19 mmLanguage

2.Supported Protocols

K-Line ISO 9141
KWP 2000 ISO 14230-4
CAN 2.0B ISO 11898
CAN ISO 15765-4

HDS Diagnostic Cable Software Display:

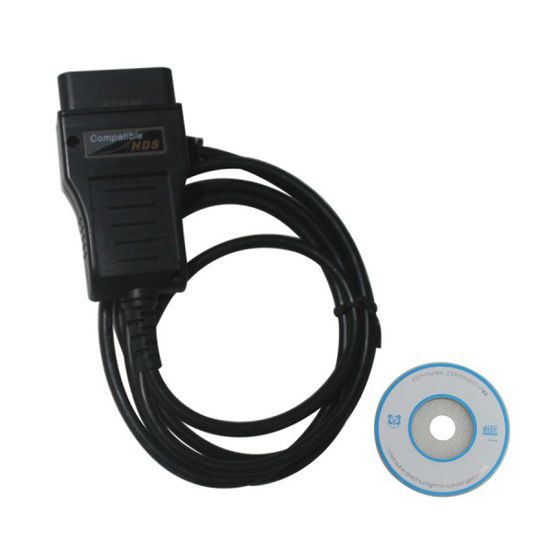

Package List:

1pc x H-ONDA HDS CABLE
1pc x CD driver(with user manual in it)
