Mongoose Diagnostics and Reprogramming Interface for Toyota TIS +honda HDS + Volvo Dice

Description:
Mongoose Diagnostics and Reprogramming Interface for Toyota TIS+honda HDS + Volvo Dice is a high perfomance factory diagnose tool for Toyota,Honda and Volvo.


Software version:
1.Toyota  TIS   V14.10.028
2.HDS  V3.101.011
3.VOLVO Vida   V2014D

What you have to pay attention when using this tool?
1. Your computer must be windows XP system.
2. Please choose area EUROPEAN when you installing the software. Then it will not ask you for activation code.


Features：
1. Fully compatible with Toyota TIS, Honda HDS and VOLVO DIDA (New!!!)
2. Supports Diagnostics, Reprogramming, Active tests, and key programming
3. Supports most 1996 and newer Toyota, Lexus, and Scion vehicles with OBDII/DLC3 diagnostics
4. Fully compatible with SAE J2534
5. Programmable power supply
6. Able to apply 5V-24V to OBD pins 6,9,11,12,13,14 or AUX 2.5mm stereo connector
7. Able to apply GND to OBD pins 6,9,11,12,13,14,15 or AUX 2.5mm stereo connecto
8. RGB status LEDs

Supported Protocols
K-Line ISO 9141
KWP 2000 ISO 14230-4
SAE J1850 PWM
SAE J1850 VPW
CAN 2.0B ISO 11898
CAN ISO 15765-4


Specifications
Operating Temperature: -20 to 70 C ( -4 to 158 F )
Storage Temperature: -40 to 85 C ( -40 to 185 F )
Diagnostic Interface: 16PIN
USB Interface : USB 2.0
Consumption: 0.7W
Dimensions: 95mm(3.74)L x 49mm(1.93)W x 28mm(1.10)H
Net Weight: 85g
Gross Weight: 193g


Packing list

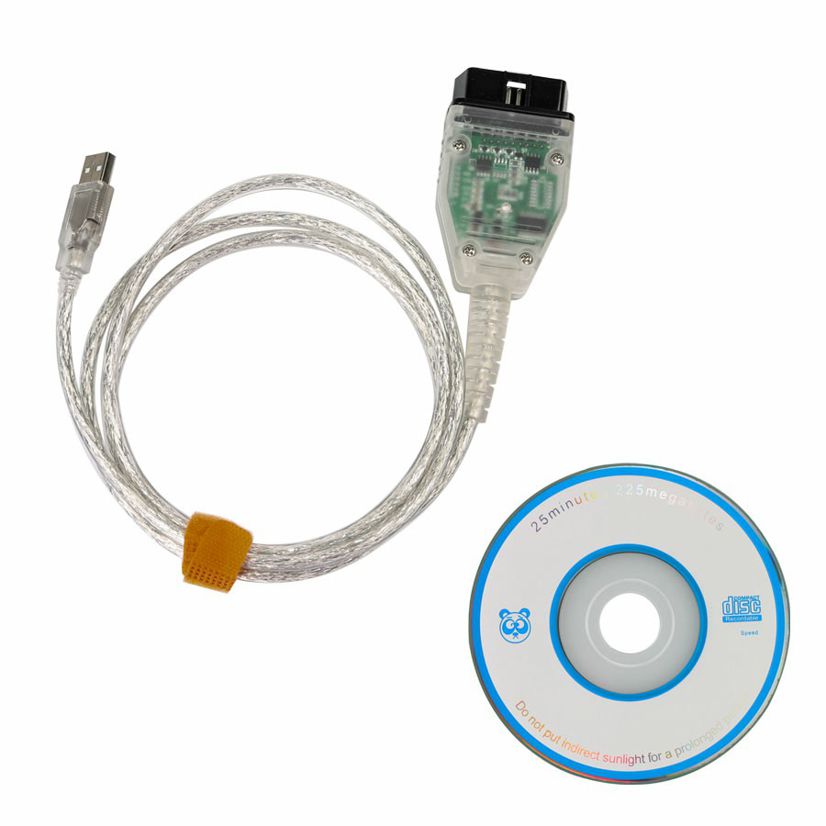

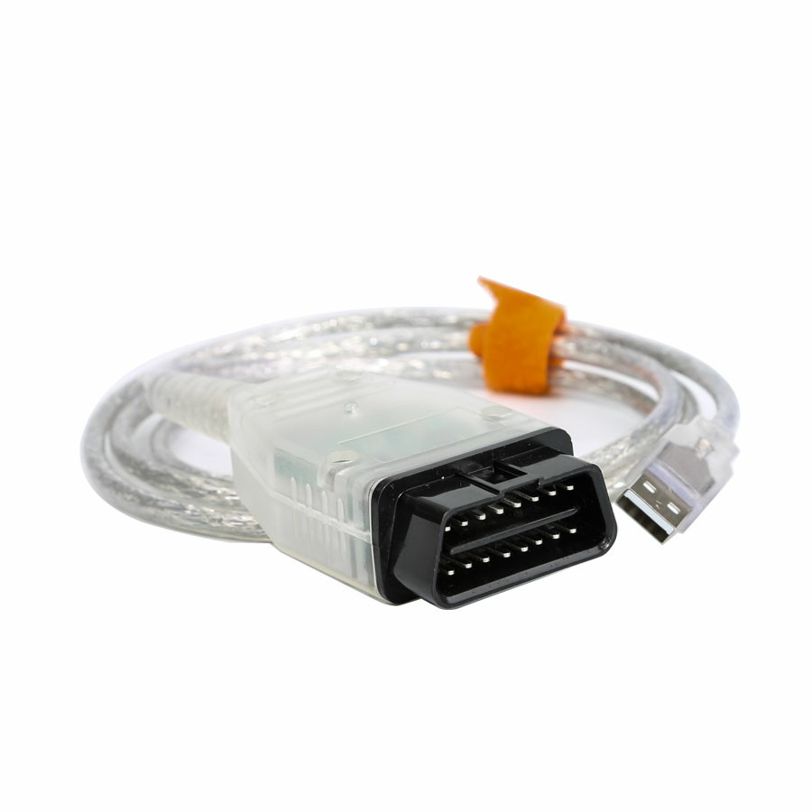

1.Mongoose vehicle interface
2.software CD
