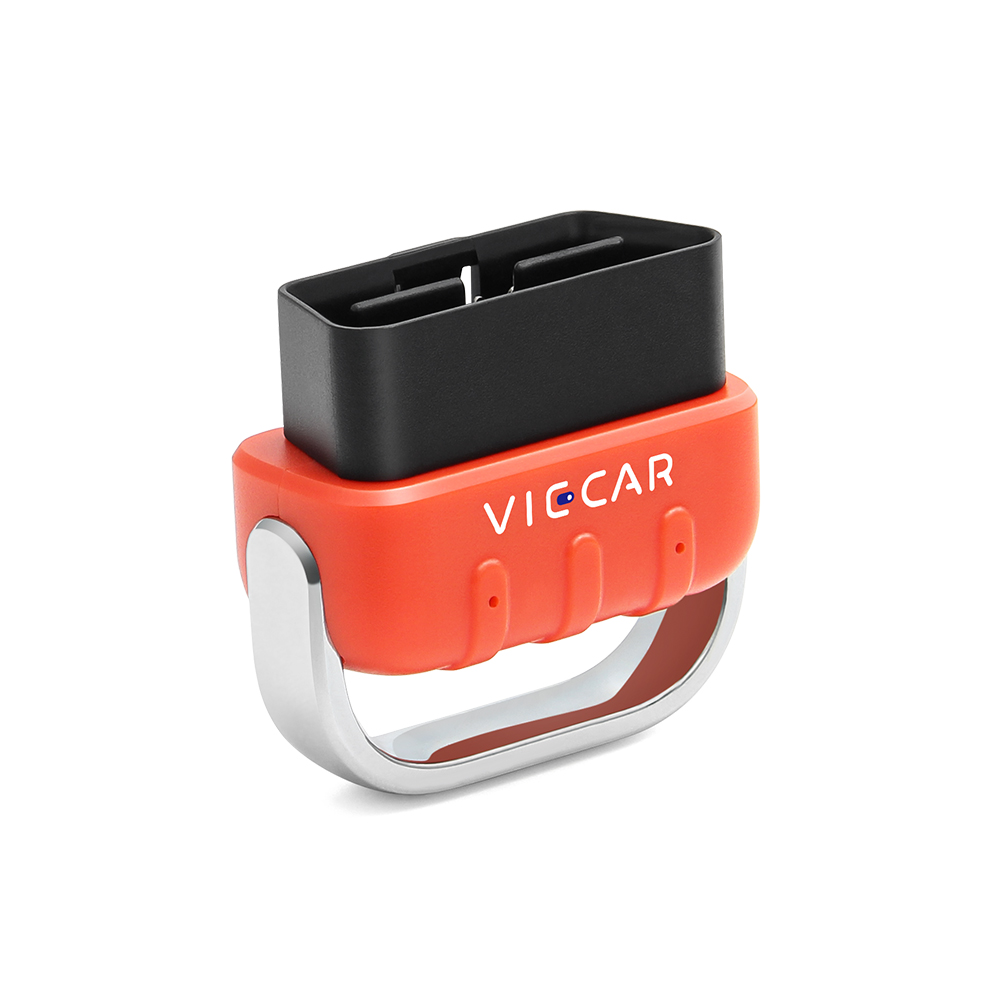

Product Description:

The VP001-VP004 is WIFI/Bluetooth 4.0/Ty-pe C(USB),VP005 VP006 is Bluetooth 5.0 and New WIFIOBD product with the following features:

1. Compatible with dual mode WIFI/Bluetooth 4.0/5.0 data transmission With USB2.0 transmission(With your choose)

2. Nine protocols supporting the OBD II/EOBD standard

3. Wide power supply range: 9~36V power supply; reliable overcurrent and overvoltage protection;

4. With standby low power mode to ensure the safe use of car batteries;

5. With digital tube display voltage, current, enhance customer experience


Supported Protocols:

SAE J1850 PWM (41.6 Kbaud )

SAE J1850 VPW (10.4 Kbaud )

ISO 9141-2 (5 baud init, 10.4 Kbaud)

ISO 14230-4 KWP (5 baud init, 10.4 Kbaud )

ISO 14230-4 KWP (fast init, 10.4 Kbaud)

ISO 15765-4 CAN (11bit ID, 500 Kbaud)

ISO 15765-4 CAN (29bit ID, 500 Kbaud)

ISO 15765-4 CAN (11bit ID, 2500 Kbaud)

ISO 15765-4 CAN (29bit ID, 250 Kbaud)


Convenient and Non Destructive Installation:

Software Compatiable Platform:

Technical Parameters:

SSID: Viecar

Firmware Version:V2.2

Main control chip: PIC18F25K80

Software platform: support Android /IOS/ Windows

Working voltage: DC 9~3 6V

Working current: 40mA

Standby current: 5mA

Operating environment: -20 ~ 65 ° C

Storage temperature: -40 to 80 ° C

Dimensions: 56*45.8 *24mm

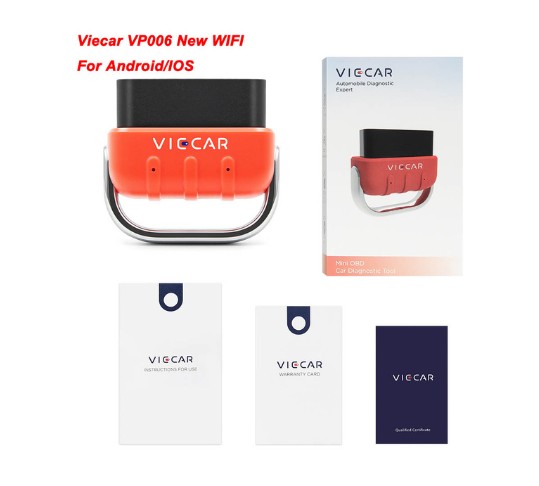

Packing List:

1pc x original Viecar ELM327
1pc x instruction manual
1pc x warranty card
