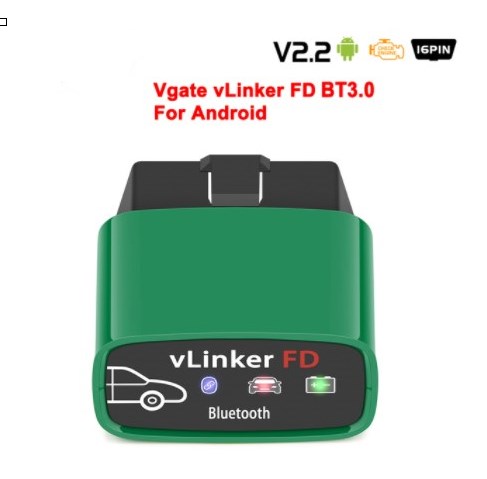

Vgate vLinker FD ELM327 FORScan For Ford Bluetooth-3.0 OBD2 Car Diagnostic Auto Tool OBD 2 Scanner J2534 PK ELM 327 V15

Purchase Notes:

1.Our products support FORScan,We only sell adapters to be compatible with these software, but some of the functions of the software or the software itself are not free, you need to pay additional fees to the software company

2.If your mobile phone is IOS, when you use BT4.0 Ver., please connect to BT directly in the software,Don't connect to BT in phone settings

Vgate FD+ Professional Refresh Hidden Scanner Perfectly Compatible With FORscan For Ford 13+ DETECTION FUNCTION:

1. Automatically lock

2. Speeding reminder

3. Emergency brake flashing lights

4. Lock the car and whistle

5. Xenon lamp mode

6. One-click skylight

7. Tire pressure monitoring

8. Snowflake logo

9. Cruise function

10. Compass

11. Average (instantaneous) fuel consumption

12.ECO energy saving mode

13. Steering power adjustment

Vgate vlinker FD+ Professionally Suitable for Forscan:

Support Programming And Diagnostic For Ford

Read / Clear

EngineDTC

Adiust Parameters

Refresh Parameters

Hidden Function Activated

Read Data Stream

FORScan Connection Guide:

Support Protocols

Multiple protocols:

--15 ELM format protocols;

-- 23 STN format protocols;

-- Up to 64 user-defined protocols.

OBDII 5 standard protocols:

-- SAE J1850 VPW

-- SAE J1850 PWM

-- ISO 9141-2

-- ISO 14230-4

-- ISO 15765-4 CAN

Additionalprotocols:

-- SAE J1939 CAN

-- ISO 11898 (raw CAN)

--Medium Speed(MS CAN)

Theseprotocolscover almost 99% of the OBDII Cars on the market

Rich instruction set, compatible with more APP software:

-- Fully compatible with ELM's AT command set;

-- Fully compatible with STN's ST command set;

--39 VT macro commands, some instructions are equivalent to the effect of several AT and ST instructions, simplifying the communication steps.

-- Compatible with ELM and STN power management solutions.

-- Support for instructions, UART silence, battery low voltage, OBD bus silence, etc. Up to 5 ways to go to sleep;

-- Support UART active, battery voltage drop, OBD bus active, key, etc. Up to 5 ways to wake up from sleep mode.

-- Device sleep power consumption is less than 2 mA.

-- OBD request byte up to 48 bytes, can meet the needs of some special long framecommunication.

-- UART data buffer up to 2K bytes, baudrate increased to 230.4Kbps.

-- 256-byte storage unit

-- More than 100,000 erasable times

-- Read and write operations on any unit in the storage area by using the VT command

-- Mix ID Sending" mode of CAN protocol.

-- Optional formatted send data according to protocol

-- Multiple WM sequence settings

-- Support AT command to manually set WM sequence

-- Support for specifying a protocol or a full protocol-wide temporary WM sequence

-- Support for a permanent link between a protocol and a private WM sequence

-- Secure bootloader for easy firmware updates

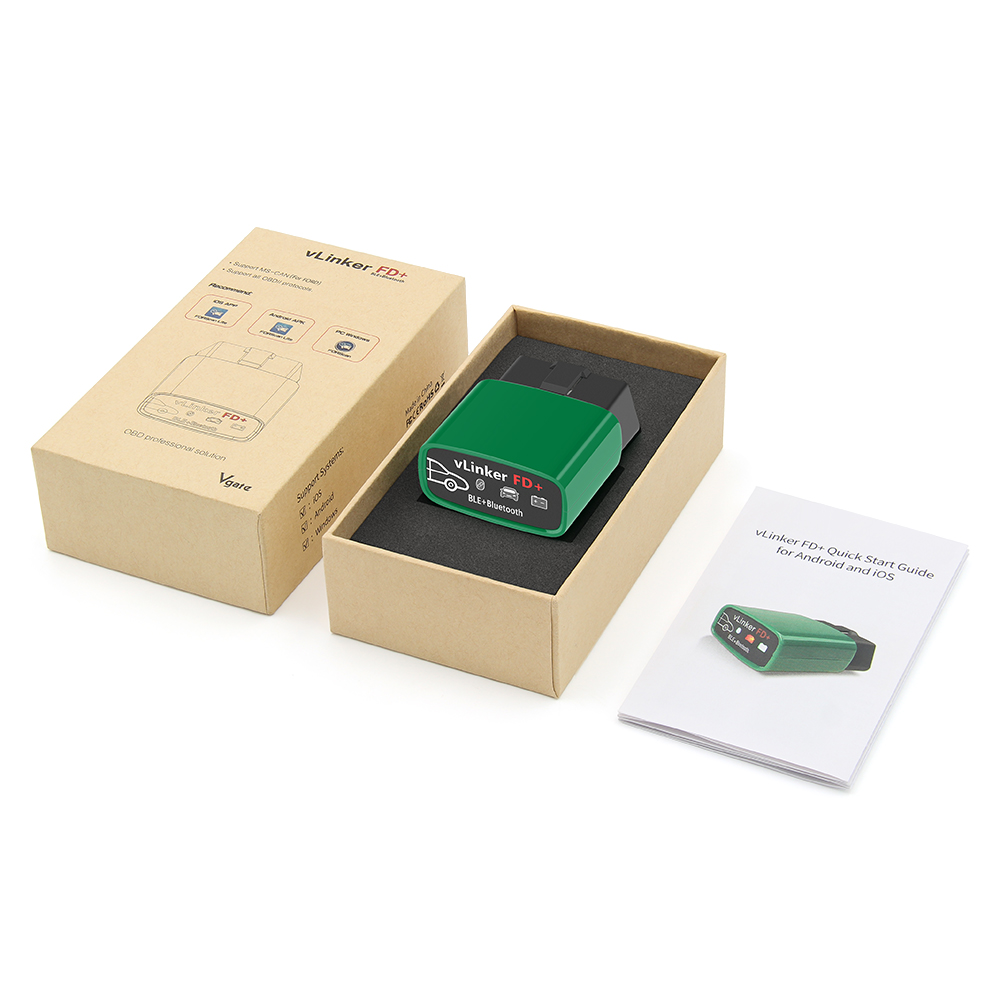

Packing List:

1 x Vgate vLinker BT3.0/BT4.0/WIFI

1 x User manual
