BDM Frame for BDM Programmer/CMD100/KESS V2/Ktag/ Fgtech/FoxFlash and PCMtuner With Aluminum Alloy Materials

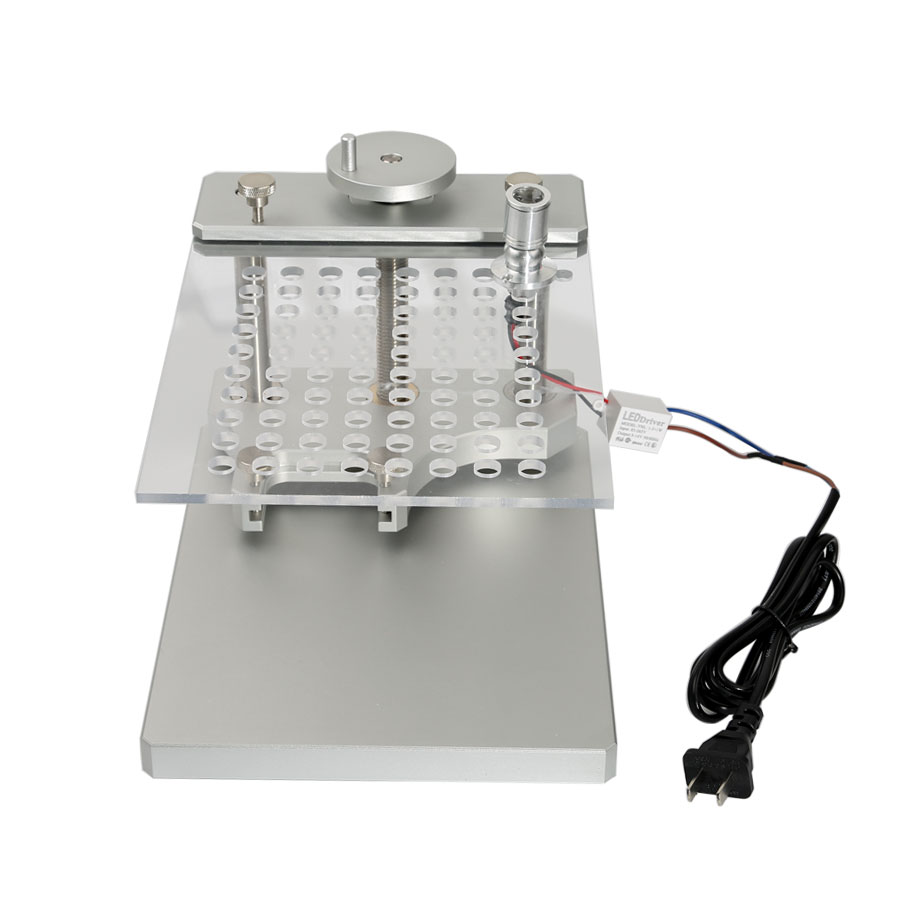

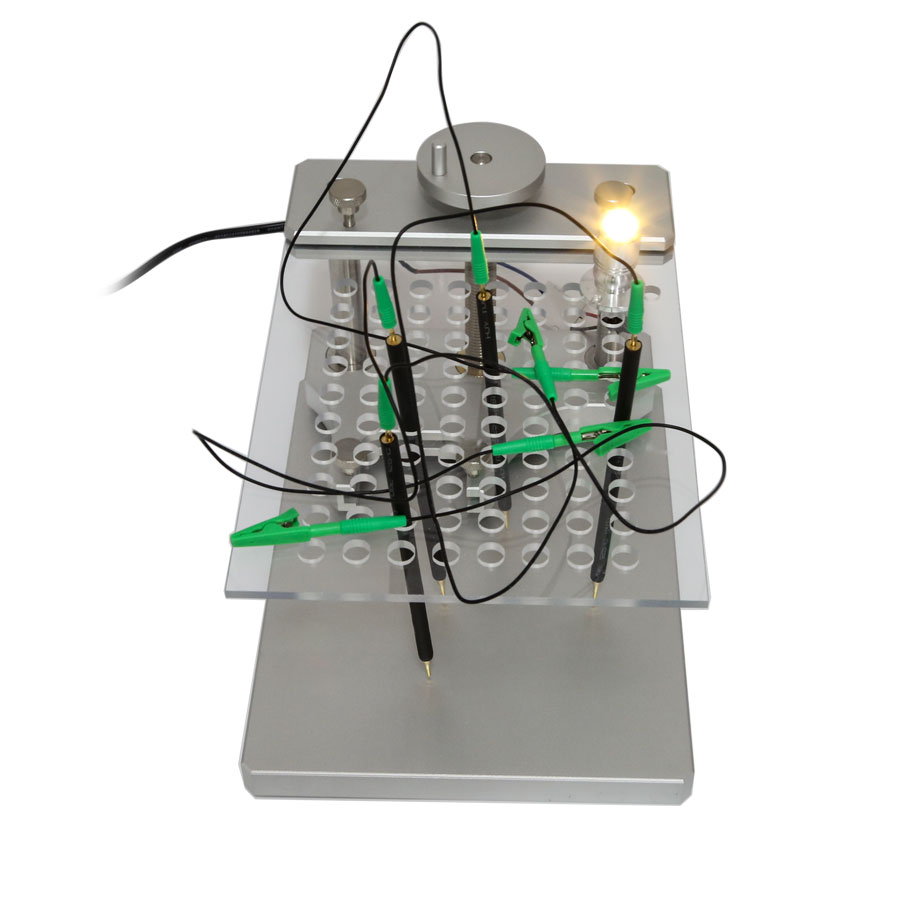

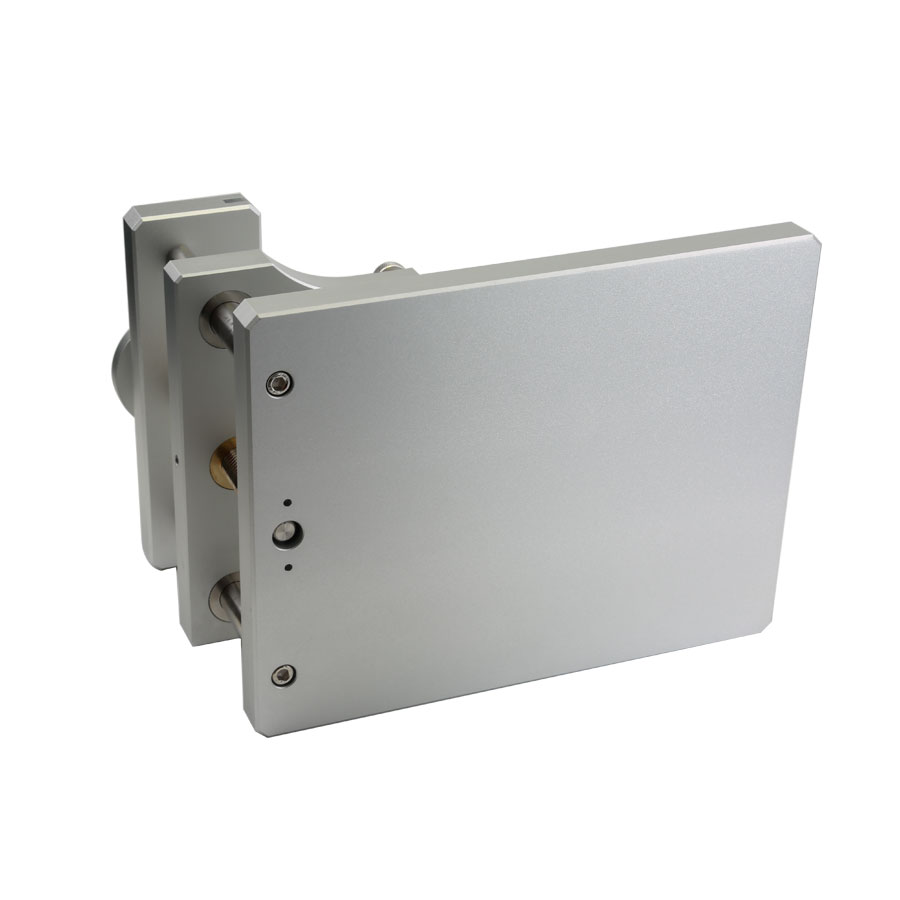

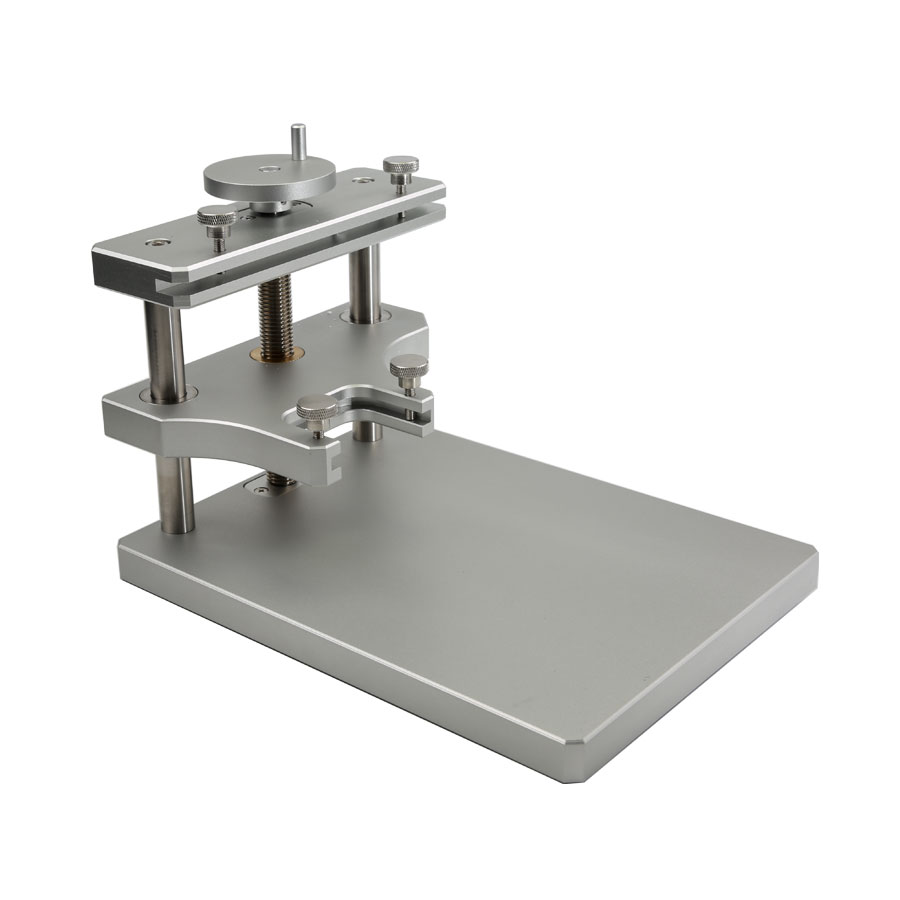

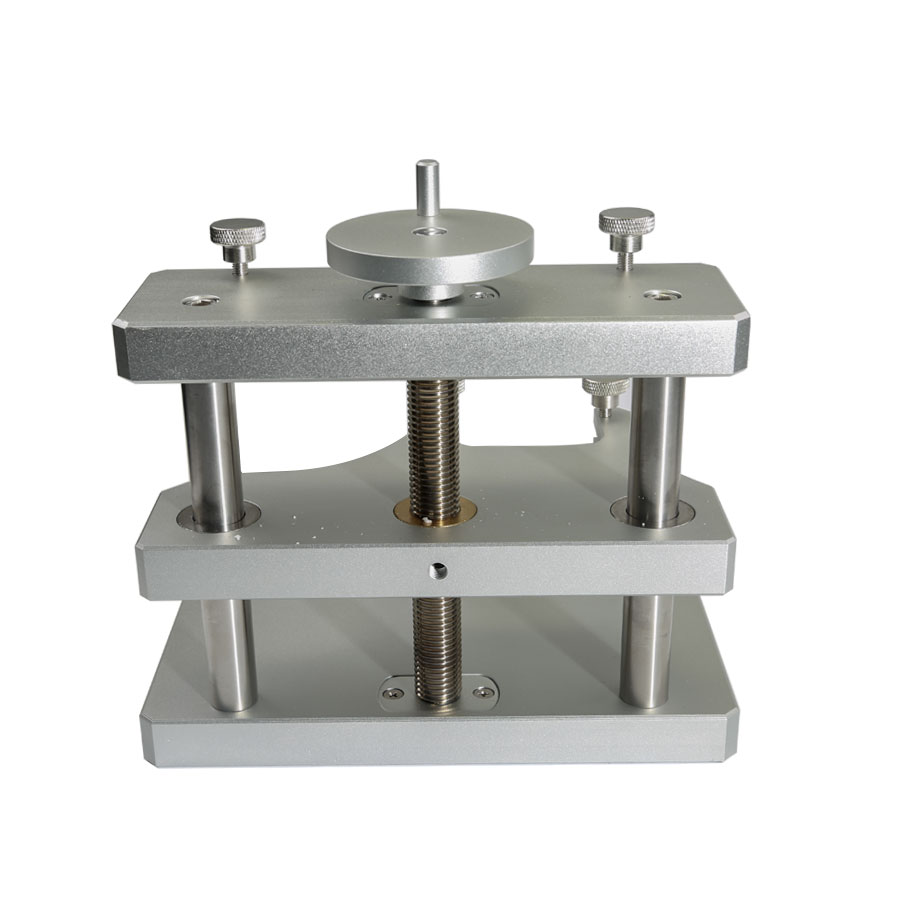

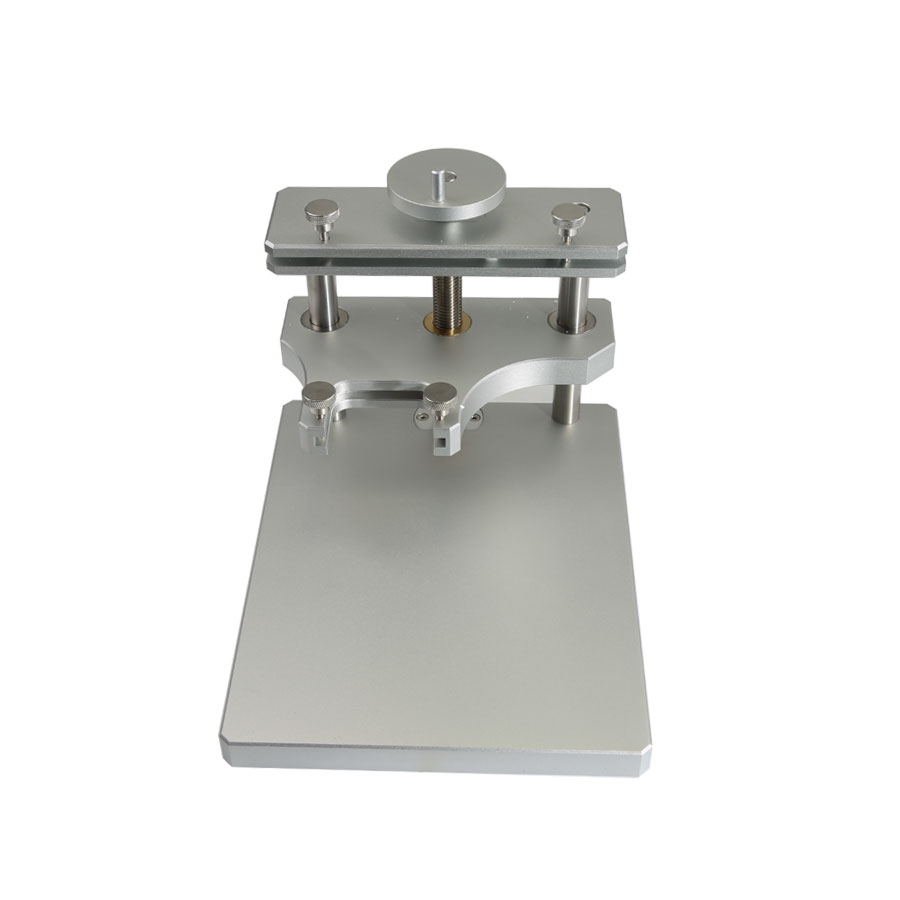

1. LED BDM Frame:

Description:

NEW LED BDM Frame is newest upgrade ECU Programming adapter .

More Function than old BDM Frame.

It is best used for KTAG,KESS,KTM100,FGTECH/BDM100/CMD/DIMSPORT ect... ECU Chip Tuning Tools.

Easy installation and operation,no hurt the ECU circuit board.

Function:

For Car rush,modify,programming bracket stand.

Fits for ECU brush&write,ecu modified&programming.

Probe holder,dimsport assistant.

Material:

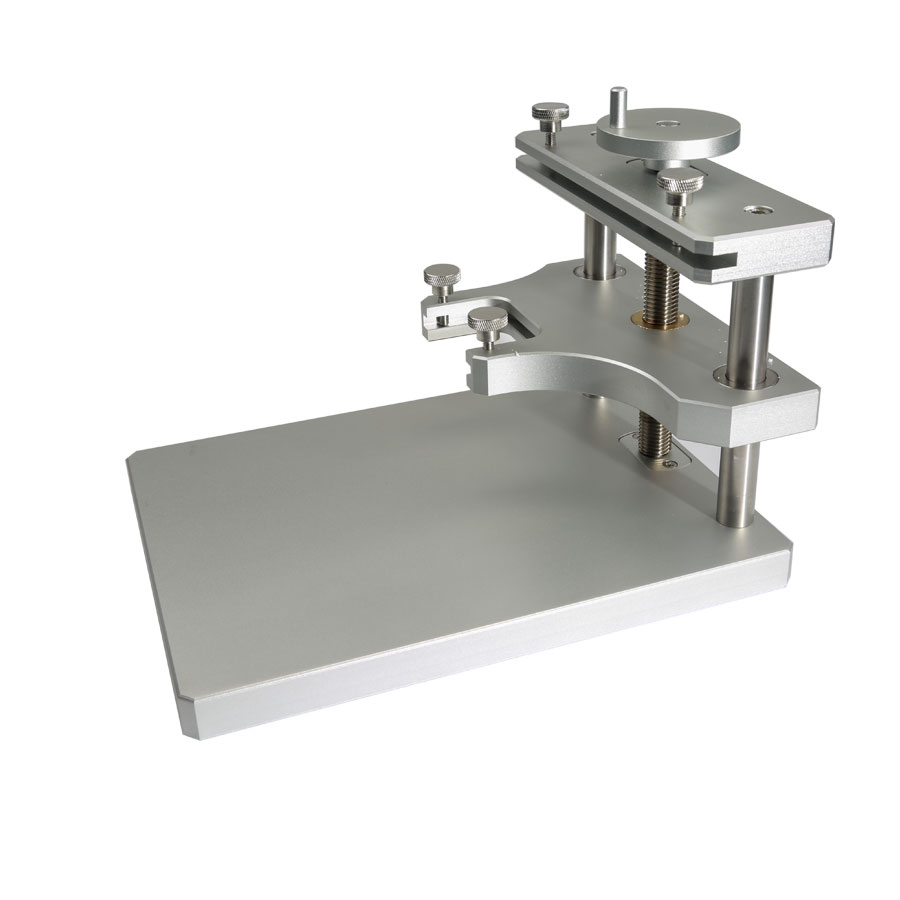

Aluminum alloy stand

Arcylic board,mesh assistant

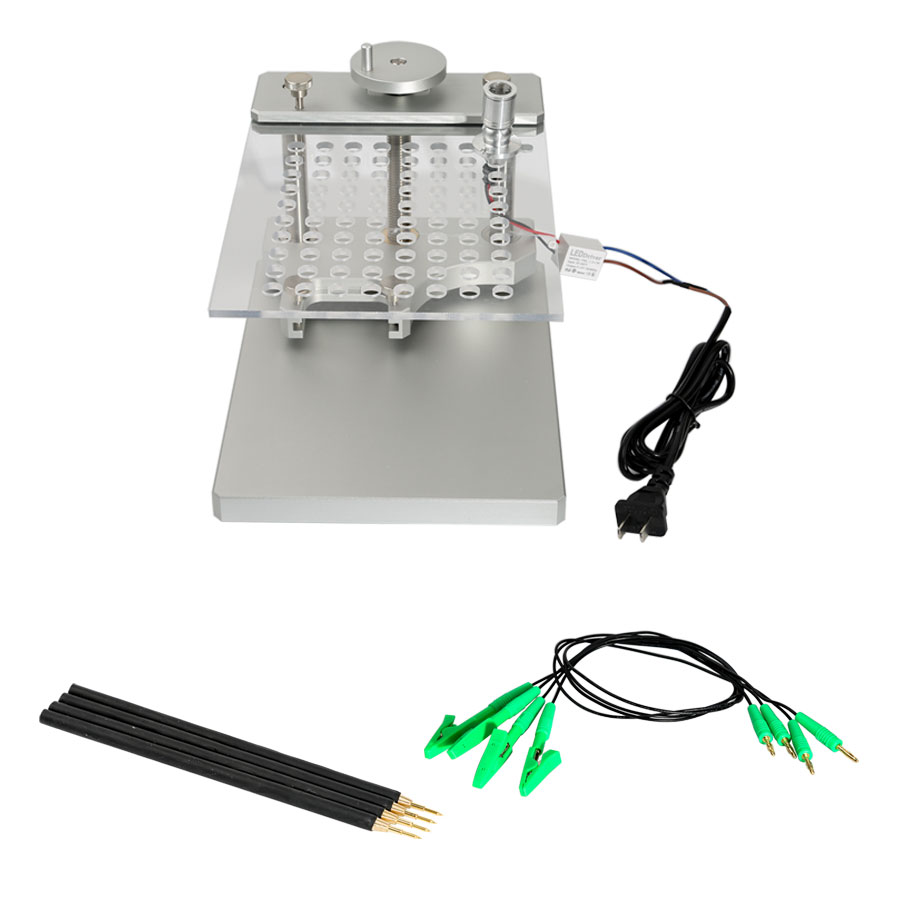

Package list:

1 x Alumiunm BMD Frame New LED

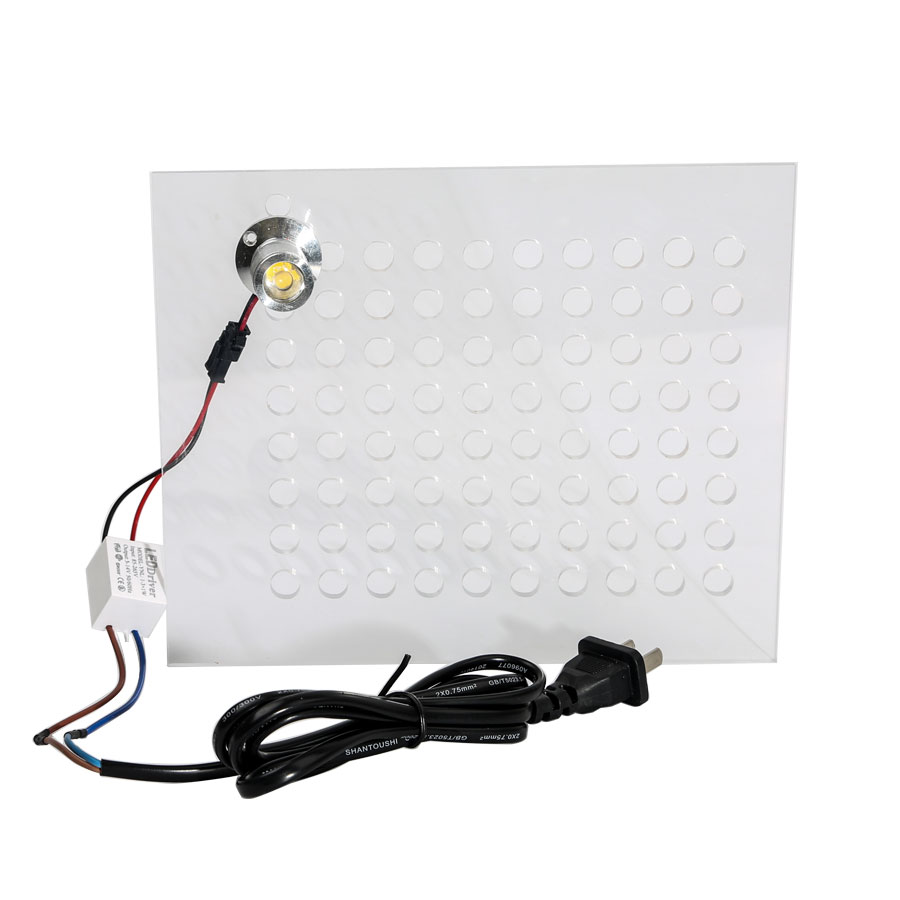

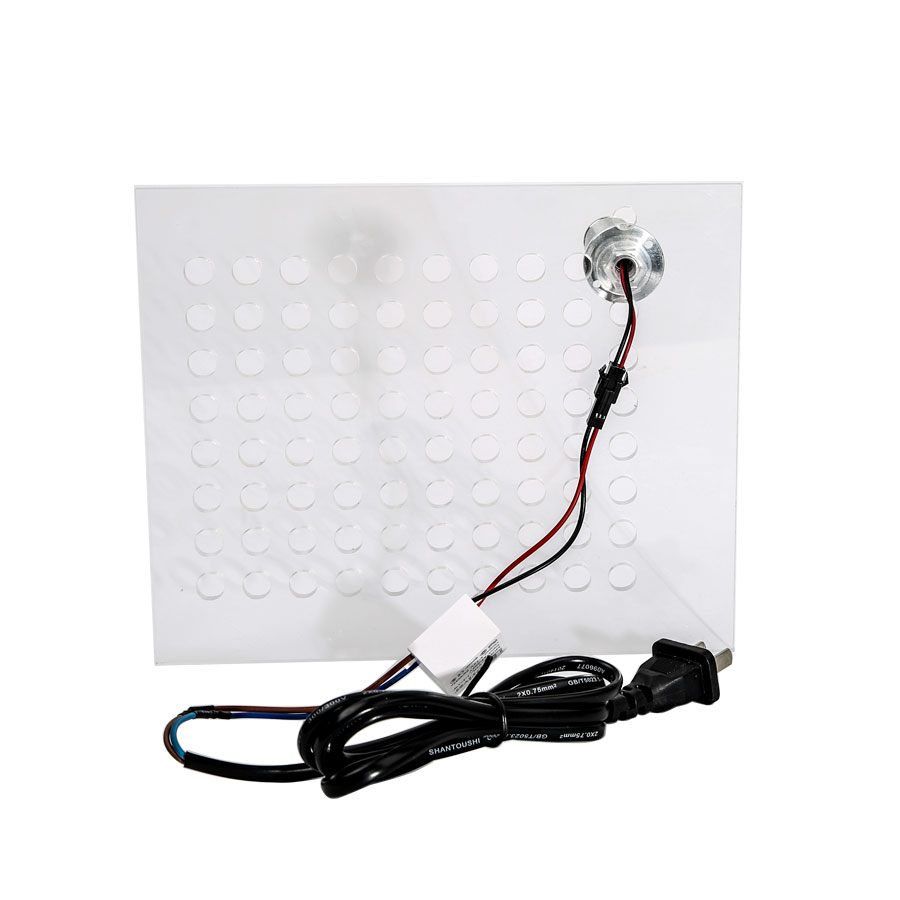

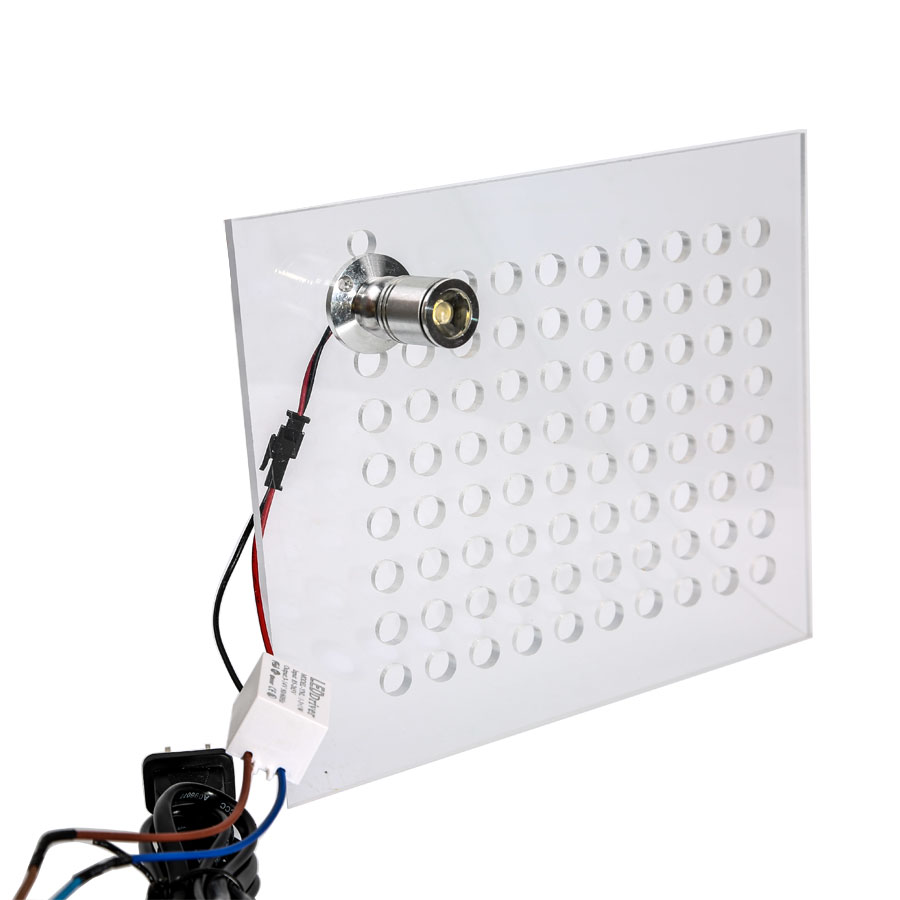

1 x Mess Arcylic Board(With LED&Connector)

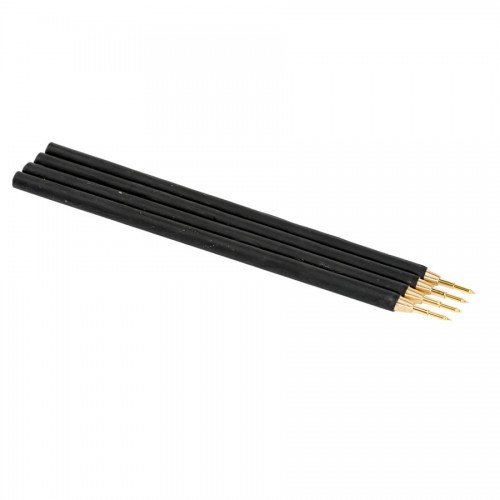

4 x Probe Pens

4 x Connection Cable

Please pay attention :

DOES NOT contact PCB in the pacakge

LED must works up to 12V.Connect with probe,then disconnect 12V power for LED,it will light and works.

Probe pen can adjustable

Please Note :

The color of BDM Frame 4PCS Probe Pens are sent by random

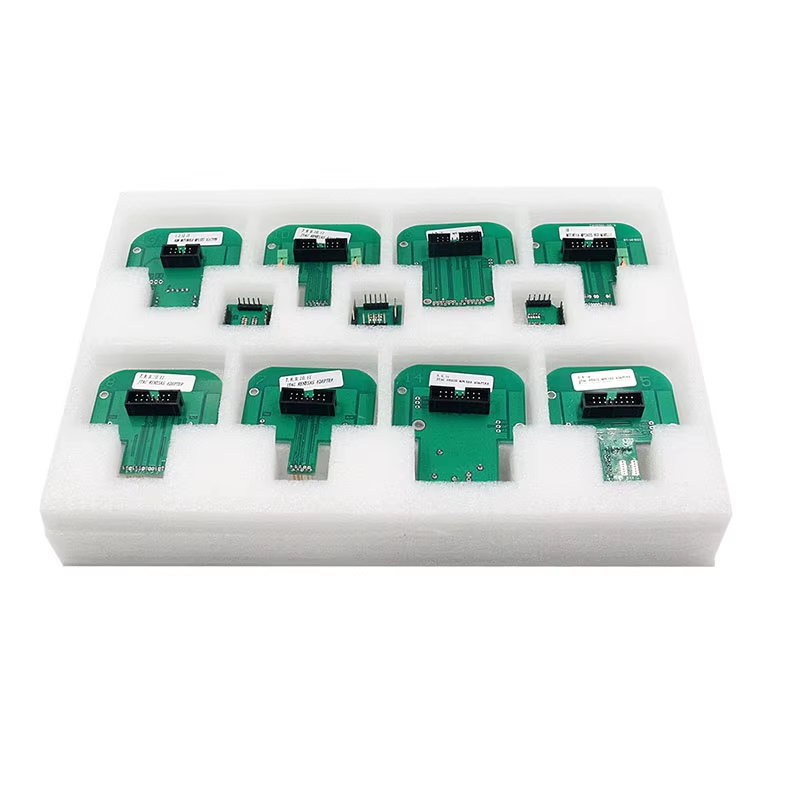

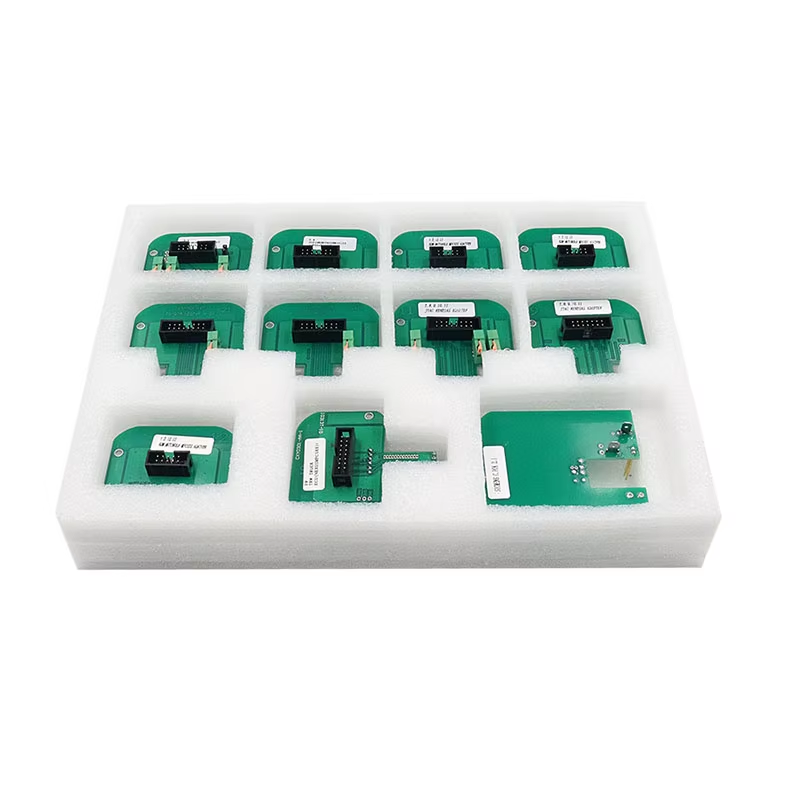

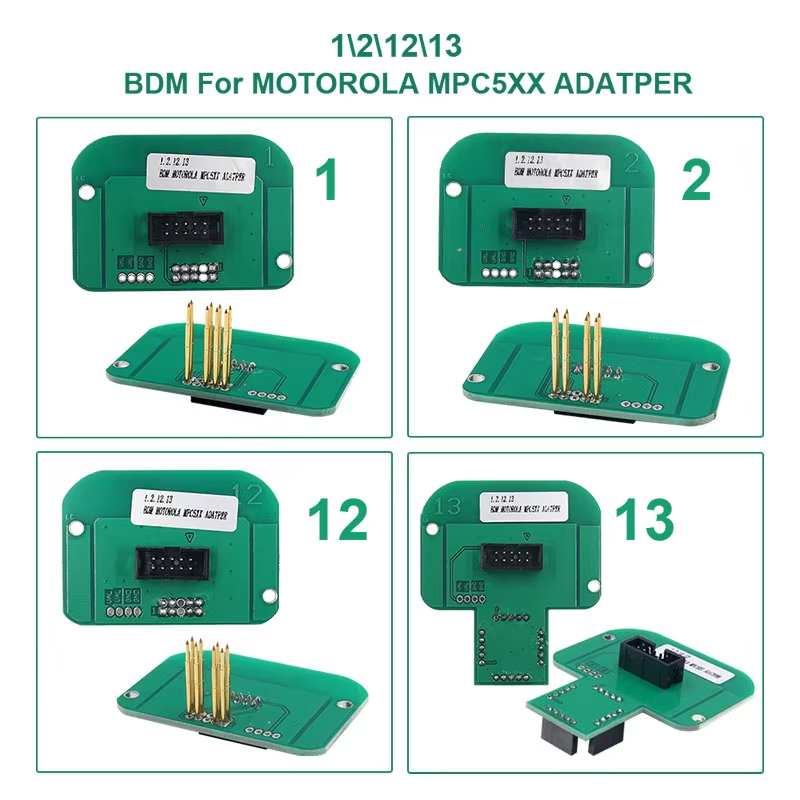

2. 22PCS BDM Adapters :

Features:

Adapter width: ~60mm width for original BDM Probe, not for low quality plastic with 40mm width.

Adapter thickness: 2mm

Adapter colour: Green

Package includes:

1 14AM00T01M for Bosch

2 14AM00T02M for Dlphi DCM

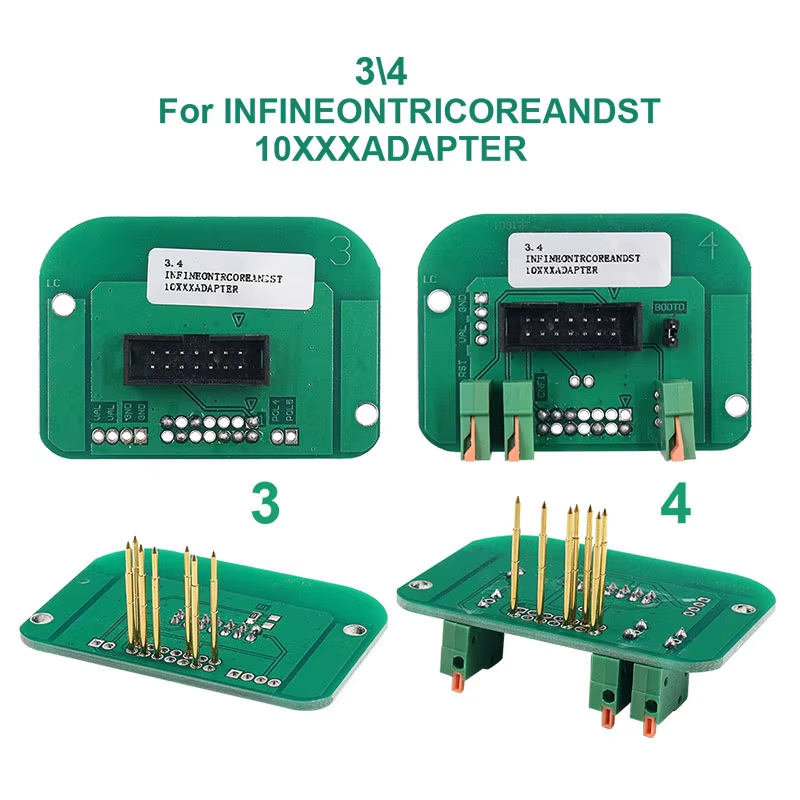

3 14AM00T03M for Bootloader ST10xx

4 14P600KT04 for Tricre EDC/MED17

5 14AM00T05M for Marelli MPC55xx JTAG

6 14AM00T06M for Dlphi MPC55xx JTAG

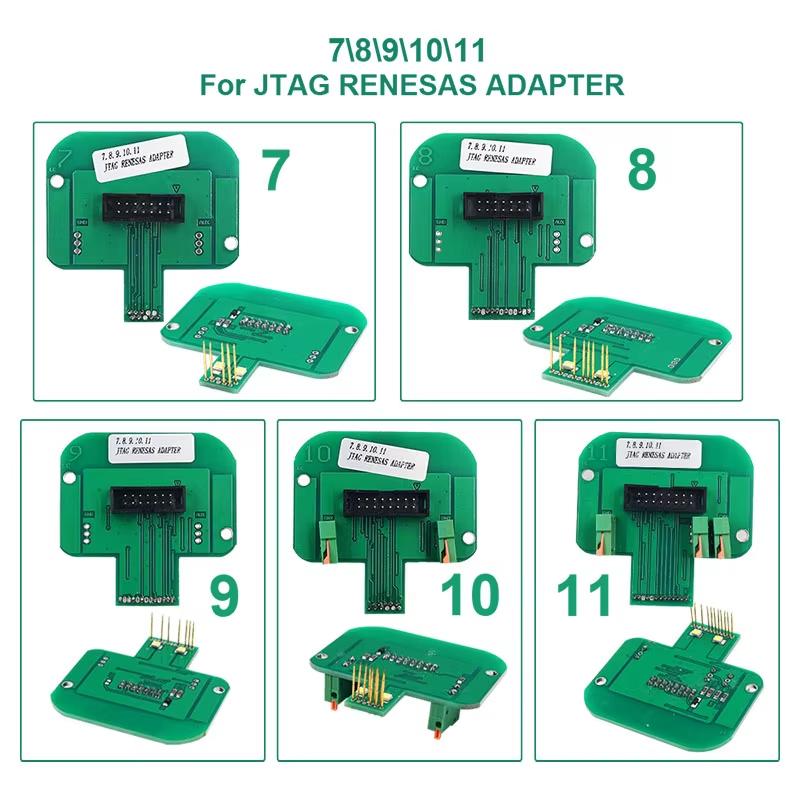

7 14AM00T07M for Denso CN1 Boot

8 14AM00T08M for Denso CN2 Boot

9 14AM00T09M for Denso CN3 Boot

10 14AM00T10M for Denso CN1 AUD

11 14AM00T11M for Denso CN2 AUD

12 14AM00T00M for Dlphi DCI

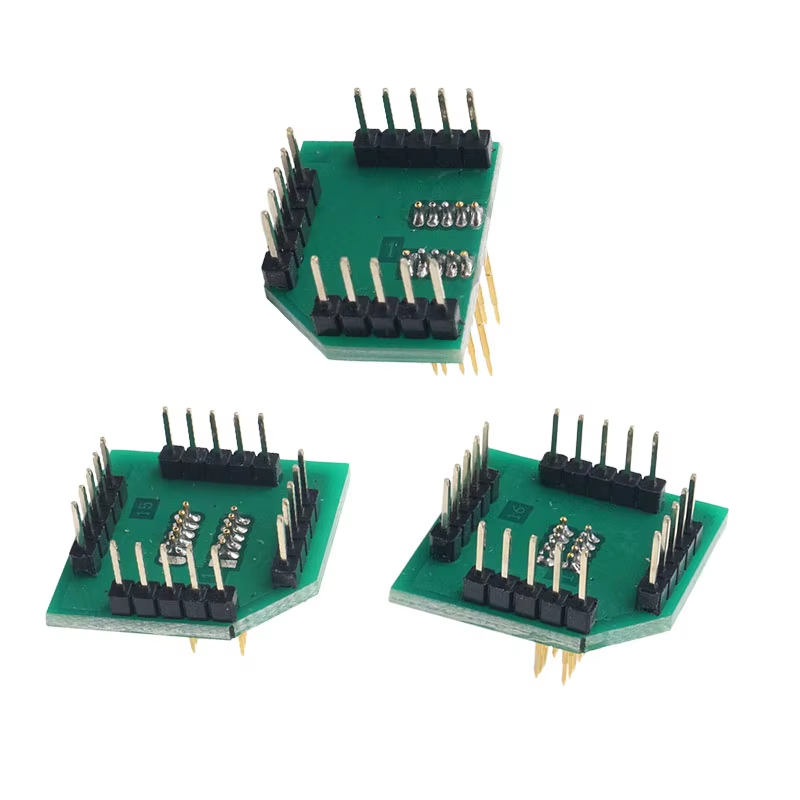

13 14AM00TBAS for Base Adapter 1.27

14 14AM00T14M for NexusEFI T6 Lotus

15 14AM00TB02 for Magneti Marelli BDM insert

16 14AM00TB01 for Siemens BDM insert

17 14AM00TB03 EDC7 BDM insert

18 14AM00T18M for Magneti Marelli MPC/SPC56xx

19 14AM00T13M for Nexus MPC5xx TRW ECU

20 VAG 1.6tdi - for Siemns-PCR2.1

21 14AM00T15M for TIS NEC76F-20

22 14AM00T16M for TIS NEC76F-26
