TOPDON ArtiLink600 OBD2 Scanner Car Diagnostic Tool Automotive Scan Auto Diagnostics ABS SRS Engine Test Autoscanner Free Update

AL600 dives deep into ABS & SRS systems for 42 vehicle models. It reads ECU information, DTCs, data stream, and erases DTCs.
It also improves the diagnosis efficiency by performing the active test—to test individual ABS/SRS sensors, valves, or solenoids to quickly locate malfunctions.

Multilingual Support: English, French , German,Spanish, Portuguese, Russian, Japanese

3 Reset Service

Convenient DIY Oil Change

Whenever the Oil Service light shows on dashboard, check the oil level, replace the pump, and fix the sensor, then use this OBD2 scanner to reset calculation so turn off the light.

Its step-by-step easy procedures will save you the hassle in Auto Services with expensive maintenance.

SAS Reset to Calibrate Steering Wheel Position

When you find traveling NOT in a straight line, check if you need to realign the vehicle’s steering column. Our scan tool AL600 will allow you to carry out steering angle sensor calibration (set the SAS angle to zero) on supported car models.

BMS Reset to Clear Faulty Battery Data

When you have replaced the battery, but haven’t cleared the old battery’s data, some vehicle functions would probably fail to trigger like the automatic start & stop, the sunroof / window open and close at any angel, etc. You need this diagnostic tool to perform a resetting operation on the monitoring unit of your vehicle battery to resume the vehicle functions related.

Active Tests Supported

√ Principle of Active Tests
Active tests, also named as actuator tests and bi-directional control, request information or commands a module from/to powertrain control module to perform specific tests and functions.

√ Getting Down to Diagnosis
Fully understanding the nature of the problem. With this scanner, you can command the vehicle through the active tests and take easy and accurate readings of what’s wrong with your car’s Anti-lock Braking System and Supplemental Restraint System. Just send commands to your car to test things like fuel pump on/off, or to retract an electronic brake.

Full OBD2 Function for DIYers to diagnose engine

This code reader car diagnostic tool is compatible with most 1996 and newer OBD2 & CAN cars, light trucks, SUV’s, hybrids, and minivans worldwide, to help you troubleshoot most engine issues: Read / Clear DTCs; Live Data, Freeze Frame, I/M Readiness, O2 Sensor Test, On-Board Monitor Test, EVAP Test, Retrieve Vehicle Information.

Easy to use ,Detailed Steps for Successful Software Update

1.Go to TOPDON official site to download, decompress and install TOPDON Update Tool on Windows XP, 7, 8 & 10.

2.Connect this scan tool to the computer via the USB cable. Enter "Main Menu -> HELP -> Tool Information" to get the Serial Number and Register Code for later use. Disconnect OBD2 scanner ArtiLink600.

3.Remove the TF card pre-installed in this obd2 scanner’s unit. Insert the supplied adaptor with TF card into the USB port of the computer.

4.Run the TOPDON Update Tool. Follow the prompts, and input the information required to finish the registration. Click Submit.

5.Select the updates you need, and download the update package into the TF card.

6.Insert the TF card with the downloaded update package into this obd2 code reader.

7.Power up ArtiLink600 via the USB cable. ArtiLink600 will automatically start updating if a newer version is detected in the TF card.

Widespread Modern Car Models Coverage

1.ABS & SRS Systems Diagnostics for 42 car brands worldwide: access to ECU Information;Read & Clear DTCs; Live Data Stream.

2.ABS & SRS Active Test: for Fiat, Alpha Romeo, Holden, Saab, US-Ford, GM, Nissan, Mercedes, Benz, Volvo, LandRover, and BMW.

3.Reset Services: Oil Reset for 53 car brands; SAS Reset for 41 car brands; BMS Reset for 22 car brands.

4.Full OBD2 Test: for most vehicles sold in the US, EU or Asia with model year of 1996 or newer, which are compatible with OBDII protocols: KWP2000, ISO9141, J1850 VPW, J1850 PWM and CAN (Controller Area Network)

Read Vehicle VIN Information

This car OBD2 scanner can retrieve VIN to help you easily track the previous records of a vehicle. The records show the performance of the vehicle and other important aspects such as mileage. So you can make a more informed choice when purchasing a used car.

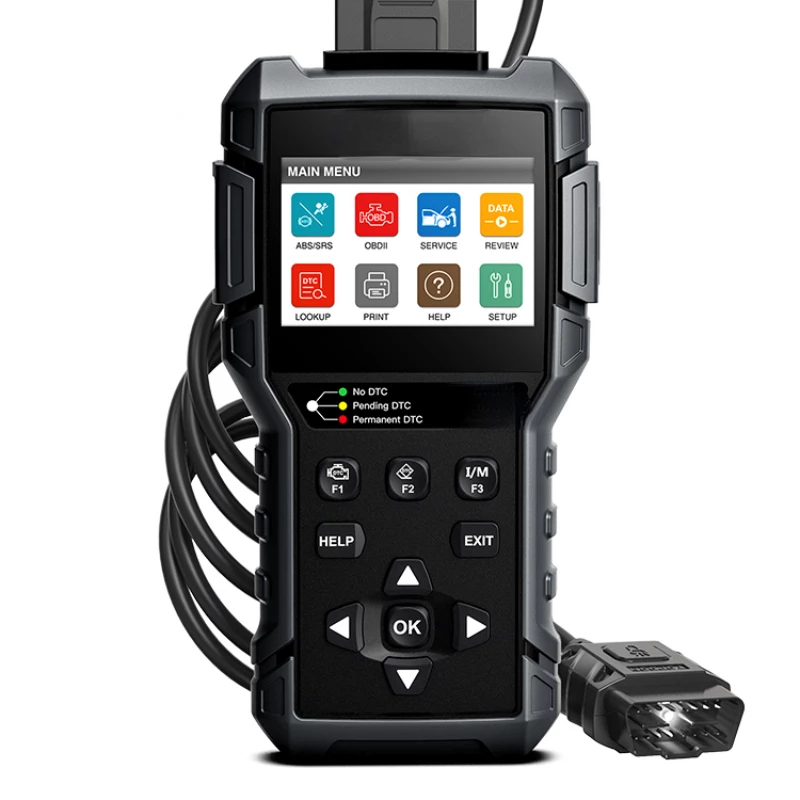

3-Color Indicators

Another great feature of this OBD2 scanner is the obd2 system status led lights, which either shows Green, Yellow, or Red, letting you know if it is necessary to dig more at the DTC codes. (Green: NO DTCs; Yellow: Pending DTCs; Red: Permanent DTCs).

Take Users in Mind

Thanks to its compact and robust design, this scan tool is easy to handle and use even in greasy workbench, and can be stored in your toolbox with no fuss. 3 shortcut hotkeys offer quick access to commonly used read / clear obd2 DTCs, and I/M readiness test to get effortless emission results.

How to use

Car Coverage

It is compatible with these 42 vehicle models:

ACURA, AUDI, BENZ, BMW, CHRYSLER, CITROEN, DACIA, DAEWOO, FIAT, GM, HOLDEN, HONDA, HYUNDAI, INFINITI, JAGUAR, ISUZU, KIA, LAND ROVER, MAZDA, MINI, MITSUBISHI, NISSAN, OPEL, PEUGEOT, PORSCHE, RENAULT, SAAB, SEAT, SKODA, SMART, SPRINTER, SUBARU, SUZUKI, TOYOTA, USA FORD, VOLVO, VW, FORD AUSTRALIA, FORD EUROPE, ROMEO, VAUXHALL

Specifications

Display: LCD 3.5-Inch, 320*480
Operating voltage: 9~18V
Storage Temperature: -20℃~70℃ (-4℉~158℉)
Working Temperature: -10℃~50℃ (14℉~122℉)
Dimension: 215*114.1*34.5 mm (8.46*4.49*1.36 inch)
Package size: 262*221*54 mm (10.31*8.70*2.12 inch)
Length: 1185 mm (46.65 inch)
Net Weight: 535 g (18.87oz)

Package List

1* ArtiLink600 Code Reader
1*Quick Start Guide
1* User Manua

1* USB cable
