TOPDON ArtiDiag600 OBD2 Scanner Car Diagnostic Tool Automotive Scan Auto Diagnostics ABS SRS Engine Test Autoscanner Free Update

Top Reason To Choose TOPDON Artidiag 600

1. Fast VIN autodetect, TOPDON Artidiag 600 will read VIN information when you connect Car

2. Lifetime Free Update , Support One-Click Update Online via Wifi

3. Automatically generate and upload diagnostic reports

4.Suppoert 5 reset Function : EPB/Oil/SAS/ ETS/TPMS reset

5. Support Multi-Protocols : OBDII , EOBD, JOBD , KOBD

7. 5'inch Android Touch Screen, Easy to operate

Support Multi-language

English, Spanish, French, German, Italian, Russian, Japanese, Korean, Portuguese

Global Version (Can be used in worldwide)

Update & Warranty & Tech Support

Life-time Free Update

Life-time Free Tech Support

1 Year Warranty for any quality problem

Four System Diagnoses for Insight Into the Crisis

TOPDON Artidiag 600 primarily diagnoses the engine, ABS, airbag and transmission systems. It reads and clears codes for those systems. That, in turn, makes it possible to clear the MIL, SRS and ABS service lights. You will know what the problem is any time your car breaks down. And that will help you determine whether it needs immediate attention, and how much you should expect to spend on repairs.

For Engine System

The diagnostic tool can help detect the engine ignition, fuel injection, air and fuel ratio, and exhaust emission conditions in Engine system to enhance vehicle performance, save energy and reduce exhaust emission.

For Transmission

It makes great sense in the safe driving when your car is slipping or difficult to shift. This diagnostic scanner can figure the problems out via reading codes in the Transmission system, or check the health status via live data viewing.

For ABS System

Diagnosing an ABS problem should always start with a visual inspection of all brake components, next you will need to retrieve ABS codes to tell you where the problem is, and this is what this scanner does for you.

For SRS System

SRS, safety restraint system, is made up of impact sensors, a control module, and the airbags themselves, and this diagnostic device can detect every electronic parameter to check its health status.

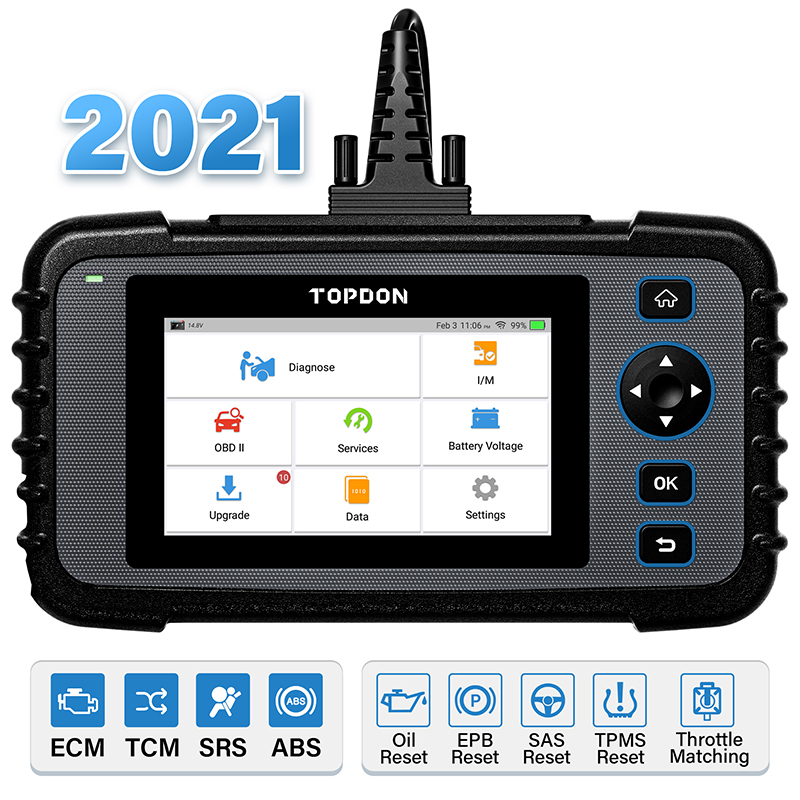

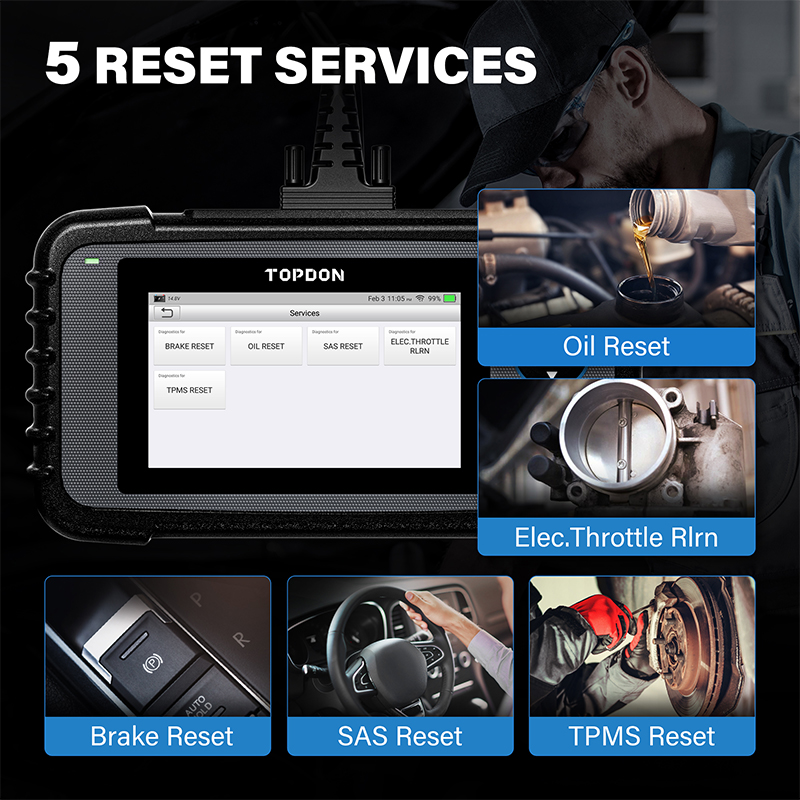

Five Most Commonly Used Services Accessible

TOPDON Artidiag 600 OBD2 diagnostic scan tool CRP129X has been made to work effectively with 5 most commonly used services accessible for complete diagnoses and maintenance:

Oil Reset

It is also enabled with an oil service and lamp reset mechanism, a function which ensures that the vehicle engine is maintained in its rightful healthy self.

SAS Reset

It helps clear the faulty steering angle sensor memories and plays an important role in the steering angle sensor calibration.

EPB Service

Reset the brake pad after the repairs in electronic parking brake system are done. By using this system, the braking process is therefore made much simpler and easier.

TPMS Service

Looks up the tire sensor IDs from the vehicle's ECU, and performs TPMS programming and reset procedures after tire sensors are replaced.

Throttle Adaptation

Initialize the throttle actuators to the default state for regulating throttle (or idle engine) operations accurately.

They are sufficient to assure the user of the high quality standards the product has been taken through.

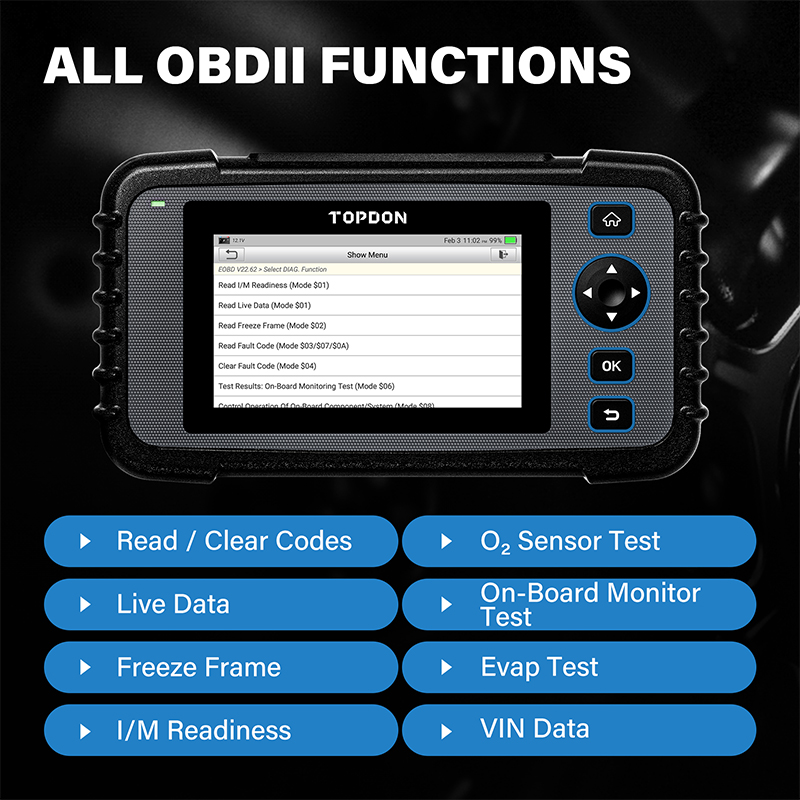

All Modes of OBDII Functions for Repair Work

This scanner supports all 10 test modes for OBD-II cars which are great for daily repair work. The table below describes the purpose of each mode of operation:

$01 - Request Current Powertrain Diagnostic Data

$02 - Request Powertrain Freeze Frame Data

$03 - Request Emission-Related Diagnostic Trouble Codes

$04 - Clear/Reset Emission-Related Diagnostic Information

$05 - Request Oxygen Sensor Monitoring Test Results

$06 - Request On-Board Monitoring Test Results for Specific Monitored Systems

$07 - Request Emission-Related Diagnostic Trouble Codes Detected During Current or Last Completed Driving Cycle

$08 - Request Control of On-Board System Test or Component

$09 - Request Vehicle Information

$0A - Request Emission-Related Diagnostic Trouble Codes with Permanent Status

Battery Voltage Functions

This menu can show real-time graphing battery voltage of the car.

AutoVIN Technology

The diagnostic tool equips with the AutoVIN technology which means that it will automatically read and store your vehicle's VIN number, in one touch. It immediately identifies your car, and you don't have to enter the year, make, engine, etc. of your car.

Automatic Inspection Report Uploaded for Convenience

There might arise certain problems which would be beyond your level of understanding while diagnosing a vehicle. LAUNCH CRP129X allows you to save the Inspection Report and transfer the report to the Cloud Server, or even print the data via the PC.

57 Supported Car Brands

LAUNCH CRP129X has wide compatibility rates with several modes of the OBD2 motor vehicles. The scanner works on pretty much any car made from 1996 and forward, as long as the car has a 16-pin OBD-II port:

Asia:

Acura, Daewoo, Honda, Hyundai, Infiniti, Isuzu, Kia, Lexus, Mazda, Mitsubishi, Nissan, Nissan GT-R, Samsung, Subaru, Suzuki, Toyota, Tlisuzu

Europe:

Abarth, Alfa Romeo, Audi, BMW, Bugatti, Dacia, Eu Ford, Fiat, Jaguar, Lancia, Mercedes, Mini, Opel, Peugeot, Porsche, Renault, Saab, Seat, Skoda, Smart, Sprinter, Landrover, Citroen, Volvo, VW, Vauxhall

South America:

GMSA

USA:

Buick, Cadillac, Chevrolet, Dodge, Ford, GM, Chrysler, Jeep, Lincoln

Australia:

Au Ford, Holden

SPECIFICATIONS:

LCD: 5" Touch Screen, 720P

OBDII Interface Input Voltage: 9V-18V

DC Input Voltage: 5V

Battery: 4000mAh Lithium Battery

Storage Temperature: -20ºC ~ 70ºC

Operating Temperature: -10ºC ~ 50ºC

Size: 228*125*34.5mm
