TOPDON Phoenix Plus Car Diagnostic Tool Professional OBD2 automotive Scanner ECU Online Coding 2 Years Update

TOPDON Phoenix Plus- All System + 28 Reset Services+ECU Coding

In keeping with aftermarket requirements to handle complex modern vehicle issues, TOPDON Phoenix Plus is unveiled being the latest addition to our Phoenix family. Now begin with this all-in-one diagnostic tool to have everything you need to diagnose, research, and manage any issues at fingertips with its smooth logical workflow, where fully optimized easy-to-use software allows advanced OE-level diagnostics of online ECU coding, complete bi-directional functions, access to all vehicle modules, etc. equipped with the latest Android 10.0, preparing you to take on the toughest jobs with confidence.

Global Version, No IP limited.

It is global version, no IP limited. You can use it everywhere in the world.

2 Years Free Update Online

It is easy to do update by One-Click on the tablet via wifi connection. All supported car brands softwares are included, you don't need to buy softwares separately. After two years, you can still use it without update. It will not be locked. If you want to buy update service after two years, we can give you a discount on it.

Supported Languages

English, French, Spanish, German, Russian, Italian, Portuguese, Traditional Chinese, Japanese.

ECU Coding

Phoenix Plus offers the ECU Coding feature, which is not available in conventional code readers, to allow you: -To perform the customer individual customization of the car such as setting alarms, doors locking, and outdoor lighting, etc., to improve vehicle performance, or stimulate high-end car functions. -To alter the configuration when a component is replaced, so the new actuators can be recognized by related vehicle systems. -To enable multiple car systems to recognize each other, and so the actuators can start to work.

Active Test

With this diagnostic tool's Active Test, you can output the command into the ECU in order to turn on/off actuators, to find faults in the subsystems of your car effortlessly, without using the vehicle's control:

[ Turn on the radiator fan | Modulate the throttle | Open/close windows | Operate mirrors | Turn on/off the lights | Turn on/off the sound horn | Test door lock … ]

ALL Systems Diagnoses

This diagnostic scanner can establish a data link to all systems and subsystems of the vehicle being serviced to:

-Retrieve ECU information of the tested control units including unit type, version numbers, and other specifications, etc.

-Read & erase DTCs to locate problem areas and clear the codes.

-View Live Data of each parameter item.

The following is a list of modern vehicle systems that this scan tool can get access to:

-Engines / Auto Transmission / Airbags / Immobilizer / Key Coding / ABS / Cruise Control / Instruments / Self Leveling Suspension systems

-Seats / Doors / Gateway / Steering Angle / Air Suspension / Body Systems / Electronic Power Steering & Motor Assisted / Power Steering / Tyre Pressure / Rain Sensors / 4WD System

-Stabilizer / Intelligent Parking Assist/Door Motors / Audio Systems / Air Conditioning / Tiptronic / Anti Theft / Soft Top / Headlamp Leveling / Central Locking / Automatic Clutch / DPF Reset

-Electric Windows / Plip Programming / Heated Rear Window / Xenon Headlights / Wash Wipe / Fuel Burning Heater / Transfer Box / Seat Memory / Oil Life Service Reset / Sliding Doors / Electronic Throttle

-Navigation System / Rollover Sensor / Cruise Control / Multi Function Steering Wheel / Aux Heating / Electronic Parking Brake / Clutch Electronics ... and more.

This comprehensive scanning process is able to locate the faulty systems and retrieve the DTCs related easily. So you can work on all parts of the vehicle systems to enhance the performance, save energy, reduce emissions, and everything else.

28+ Special Reset Functions

1. Oil Reset Service

-Close the oil service light and reset service mileage & service interval after replacing the engine oil.

2. Steering Angle Calibration

-Clear memories of the previous steering angle sensor and store the replaced one.

3. Electronic Parking Brake Reset

-Reset the new electronic parking brake for braking wheels safely again.

4. Battery Register & Battery Maintenance

-Perform a reset on the vehicle battery for clearing the fault information and re-match the battery.

5. ABS Bleeding

-Get a firm brake pad after air exhaustion.

6. Electronic Throttle Position Reset & Learn

-Initialize the throttle actuators to the default state for regulating throttle (or idle engine) operations accurately.

7. Diesel Particulate Filter (DPF) Regeneration

-Clear particulate matter from the DPF filter to stabilize the filter performances

8. Tire Pressure Monitor System Reset

-Relearn TPMS sensors so that new sensors can be recognized by ECU.

9. Tooth Learning

-Finish tooth learning after changing crankshaft in the car engine, so the new part can be used.

10. Anti-Theft Matching (IMMOBILIZER)

- Add a new programmed key. PIN code is required.

11. Injector matching

-Write the new injector numbers into the ECU for accurate communication and injection control.

12. AFS Reset

It detects the light of the environment, then decides whether to automatically turn on the headlights or not. It can also adjust the headlights in time by monitoring the driving speed and body posture of the vehicle.

13. EGR Adaption

Reduce nitrogen oxides (NOx) in the exhaust gas and improve fuel economy at partial load.

14. Gearbox Matching

Test the gearbox based on the driving conditions after the gearbox is disassembled or repaired, for a more comfortable and ideal shift quality.

15. Sunroof Service

Set the sunroof lock switch to be on / off according to weather, temperature, and memory.

16. SUS Reset

When the body height sensor and control module in the air suspension system are replaced or the level of the car is wrong, this function needs to be performed to level the body height sensor.

More Functions

Windows Calibration, Seats Calibration, Tire Reset, Language Change, A/F Reset, Coolant Bleed, Transport Mode, NOx Sensor Reset, Dblue Reset, Stop/Start Reset. You can find 15 kinds of commonly used reset functions in the reset menu, and other special functions in the car brand diagnostic softwares menu. And more...

Wide Vehicle Coverage across the Global

-American Cars Buick; Cadillac; Chevrolet; Chrysler; Dodge; Ford; GM; Hummer; Jeep; Lincoln; (BRAZIL) BX-Fiat; BX-GM

-European Cars: Abarth; Alfa Romeo; Audi; Bentley; Benz; BMW; Bugatti; Citroen; Dacia; EU-Ford; Ferrari; Fiat; Jaguar; Lamborghini; Lancia; LandRover; Maserati; Maybach; Mini; Opel; Peugeot; Porsche; Renault; Rolls-Royce; Rover; Saab; Seat; Skoda; Smart; Sprinter; Vauxhall; Volvo; VW; (UKRAINE) ZAZ; (RUSSIA) GAZ; IZH; PAZ; SEAZ; UAZ; VAZ

-Asian Cars (JAPAN) Acura; Daihatsu; Honda; Infiniti; Isuzu; Jpisuzu; Lexus; Mazda; Mitsubishi; Nissan; Nissan GTR; Scion; Subaru; Subaru; Suzuki; Tlisuzu; Toyota; (KOREA) Daewoo; Hyundai; KIA; Samsung; Ssangyong; (CHINA) Baic; Beijing; Changan; Changan-Ford; Changcheng; Changhe; Chsuzuki; DF Peugeot; DF Honda; DF Nissan; DF XK; Flyer,BYD; Fukang; Futian,Foton; Geely; Gonow; GZ Honda; Hafei; Haoqing; HC BMW; Hmada; Huachen; Isuzu,JMC; Jacty; Jianghuai; Jiao; Jinlong; Joylong; Lifan; Liuwel-TY; Luxgen; NJ Fiat; Qirul-TY,chery; Qoros; Saicmg; Spark-TY; TJ Toyota; Trumpchi GAC; Weili; Xiaokang Dongfeng; Xili,Faw Tianjin; Xinkai; YQ Mazda; Zhongshun; Zhongtai,Zotye; Zhongxing; (INDIA) Mahindra; Maruti; Tata; (MALAYSIA) Perodua; Proton; (IRAN) MVM

-Australian Cars Au-Ford; Holden

Auto VIN Tech

It supports quick diagnosis via one-button VIN scanning.

Remote Technical Support

By using this function, users can receive ad-hoc remote support from Topdon's technical engineers, colleagues, or friends, by allowing them to control this tablet device on their PC via the TeamViewer software.

Bluetooth and Wi-Fi Enabled

You are able to do remote control as this tool can be used through Bluetooth or Wi-Fi. And via Bluetooth, it is simple for DBScar diagnostic connector to communicate.

Social Network

This vehicle code reader helps quickly retrieve vehicle history maintenance record so you can get a series of useful diagnostic references and recourses when you meet any problems in the process of repairing. In addition, you are able to connect with other users, sharing experiences of your automobile maintenance.

Specifications

Operating System: Android 10.0
Screen: 10.0-inch Touchable,1280 * 800;
Memory: 4G
Storage: 64G
Battery Capacity: 6,000mAh/7.6V
Camera: Rear 8.0MP
Network: Wi-Fi, WLAN 802.11b/g/n
Bluetooth: Bluetooth 5.0
Working Temperature: 32ºF~122ºF (0ºC~50ºC)
Storage Temperature: -4ºF~140ºF (-20ºC~60ºC)
Demission: 277.3*190.8*44.5mm(10.92*7.51*1.75in)
Weight: 54.85 oz (1555g)

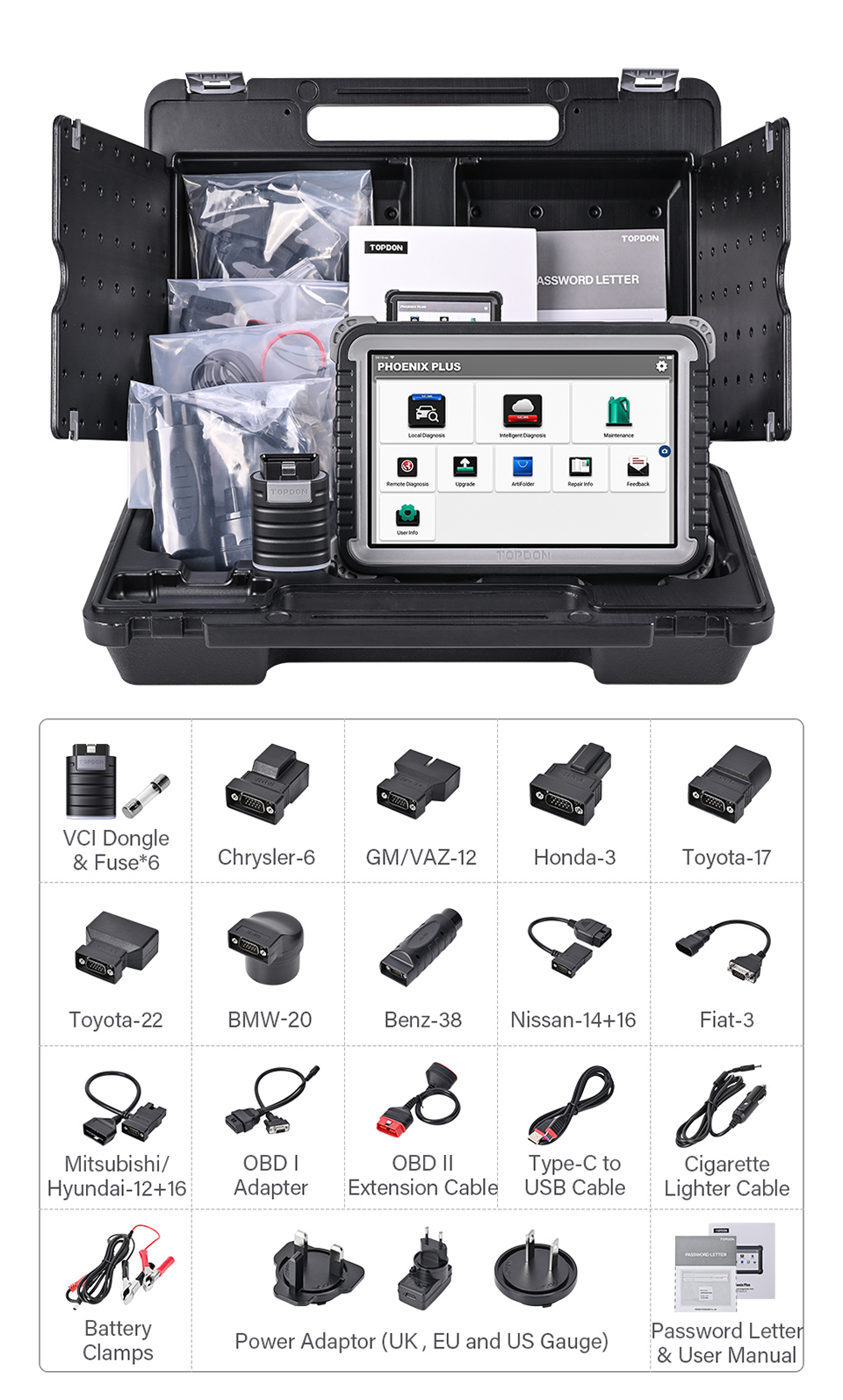

Package List for Phoenix Plus

1*Phoenix Plus

1*VCI Dongle

1*OBDI Adapter BOX Transfer Line

1*OBDII Extension Cable

1*Cigarette Lighter Cable

1*Type-C to USB Cable

1*Battery Clamps/Cable Set

1*Power Adaptor

1*User Manual

1*Password Envelope

1*Non-16pin Adaptor Cable Kit:

-BENZ-38

-FIAT-3

-NISSAN-14+16

-BMW-20

-CHRYSLER-6

-GM/VAZ-12

-HONDA-3

-MITSUBISHI/HYUNDAI-12+16

-TOYOTA-17 -TOYOTA-22

4*Fuse (φ5*20mm)

2*Fuse (φ6*30mm)
