Konnwei KW902 ELM327 V1.5 Bluetooth OBD2 OBDII CAN-BUS Diagnostic Car Scanner Tool Works on Android Phone

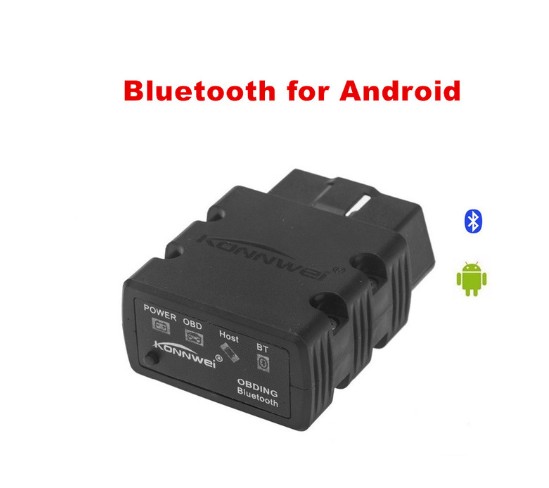

There are two versions, Bluetooth one works for Android Only, Wifi one works for IOS and Android both.

Note:

*If the CD is broken,please contact seller or you can search Torque or elm327 on app store. sorry for the inconvenience to you.
*This one can't support for Diesel or Trucks.And you can't use it on these cars that are not 16pin adapter. Latest software version supports most of OBD-II protocols.
Usually you can check the Engine Hood of the car, it is wroten "OBDII Certified":

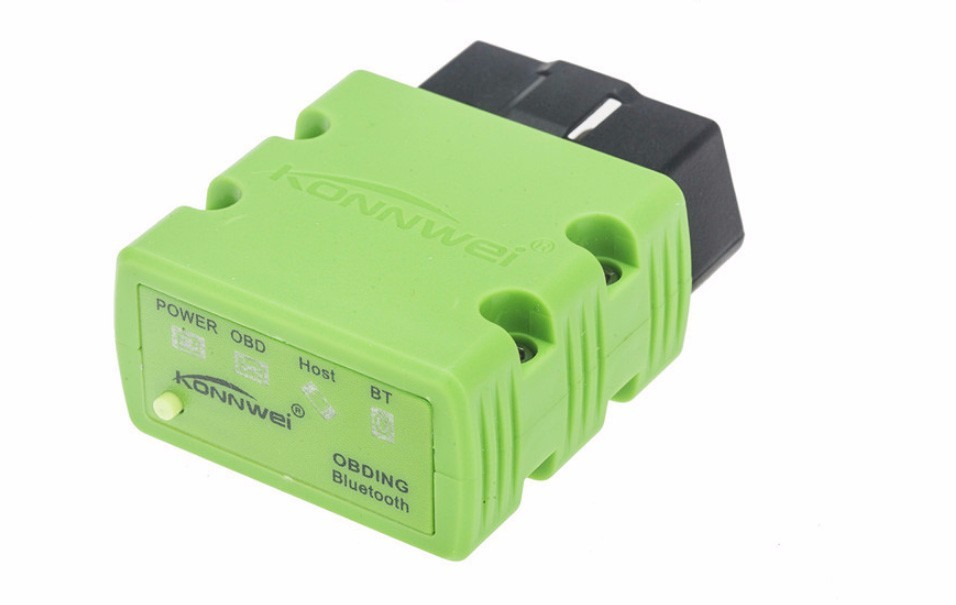

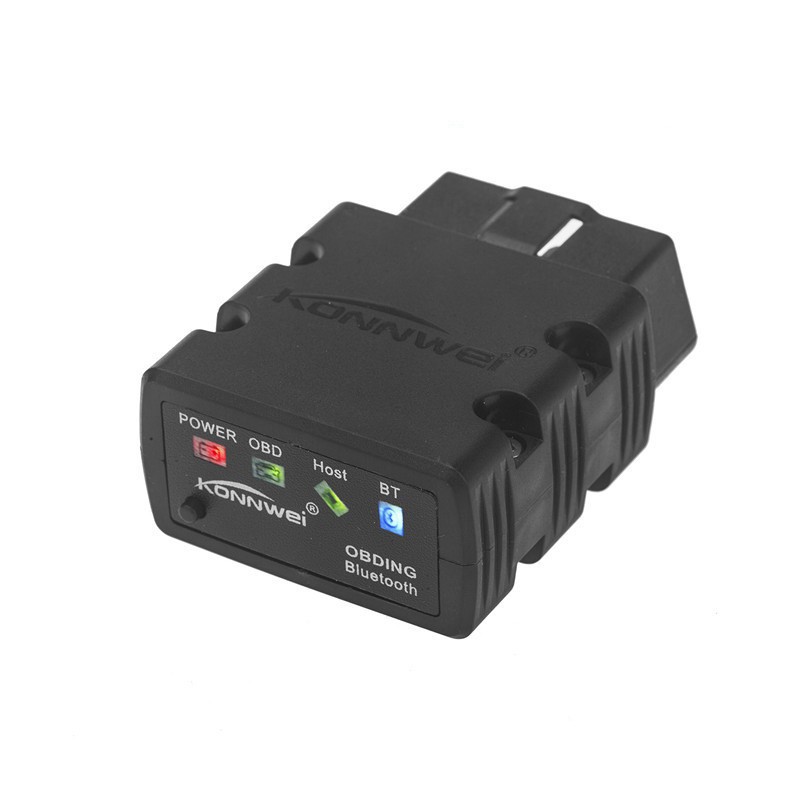

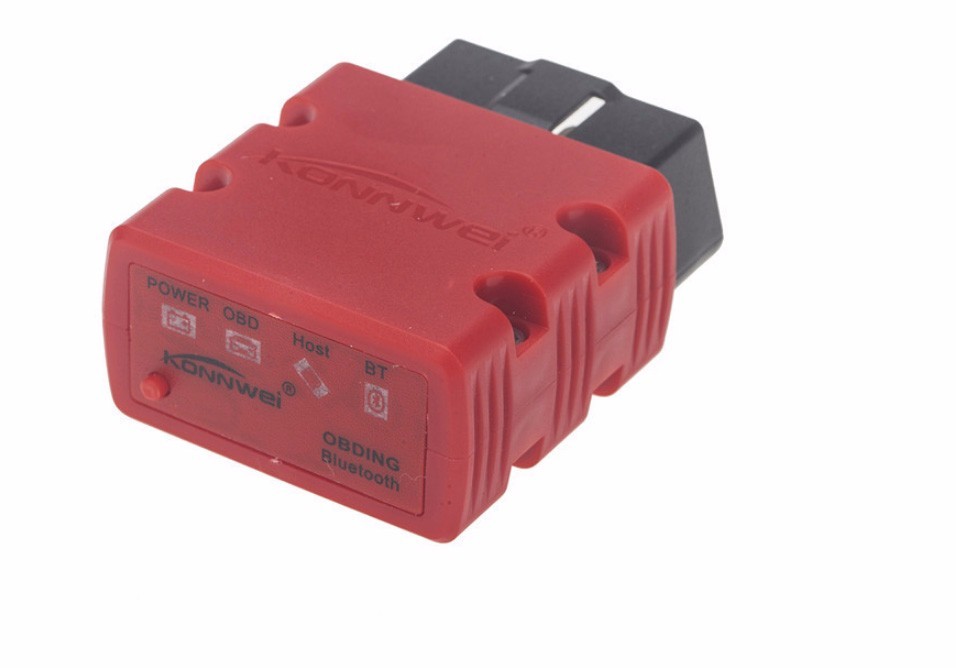

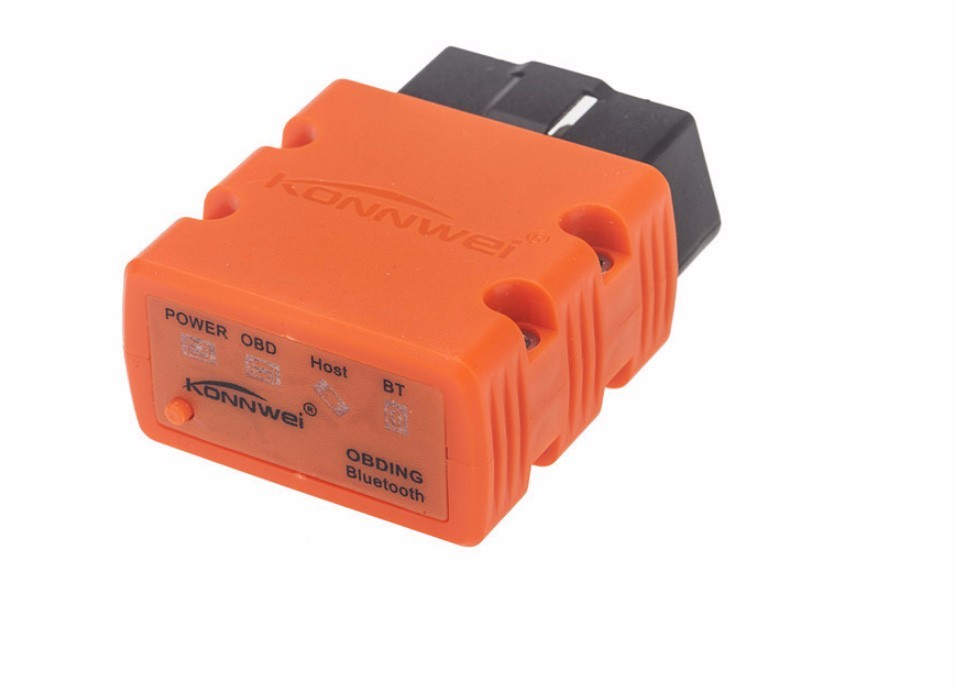

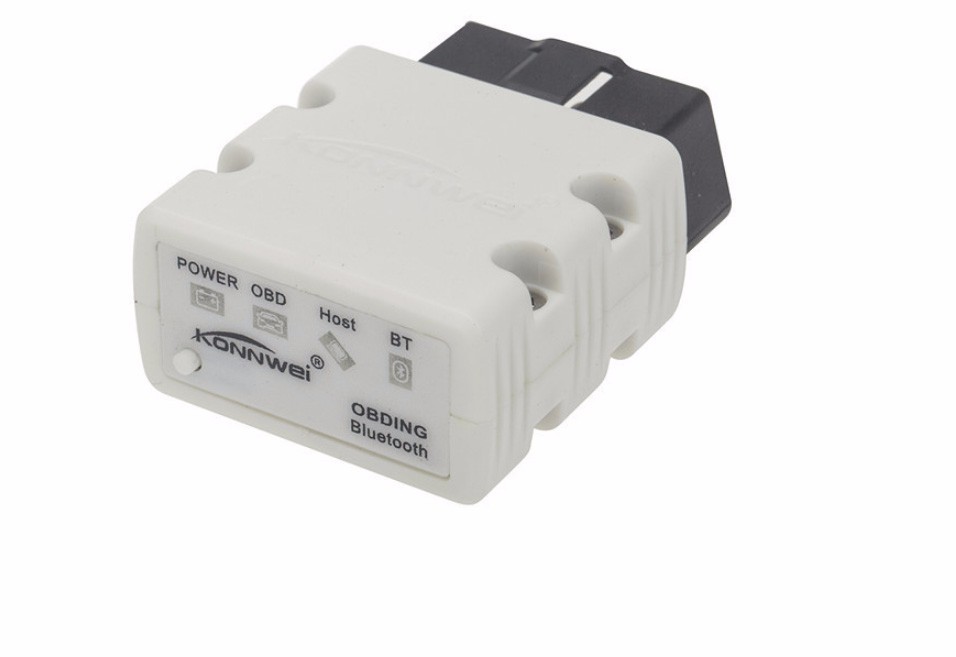

Colors : Black , Yellow , Orange , White and Red( Please leave us a message which color do you want, or we will send randomly, thanks)


Kw902 Features:

*Supply voltage(VDD):12V
*Work temperature range: -20 ~ +70\\\'c
*Storage temperature range:-40 ~ +125\\\'c
*RF sensitivity(Basic Rate): -85db
*Modulation Mode:GFSK
* Frequency Range:2402 ~ 2480MHZ
* Transmission Range:10M
* Bluetooth Profile:SPP
* UART Params:38400,8,n,1
* Small size, compact structure. Plug and never unplug
* Stable wireless connection
* No wires or batteries (adapter is powered by the diagnosis size sockets)
* Stop communication, wait half an hour, auto sleep
* Supports all OBDII protocols
* The adapter uses the fastest and most reliable ARM chips

The device is a small adapter that plugged into the vehicle OBD-connector.On Bluetooth, it connects to any computer, tablet or smartphone, With associated diagnostic procedures . Doing these simple operations, you will be able:

* Measure the fuel consumption.
* Display real-time operating performance of the car, such as momentum,vehicle speed, oil pressure, coolant temperature, engine load, intake manifold pressure, throttle position, the values of oxygen sensors, air intake temperature, and more.
* Turn off the MIL (signal Check Engine).
* Download data to external media in a variety of formats for later printing.
* Record various parameters, display graphics in real time, and more.

With kw902 you will be able to perform a complete computer diagnostics car and even to correct minor faults without resorting to service stations.


kw902 scantool is a high-quality automotive scanning tool, supports all OBD-II protocols :

0.Automatic
1.SAE J1850 PWM(41.6Kbaud)
2.SAE J1850 VPW(10.4Kbaud)
3.ISO9141-2(5 baud init,10.4Kbaud)
4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5.ISO14230-4 KWP(fast init,10.4 Kbaud)
6.ISO15765-4 CAN(11bit ID,500 Kbaud)
7.ISO15765-4 CAN(29bit ID,500 Kbaud)
8.ISO15765-4 CAN(11bit ID,250 Kbaud)
9.ISO15765-4 CAN(29bit ID,250 Kbaud)
A.SAE J1939 CAN(29bit ID,250*Kbaud)
B.USER1 CAN(11*bit ID,125*Kbaud)
C.USER2 CAN(11*bit ID,50*kbaud)
*default settings(user adjustable)

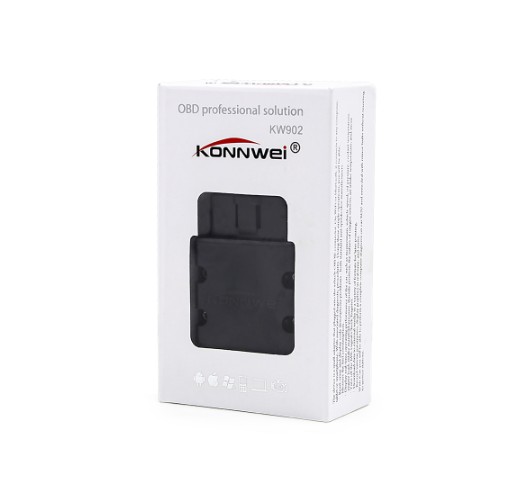

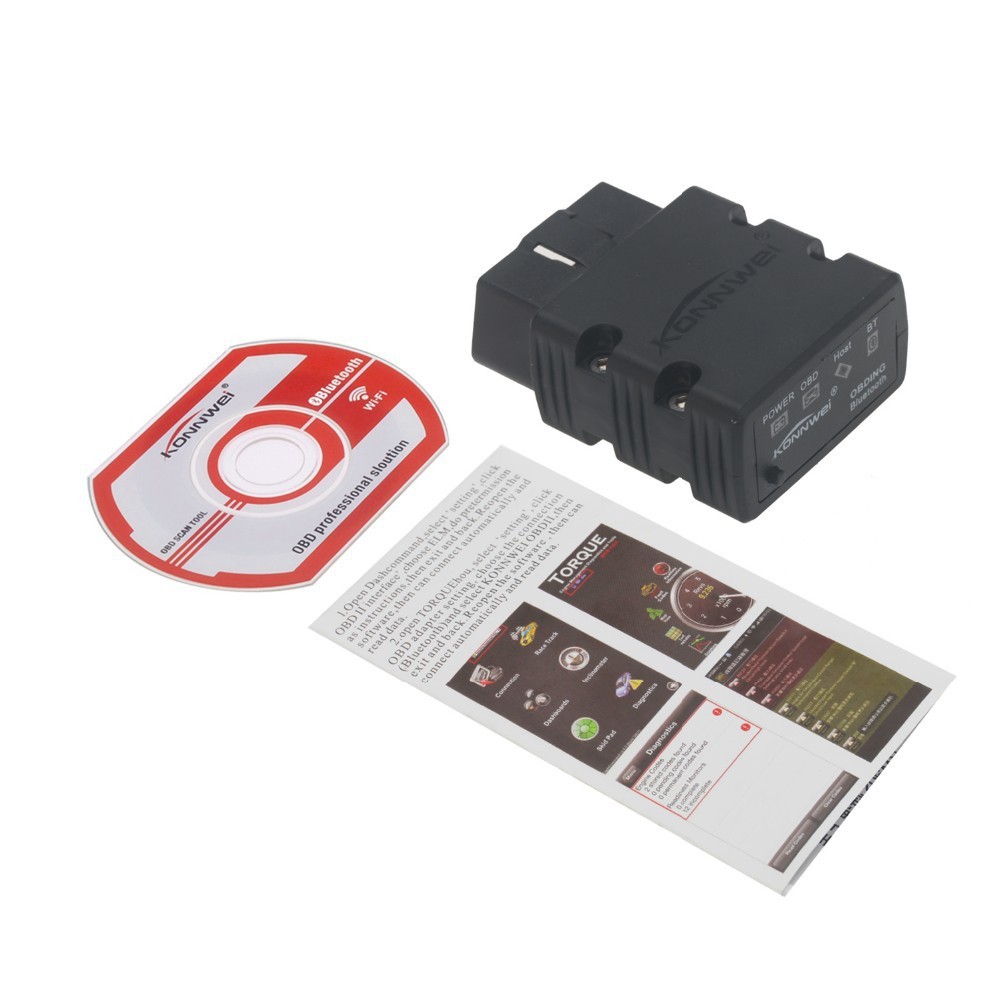

Packing List:

1 * ELM327 OBD2 bluetooth diagnostic interface
1 * CD-ROM
