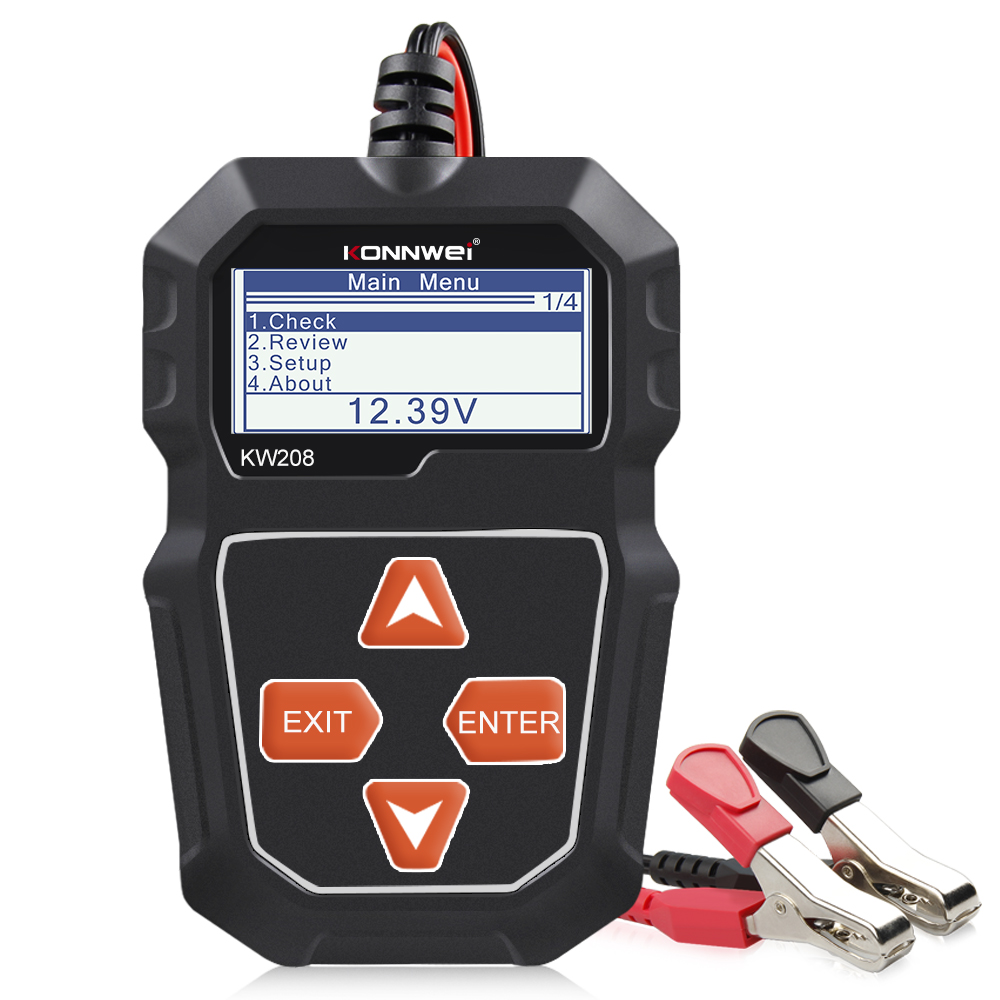

Konnwei KW208 Car Battery Tester 12V Motorcycle Battery Tester 100 2000CCA Battery Charge Plug Charging Test Pk Ancel BST100

KONNWEI KW208 Car Battery Tester is able to effectively analyze and read important car data such as voltage, internal resistance, cold swirling amp and AH capacity, Battery healthAnd charging status. It provides accurate results, calculates the cold starting current capacity of the battery and the aging rate, allowing a faster, more accurate car repair. test results display in both text and graphics, but see the real-time battery voltage in a waveform. with an intelligent 2.4 "screen eye protectionAnd STM32 main chip, read access is convenient and fast! Lifetime update service is supported by KONNWEI BTlink app.

Support 8 Languages:
English, German, French, Dutch, Russian, Spanish, Italian, Portuguese

Have you experienced these problems?

1. do not start the car
2.stable motor stationary
3. the power system is not working properly

KONNWEI KW208 support battery types

Easy to use battery tester

Whether the battery is in the car or not. You only need the pliers in the positive and negative poles of the battery for battery health

KW208 battery tester key features and characteristics:

1.System voltage: 12 Volt
2.Test Result: Good, Recharge or Replace
3. Capacity-Cold Start Current Amps (CCA), DIN, EN and IEC information relative to battery rating.
4. internal resistance value (mq)
5.Life in percentage (%)
6. cranking system
7.Charging system
8.Voltage test in waveform
9.Record and re-play battery data, lifetime free update service
10.Battery test, crimping test, charging test and other extra features.

KONNWEI KW208 Zwengelen Test
The crank test is used to test and analyze the actual required crank current and crank voltage around the starter motor working properly or not. The test result displays fluctuating time, voltage, and status. If the entry may cause a fault to start an increased starting torque; or rotor friction of the starter motor generates increasing friction of the starter motor itself.

KONNWEI KW208 Charging Test
Charging test is used to check and analyze the charging system (generator, rectifier, rectifier diode, etc.) status, displays load voltage, discharged voltage, ripple status, charging system status, so as to find out if the output voltage of the generator is normal , the rectifier diode works well or not, which avoids battery damage and shortens its life greatly due to overcharging or incomplete charging.

Konnwei KW208 12V car battery theater Specifications

1.Display: Green Color Screen
2.System Voltage: 12 Volt
3. Input voltage: 8V-16V
4.Power Requirements: No internal batteries required.
5.Power on when connected during testing.
6.Operating Temperature: 0 ºC -50 ºC
7.Storage Temperature: -20 ºC -70 ºC

Measure Standard
1.CCA: 100-2000
2.BCI: 100-2000
3.CA:100-2000
4.MCA: 100-2000
5.JIS: 26A17-24SH52
6.DIN: 100-1400
7.IEC: 100-1400
8. NL: 100-2000
9.SAE: 100-2000
10.GB:100-1400

Product Parameters:

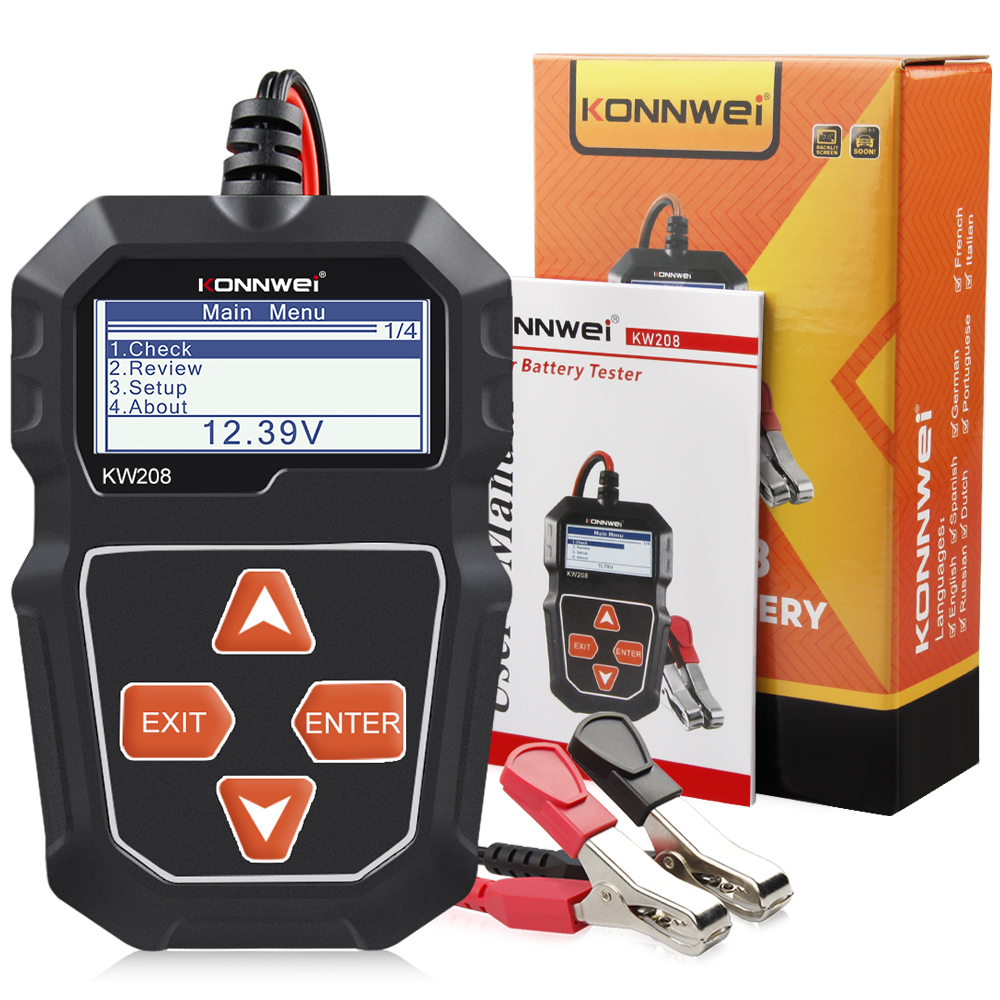

Package list:

1 * KONNWEI KW208 Car battery tester
1 * User manual
1 * colorful Box
