MST-601 PRO MST601 PRO OBD2 Scanner Code Reader National IV Standard Motorcycle Diagnostic Scanner Supports All OBD2 Protocols Cars

Motorycle Diagnostic Scanner for Honda for Suzuki for Yamaha

Support Engine System Functions

Reading Codes: Show the detailed description of the Diagnostic Trouble Code (DTCs).

Erasing Codes & Reset: Turns off Check Engine Light (MIL), clears codes and resets monitors.

Data Stream: Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.

Read Live Data Stream: Show the information of continuous data stream from a vehicle in live graphic (waveform) display.

View Freeze Frame Data: Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.

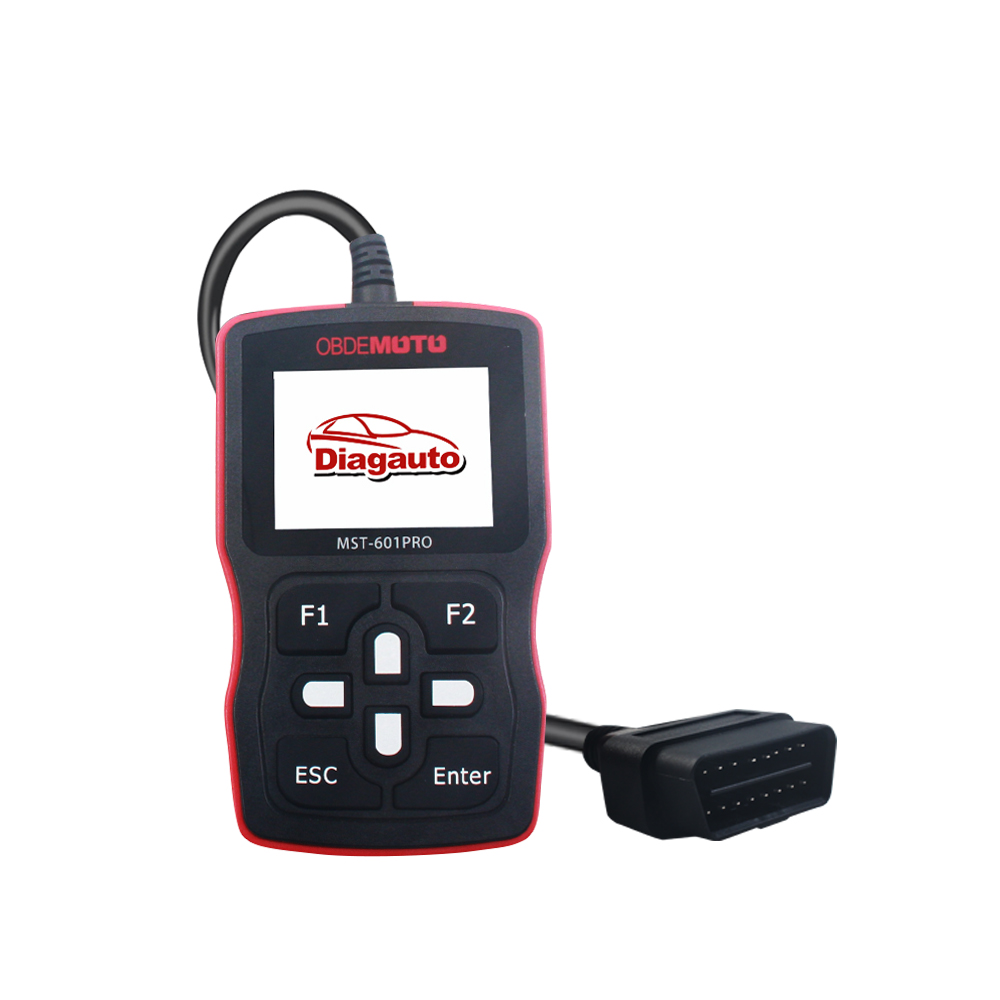

1.Appearance and Buttons Introduction

2 Keyboard Functions

Up/Down Arrow: Select test items;

Left/Right Arrow: Turn over the screen;

Enter:Enter/Carry out ;

Esc:Return/Quit;

F1,F2:Function Key;

3 Connection with Vehicles

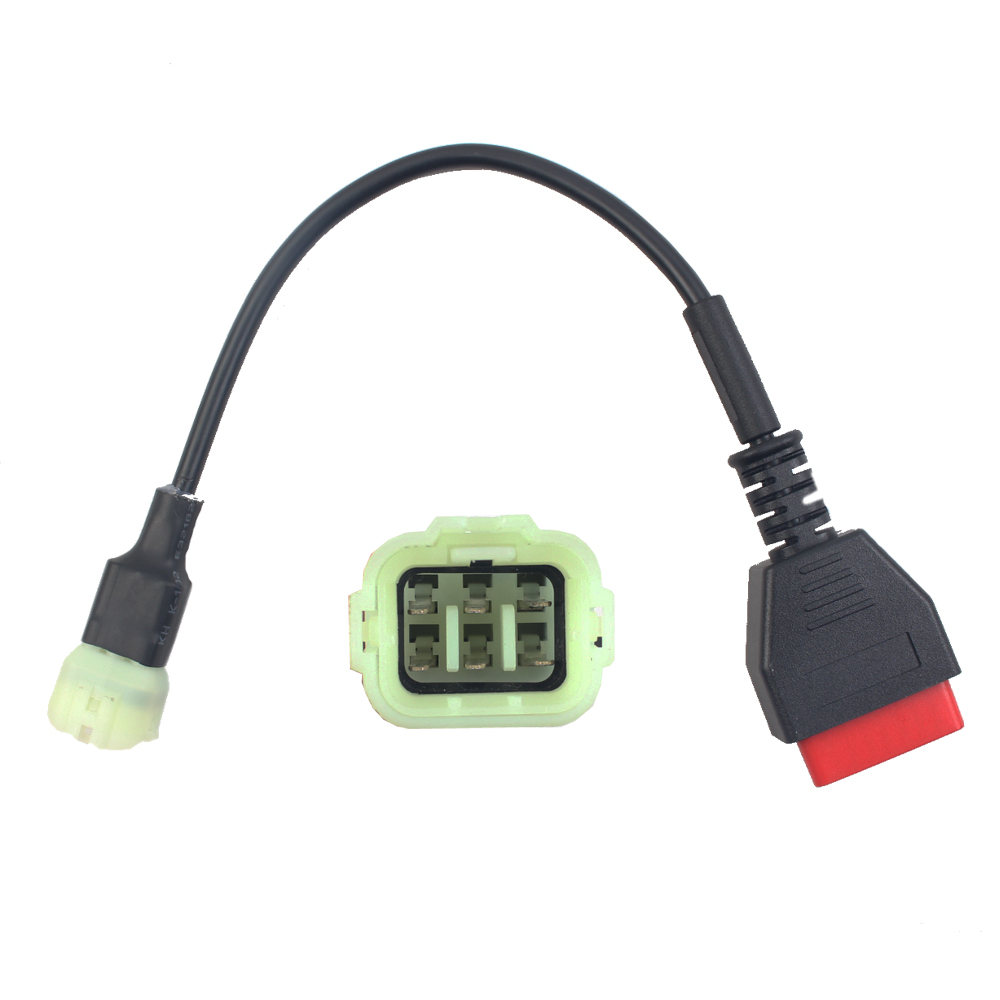

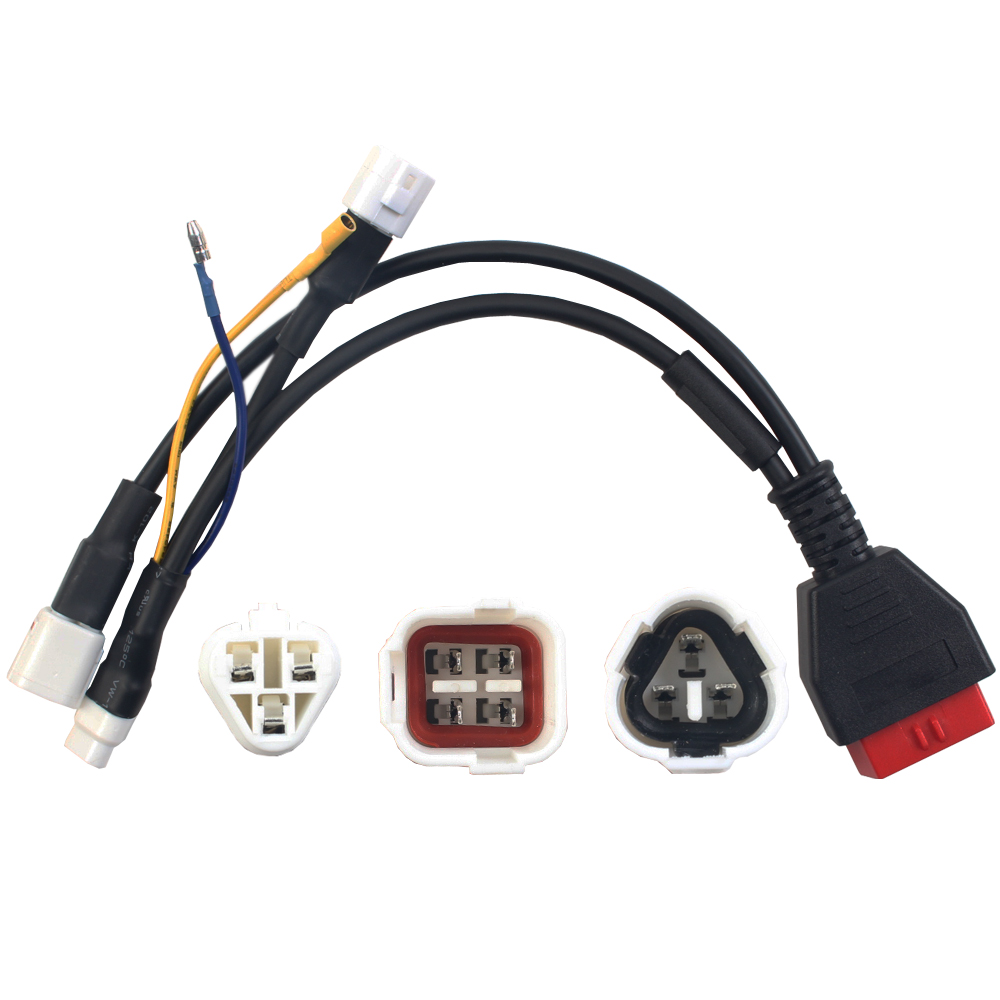

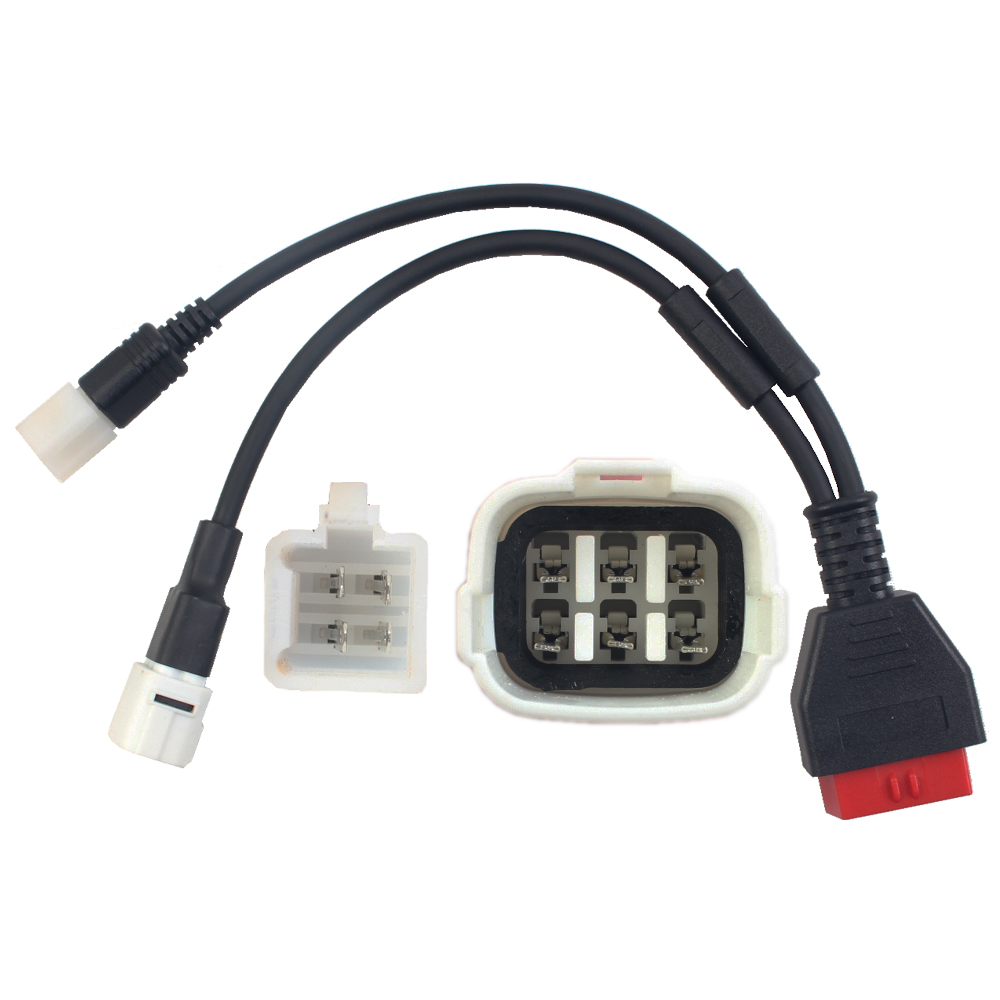

Diagnostic cable is properly connected with the diagnostic socket of the vehicle

4 Function Option

Vehicle KEY-ON, the scanner is power on, the following interface appears:

01.Vehicle diagnosis:Fault code reader,engine system diagnosis

02.System setting:Set key sound and display language types.

03.Version information:Display the local serial number, software version, hardware version, authorization information and so on.

5 Upgrade

Log on to the company's official website http://www.emotoecu.com to view the detailed upgrade operation guidelines.

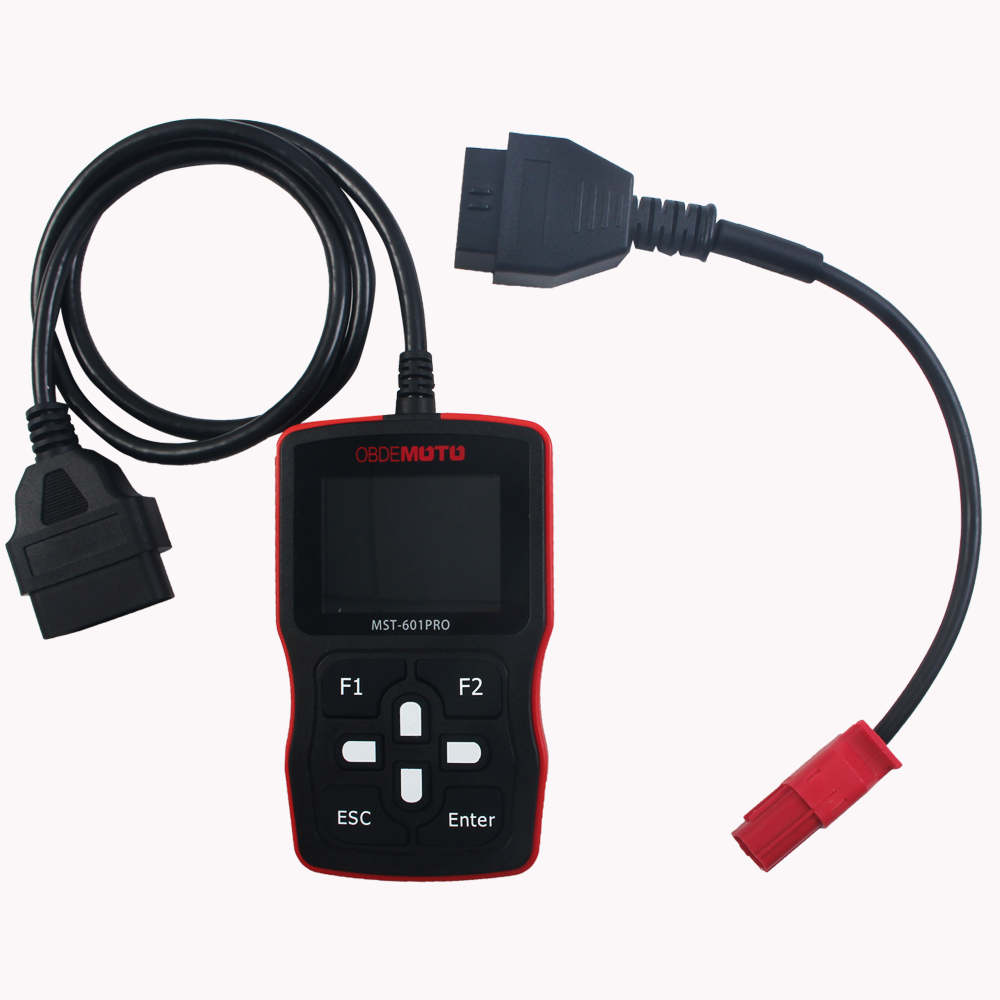

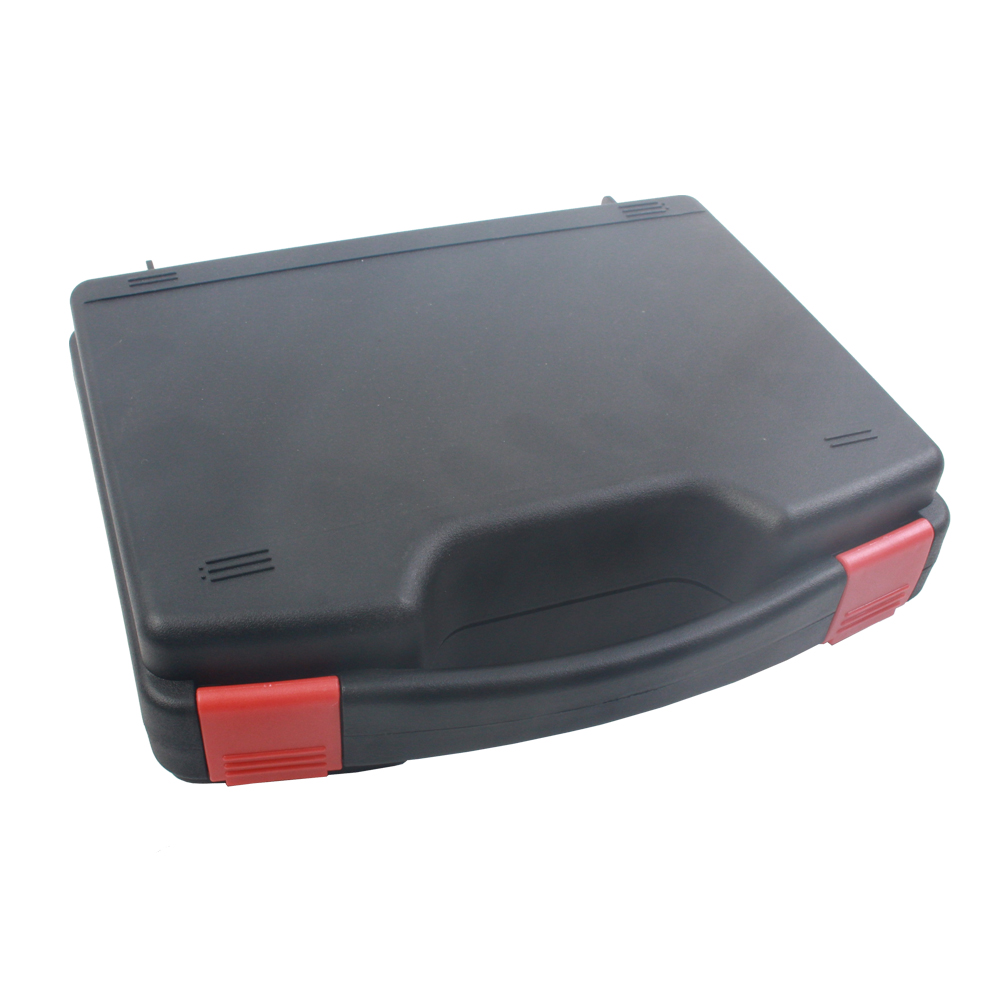

6 Image:
