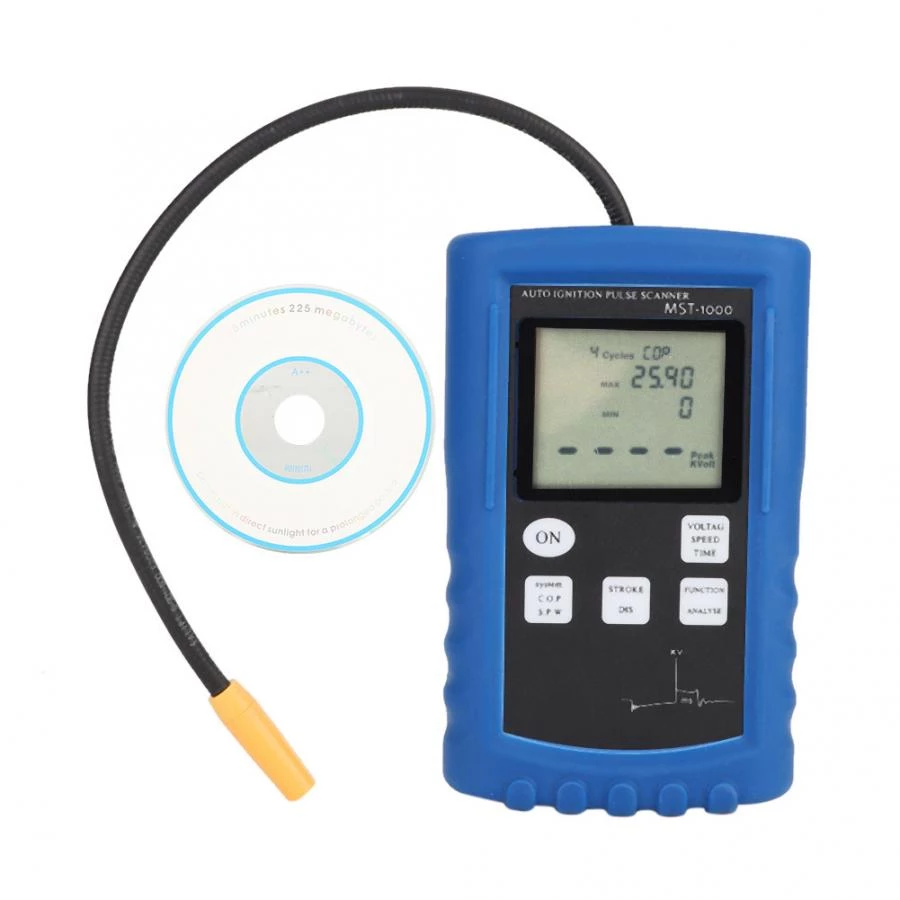

MST-1000 MST1000 Automotive Igniting Signal Tester Oscilloscope Diagnostic Tool

Features:

- Capacitive pick-up
- Power ON/OFF/RESET button
- Secondary Function/Capture button
- Ignition system button
- Main Function/Calibrate button
- LCD display
- Engine Cycles button
- Protective rubber holster
- Flexible probe

Specifications:

Data full resistance: 100KΩ±1.5nf (min)
Data protection: ±42V DC(max)
Ignition voltage: 0-50kv
Ignition time: 0-1ms

Functions:

1.Minimum and Maximum functions (For both COP and SPW modes):

*The MST-1000 maintains a continuous record of the minimum and maximum readings of the function currently selected.
*To display the Minimum and Maximum readings of the main display, if not already selected press’ Secondary Function/Capture’ Button momentarily.
*To reset the Minimum and Maximum readings, press the ‘Power ON/OFF/Reset’ button momentarily.
*These values are also rest when turning to "0"

2. Spark KVOLT Calibration function (For Cop mode only)

*The MST1000 requires the user to calibrate the instruments in order to measure spark KVOLT in coil on plug and coil near plug ignition systems.
*This calibration uses the measurement values obtained during the procedure to find the optimal measuring parameters or a particular type of ignition module, and compensates for differences in waveform and signal strength.
*Once the MST-1000 has been calibrated on one of the ignition modules of the engine being diagnosed, all the subsequent measurement of spark KVOLT will be relative to the calibration value.
