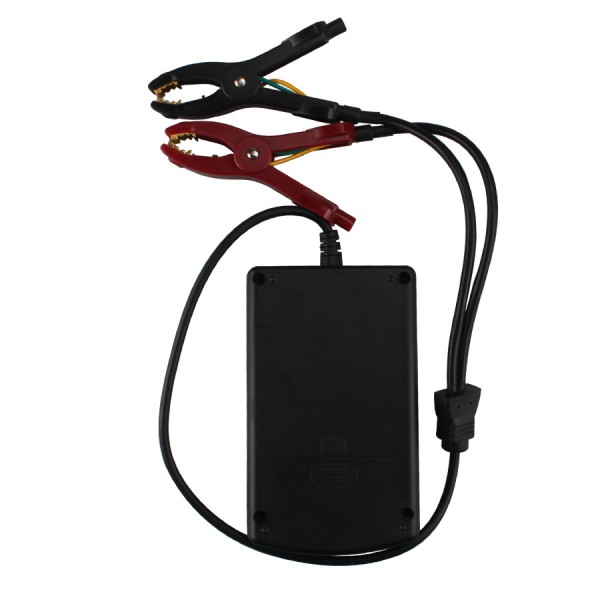

MST-168 Digital Battery Analyzer

Top 6 Reasons to Get MST-168:
1. Can quickly and accurately test performance indicators of the battery, such as internal resistance, cold starting current
2. Built-in multi-standard: can easily measure different types of batteries
3. Detect  real-time status of voltage changes when the car starts
4. Monitor working status of charging system
5. Test discharged battery. and make sure the battery if charge needed
6. High Precision


Notice: MST-168 Digital Battery Analyzer Only support English language and 12V battery test.

MST168 Functions:
1. Battery test
Apply to all kinds of standard such as: IEC. EN. DIN.JIS.etc.
2. Start status test
Start Voltage must be more than 9.6V
3. Charge test
Show charge status voltage as quickly
4. Max. Loading test
Show battery Voltage more than 12.8V


Applications:


1. 12V  car start battery
2. 12V  charge system
3. Can detect the following Standard Battery
 -3.1  100-1700CCA
 -3.2  100-10000IN
 -3.3 100-1000IEC
 -3.4  100-1700EN
 -3.5 JIS-JP

Technique Parameter:
1. Power supply: supplied by the battery tested
2. Voltage Range: 9-18V
3. Display: LCD Screen
4. Work tempertaure: 18'C to 50'C
5. Cold start Current: 1OOCCA or above

Package List:
1pc x MST-168 Digital Battery Analyzer
