AUTOOL C100 Petrol Car Injector Cleaner Gasoline Auto Fuel Injector Nozzle Flushing For Petrol EFI Throttle Tools for Petrol Car

The injector clean kits include many different kinds of adapter, cover almost all the EU,Asia,USA cars and light trucks.Non-Dismantle injector Throttle and fuel system.The system is not only characteristic of high and low pressure cleaning function.At the same time put the function of the whole combustion chamber fuel system of several major functions in one product,such as cleaning throttle valve and the fuel nozzle.

Throttle Style:

To the throttle style system, the way of connection is the same, just adjust the pressure of the air source 1-5PSI.

The way to identify the inlet and return hose:

1. Generally speaking, inlet hose is bigger, return hose is samaller;

2. There is always a filter connected in the inlet hose side, and a buffer in the return side;

3. There is arrow on the hose to show the fuel flow direction.

EFI Model :

1. Find out the fuel return hose, disconnect it and plug it with suitable adaptor;

2. Find out the fuel inlet hose, disconnect it and connect it with the outlet hose of the cleaner with proper adaptor;

3. Connect the outlet and return hose of the fuel tank, and open the tank cover; if there is not return hose, please move the fuse of the fuel pump so that the pump will not work;

4. Charge the cleaning fluid into the tank of the cleaner;

5. Connect the air source power to the air port of the cleaner, adjust its pressure 40-50PSI;

6. Check all connect point to make sure there is not leakage;

7. Start the engine to clean the fuel system.

NOTE:

To the throttle style system, the way of connection is the same, just adjust the pressure of the air source 1-5PSI.

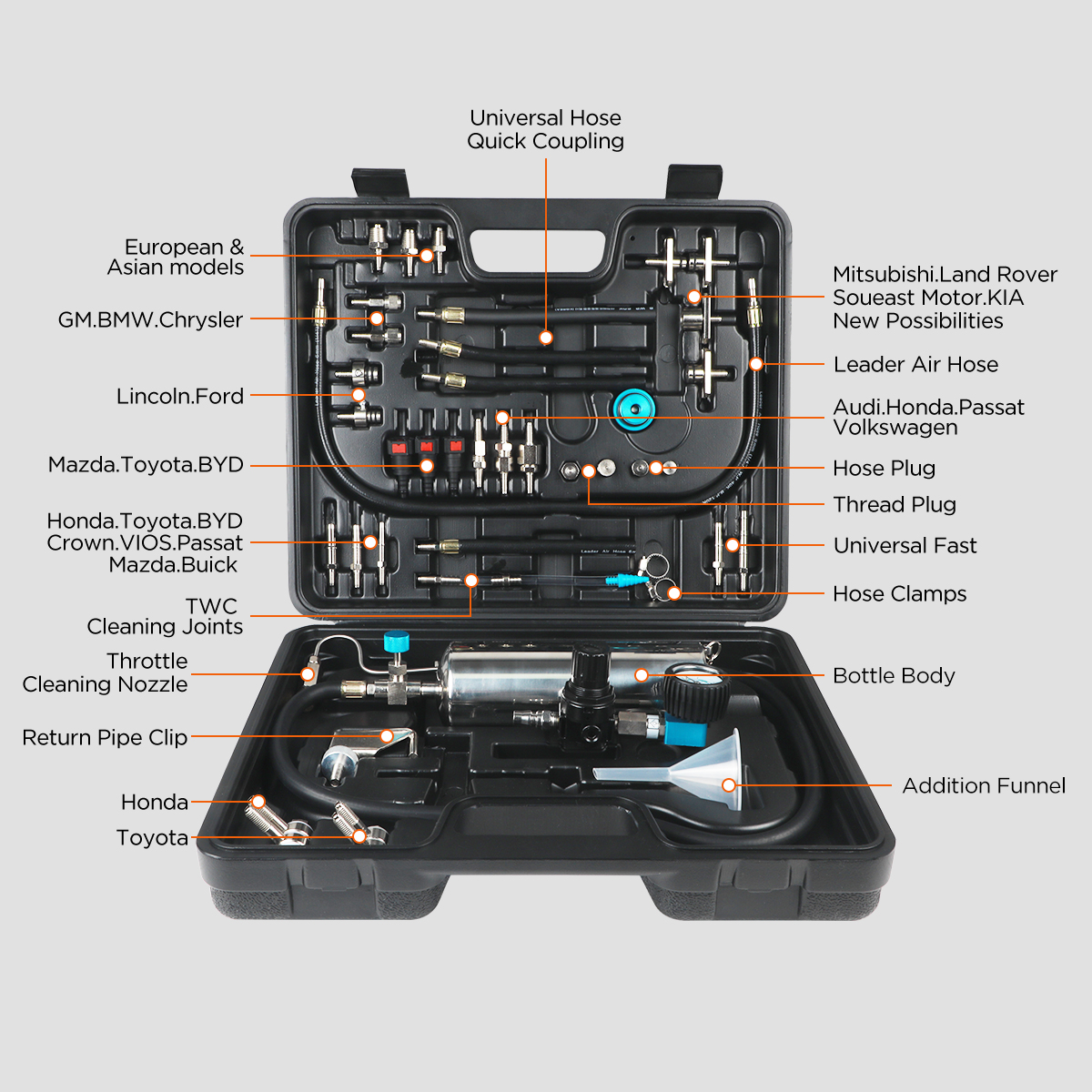

Item Include:

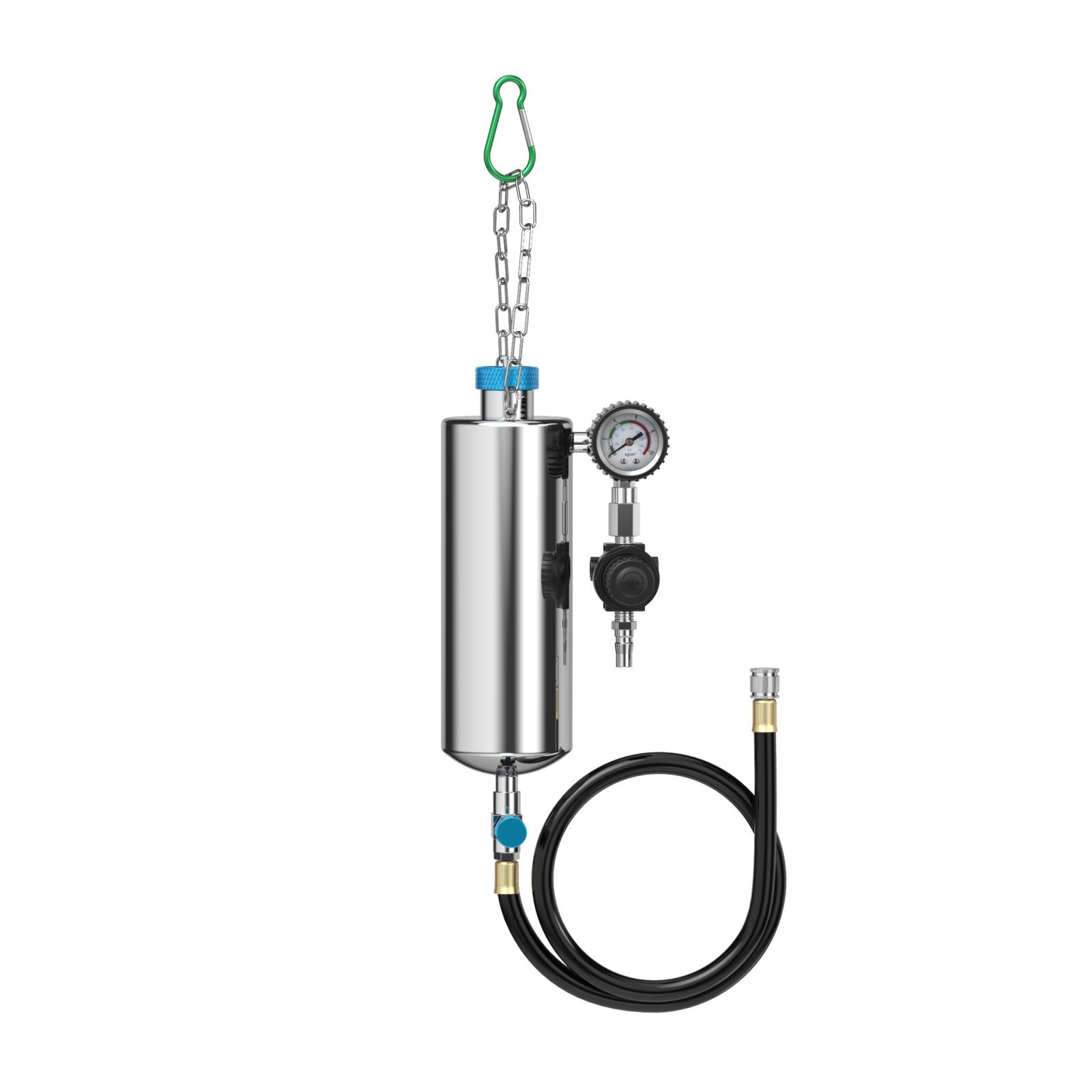

1x Fuel Injector Cleaner

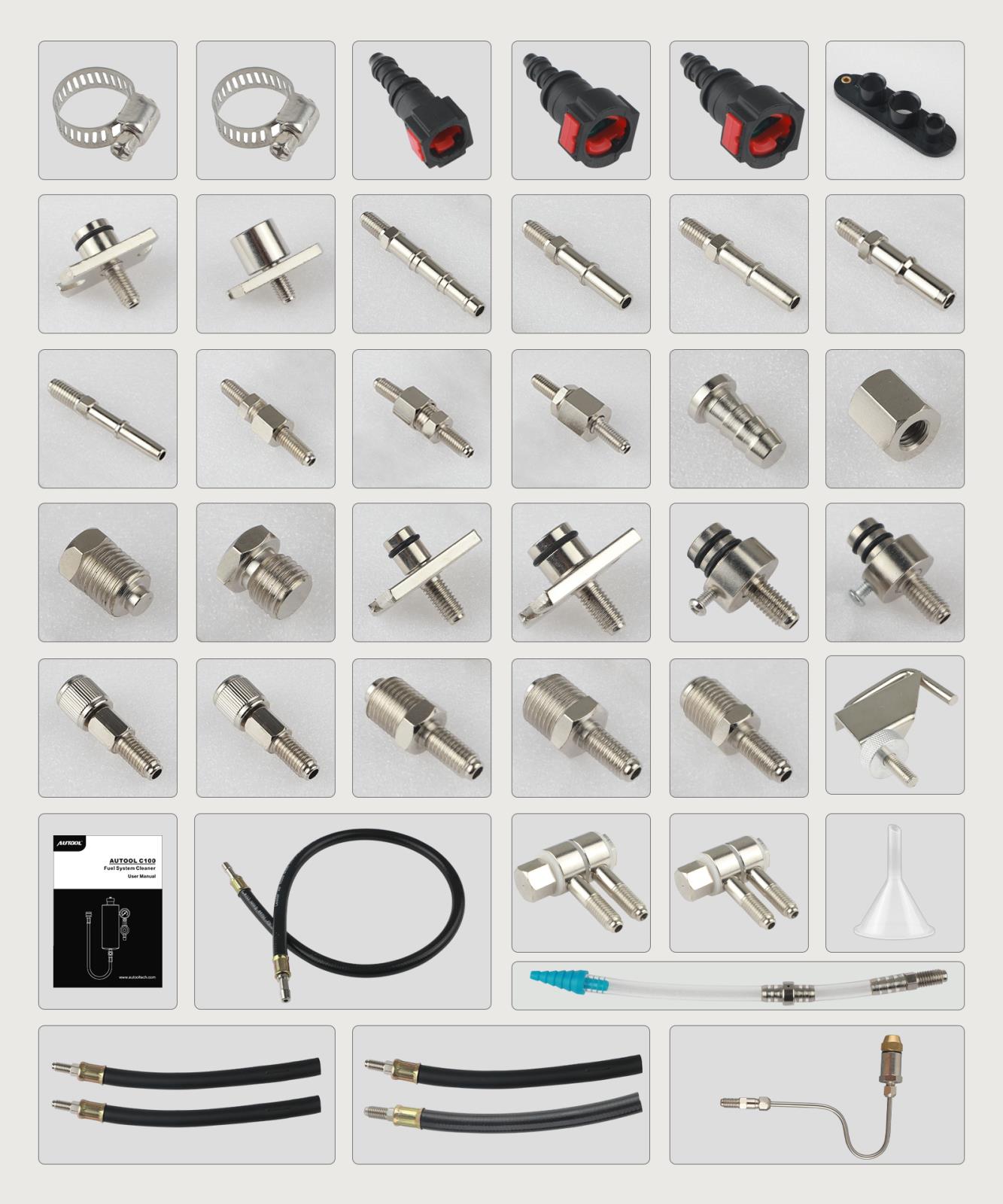

1x Adapter Kits

1x Suitcase
