FOXWELL NT809TS OBD2 Car Automotive Scanner Bidirectional Test TPMS Relearn Programming Enhanced OE-Level OBD 2 Diagnostic Tool

2022 Newest Foxwell NT809TS with 4pcs Free Sensor--T10

NT809TS is newly developed diagnostic scanner with Android 9.0 operating system. It not only inherits the same Foxwell advantages in car fault diagnostic tech but also initially integrates with TPMS service function, including TPMS health check, sensor activation & programming and TPMS relearn. It brings great convenience and efficiency for global workshops and technicians.

The 2022 Most Worth Getting Scanner-Foxwell NT809TS

●Bi-Directional Control/ Active Test: helps you check if the actuators are all in good conditions. Such as windows up/down, switch on/off, rear mirror fold/unfold and more.

●30+ Special Functions: The diagnostic tool has been packed with over 30+ special functions which provide you a full set of reset functions for daily maintenance. Oil reset, EPB, TPMS, BMS, brake bleeding, A/F , SAS, DPF, etc.

●Specialized TPMS functions: TPMS sensor programming, TPMS sensor activation, TPMS sensor relearning. Those are the functions that help your ride calibrate with all of the TPMS sensors.
TPMS Retrofit: To help you build everything from scratch, the NT809TS can start everything from very first beginning. Coding ECU to activate on-board TPMS module, coding the Foxwell TPMS module or activate OE TPMS module, TPMS module retrofitting guidelines, etc.

●Full-System Diagnosis for 99% of Vehicles: The full-system diagnosis will enter every corner of on-board vehicle systems and conduct full inspection analysis and tests. Never miss a detail.

●Wireless BT FoxLink I Connection: Every single diagnosis process can be done through the FoxLink I, a compact Bluetooth diagnostic module that can help you out from entangled cables.

All-around Bidirectional Control / Active Test

Auto diagnostic scan tool NT809TS performs active test for 99% vehicles on the market. To further shortening the troubleshooting time without tearing the vehicle apart, it can:

pass through the onboard control systems

send commands to modules to perform specific tests, such as:
✔rolling up / down a window
✔turning the fuel pump on and off
✔cycling the a/c clutch on and off
✔helping with an emissions leak test
……
By directly monitoring their operations, you can quickly locate the problems and solve them.

High-end TPMS functions, 4pcs free TPMS sensor

Foxwell NT809TS integerates TPMS antena module and is designed to offer complete solution for TPMS service, including activate/decode universal TPMS sensors, program foxwell T10 TPMS sensor, diagnose the original car tire pressure monitoring system and perform TPMS sensor relearn produres etc. to help technicians complete multiple projects quickly with one wireless and touch screen scan tablet.

●TPMS Relearning: This function is used to write sensor IDs into the vehicle ECU for sensor recognition. NT809TS relearn tool provides 3 ways to match/relearn sensors: OBD Relearn, Automatic Relearn, Stationary Relearn.

●Sensor Programming: NT809TS can program the original sensor ID data to the Foxwell MX-Sensors to replace existing sensors with low battery life and ones that are no longer functioning. This NT809TS programming tool offers 4 methods for programming MX-Sensor: Copy by Activation, Copy by OBD, Copy by Input, and Auto Create 1-16 Sensors.

Full-System Diagnosis, Root out the Problem Hidden Underneath the Hood

Foxwell NT809TS auto diagnostic scan tool can access (both wirelessly and wired) and scan all available electronic systems on perform full diagnostics to read and clear codes, view live data stream of multiple sensors in text or graph, retrieve ECU information, such as ECM, TCM, ABS, Airbag, BCM, Parking/ Steering/ Suspension/ Radio, Lighting/ HVAC systems, etc.

●Read & Erase Codes: to locate problem and clear the fault codes;
●Live Data: View Live Data of each parameter item;
●Retrieve ECU information: Retrieves and displays the specific
●information for the tested control unit, including unit type, version numbers and other specifications.
●Freeze Frame: Displays the freeze frame data of the DCTs

30+ Reset & Maintenance Service - Meet All Your Needs!

1. Oil Light Reset (for 85 brands)- Allows you to reset the service lamps for a new calculation of engine oil life system once changed the oil. The service indicator system is designed to alert the driver when the vehicle is due for a service.

2. ABS Bleeding (for 65 brands)- Air will get inside the brake system after replace components such as calipers, wheel cylinders. The air has to be removed by bleeding the brakes to keep a firm brake pedal. Note: This function only support the vehicles that can do AUTO bleeding.

3. Battery Matching (for 43 brands)- Lets you to have new battery validated after replacement, clear faults from the dashboard and display current battery details of the vehicle.

4. D-P-F Regeneration (for 59 brands)- Only for diesel 12V vehicle. lets you perform the forced regen cleaning to clear the blockage through continuous burning of the particulates captured in the D-P-F filter. When a regeneration cycle is completed, the D-P-F light automatically goes off.

5. SAS Match (for 87 brands)- Perform calibration of the Steering Angle Sensor to keep the car running straight. On successful calibration of the sensor, its fault memory is automatically cleared.

6. Injector Coding(for 61 brands)- Write the new injector code into the car system for correct cylinder injection quantity. -For gasoline or diesel 12V vehicle.

7. EPB Reset (for 63 brands)- Help replace and reset the brake pad. This function is required for maintenance of electronic braking system's safety and efficiency.

8. TPS(for 79 brands)- When the motion range is not known, the ECU simply has no idea where to set the throttle. The ECU must know the full range of motion of the throttle in order for it to properly control the engine. Using the throttle position sensors in the throttle body, the ECU learns the full open and full closed positions through various states (idle, part throttle, WOT) known as a Throttle Body Alignment (TBA).

9. Replace Airbag ECU Module(for 27 brands)- Note: It will not support the airbag crash data cleaning. Helps to match the new airbag information with the ECU and let it know the fault has been repaired.

Else: Seat Match/ A/F Reset/ Language Change/ TPMS Reset/ E-G-R Adaption/ Headlamp Reset/ Cluster/ Clutch Adaptation/ CVT/ EVAP Test/ Gear Learn/ ODS & OPDS/ Oxygen Sensor Test/ Prime Fuel Pump/ TCM Oil/ Transmission Adaptation/ T-U-R-B-O/ Windows-door etc.

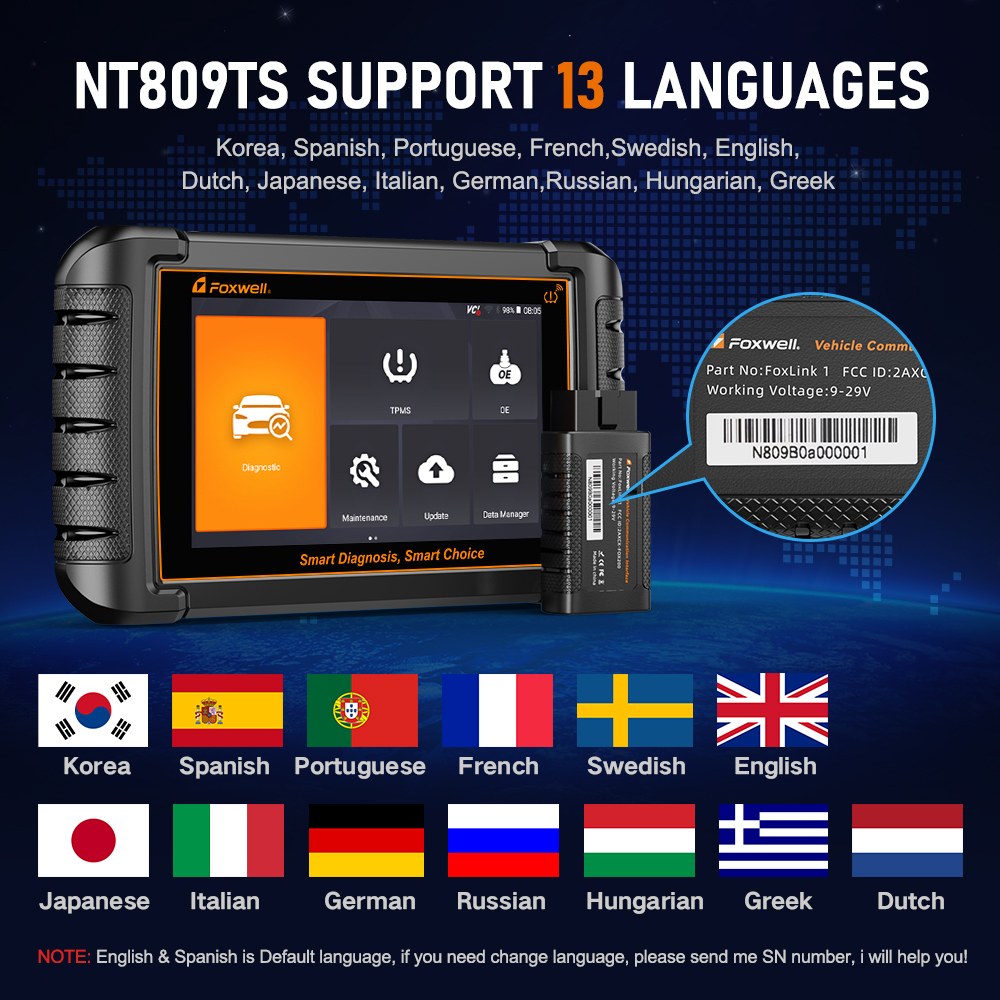

Support Language:

Korea, Spanish, Portuguese, French,Swedish, English, Dutch, Japanese, Italian, German,Russian,Hungarian, Slovak, Greek, Chinese, Traditional Chinese

English is Default Language, if you need other language, please send me the SN Number when you receive it (please register account and activation the sn number first), I will help you change it.

More Features

»One Click Update
»Auto Vin Scan
»Diagnostic Feedback
»4 in 1 Live Data Graph
»Diagnostic Report Print
»Instant Support Teamviewer Remote

18 Months Free Update Onlie via WiFi

Support Model:

Russian Coverage
For LADA

American Coverage
For Chrysler, For Ford, For GM, For GMBRAZIL (For Brazilian Market Only)

Asian Coverage:
For Acura, For Daewoo, For Daihatsu, For Fuso, For Hino, For Honda, For Hyundai, For Hyundaicv, For Infiniti, For Isuzu, For Isuzu Truck, For Kia, For Lexus, For Mahindra, For Maruti, For Mazda, For Mitsubishi, For Nissan, For Perodua, For Proton, For Scion, For Ssangyong, For Subaru, For TATA, For Suzuki, For Toyota, For Gtr Fordau, For Mahindra, For TATA(For India Market Only)

European Coverage:
For Abarth, For Alfa, For Astonmartin, For Audi, For Bentley, For Benz, For Bmw, For Bugatti, For Citroen, For Dacia, For Ferrari, For Fiat, For Fordeu, For Jaguar, For Lamborghini, For Lancia, For Landrover, For Maserati, For Maybach, For Mini, For Opel, For Peugeot, For Porsche, For Renault, For Rolls-Royce, For Saab, For Samsung, For Seat, For Skoda, For Smart, For Sprinter, For Vauxhall, For Volvo, For Vw, For Vw_Cv

Chinese Coverage:
For Baichuansu, For Baicmotor, For Baicsenova, For Baicweiwang, For Bjev, For Bjhyundai, For Brilbmw, For Brilliance, For Byd, For Changan, For Changheauto, For Changhesuzuki, For Chery, For Chery_Ne, For Citroen_China, For Cmc, For Dffg, For Dfhonda, For Dfnissan, For Dfvenucia, For Dfxk, For Dorcen, For Dyk, For Emgrand, For Englon, For Fawdaihatsu, For Fordchina, For Foton, For Geely, For Gleagle, For Greatwall, For Gtr, For Gzhonda, For Hafei, For Haima, For Hino, For Ivecold, For Jac, For Jiangling, For Karry, For Landwind, For Lifan, For Luxgen, For Maple, For Mazdachina, For Peugeot_China, For Rely, For Riich, For Roewe, For Saicmaxus, For Saicmg, For Sgmw, For Soueast, For Tjfaw, For Zoty

Convenient Bluetooth Diagnostic

With the help of the FoxLink , you no longer need to connect the scanner and conduct diagnosis through cables. Every command you make will be transmitted to the on-board ECU through Bluetooth.

Foxwell NT809TS Package List:

1 X NT809TS Main Unit
1 X Bluetooth VCI
4 X TPMS Sensor
1 X USB TYPE C Cable
1 X USB Charging Adapter
1 X Quick Start Guide
1 X User’s Guide
1 X Warranty Card
