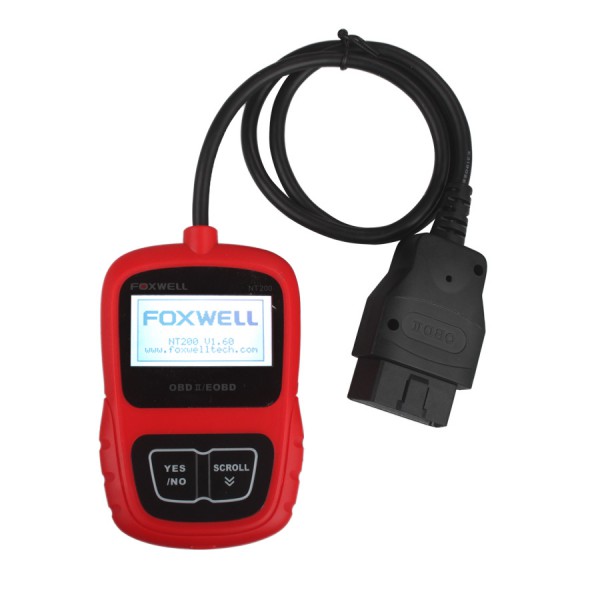

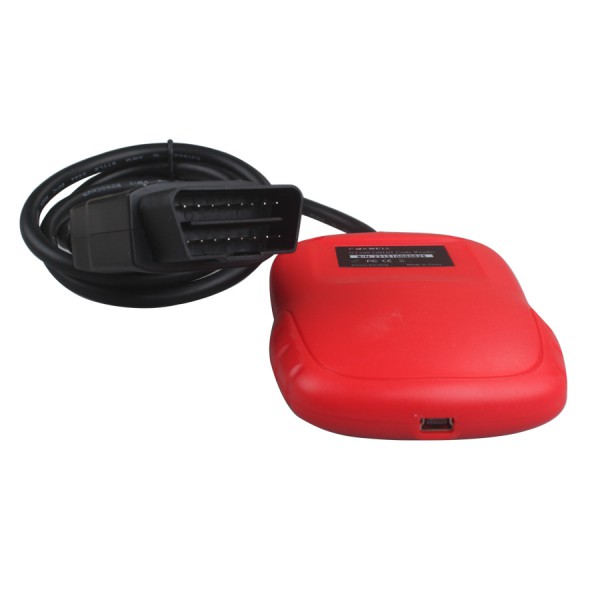

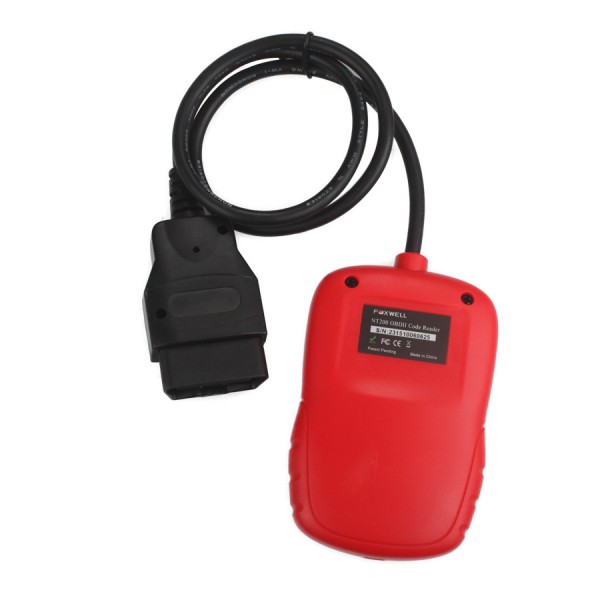

Foxwell CAN OBDII/EOBD Code Reader
NT200

Top 5 Reasons to Get
NT200:

1. NT200 is compatible with all 1996
and newer cars, light-duty trucks, SUVs and minivans sold
worldwide.
2. NT200 does not only read and
clear engine system faults, it also shows live vehicle sensor data and freeze
frame data.
3. Multilingual menu options and
code definitions for an international marketplace. It supports English, French,
German, Spanish and more.
4. With update tool Foxlink, you
will always have the latest bug fixed and newly added parameters and they are
life-time free.
5. Two key operation and menu-driven
navigation make it extremely easy to use. Ruggedly built and compact
design.
NT200 Features and
Functions:

*Compatible with all 1996 and newer
cars, light-duty trucks, SUVs and minivans sold worldwide
*Complete OBDII support with CAN
capability
*Determines why the “Check Engine
Light ( MIL)” is on
*Supports multiple code requests:
Generic, manufacturer specific   and pending codes
*Clears codes, turns off Check
Engine Light (MIL) and resets   monitors
*Displays complete live data
stream
*Features on-screen code
definitions
*Retrieves freeze frame
data
*Displays monitor and Inspection
Maintenance (I/M) readiness   status
*FREE internet software and DTC
updates via USB cable
*Multilingual menu options and code
definitions - English, Spanish,   French, German and more
*Retrieves vehicle information (VIN,
CID and CVN)
*Extremely easy to use two-button
operation
*Plug-and-play interface and highly
reliable
*Large easy-to-read backlit LCD
screen
*One (1) year warranty
*Ruggedly built and compact
design

NT200
Specifications:

Display: Backlit, 128 x 64 pixel
display with contrast adjustment
Operating Temperature: 0 to 60°C (32
to 140°F)
Storage Temperature: -20 to 70°C (-4
to 158°F)
External Power: 8 to 18 V provided
via vehicle
Supported Protocols: J1859-41.6,
J1850-10.4, ISO9141, KWP2000 (ISO 14230), and
CAN (Control Area Network ISO
11898)
Dimensions: 120mm (4.720")*75mm
(2.95")*20mm (0.78")
Weight: 327g

Package
Including:

1pc x NT200 OBDII/EOBD Code
Reader

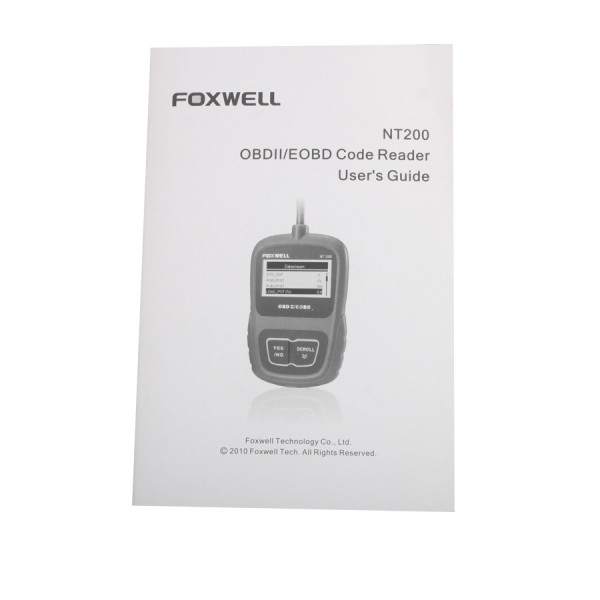

1pc x NT200 User’s
Guide

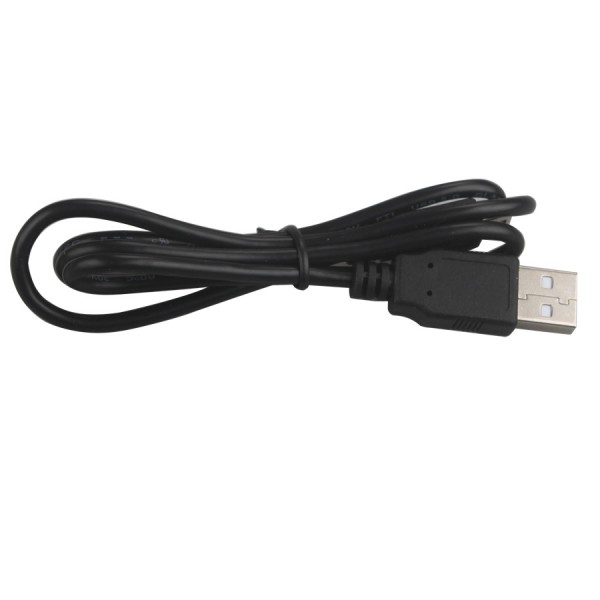

1pc x USB cable
