GODIAG GD101 J2534 Diagnostic Cable Support J2534 & ELM327 Diagnose J1979 Compatible Vehicles for Toyota/ Honda Acura/ ODIS/ Ford Mazda etc

GODIAG GD101 J2534 Highlights:

1. Compatible with Honda HDS 3.104.024, Toyota Techstream V17.30.011, JLR SDD V163, Forscan 2.3.48, scanmaster v2.1, pcm-flash 1.2.0, VAG ODIS 9.1.0.
2. More speedup. Faster communication and reprogramming.
3. More stability. Never let you down while reprogramming.
4. Portable and convenient. Small package and easy to carry.
5. Wok on Windows 8/10/11, 32/64bit

GODIAG GD101 J2534 Function List:

Software	Brand	Year	NOTE
Toyota TIS Techstream	Toyota, Lexus	1995-2022	Free download and activate software, update by link
Honda HDS 3.102	Honda Acura	1995-2022	Does not support non-#7 K-line, update by link
ODIS-S, ODIS -E	VW Audi Skoda Seat	1995-2022	For J2534 VAG only. Don’t support CAN FD protocol, Don’t support Ignition switch voltage detection
Forscan 2.3.48	Ford Mazda Lincoln	1996-2022	Cannot do 3, 11 medium speed CAN
Scanmaster V2.0		1996-2022	Free download and activate software
PCMFlash V1.2.0	67 modules	1996-2022	Yes, test by your side
J1979Tester		1996-2022	Free Honda immo code calculation
ELMConfig		1996-2022	Yes, test by your side
Volvo VI-DA	Volvo	1996-2022	Yes, test by your side
JLR SDD2	Jaguar Land rover	2006-2016	Yes, test by your side
GDS2	GM Buick Cadilac Chevlert	1995-2022	Yes, test by your side
Xentry Passthru	Benz, Smart	1995-2022	Yes, test by your side
ISTA-D, ISTA-P	BMW, Mini	1995-2022	Yes, test by your side
Consult III-R2R	Nissan, Infiniti	1995-2022	Yes, test by your side

Notice :
Can't support MS-CAN

GODIAG GD101 J2534 Features:

1. Support most all of J2534 compatible software (HDS, TIS, ODIS, JLR SDD, PCMFLash...).
2. Support most all of ELM327 software (ELMConfig, Forscan, ScanMaster...).
3. Support ECU reprogramming in J2534 mode with programming voltage.
4. Supply free software for diagnosing J1979 compatible vehicles.

Notice:
1. Software Free Download:
Free Download Godiag J2534 V2.1 Software
For Honda HDS 3.104.024, Techsteam V17.30.011, JLR SDD V163, Forscan 2.3.48, Scanmaster v2.1, PCM-flash 1.2.0 and VAG ODIS 9.1.0, please contact online customer service
2. For PCMFlash 1.20, will need to buy a PCMtuner Dongle. And only supports the OBD part. It does not support bench, boot, vag, dsg and gearboxes.
3. Not Support Win7 System

GODIAG GD101 J2534 Languages:

ODIS: English, Japanese, Portuguese, Romanian, Korean, Dutch, Polish, Turkish, Spanish, French, Italian, Croatian, Danish, German, Swedish, Finnish, Slovenian, Czech ,
Russia, Greece, Chinese

Toyota: English, French, Spanish, Japanese, German, Italian, Russian, Turkish, Chinese

Honda: English, German, Czech, Dutch, Finnish, French, Greek, Hungarian, Italian, Norwegian, Polish, Portuguese, Russian, Slovenian, Spanish, Swedish, Turkish, Japanese ,Chinese

JLR SDD: German, English, Spanish, French, Italian, Dutch, Portuguese, Russian, Japanese, Chinese, Korean

Forscan: English, Russian, Polish, Italian, German, Hungarian, Turkish, French, Latvian, Bosnian, Finnish, Romanian, Portuguese, Traditional Chinese, Simplified Chinese, Czech, Lithuanian, Slovak , Ukrainian

Scanmaster elm 327: English, Czech, German, Spanish, French, Hungarian, Italian, Polish, Serbian, Turkish, Danish, Croatian

Pcmflash: English, Russian

GODIAG GD101 J2534 Protocol Configuration:

1. ISO15765 (Standard/Extended frame).
2. ISO9141.
3. ISO14230.
4. J1850 PWM (Support IFR and 2X speed mode).
5. J1850 VPW (Support 4X speed mode).
6. Programming voltage.
7. Short to ground.
8. ELM327 with command set version 1.3a

Notice :
Can't support MS-CAN

GODIAG GD101 J2534 Hardware Configuration:

1. ISO11898-2 high speed CAN (OBDII PIN 6 and PIN 14. Speed up to 1000Kbps).
2. ISO9141 and ISO14230 K line (OBDII PIN 7 and PIN 15).
3. J1850 PWM (OBDII PIN 2 and PIN 10).
4. J1850 VPW (OBDII PIN 2).
5. Programming voltage (OBDII PIN 12 or PIN 13. Programming voltage up to 20V).
6. Short to ground (OBDII PIN 9. Short to OBDII PIN5).
7. Dimension(L*W*H): 95mm*55mm*23mm
8. Environmental:-20℃-45℃(-4℉-113℉)
9. Vehicle voltage requirements: 8-18V DC

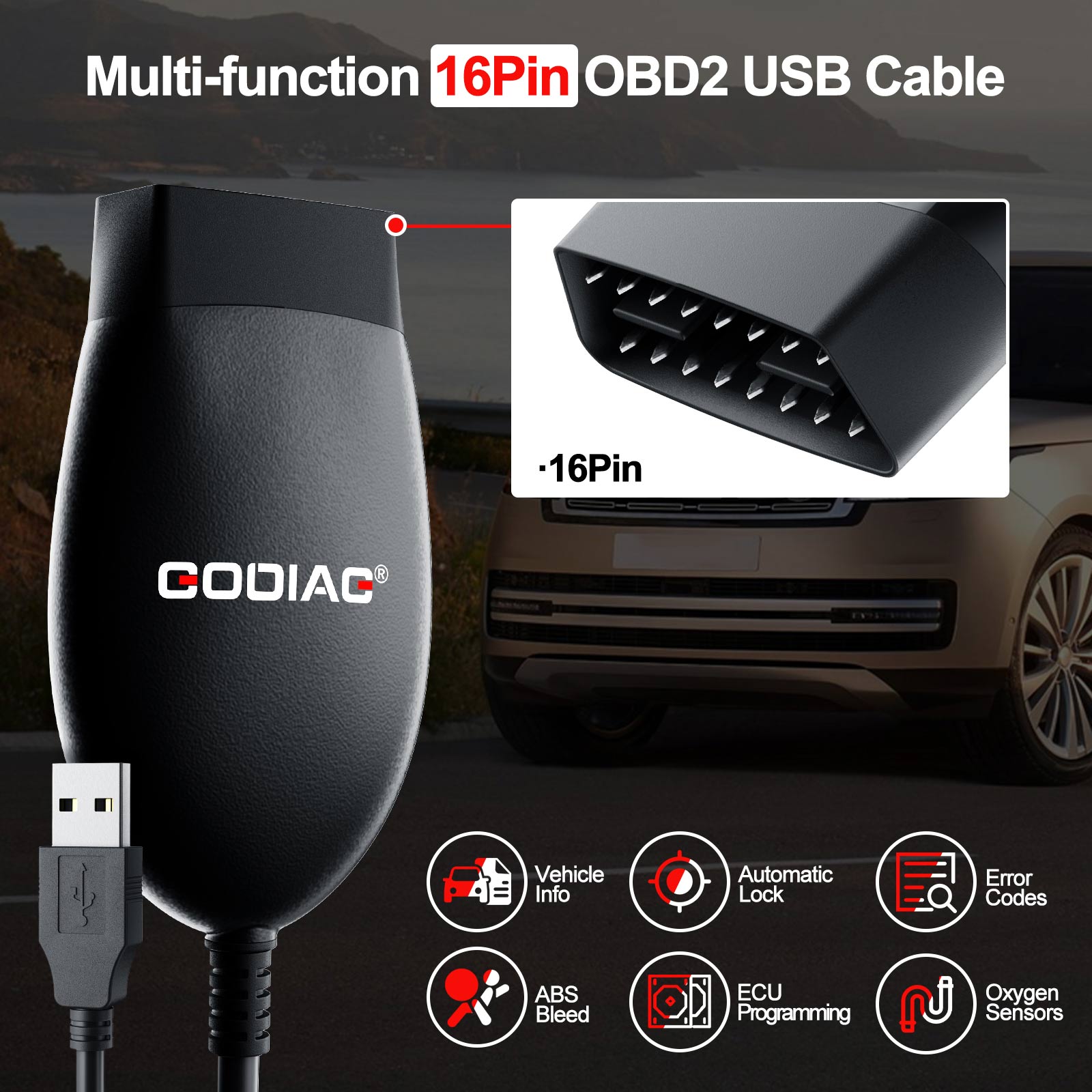

10. Vehicle connection: Molded DLC3(OBDII-16)
11. Host connection: USB 2.0

How to use the GODIAG GD101 J2534?

GODIAG GD101 J2534 PCB Display:

GODIAG J2534 Software Firmware Upgrade Notice(March 31, 2023)

1. Software upgrade to 2.1
2. Firmware upgrade to 1.8
Solve the following problems:
1. In J2534 mode, the sending length of J1850VPW is extended to 4128
2. PyOBD software cannot be connected in ELM327 mode
3. ELM327 mode cannot read ISO9141 VIN

Open the startup software, connect the device, and click upgrade firmware.

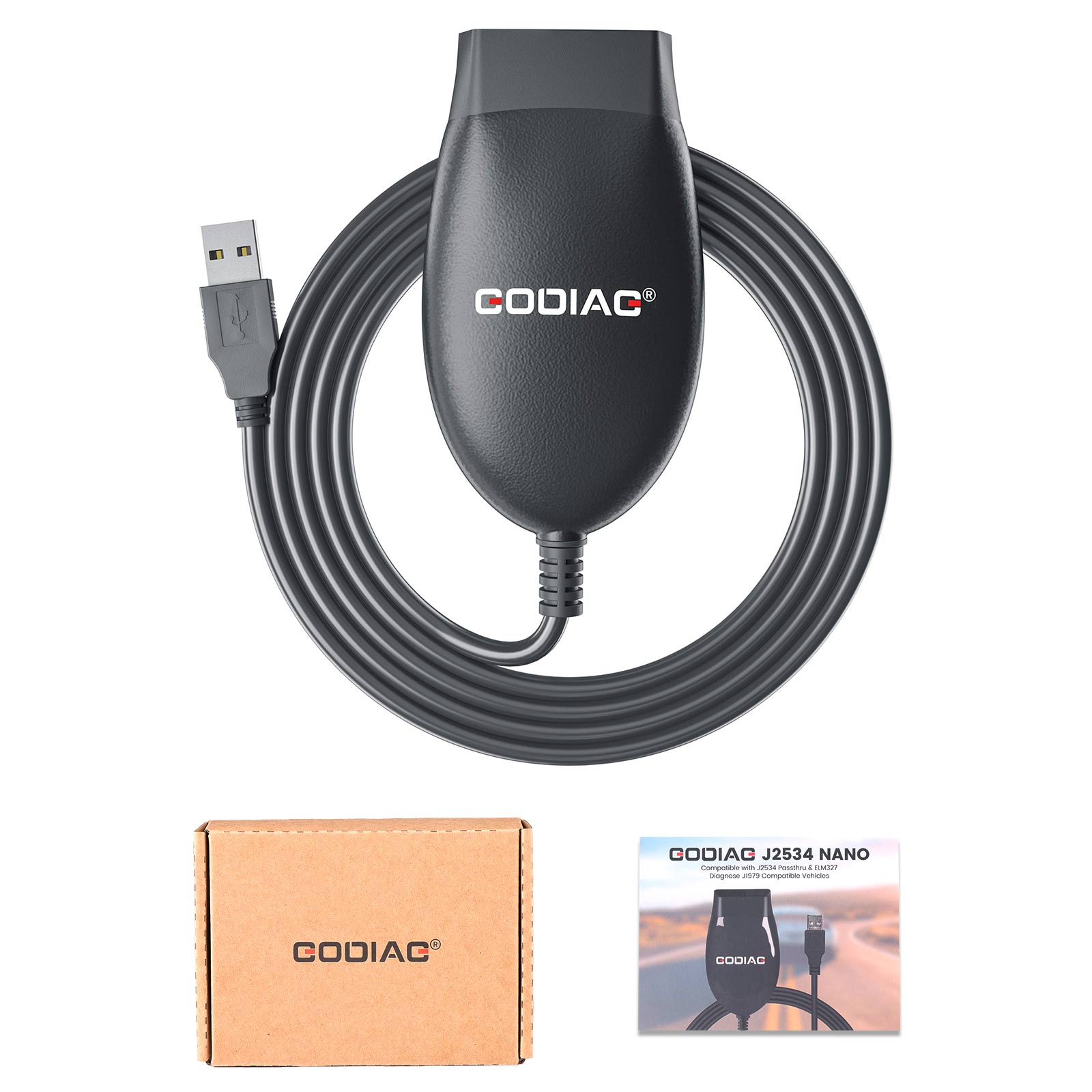

Package Includes:

1pc x GODIAG GD101 J2534
