OBDSTAR DC706 ECU Tool Basic Version for Car and Motorcycle ECM/ TCM/ BODY ECU Cloning by OBD or Bench mode

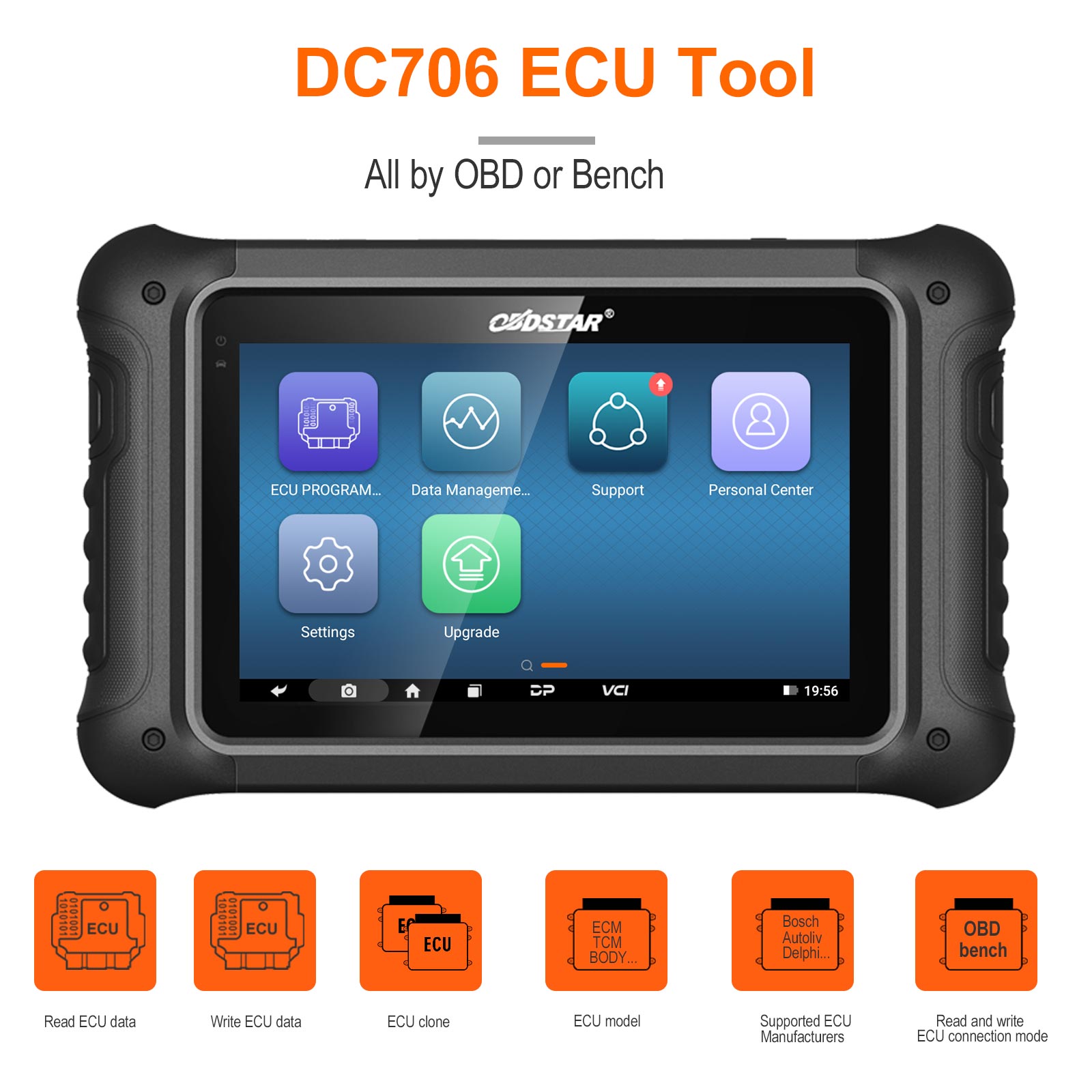

OBDSTAR DC706 ECU tool is designed for vehicle ECM, TCM and body/other system for ECU flasher. It can read ECU info, R/W Eeprom/Dflash/Pflash/MAP, reset ECU(Virgin), calibrate mileage, read IMMO pincode, ECU recovery... It's all by OBD or bench mode and makes ECU cloning easy.

Product Function:


Supported ECU Manufacturers:



ALPS

Autoliv

Bosch

Continental

Delphi

Denso

Johnson Controls

Lear

Magneti Marelli

Siemens

Temic

Valeo



Supported Brands:



Car

ASTON MARTIN

BMW

FAW

FCA(ALFA ROMEO, CHRYSLER, DODGE, FIAT...)

FORD/LINCOLN

GM/OPEL

HYUNDAI/KIA

LAND ROVER/JAGUAR

LUXGEN

MASERATI

MAZDA

MITSUBISHI

NISSAN

OPEL

PSA

SMART

SUBARU

SUZUKI

VOLVO

VW/AUDI/SEAT/SKODA



Motorcycle:



APRILIA

BRP

CFMOTO

DERBI

GILERA

GUZZI

PEUGEOT

PIAGGIO

QJBENELLI

VESPA



Advanced Functions:



1. R/W eeprom/dflash/pflash/Map, reset ECU(Virgin), calibrate mileage, read IMMO pincode, ECU recovery...

2. Support 200+ ECM types(Partial functions require P003 adapter.)

3. Support dozens of TCM types

4. Support 100+ body/other ECU types(AIRBAG, BCM, BSI, CEM, DDM/PDM, DIM, EPS, KeyLess(RFHUB/RFHM), KVM, RFA, SAM...)

5. Support VW DQXXX (TCM) calibrate mileage

6. Support motorcycle Delphi MT05, MT05.2, MT05.3 ECU clone

7. Support motorcycle BRP ME17.8.5 ECU clone (works with P003 adapter)

8. Support Piaggio series engine ECU clone(such as MIU G4 (M4G1))

9. Support intelligent search by brand, model, part No., ECU manufacturer, MCU controller type

10. Support automatic identification

11. Strong help data files

12. All by OBD or Bench mode



More functions are in developing...


Product Specifications:


Operation system	Android 5.1.1
CPU	RK3128 quad-core ARM cortex A7
Battery	3700mA, rechargeable polymer lithium battery
Extension memory card	32G micro SD (TF) card supported
Storage capacity	16GB
LCD	7.0 inch
LCD resolution	1024*600
Touch screen	Capacitive touch screen
Wifi	Supported
Working temperature	-20℃~55℃ (14℉~131℉)
Storage temperature	-20℃~70℃ (-4℉~158℉)
Weight	About 1.3kg
Dimension	243mm*148mm*36mm



Function Display:

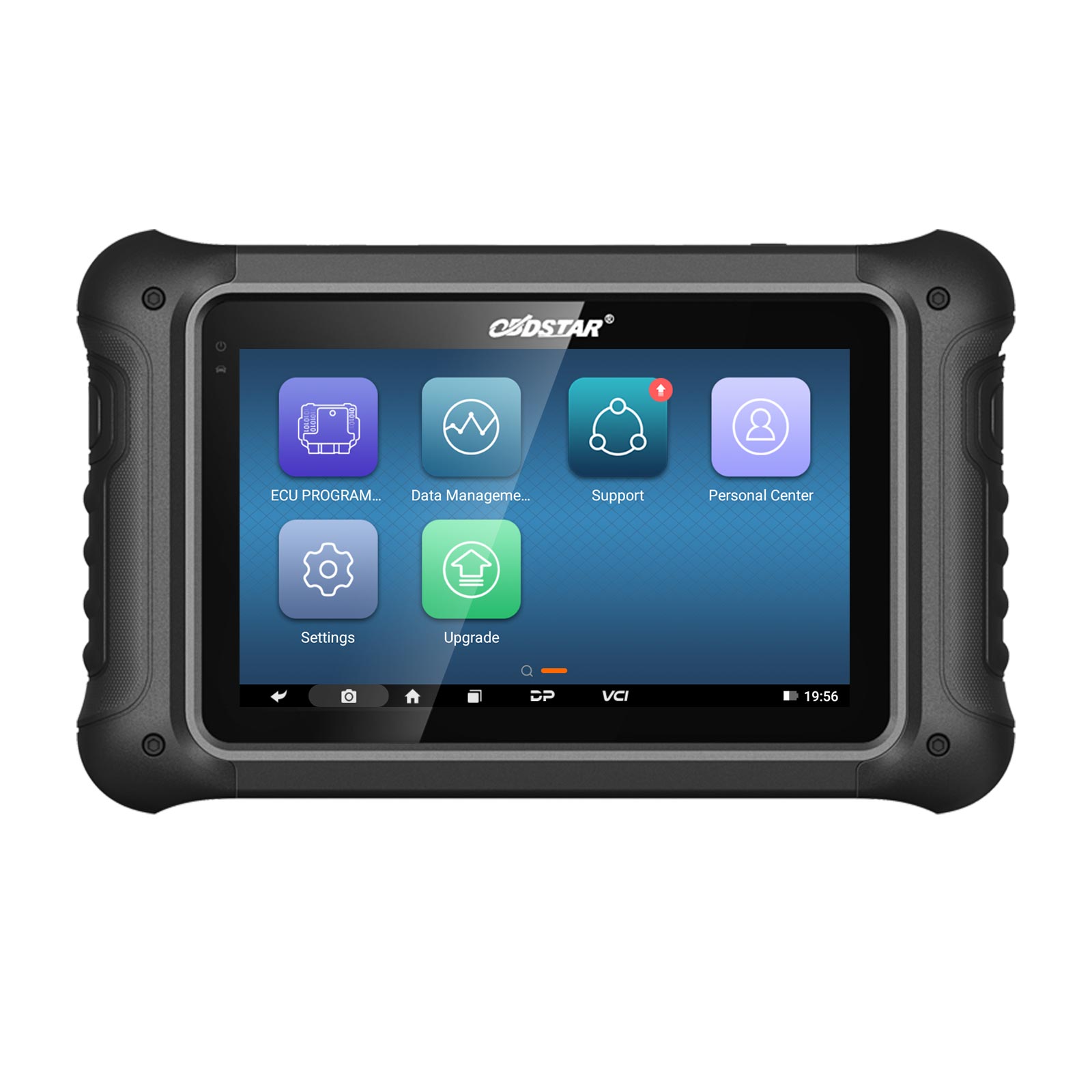

1) Main Page/Brand Supported

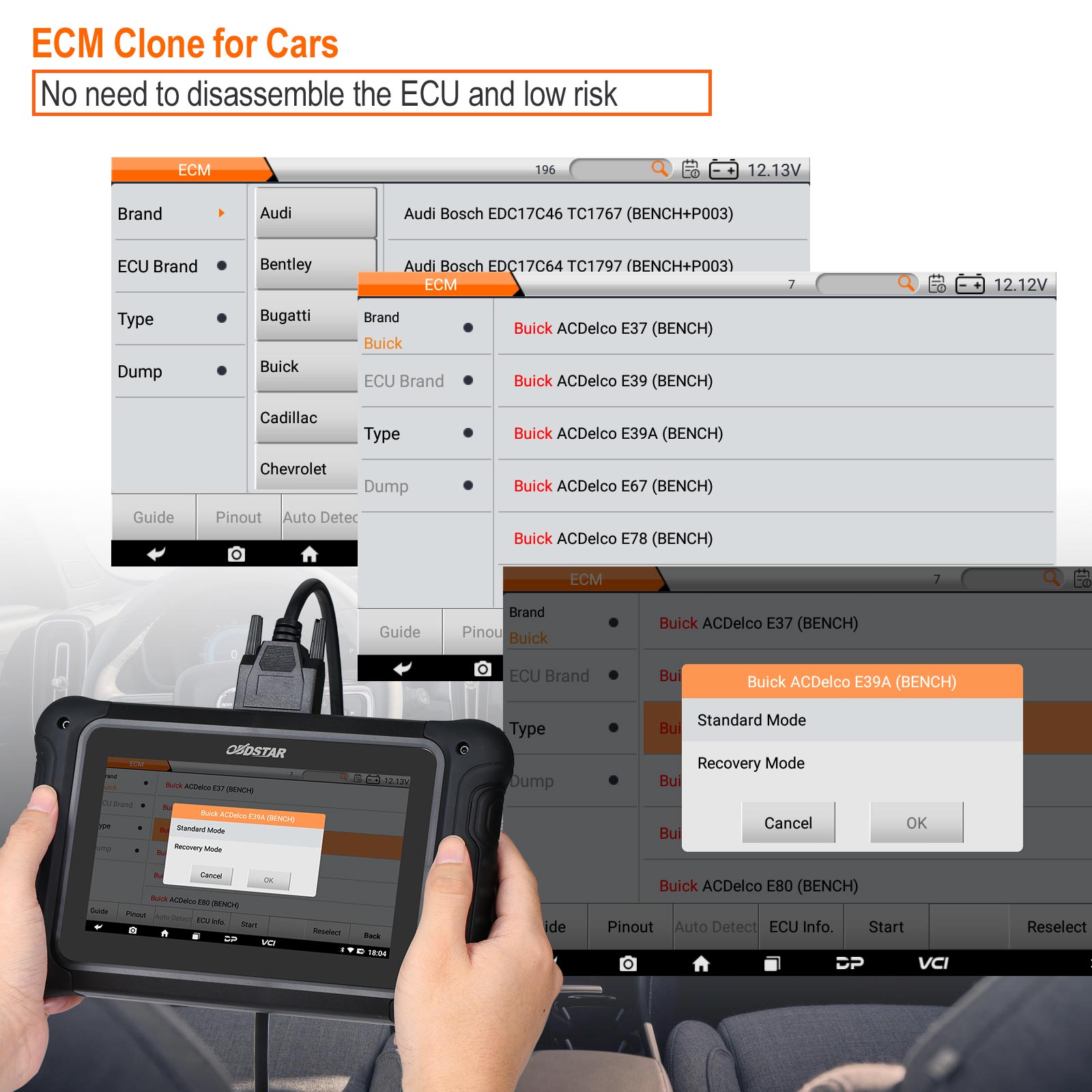

OBDSTAR DC706 ECU Tool + For ECM

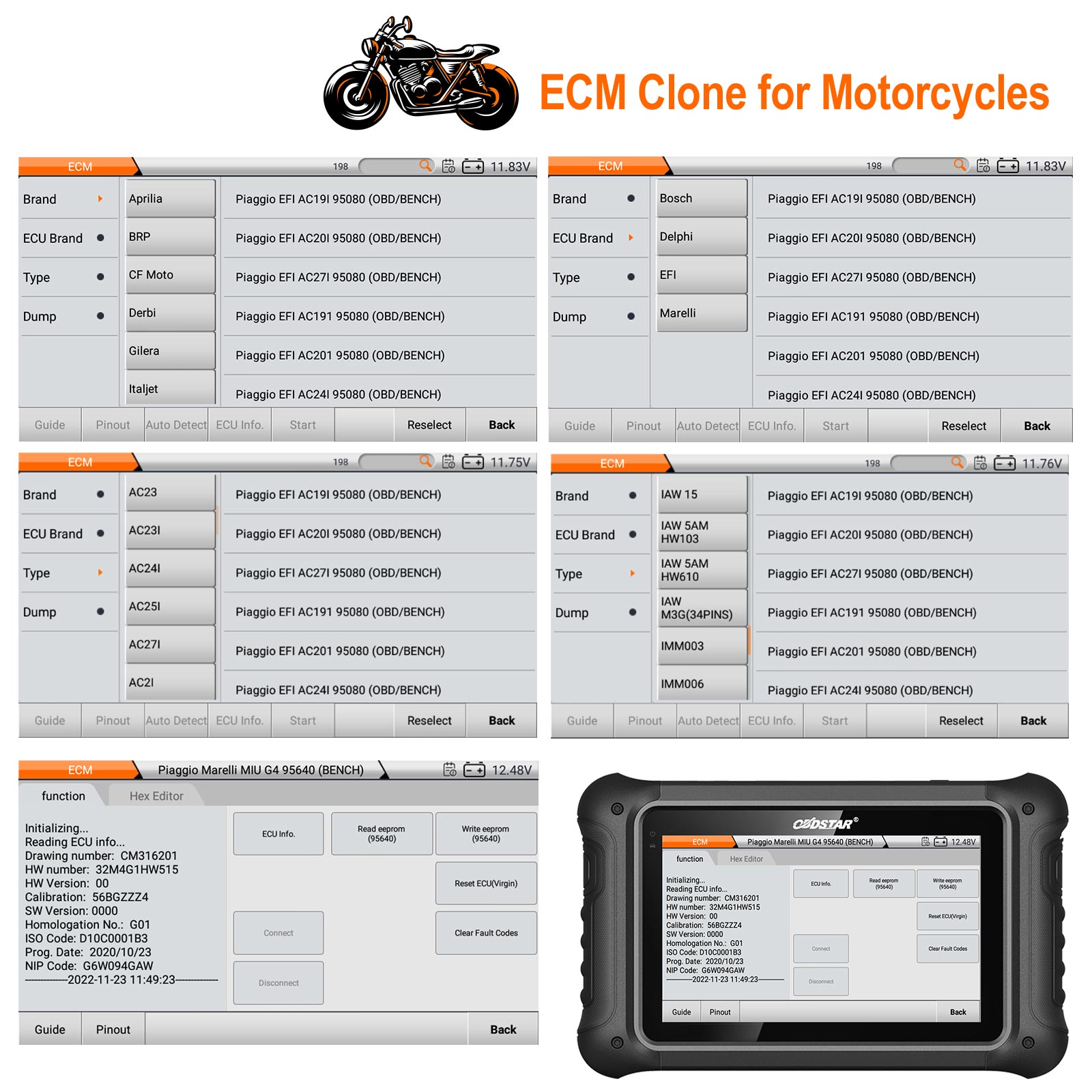

OBDSTAR DC706 ECU Tool + ECM Clone for Motorcycles


OBDSTAR DC706 ECU Tool + For TCM Clone




OBDSTAR DC706 ECU Tool + For Body/Other Clone

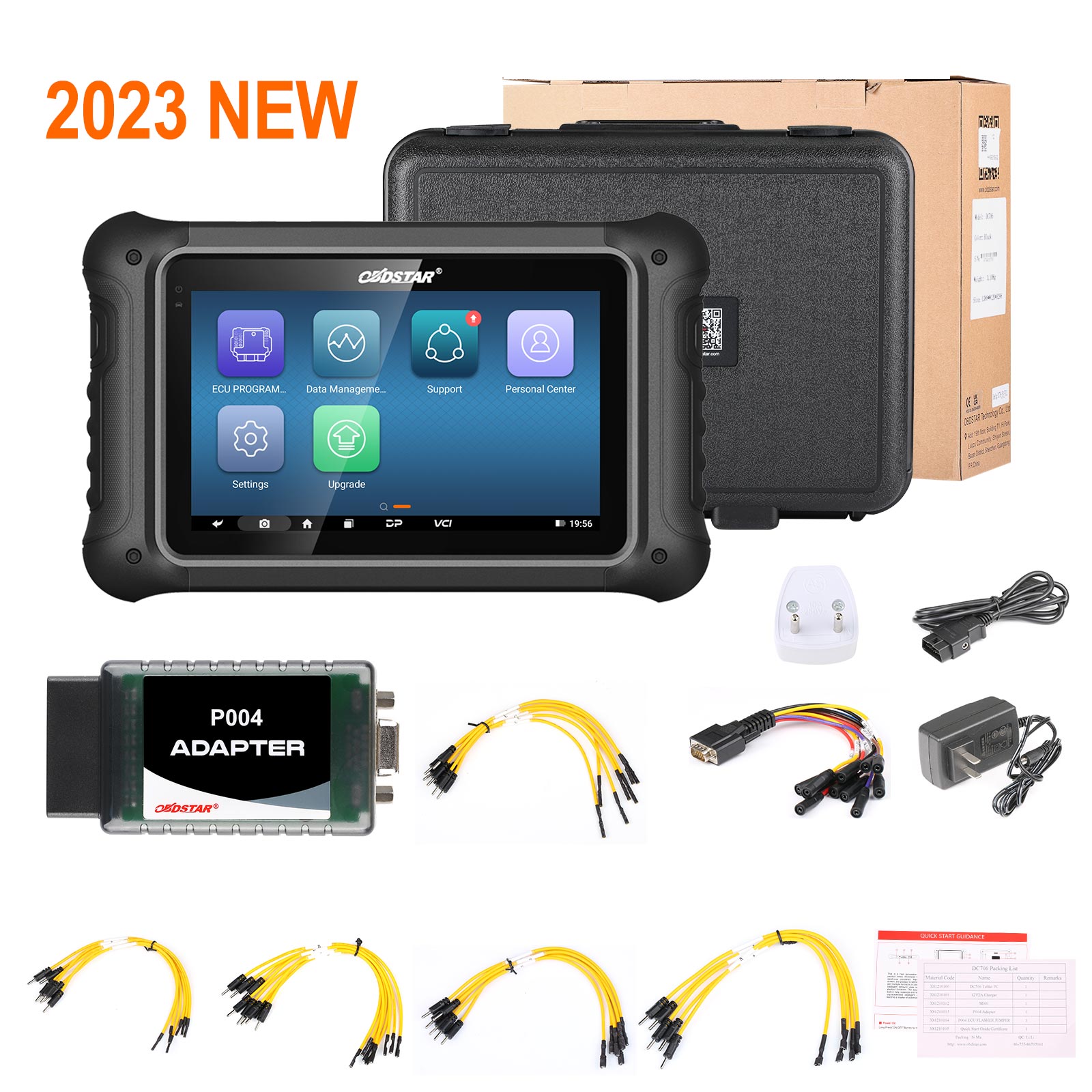

Package Includes:

1pc x DC706 Main Unit
1pc x main cable
1pc x P004 adapter
1pc x P004 ECU clone jumper
1pc x 12V2A charger
