OBDSTAR X300 Pro4 Pro 4 Key Master Auto Key Programmer

Free Update Online for One Year, after one year it will cost $300 per year.
Dealer Code: 860755B1

OBDSTAR X300 Pro4 is an all-purpose immobiliser programming device meticulously designed by OBDSTAR for locksmith. The device inherits the automobile immobiliser programming technology from OBDSTAR with a lot of advantages of early start, wide model coverage, fast programming speed and special features All-in-one machine structure, more convenient to use full optimization hardware, running more stable, faster and smoother.

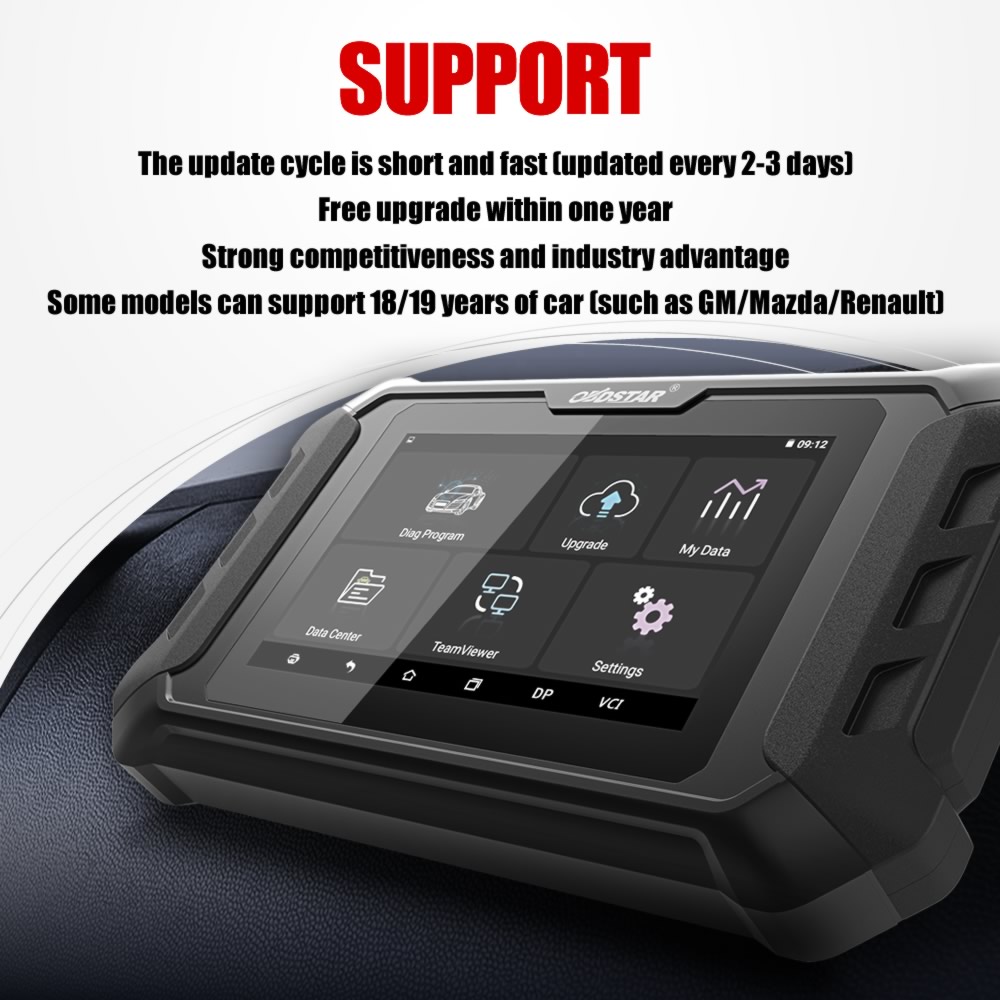

OBDSTAR X300 Pro4 Highlights:

1. OBDSTAR X300 Pro4 covers same immo function as OBDSTAR X300 DP Plus.
2. The update cycle is short and fast (updated every 2-3 days)
3. Free Update Online for One Year, after one year it will cost $300 per year.
4. Strong competitiveness and industry advantage
5. Some models can support 18/19 years of car (such as GM/Mazda/Renault)
6. Add a new help function as shown below: (Applicable to some models, R & D information is being update)

OBDSTAR X300 Pro 4 Programmer Function List:

Programming Keys
Erase Keys
Programming Remote
Read Key Numbers
Pincode Reading
EEPROM Chip Read
OBDII Diagnosis

OBDSTAR X300 Pro 4 Update Note:
OBDSTAR X300 DP Plus Update Oct 29th,2019

CAS1                        7 Series     E65/E66                         2001-2005
CAS2                        3 Series     E90/E91/E92/E93          2005-2007
CAS2                        5 Series     E60/E61                         2004-2007
CAS2                        6 Series     E63/E64                        2003-2008
CAS2                        7 Series     E65/E66                        2005-2009
CAS3                        1 Series     E81/E82/E87/E88          2007-2008
CAS3+                     1 Series      E81/E82/E87/E88          2009-2012
CAS3                        3 Series     E90/E91/E92/E93          2007-2009
CAS3                        3 Series     E90/E91/E92/E93          2009-2012
CAS3/CAS3+            5 Series     E60/E61                        2008-2010
CAS3/CAS3+            6 Series     E63/E64                       2008-2010
CAS3+                      X1             E84                              -2014
CAS3+                      X5             E70                               2008-2013
CAS3+                      X6             E71/E72                        2008-2014
CAS3/CAS3+            Z6             E89                               2008-
CAS3+                      Mini                                               2008-2014

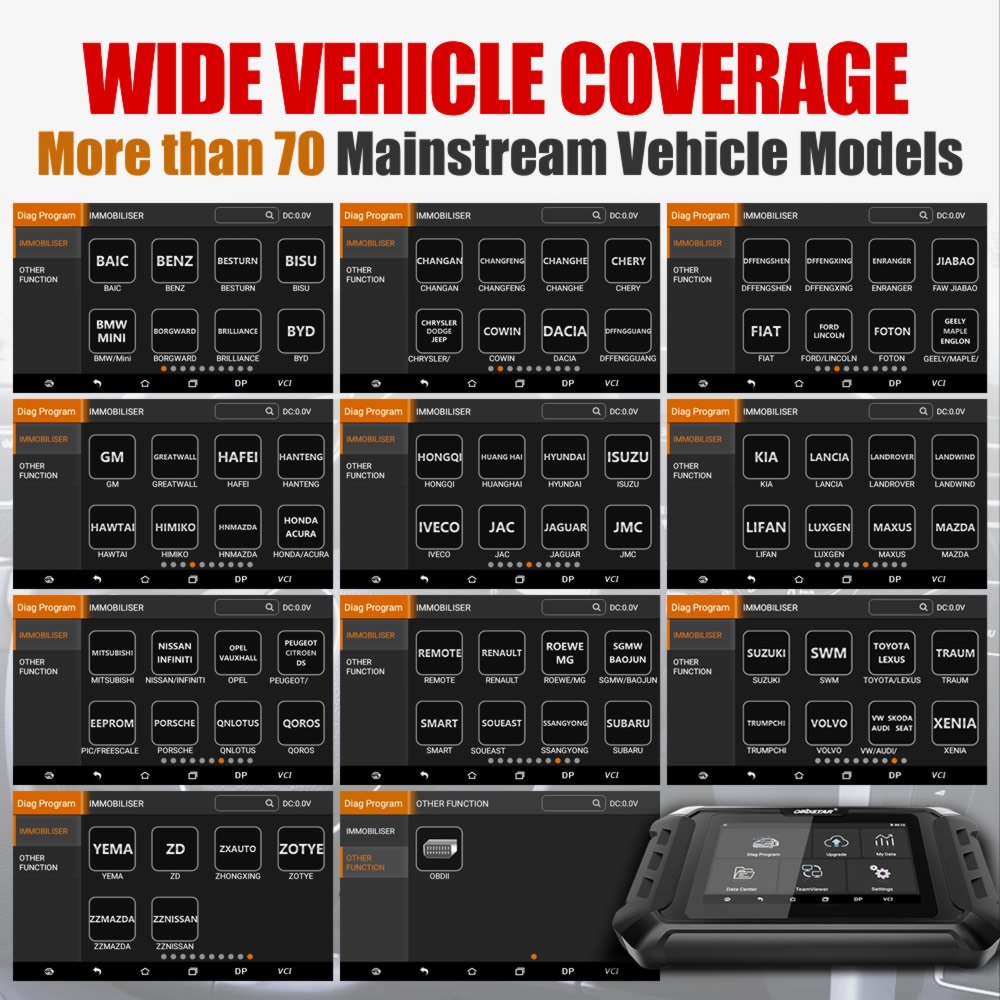

OBDSTAR X300 Pro 4 Programmer Support Car Models List:
Europe:
BMW,Benz,Borgward,Peugeot,Citroen,DS,Dacia,Fiat,Jaguar,Lancia,Land Rover,Opel,Porsche,Renault,Smart,Volvo,Iveco,VW/Audi/Skoda/Seat

Japan:
Honda,ISUZU,Mazda,Mitsubishi,Nissan,Subaru,Suzuki,Toyota,Lexus

Korea:
Hyundai,KIA,Ssangyong

America:
Ford,Chrysler,GM

China:
Baic,Besturn,Bisu,Brilliance,BYD,Changan,Changhe,Chery,Cowin,DFFengshen,DFFG,Dfliuzhou,Enranger,Foton,Geely,

Greatwall,Hafei,Hanteng,Hawtai,HimikoHongqi,Huanghai,JAC,Jiabao,JMC,Lifan,Lufeng,Luxgen,Maxus,Qnlotus,Qoros,Roewe,

Sgmw,SWN,SoUEAST,TJFAW,Traum,Trumpchi,Xenia,Yema,ZD,Zhongxing,Zotye,Changfeng


	Function	Prouduct Photo
		X300DP Plus	X300 Pro 4
		Available Or Not
Software (Immo)	Programming Keys	√	√
	Erase Keys	√	√
	Programming Remote	√	√
	Read Key Numbers	√	√
	Pincode Reading	√	√
	EEPROM Chip Read	√	√
	OBDII Diagnosis	√	√
	Cluster Calibration	√	×
	Diagnosis	√	×
	ECU Clone	√	×
	ECU Programming	√	×
	Oil Service Reset	√	×
	Other Special Functions	√	×
	RT100 Remote	√	×
	Luxury Models Coverage	√	×
Specification	Opration System	Android5.1.1	Android5.1.1
	Camera	supported	×
	CPU	Exynos4418 Dual Core ARM Cortex  A9 1.4GHz	RK3128 quad-core, ARM Cortex A7@1.2Ghz
	Battery	3700mA, rechargeable polymer lithium battery	2600Ma lithium ion
	Extension Memory Card	32G Micro SD(TF) card supported	32G Micro SD(TF) card supported
	Storage Capacity	32GB	16GB
	LCD	8.0 inch	5.0 inch
	LCD resolution	1280*800	800*600
	Touch screen	Capacitive touch screen	Capacitive touch screen
	Wi-Fi	supported	supported
	Working Temperature	-10℃~55℃（14℉~131℉）	-20℃~55℃（14℉~131℉）
	Storage Temperature	-20℃~70℃（-4℉~158℉）	-20℃~70℃（-4℉~158℉）
	Weight	about 1.0kg	about 700g
	Dimension	254mm*174mm*35mm	140mm*89mm*18mm
Accessory

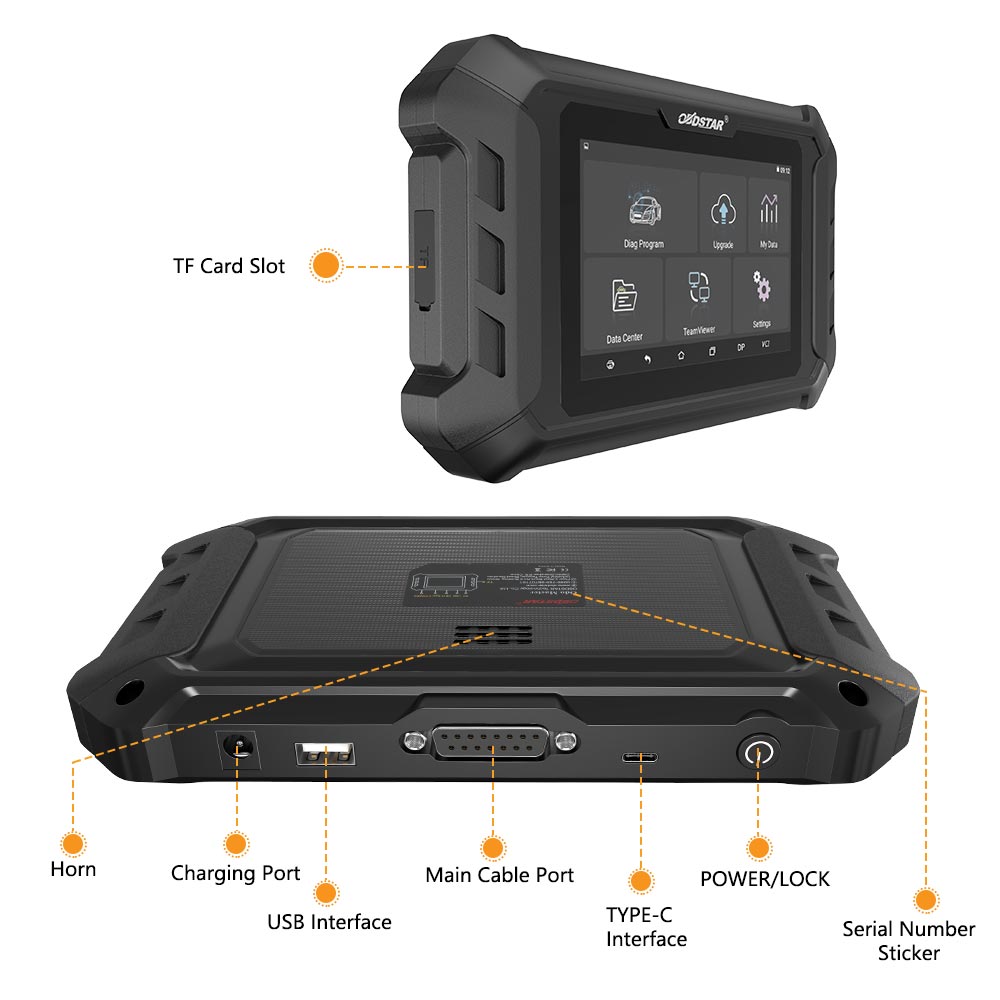

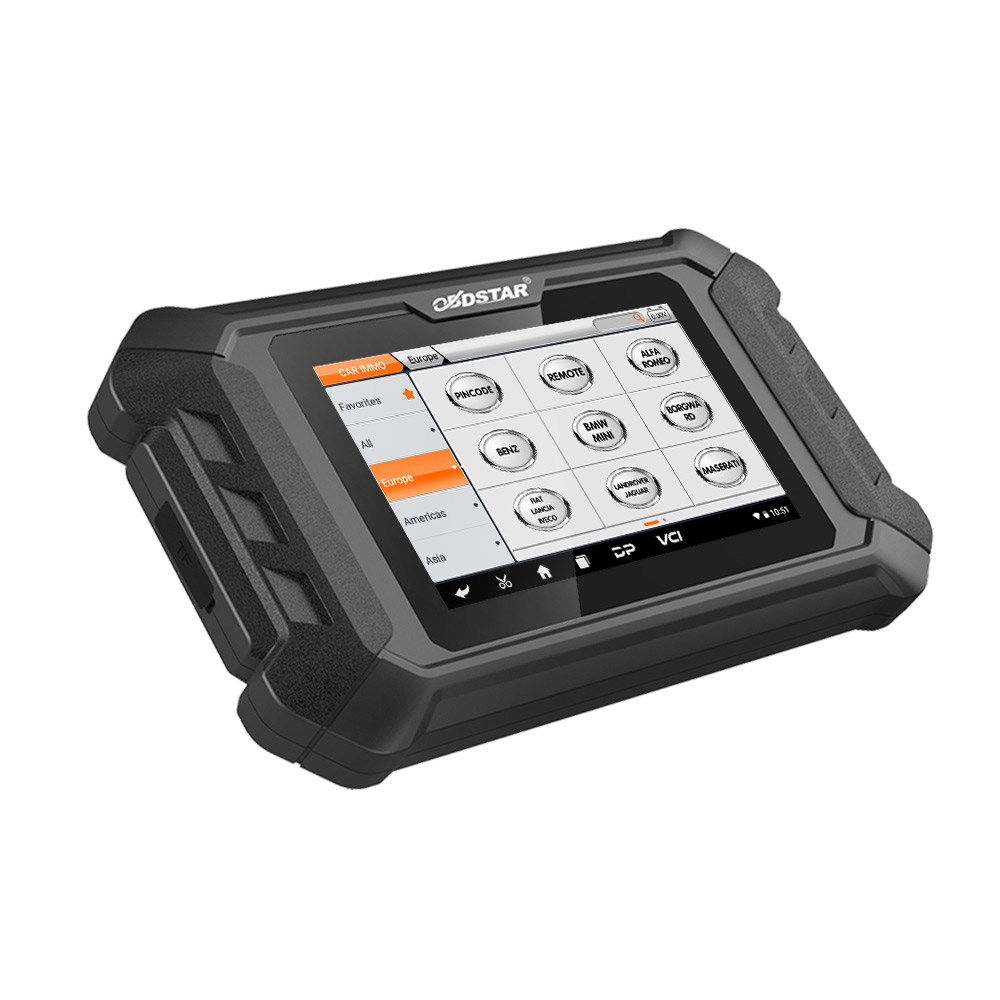

OBDSTAR X300 Pro4 Overview:

① Power/Lock
② Main Cable Port
③ Charging Port
④ TYPE-C Interface
⑤ USB Interface
⑥ TF Card Slot
⑦ Touchscreen/Display Screen
⑧ Speaker
⑨ Serial Number Sticker

How to Register Activation and Update?
Power on
Long press Power button for 5 seconds

Register Activation
Click on the VCI function on the screen-->User information-->Register-->fill in information




OBDSTAR X300 Pro 4 Programmer Specifications:

Operation System:                Android5.1.1
CPU:                                      RK3128 quad-core,ARM Cortex A7 at 1.2Ghz
Battery:                                 2600Ma lithium ion
Extension Memory Card:      32G Micro SD(TF) card supported
Storage Capacity:                 16GB
LCD:                                      5.0 inch
LCD Resolution:                    800*600
Touch Screen:                       Capacitive touch screen
WiFi:                                      Supported
Working Temperatures:        -20℃~55℃(14℉~131℉)
Storage Temperature:           -20℃~70℃(-4℉~158℉)
Weight:                                 About 700g

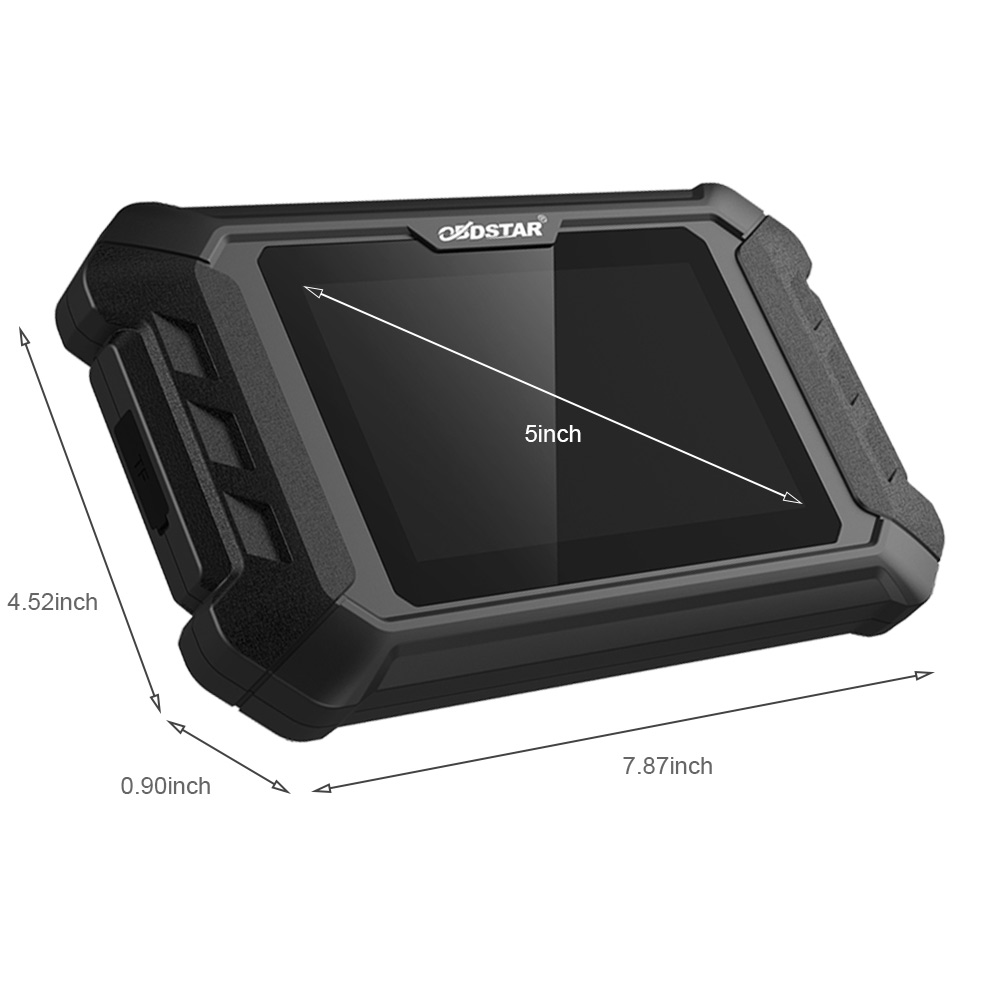

Dimension:                           140mm*89mm*18mm

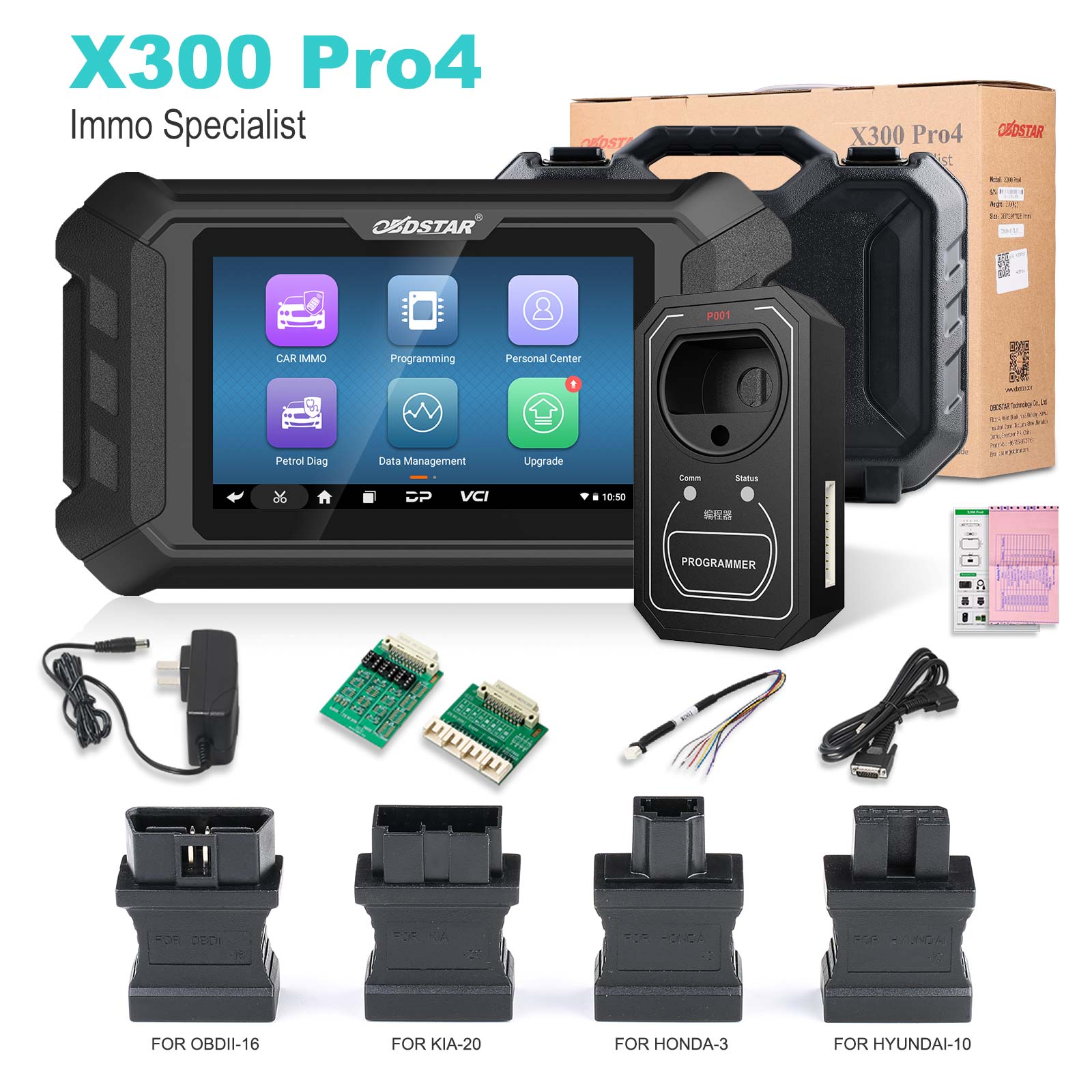

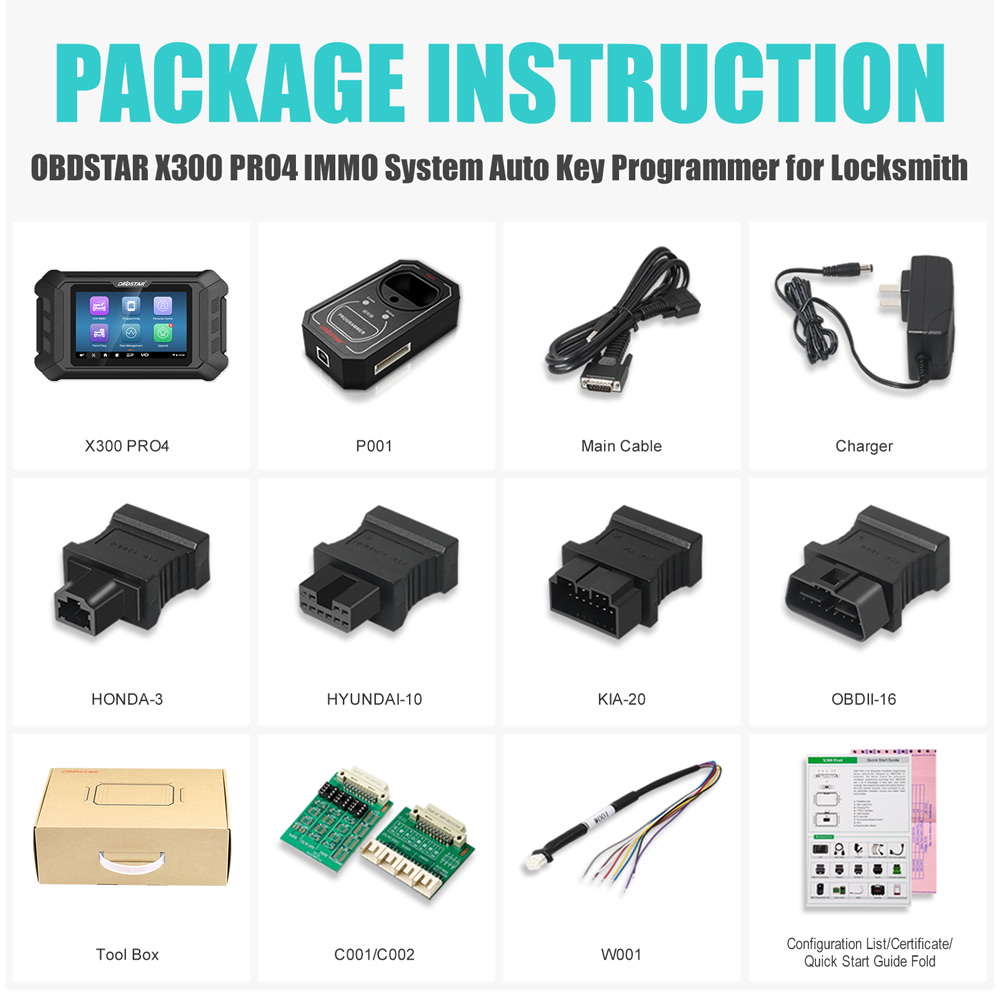

OBDSTAR X300 Pro 4 Programmer  Package list:

1pc x  X300 Pro 4 Unit
1pc x  Main cable
1pc x  Charger
1pc x  OBDII-16
1pc x  HYUNDA-10
1pc x  KIA-20
1pc x  HONDA-3

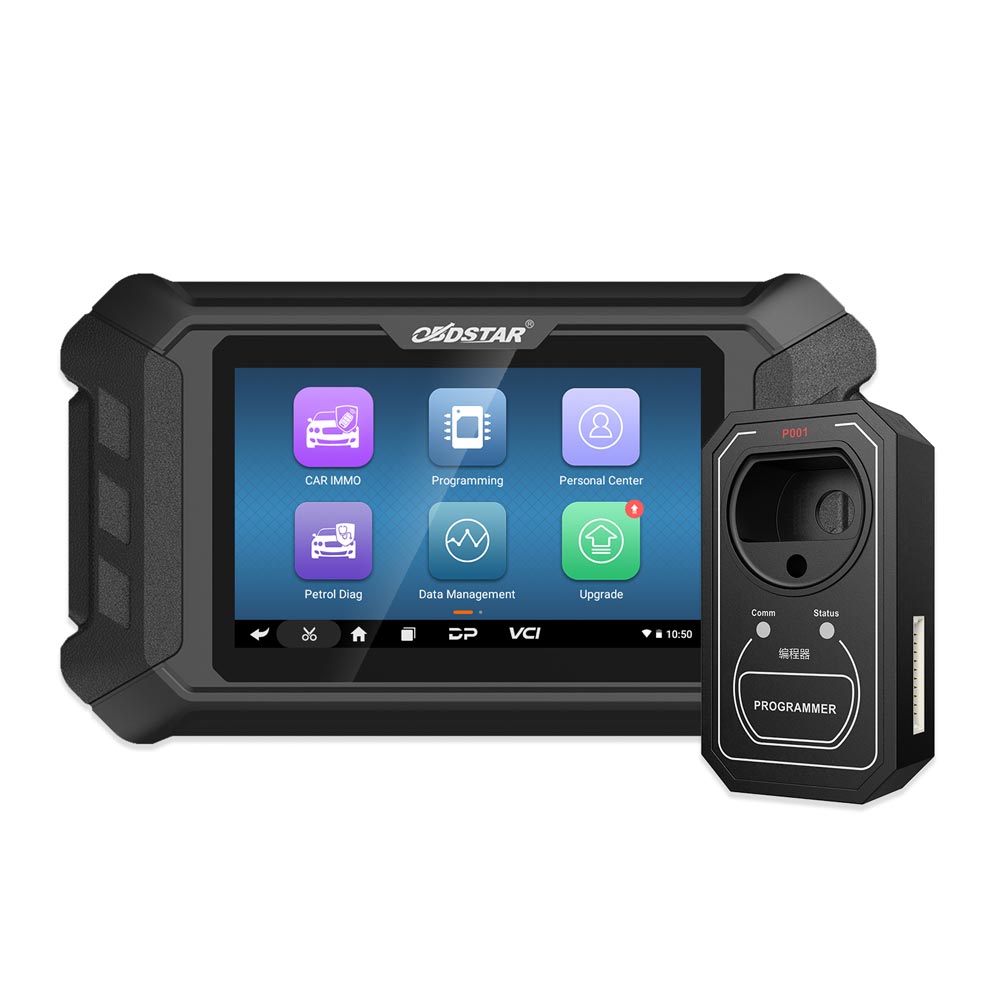

1pc x  P001 Programmer
1pc x C001 Board
1pc x  C002 Board
1pc x  W001

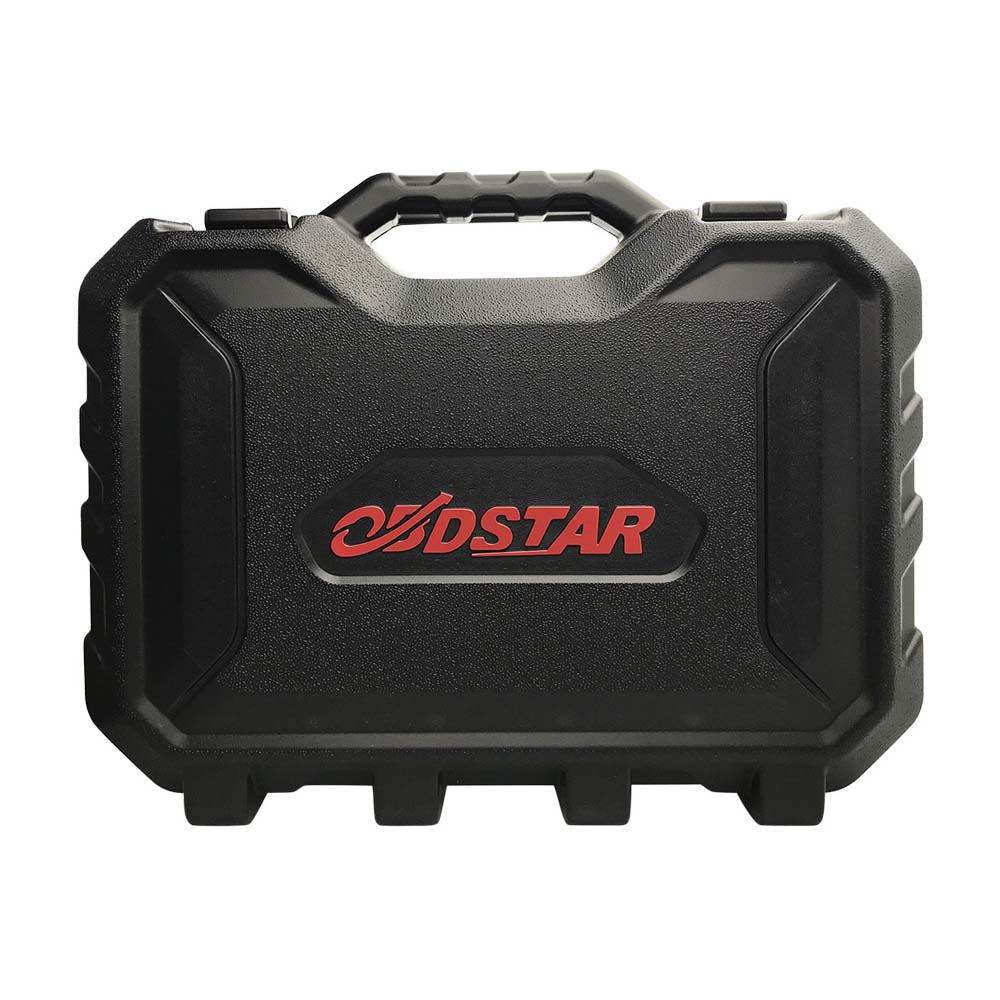

1pc x  Tool Box
1pc x  OBDSTAR Certificate
1pc x  X300 Pro 4 Fast Guide Manual
1pc x  Packing List
1pc x  Multifunctional Jumper (Optional)
1pc x  Renault Converter (Optional)
1pc x  FCA 12+8 (Optional)
