X-100
PRO Auto Key Programmer (C+D) Type for IMMO+Odometer+OBD Software Get OBDSTAR
PIC and EEPROM 2-in-1 Adapter Free
Top 8
Reasons to Get X-100 PRO Auto Key
Programmer:
1.
Original from OBDSTAR, Support EEPROM Function, with OBDSTAR PIC and EEPROM
2-in-1 Adapter free in package2.
Free Update Online on OBDSTAR Official
Website for 1 Year, 90usd/year after 1

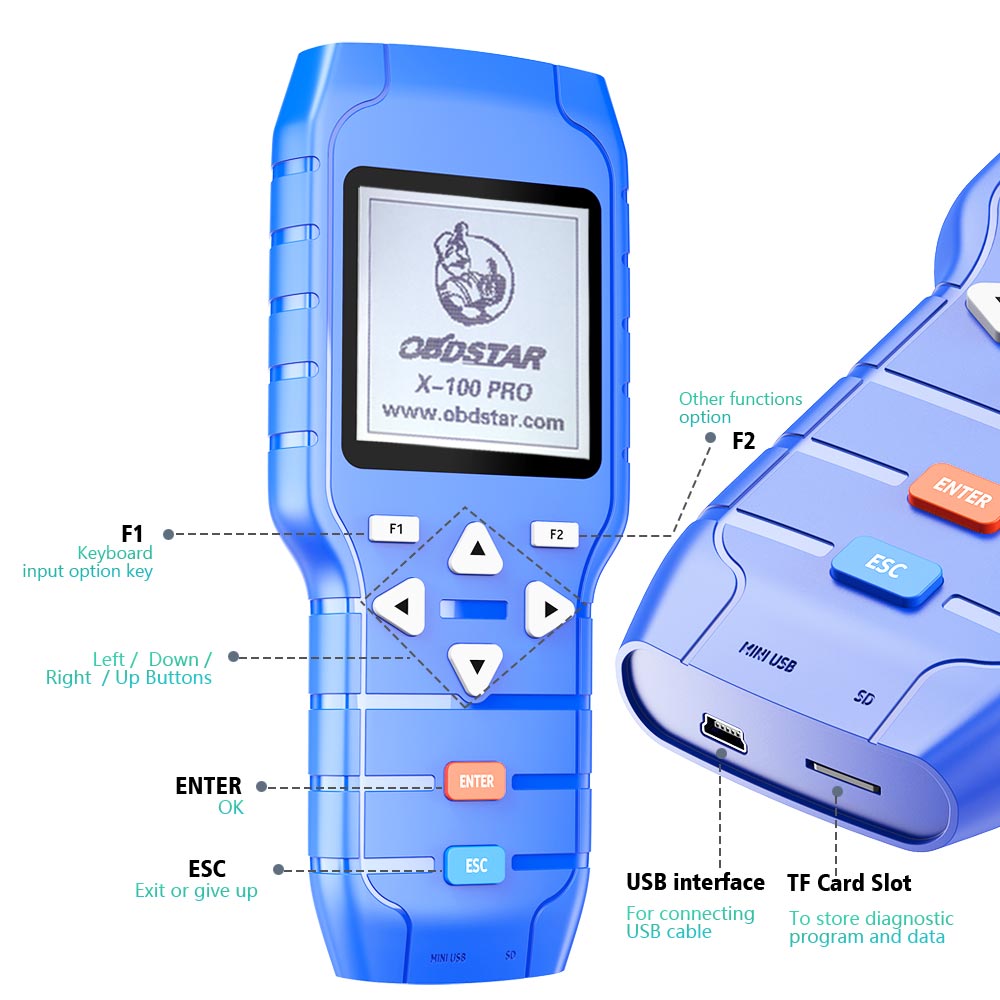

Year3. Inherited the overall look of the
original X100 +, changed the new silicone button, feel more
comfortable 4.
Adjusted the TF card slot position in mold, fit more tightly than previous
generation, card plug will not go inside the
machine
5.
Software downloading speed is improved by more than
50%
6. New
upgraded software operating system, added operating interactive
prompt
7.
High-capacity 4G TF card, more stable performance, never appear white
screen
8. New
design of PCB hardware, greatly improved
configuration
Notice:
1.
Language: English, Simplified Chinese,
Traditional Chinese
2.
Dealer Code: 860755B1
3. Configuration(C+D): IMMOBILISER+
OBD Software and Odometer Adjustment + OBD
Software
4. Not
Support Toyota G Chip
1. New
keys programming;
2.
Reads keys from immobilizer’s memory;
3. New
immobilizer programming;
4. New
ECU programming;
5. New
mechanical key number programming;
6.
Vehicle Identification Number programming;
7.
Reset ECU&reset immobilizer;
8.
Easy to operate by the guided menu
programming;
9. New
remote controller programming;
10.
Immo PINCODE reader;
11.
Odometer ajustment(Via obd);
12.
With full and strong database for the most important vehicle
makes;
13.
Upgradeable via web-based download;
14.
EEPROM Chip read;
What's
the difference between this OBDSTAR X100 and XTOOL
X100?
1.
OBDSTAR X100 can support EEPROM function, while XTOOL X100
can't
2.
OBDStar X100 can't support Proton, while XTOOL X100
can
X-100
Pro Vehicle Coverage:
EEPROM
Adapter: EEPROM
ADAPTER V30.40
Immobiliser: ACURA,
AUDI, BAIC, BESTURN, BRILLIANE, BYD, CHANGAN, CHANGHE, CHERY, CHRYSLER,
CITROEN, DFLZ, DFPV, DS, FORD, GEELY, GM, GREATWALL, HAFEI, HAIMA, HAWTAI
Motor, HONDA, HONGQI, HUAPU, HYUNDAI, INFINITI, JAC, JAGUAR, KIA, LANDROVER,
LEXUS, LIFAN, LINCOLN, LUFENG, MAZDA, MG, MITSUBISHI, NISSAN, OPEL, PEUGEOT,
PORSCHE, RENAULT, ROEWE, SAIC ENGLANG, SEAT, SKODA, SMART, SSANGYONG, SUBARU,
SUZUKI, TOYOTA, VW, YOUNGLOTUS, ZZMAZDA,
ZZNISSAN;
OBDII: OBDII
V30.02 for diagnose
Odometer: AUDI,
VW, BENZ, Chrysler, Ford, GM, Porsche, Skoda,
Seat
And
the more cars’ software will be released.
Remark: including X-100+ all the matching
function and add new software function in X-100
PRO. Do not
include Proton this car model
OBDSTAR X100 Pro Update Information on March
2020
Subaru [V30.37] Upgrade
Africa Area:
Increased
TREZIA 2010-2015 smart key system
Increased OUTBACK 1998-2004 IMMO
system
Increased FORESTER 1998-2002 IMMO system
Australia Area:
Increased BRZ 2013- IMMO system
and smart key system
Increased FORESTER 2013- smart key system
Increased
IMPREZA 2013-/2007-2014 smart key system
Increased LEVORG 2016- smart key
system
Increased LIBERTY 2013-/2007-2014 smart key system
Increased
OUTBACK 2015-2017 smart key system
Increased WRX 2014- IMMO system and smart
key system
Increased XV 2017- smart key system
Europe Area:
Increased FORESTER 2008-2012 smart
key system
Part
1: OBDSTAR X100 Pro IMMO
& Remote Feedback:
-Maruthi Suzuki key programming in 2
min , Hyundai I 20 key programming done , Hyundai verna fludic remote done in
few seconds. Yes, it can do key lost and also u can
add.
-Honda
cars,both making a spare and all key lost and remote programming,so far never
failed.
-Mitsubishi Pajero 2014. All key
lost OK.
-Hyundai i 10 Key
ok...
-Hyundai i 10 remote ok
.
-Hyundai i 10 grand remote in 2 min
ok
-honda
crv 2008 remote and key ok
-jeep cherokee 2008 remote and key
ok
-mazda
cx9 2009 smart key ok
-Ford Eecosport 2015 Flip key
programming ok...
-Suzuki Ignis 2003 all lost key,
programming new key OK.
-Hyundai GETS 2007 KEY
OK
-HONDA
ACCORD 2008 KEY AND REMOTE OK
-Range rover sport hse 2012 start
button , all key lost OK
-2013 Elantra remote
OK
-2007
VW Rabbit add key and remote OK
-2012 Town&County smart key
OK
-2002
Jetta add key FAIL (vehicle not supported msg, cant even read pin
code)
-2007
Quest add key OK
-2008 Accord add key
OK
-2016
Subaru Forester add keys OK, remote program FAIL
-Range rover sport 2007 add key
ok
-subaru outback 2008 add key
ok
-infinity fx 2009 smart key
ok
-Audi
a4 2006 rb8 dash diesel engine read pin from ecu
Ok
-Mazda
2 2009 all ok job done in seconds
-Tucson 2014 .. key and remote
programing ok
-GMC ACADIA 2008 CAN'T ADD KEY...YOU
SHOULD DO ALL KEY LOST .... 12 MINUTES ... JOB
COMPLETE
-ford
raptor 2012 key programing ok at least 2 keys must
have
-ford
expedition 2011 all key lost ok
-accent 2012 key programing pin read
ok
-i10
2012 read pin and swap ecu (ecm neutrelize) ok all
ok
-prado
txl and gx 2013 smart key programing ok \
-prado 2012 ignition key programing
ok \
-Good
tool for Honda. transponder + smart even all keys
lost.
-Nissan leaf,Xtrail both are
ok
-Toyota Hilux add g chip key easily.
did one for all keys lost with eeprom adapter
too.
-Toyota innova key added
Ok
-2010
Ford Ranger,4D63.. all key lost OK.
- Mazda 5 2006 all key lost
ok
-
Honda Amaze petrol 2015 key + remote in 15 min ok
Chevrolet camaro 2010 ALL KEY LOST
ok, but you have to put security code...x100pro cannot read
it
-
Mitsubishi pagero 2012 yes
-Mazda cx9 2011 programmed smart key
ok
-Renault v30.50 pin code read logan
2008 OK
Part
2: OBDSTAR X100 Pro Mileage Correction
Feedback:
GM
vehicles…test ok:Chevy Trailblazer 2008 & 2004
Fail “Fail to connect” …tried a few other chevy but the miles reading was far
off.Town
and Country 2009 – OK…Surprisingly it did both Cluster and SRI in one
shot.Chevy
Avalanche 2007-2012/2013 OBD Read & Write =
OKChevrolet silverado 2007
okcadillac escalade 2010 ok ( it show
old mileage)gmc
terrain 2010 ok (show old mileage)cadillac srx 2010 ok(show old
mileage- need to turn ignition off then on to show new
mileage)Chevrolet Aveo / Sonic 2013, try to
lower it by Aveo / Sonic, the reading was correct, but to re-enter the new
mileage: fail security, treated by Cadillac ATS 2013, and there were no
problems, perfect job.Chevy cruze 2016 —- ok
30sChevrolet Captiva 2009 year, micro
motorola, all ok workingChevrolet suburban 2007 ok .. it
show old mileage…. i have do 3Vauxhall Vivaro 2013 – couldnt do
itChevrolet Trailblazer 2015 OK, 5
seconds job for rollback KMGMC c4500 2004 work with GMC Savana
OK - gmc
captiva 2008 ok - GMC Savanna 2016 year Mileage OK
, Chevy
captiva 2009 …… great success Jaguar
Landrover…test okJaguar
XE 2015 obd ok first backup then do mileageRange Rover 2011 OBD
okRange
rover Evoque 2013 ODOMETER_MILEAGE okRange Rover Evoque 2014
flawlessRange
rover 2013 ok ( doesn’t show old mileage…. it ask you only yo write new mileage
)Range
Rover Evouge 2016 – miles OKPathfinder 2015 – OBD =OK Read &
Write. VAG
vehicles…test ok:Audi
A4 2007 ok04
audi a4 rb4 OK.. Around 10minAudi q5 2011 ok wait 15
minAudi
A4 RB4 2004 OKA3 2005, Fujitsu –
OK04
audi a4 rb4 OK.. Around 10minAudi A4 2004 OK…
….Audi
A4 2007 RB8 OK-audi s4 2008 is ok
working-A3
2007 - OK-audi
A4 ...2013 perfect ....8 min.-aud Q5 2010 obd about
20minutes- audi
A5 2008 obd about 20minutes- 2012 A1 Audi 1.4tfsi does it go
via obdChevy Malibu 2015
OKeventually
OK…VW
Passat 3BG 2002 -> OBD (KLine) = ok2015 Range Rover
VogueSeat Ibiza 6J 2010 -> OBD =
OKScirocco mileage 2008
OK2008
vw rabbit >ad key OKVW Golf V 2005 -> OBD =
okMaserati Quattroporte V 2004 ->
OBD = okVW
Golf V 2005 -> OBD = okGolf 4
2002Skoda
Superb 2013 -> OBD = OKVolkswagen jetta 08 – OK. Had to
choose option from magotan.Touran
2013 NEC+24C64 13- OKGOLF 6
2009 nec+24c32 OKGolf 4 2002. obd ok. 5min (did read
old mileage perfect)Mazda 3 skyactive, After
actualitation, perfect work.Beetle
2014 OK wih backup file option…. Ford
Chrysler…test ok:-Ford
Fiesta 2014 works with x100 pro. but maybe not all
displays..Ford
Fiesta amber and blue colour dash works fine i have done
many-Ford
Focus, C-Max in 2014 work-2013 Chrysler Town and Country
>ad smart key OK-Ford Transit 2014 blue screen dash
– couldnt do it, I tried by focus and new mondeo. Read correct miles by focus,
but after adjustment cluster was frozen. Reconnect battery sorted that
problem.FORD
ECOSPORT 2015 —– OK TYPE IFord Mondeo Mk4 2013, dash color ,
OK… 2 min.FORD
focus 2012 ok. i do it with ford focus 2013- menu .. take about 1
minuteFord
Fiesta 2016 obd ok (1min)Ford fiesta 2012 red screen. obd
ok.Ford
Ranger 2016 work OK.Ford ranger 2016 mcu spc560 obdstar
x100 can do-Ford
Expedition 2011 year OK-ford focus 2015 mileage
OKJeep
Vehicles…test ok:2014
jeep Cherokee obd OKjeep grand cherokee 2012 done 3
today ok (it show me exact old mileage)jeep cherokee 2008 ok ( old mileage
is wrong ) but when you write it the mileage is
okJeep
compas 2008 cvt perfect work , 2 min.Jeep compass 2008 ok 30
secJeep
grand cherokee 2014 DASH BIG SCREEN ok LESS THEN 30
secondJeep
Grand Cherokee 2013 , perfect works 2 min aprox.Hyundai Nissan cars…test
ok:Hyundai tucson 2016 w renesas
okHyundai tucson 2016 w renesas
okHyundai elantra 2013 24c16
OK-Hyundai accent 2015 obd OK up to
1min jobNissan
Leaf 2015 Electric Car mileage correction ok via obd. select Altima and
okMazda
vehicles…test ok:Mazda
2 2012 OK …Mazda 2007
okMazda
3 2017, Read and Write OBD = OKMazda 3 2011 with red numbers by
Obd,.. okMazda
3 2012 ok date backup and miles correctionMazda 3. 2004. obd
ok.Mazda
3 on bench OKMazda 3 2008 to change dashboard,
program keys, align ECU<>dash, make eeprom backup, make odo
…OK-Mazda
3 skyactive 2015 perfect works, 2 min and km exactly, version obdstar other
models 30.57.Mazda 6
—AUTO—OKMazda
6 2005 okMazda
6 2010 ……………..ok-Mazda 6 2002
10secMazda
cx9 2010 ok (show old mileage)Mazda RX8 mileage correction ok via
obdMazda
CX7 2007 OBD Read & Write = OKMAZDA CXX
—AUTO—OKMazda
Damio 2010 mileage correction ok via obd. 93c56Fiat
cars… test ok:Fiat
500 2011 0.9 dualogic OKFiat
Qubo_2009;Fiat
Fiorino_2010;Fiat Doblò_ 2012 program dash-KM ok
are equal protocol. Programming do it fine.Fiat bravo 1.4 turbo jet 2012 abarth
, perfect work.Fiat albea ok with
obdstarFiat
Doblo 1,6 2011-OK-Fiat Punto 2013 , 95160 mileage
OKKia
vehicles… OKkia
rio 2016 D70F………….okkia rio 2015 D70F3423 OK about 1
minuteKia
Rio5. 2012. Done in a flashKia RIO 2016 ——
OKKia
rio 2015 obd okKia rio 2016, d70f..... perfect
works.Kia
Sportage R 2014 obd okKia Optima 2011 24c16
-OKOthers…test
okMaserati Quattroporte V 2004 ->
OBD = okPeugeot Boxer 2014 – miles
OKazera
grandeur 2013 okToday I did this car I20 via obd i
got exat km in the cluster .Dodge ram 2500 2005 dash
okCX5
2013 done in seconds via obd. Only thing was reading in miles instead of KM.
When programming need to input km in miles.Not ask ECU code for latest software
updateEngine
Hour remain the old value....-2013 audi s5 obd OK..
30min-VW
caddy 2013 nec+24c64 White, Reading eeprom, mileage 3
min.-chevrolet tahoe 2008 obd ok
2minute-Porsche Panamera GTS 2011-read,
write, change, backup- OK-Touran 2013 nec+24c64 color meter
mileage OK-Seat
ibiza 2012 NEC+24C64 mileage OK-Skoda Octavia 2010, version 31.13,
perfect works, 5 min aprox and 4 km difrence.-A 4L 2009, 5 min. went
fine.-Nissan Pathfinder (altima)
2015,24c16, perfect works! km exactly and 2 min aprox, other models
v30.57.-Touareg 2008
30sec-Chevrolet avalanche 2008 work like
a charm-Dodge
charger 2011read and write ok need about 4minutes to complete
job OBDSTAR X100 Pro
FAQ:Q1: Nissan
QashQai J11 2016 all key lost. It has Hitag-AES pcf7939 key. What tool to use?
X100 pro ok?A1: I
confirm ALL WENT SUCCESS with OBDSTAR X100pro. Much important INFO!: it must
have PRO in the name wink1 (that means you have ORI
tool).Q2:Can I
program a Mazda Demio sport 2007?A2:Yes,it
can.Q3:Can i
program a honda accord 2002 key?A3:Yes,it
can program Asia Accord 2002-2008.Q4:Can i
program us 2005 honda accord?A4:Yes,it
can.Q5:Where
is this product being shipped from?A5:From
China.Q6:Can i
program a volkswagon passat 2005?A6:Yes,you
can.Q7:Can i
program 2001 toyota avalon (us version)?A7:Sorry,it
can'tQ8:Can i
programing ford transit 2013 key (lost key)A8:It
will not program Ford vehicles OBDSTAR X100 Pro Packing

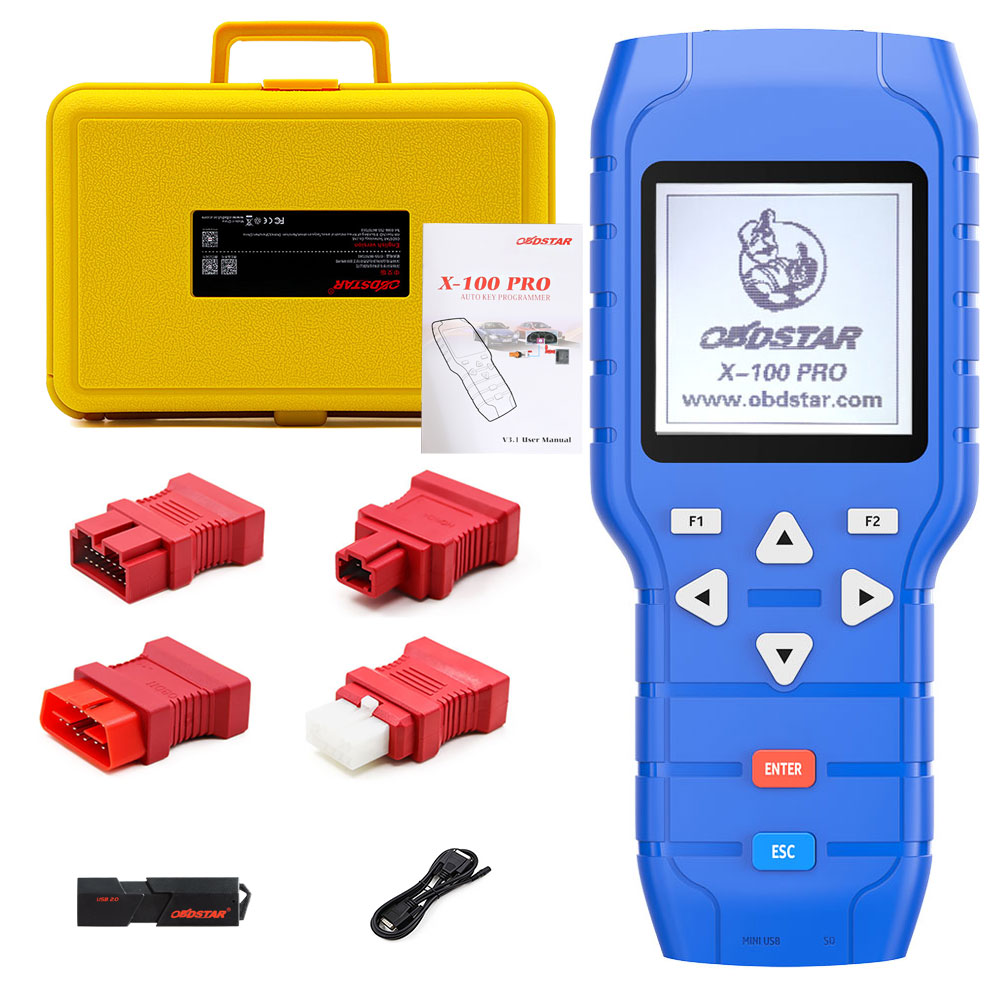

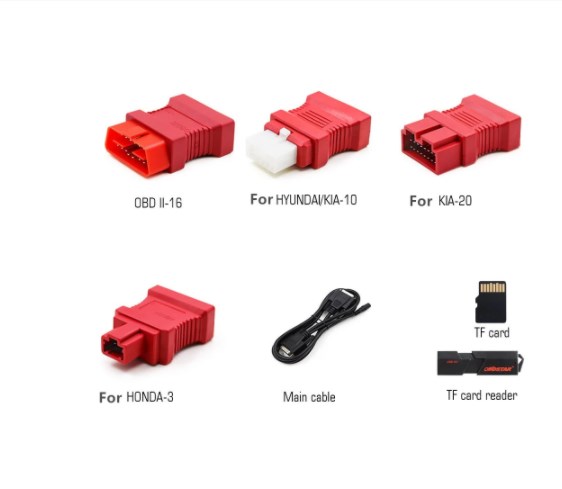

List:
1pc x X-100 RPO Main
Unit
1pc x OBDII-16
Connector
1pc x for
HONDA-3 Connector
1pc x for HYUNDAI/KIA-10
Connector
1pc x for
KIA-20 Connector
1pc
x Main Cable
1pc x
TF Card
1pc x TF
Card Reader
1pc x
X-100 PRO User’s
Manual
