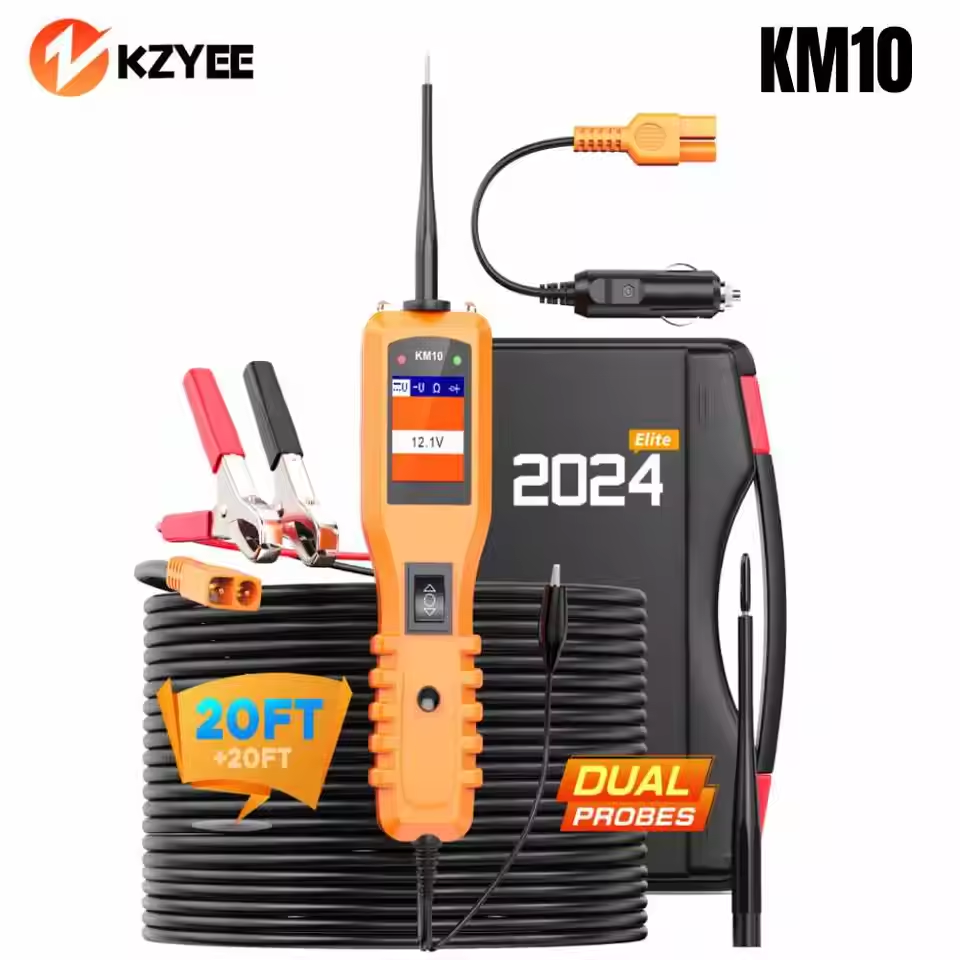

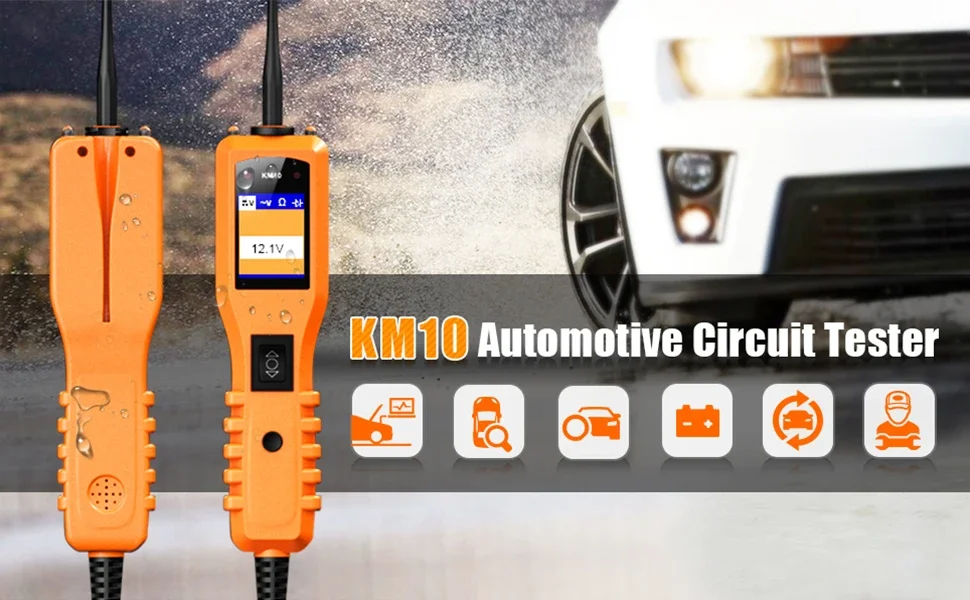

KZYEE KM10 Car Battery Tester 12V/24V Power Probe Circuit Tester Kit Electrical Integrated Activate Component Diagnostic Tool

The KM10 power scan kit is the most revolutionary circuit tester to date, featuring AVOmeter, test light , built -in flashlight , short circuit indicator , relay/component tester , continuity tester and bad groud indicator , the power scan is truly the ultimate in power and affordablity , allowing users to check circuitry in one single step . an absolute must for every technician looking for a fast and accurate solution to electrical systems diagnostics.

Feature:

1 Voltage & Polarity Testing

2 Continuity Testing

3 Signal Circuit Testing

4 Activating Components in Your Hand

5 Activating Components in The Vehicle

6 Testing Trailer Lights and Connections

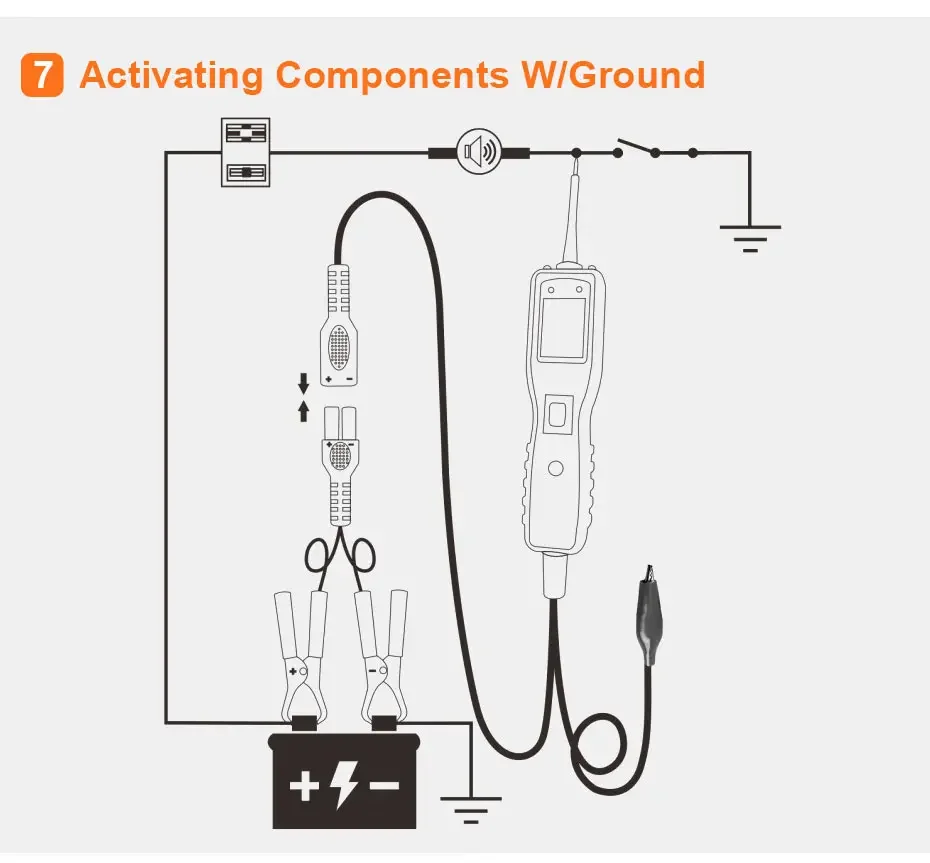

7 Activating Components W/Ground

8 Red/Green Polarity LED

9 Following & Locating Short Circuits

10 Checking for Bad Ground Contacts

Function:

01. Perform these functions: power injection, measuring, ground testing, polarity checking, continuity testing and component activation.

02. Read the AVO meter, voltage, current, and resistance easily.

03. Press the power switch lightly and get the instant heat ground lead to energize the electrical components, such as the cooling fan, relay etc.

04. Activate the components by using the hot wire and ground lead simultaneously.

05. Determine the positive, negative and open circuit quickly.

06. Test the bad ground contacts quickly, follow and locate short circuits without wasting the fuse.

07. Test the continuity of the power switch, relay and diode quickly.

08. Protect the tool from overload through the inner circuit breaker.

09. Allow you to work in the dark area by using the built-in head light.

10. Operate the tool without looking at the menu once users are familiar with the tone. 20ft(extendable)cable provides excellent practicability to test along the vehicle.

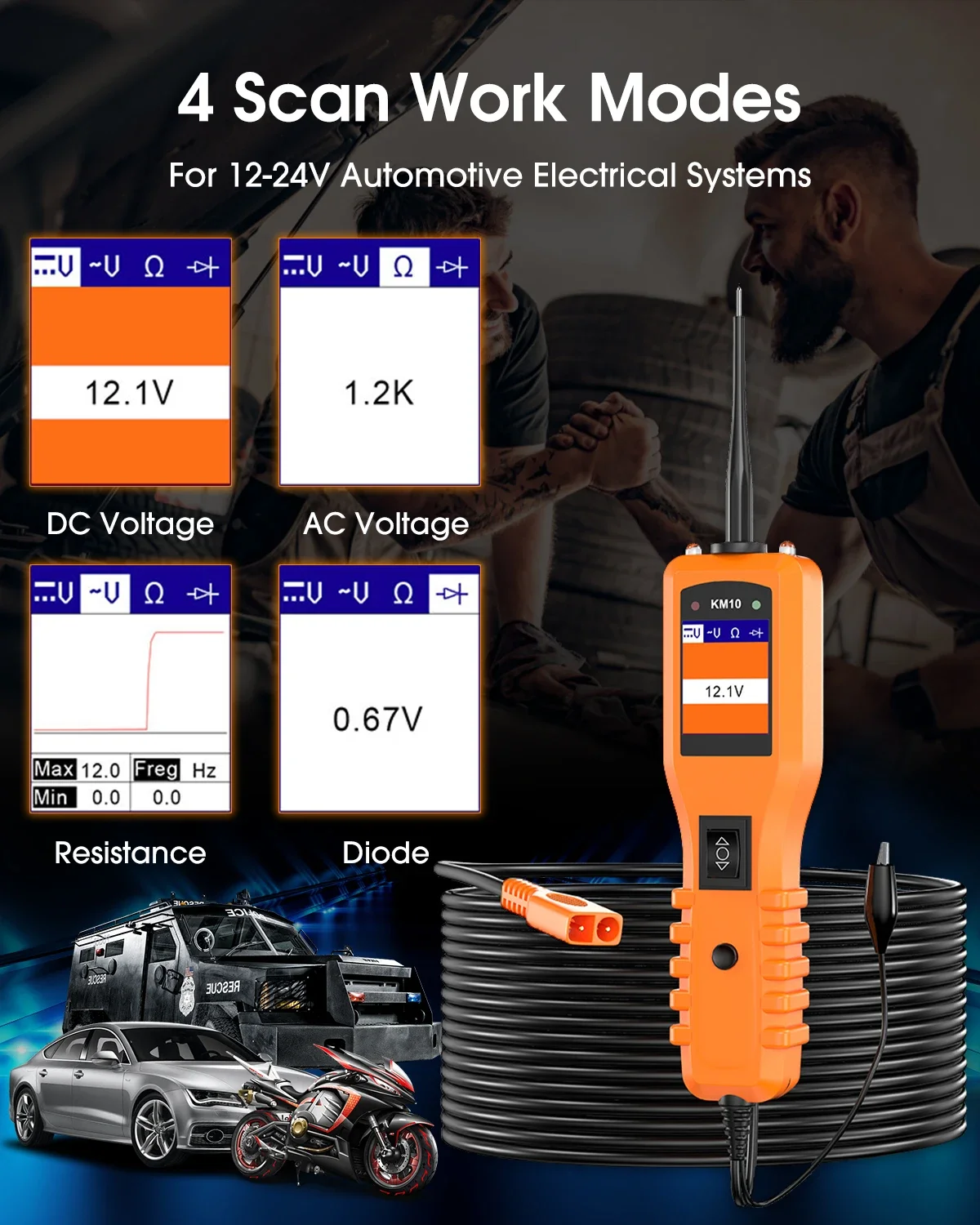

1. Work mode

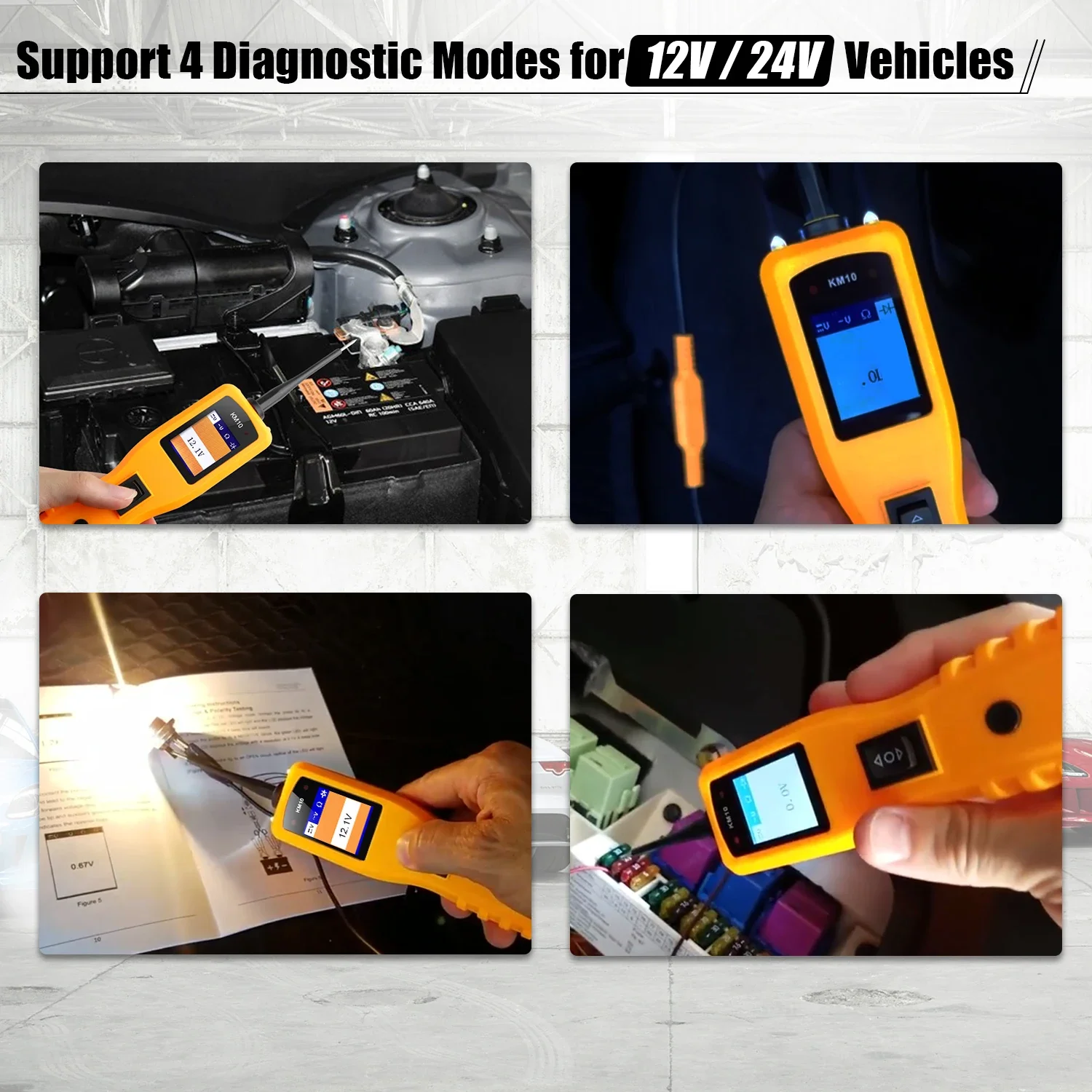

There are four modes to diagnose the electrical systems, which can be accessed by depressing the Mode Button and cycling through each one.

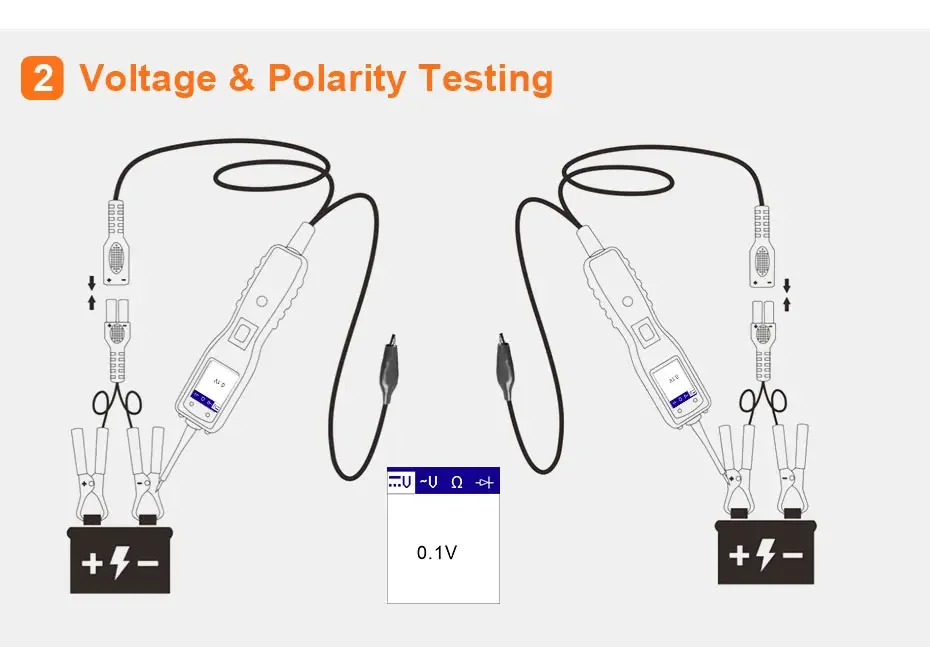

2. Voltage & Polarity Testing

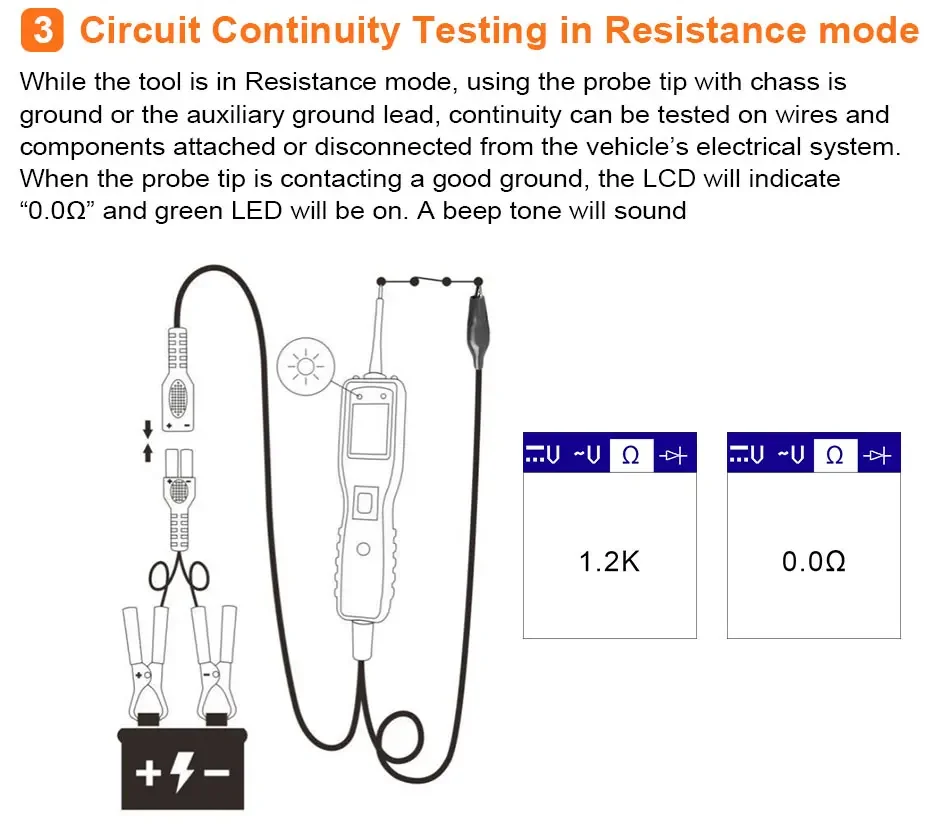

3. Circuit Continuity Testing in Resistance mode

While the tool is in Resistance mode, using the probe tip with chass is ground or the auxiliary ground lead, continuity can be tested on wires and components attached or disconnected from the vehicle S electrical system. When the probe tip is contacting a good ground, the LCD will indicate“0.0Q”and green LED will be on. A beep tone will sound

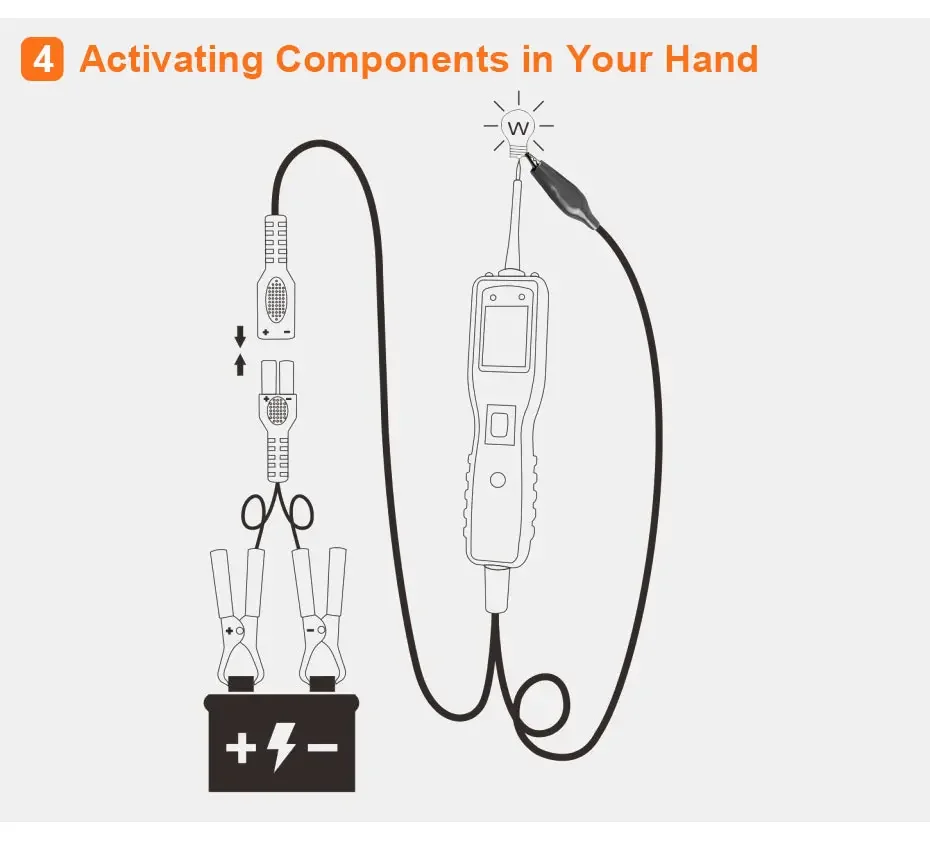

4. Activating Components in Your Hand

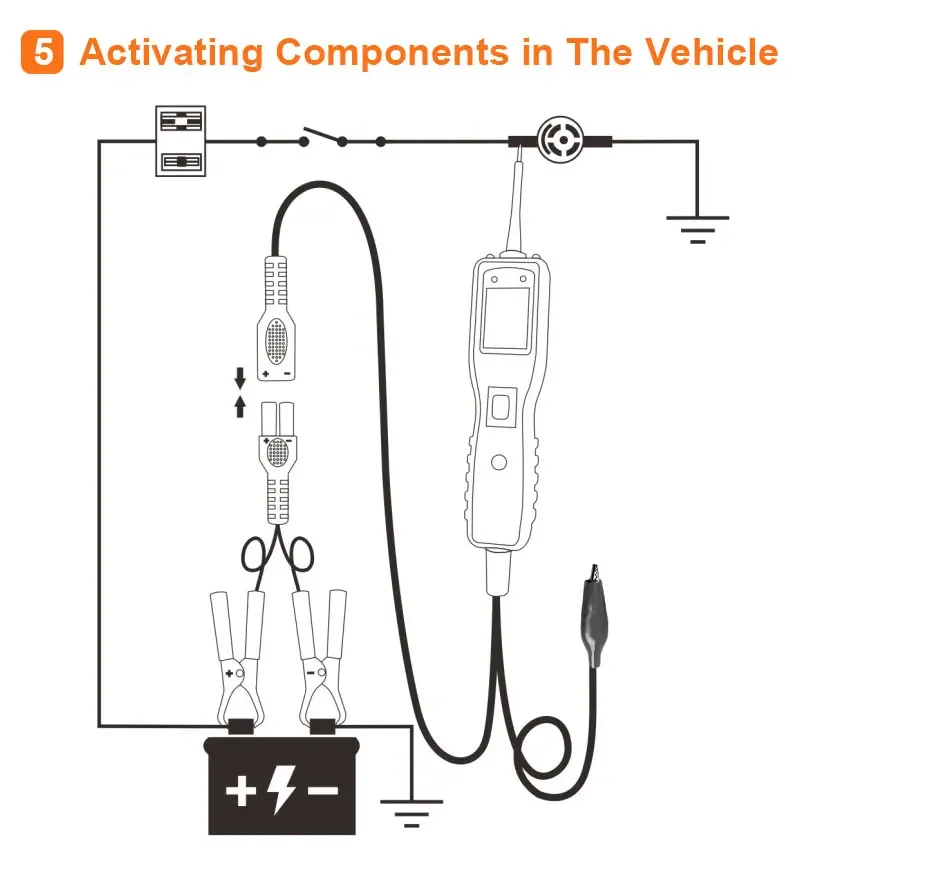

5. Activating Components in The Vehicle

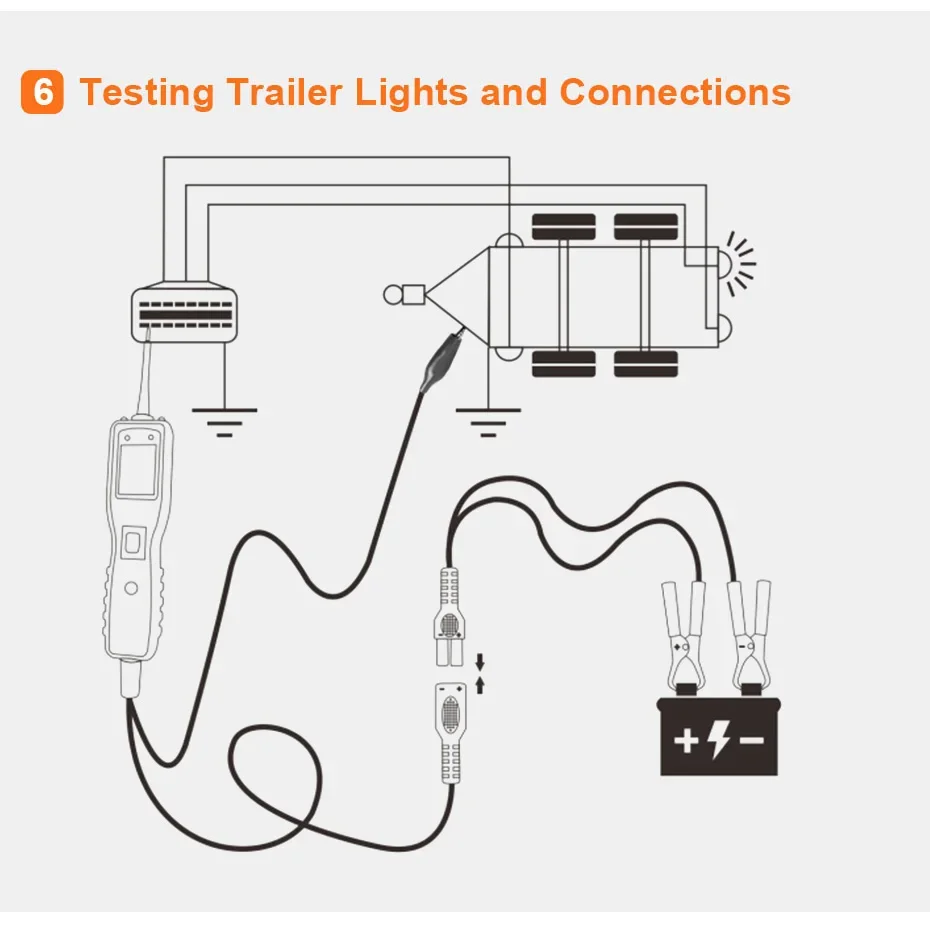

6. Testing Trailer Lights and Connections

7. Testing Trailer Lights and Connections

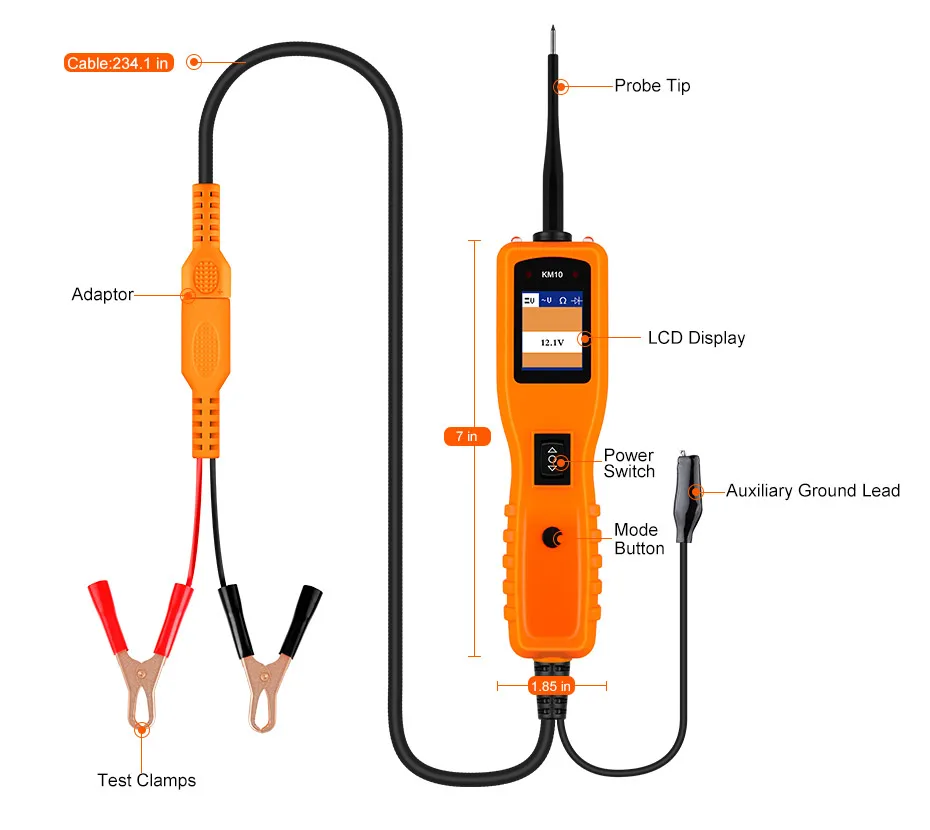

20FT EXTANSION CABLE

Comparison Between KZYEE KM10 and KM50:

KM10 Electrical System Circuit Tester Specifications:

Display: TFT color display (160*128dpi)

Operating Temperature: 0 to 60 (32 to 140)

External Power: 12 or 24V DC power provided via vehicle battery

DC voltage range: 0-65V +1digit

Resistance range: 0-100 kΩ

Frequency response of tone pass through 0Hz to 10Khz.

Circuit Breaker

Rating current: 1-10 Amp

Testing Standard:
100% current: Hold > 1 hour
150% current: trip in one hour
200% current: trip in 3-30 seconds.
300% current: trip in 0.5-4.0 seconds

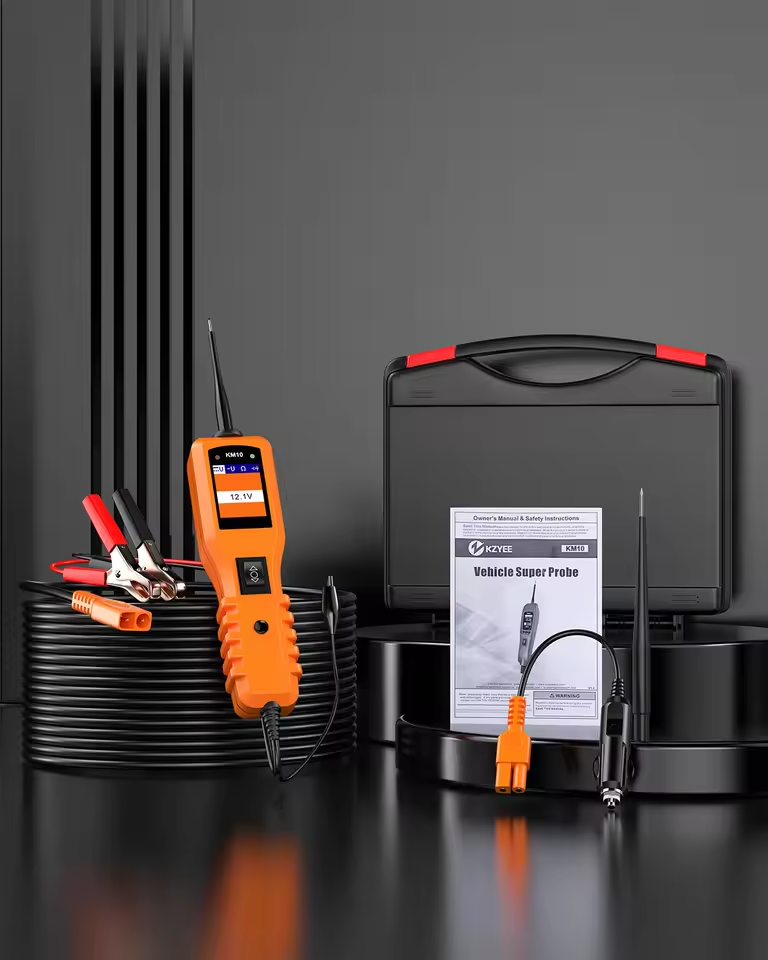

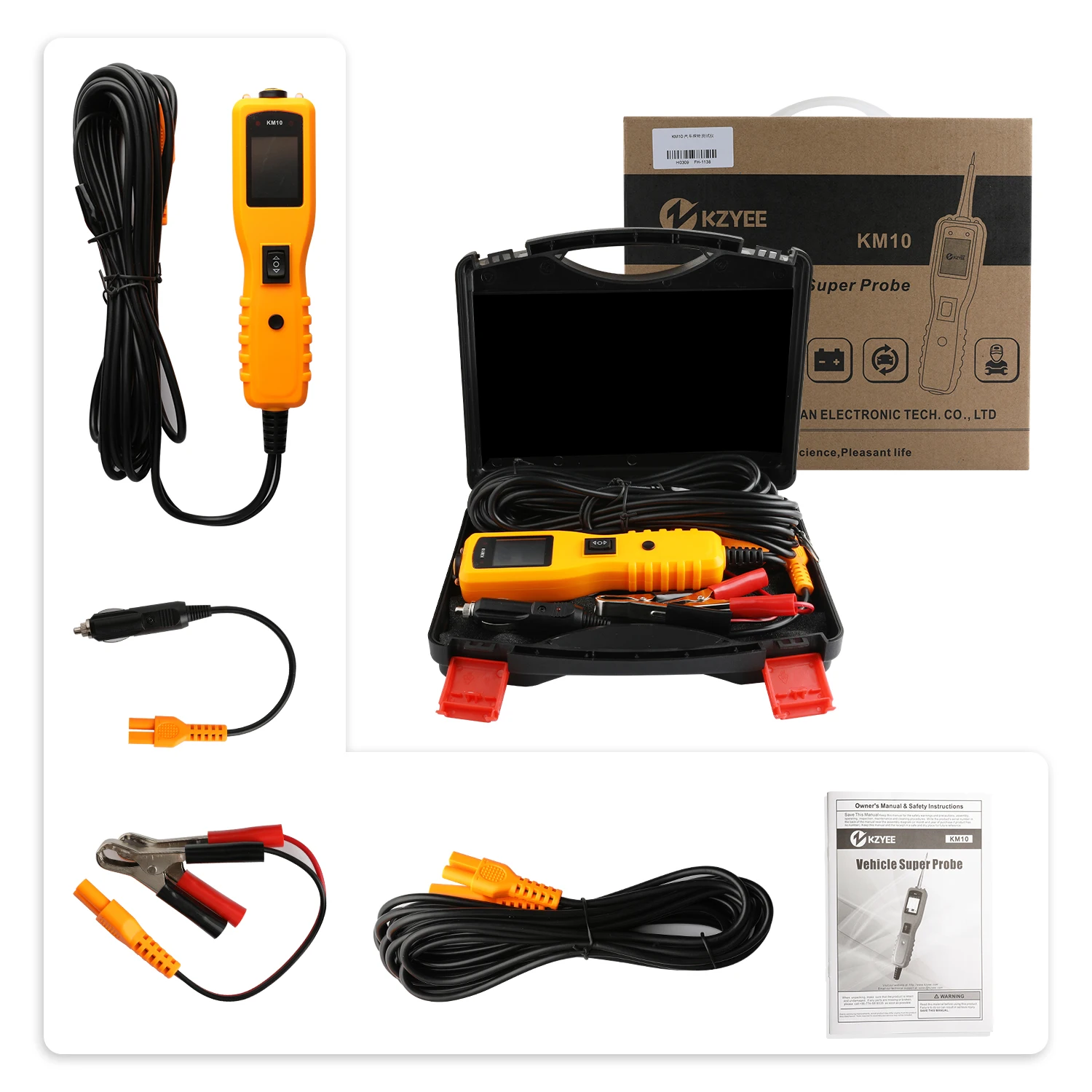

Package Including:

1 × KM10 Main Unit
1 × Rugged Blow Molded Case
1 × 20ft. Extension Cable
1 × Probe Tip
1 × Battery Hookup Clips
1 × Cigarette Lighter Adapter
1 × User Manual
