Wabco EBS ISO 7638 Adapter 7pin Trailer OBD2 Diagnostic Cable Connector for Bosch/Autel/Autocom/LUANCH Truck OBDII Diagnostic Cable

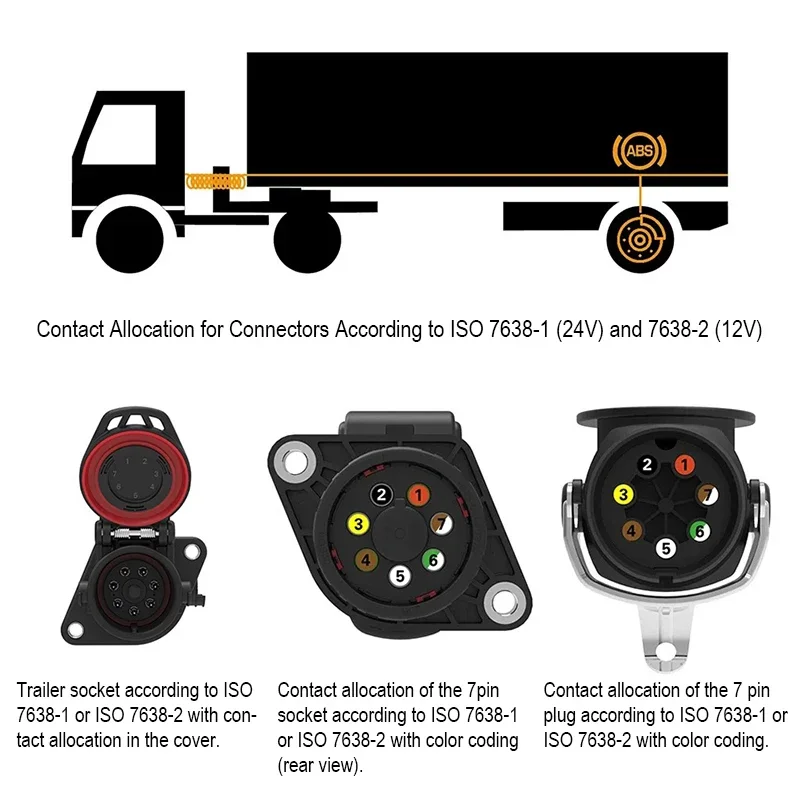

The first edition of the standard ISO 7638 was issued in 1985. Its purpose was to create a standardized system for the transfer of signals regarding the anti-lock braking system (ABS) from towing vehicles to heavy trailers. In 1997, the standard was split into two parts with ISO 7638-1 covering 24V systems and ISO 7638-2 covering 12V systems. The next review was issued in 2003. It updated the previous edition concenring requirements for the connection of running gear. The latest version of the two-part standard is from 2018.

Description:

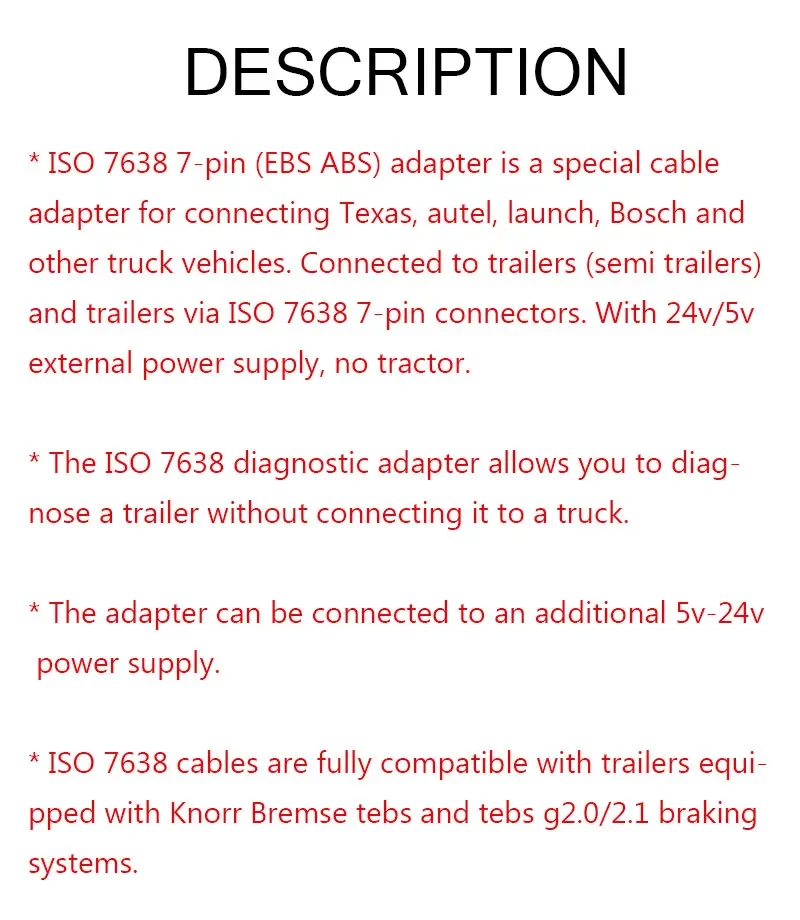

1. ISO 7638 7-pin (EBS ABS) adapter is a special cable adapter for connecting for Bosch,for autel, for launch,for Autocom and other truck vehicles. Connected to trailers (semi trailers) and trailers via ISO 7638 7-pin connectors. With 24v/5v external power supply, no tractor.(NOTE:Do not supported by Delphi systems.)

2. The ISO 7638 diagnostic adapter allows you to diagnose a trailer without connecting it to a truck.

3. The adapter can be connected to an additional 5v-24v power supply.

4. ISO 7638 cables are fully compatible with trailers equipped with Knorr Bremse tebs and tebs g2.0/2.1 braking systems.

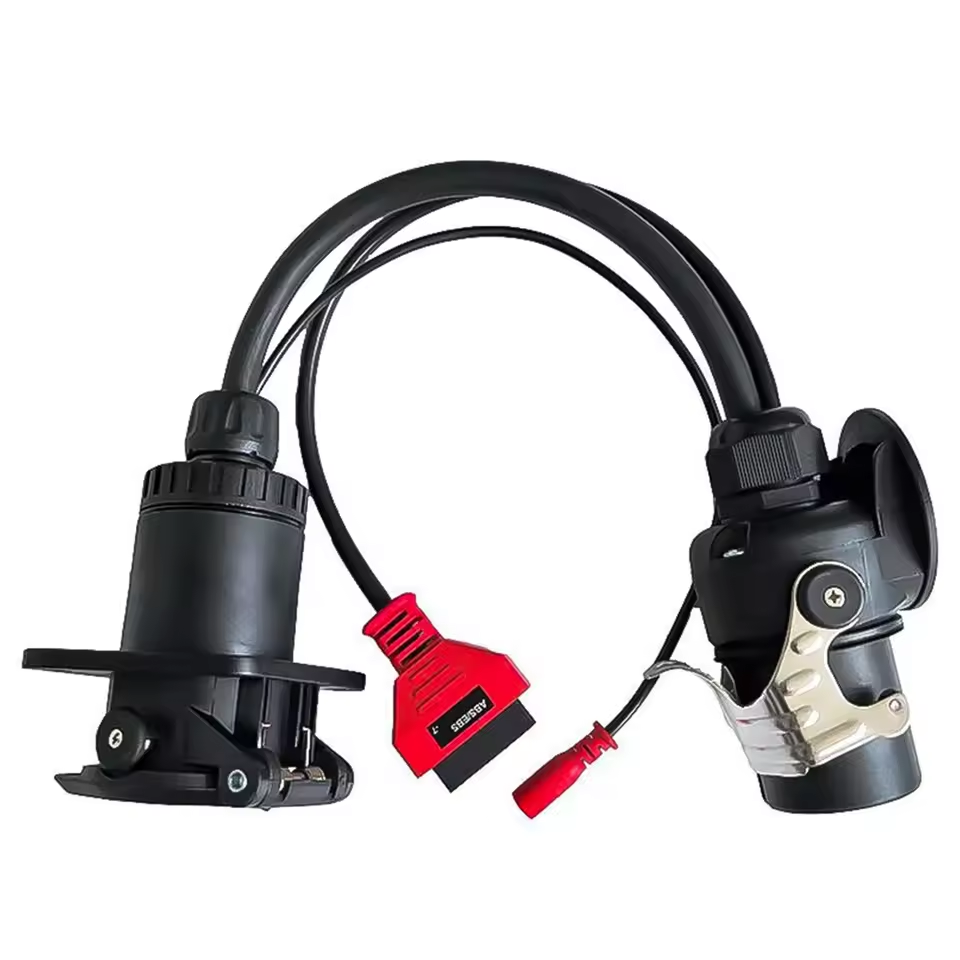

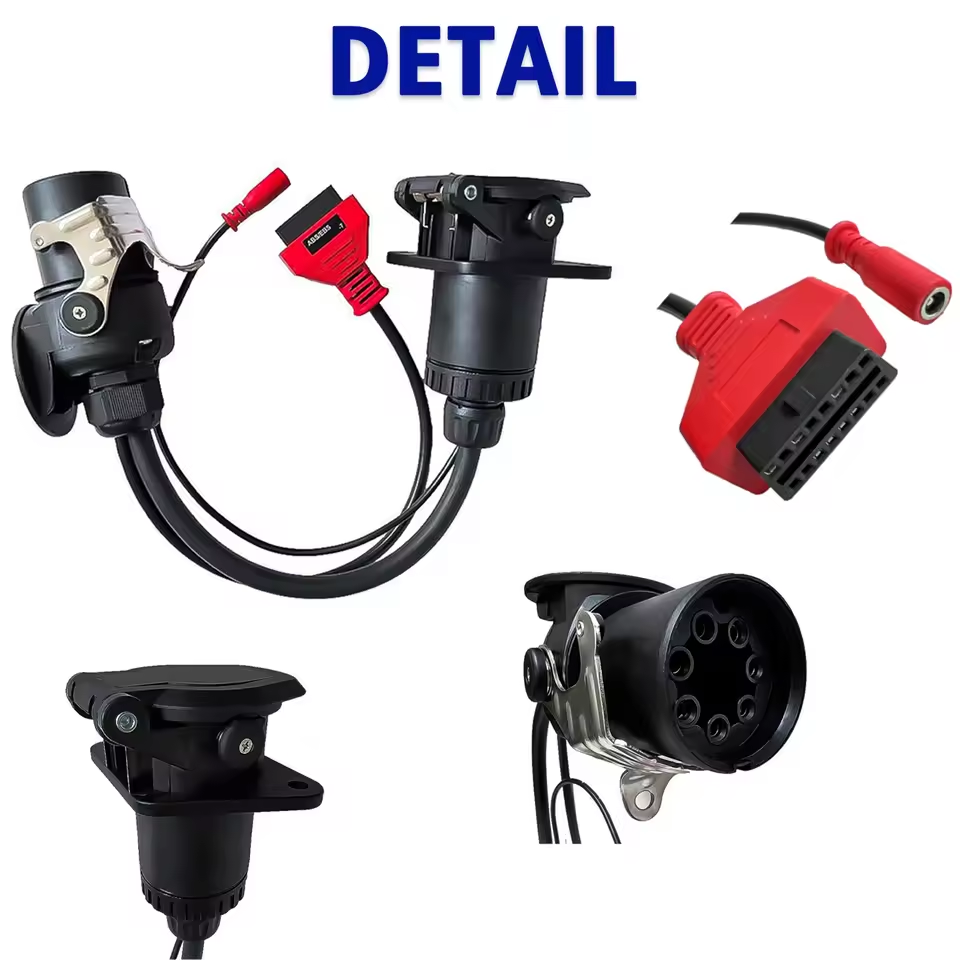

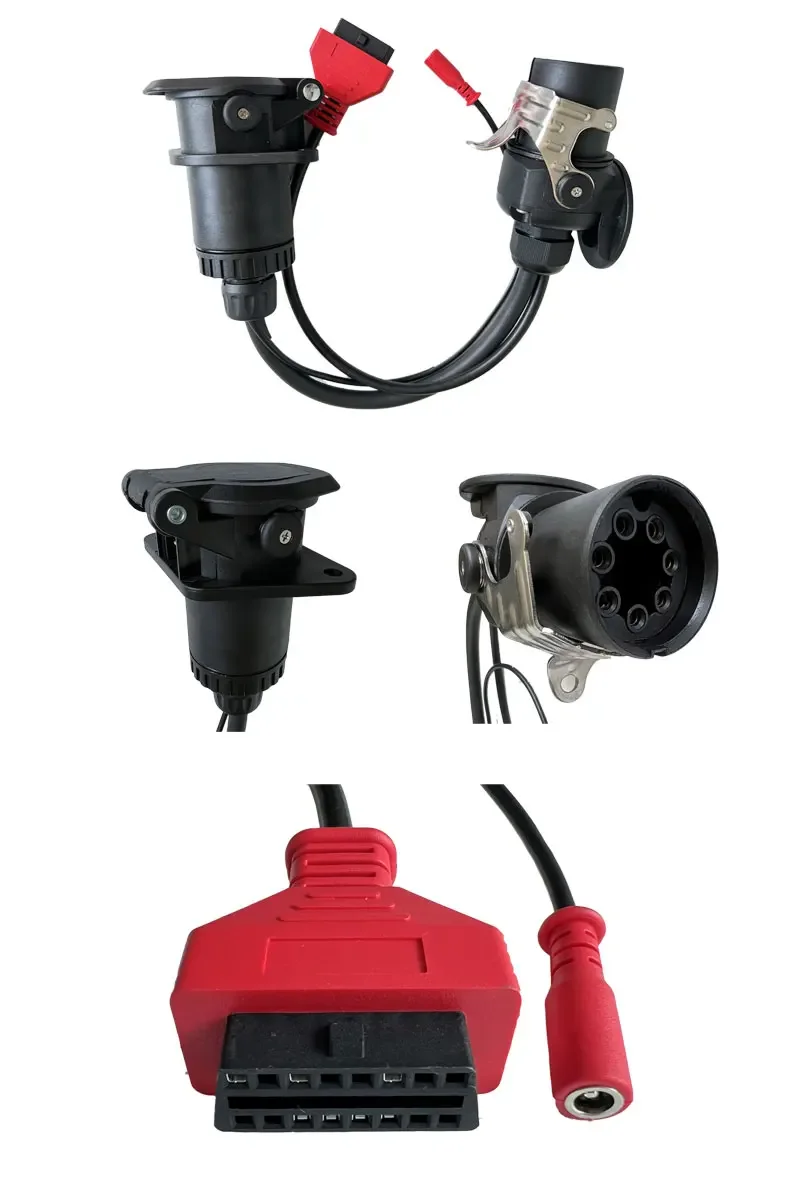

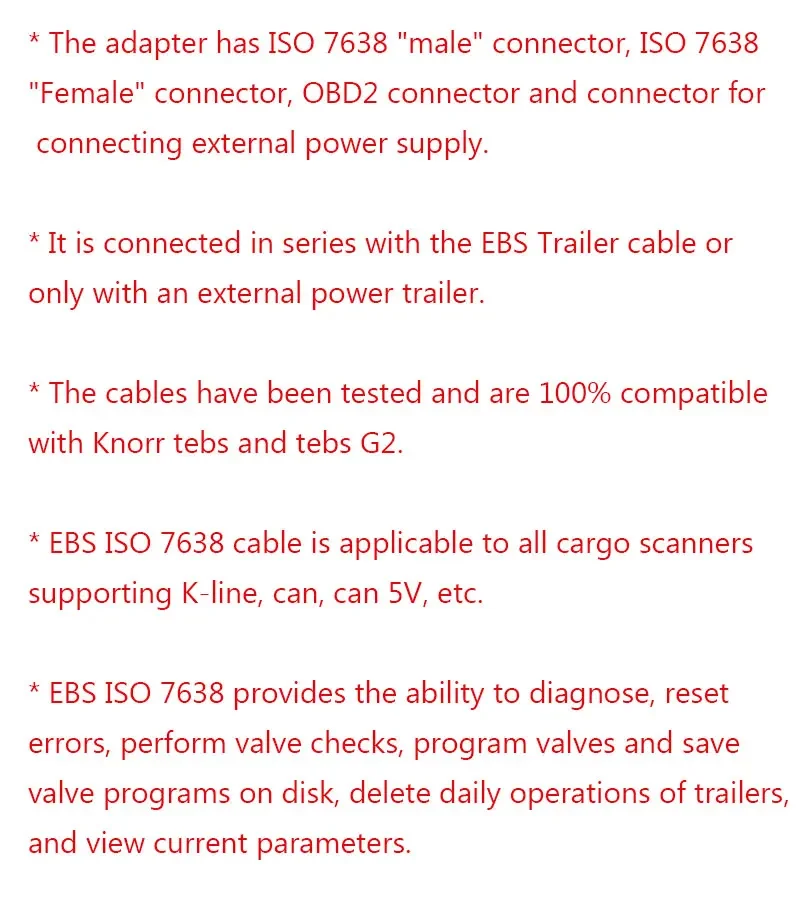

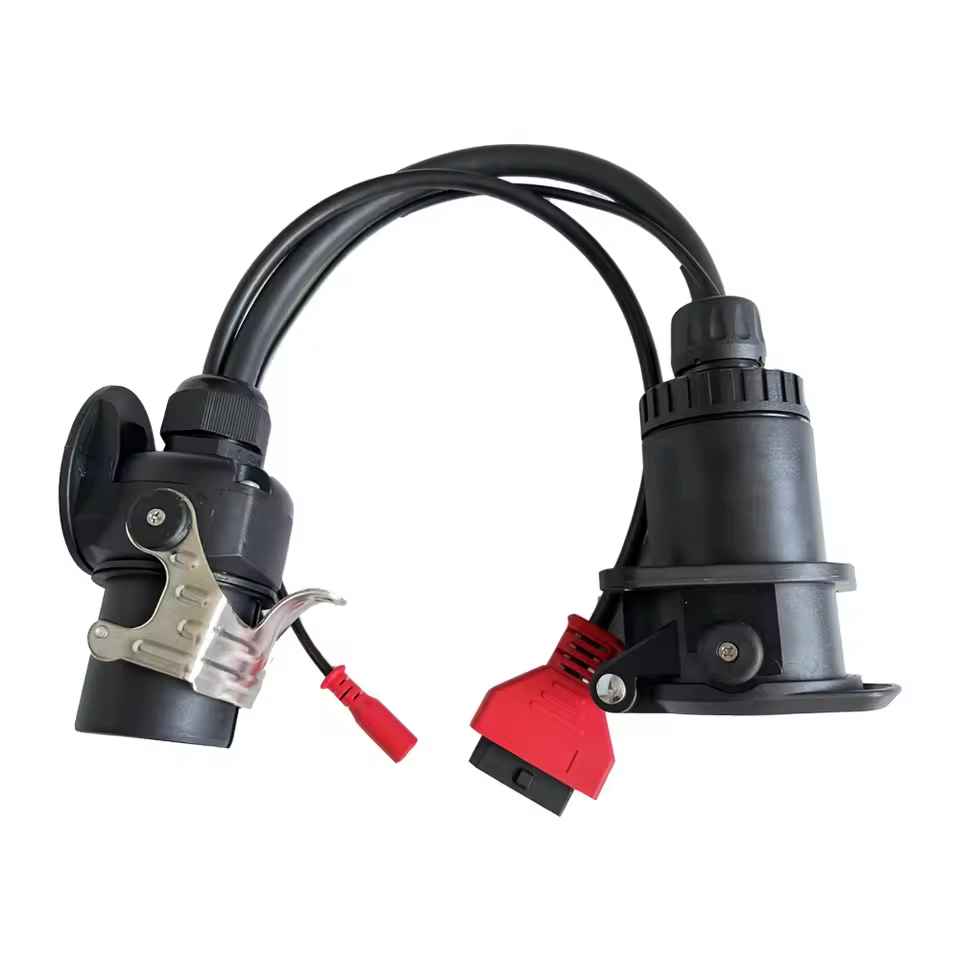

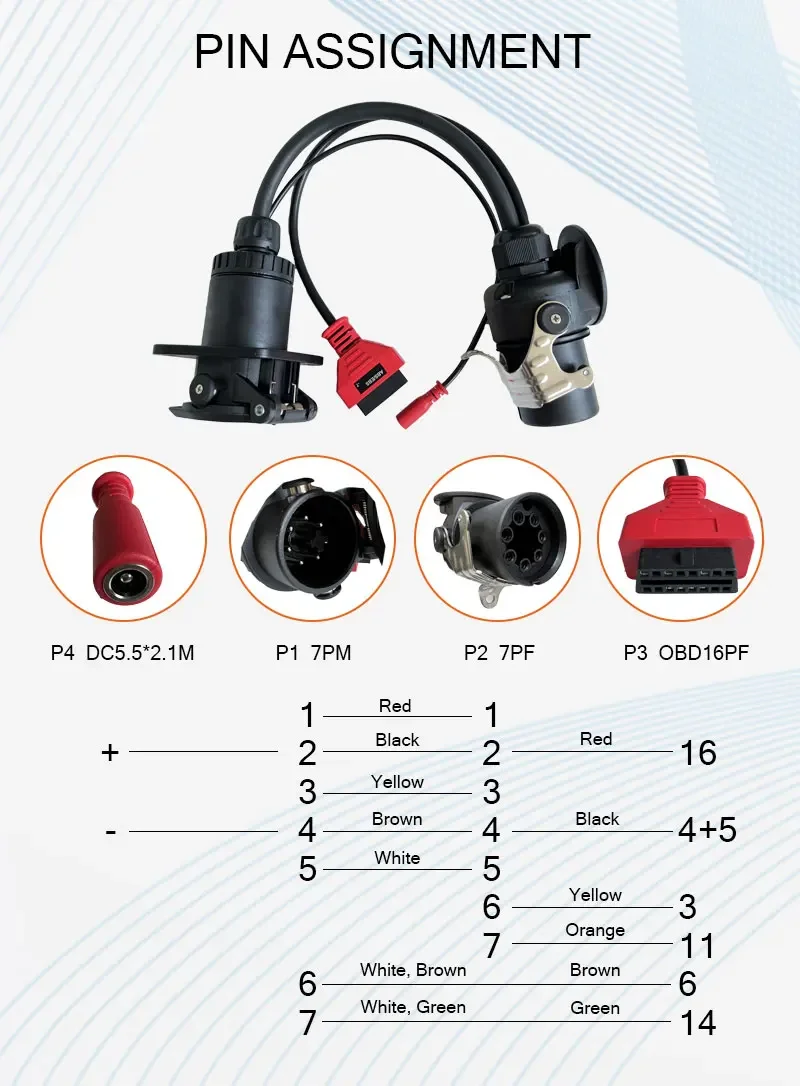

5. The adapter has ISO 7638 "male" connector, ISO 7638 "Female" connector, OBD2 connector and connector for connecting external power supply.

6. It is connected in series with the EBS Trailer cable or only with an external power trailer.

7. The cables have been tested and are 100% compatible with Knorr tebs and tebs G2.

8. EBS ISO 7638 cable is applicable to all cargo scanners supporting K-line, can, can 5V, etc.

9. EBS ISO 7638 provides the ability to diagnose, reset errors, perform valve checks, program valves and save valve programs on disk, delete daily operations of trailers, and view current parameters.
