2025.02 KOBELCO Excavator Diagnostic Tool For Hino Communication Adapter Diagnostic tools 09993-E9070 With Hino DX3 V1.25.2 Software Plus Plus Panasonic FZ-G1 Tablet Ready To Use

Description

1. Part name : for Hino engine diagnostic explorer with full function& full customization capability

2. Applicable model : KObel SK-8 series , such as SK200-8 SK210-8 SK260-8 SK335-8...

3. Software version: V3.1.6

4. Condition: 100% brand new

(1)Diagnostic explorer

The diagnostic explorer is a tool equipped with all the functions needed to diagnose trouble, check functions, and configure the settings of the electronic systems built into engines.

(2)Main Functions

Acquires and deletes trouble data.

Links diagnostic trouble codes read from the ECU to corresponding diagnostic work flow sequences and directly displays the required data.

Obtains sensor conditions from the vehicle when trouble occurs (Freeze Frame function).

Monitors the sensors and actuators equipped on the engine (Data Monitor function) and tests the operation of solenoid valves by forcefully operating them (Active Test function).

Simulates diagnostic work with only a PC(Simulation function).

Automatically saves fetched ECU data and analyzes trouble based on the saved data even when the cause of trouble cannot be grasped.

(3) Aisin Transmission data viewing and diagnostics-2001-2007 Model Years

Display and Clear Diagnostic Codes

Display live data for diagnosis
Display and Clear Diagnostic Codes

Display live data for diagnosis

(4) J05 & J08 Engine data viewing and diagnostics 2005-2008 Model Years

Display and Clear Diagnostic Codes

Display live data for diagnosis-Specific data can be selected

(5) Full Customization Capability

Turn on Engine Protection Shutdown System

Set Maximum Vehicle Speed

Set Maximum Cruise Control Speed

Set PTO idle speeds fixed and variable

Change Injector Calibration QR Code when replacing injectors

Supply Pump relearning when replacing SCV or supply pump

Complete DPF testing and regeneration capabillity

Built in Help Menus for troubleshooting specific diagnostics

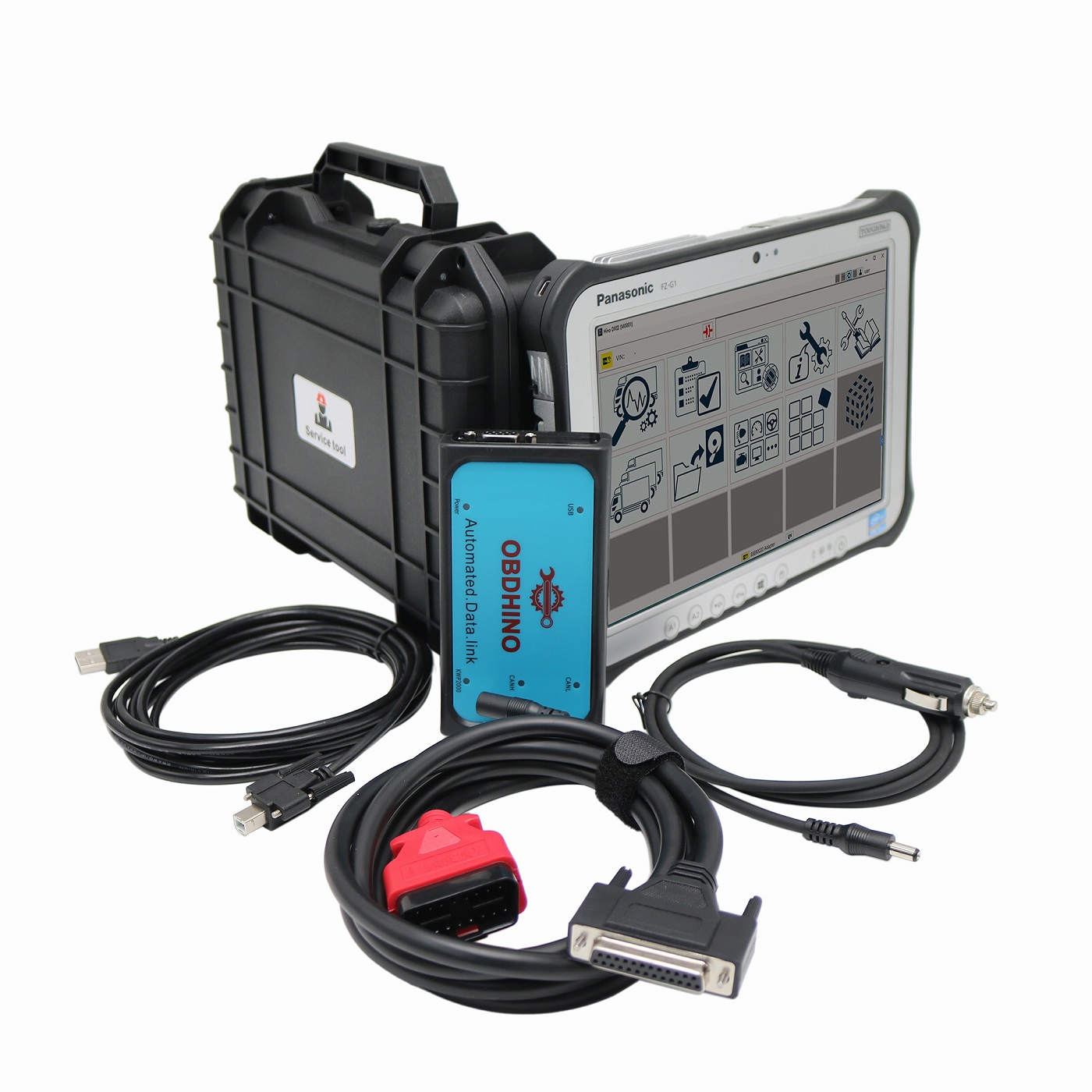

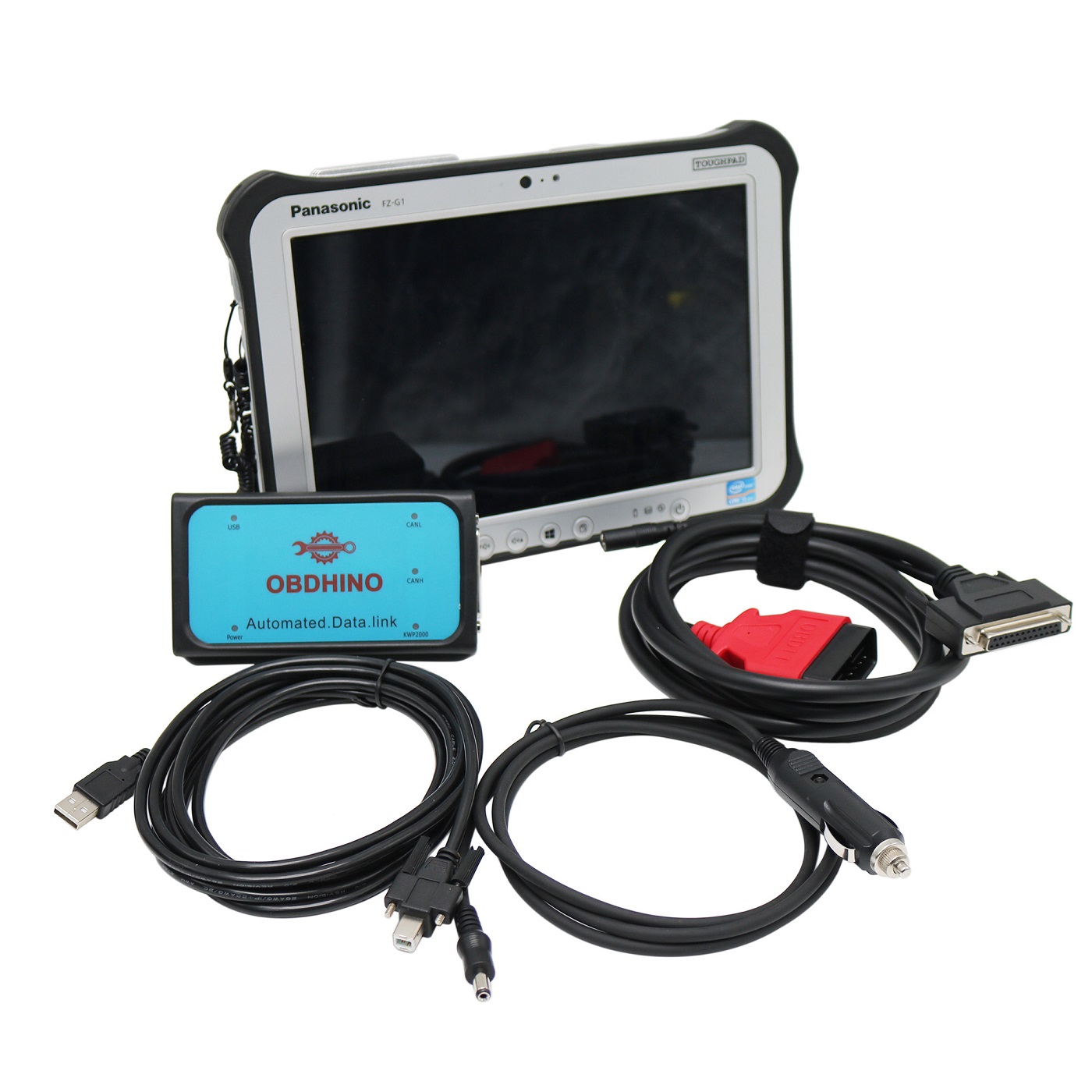

Second Hand Panasonic FZ-G1 Configuration:

10.1" HD Screen
Intel Core i5-3437U Processor
8GB Memory
256G M2 Disk
Windows 10 Pro (Refurbished)
Wifi
Display Resolution Maximum 1280 x 800

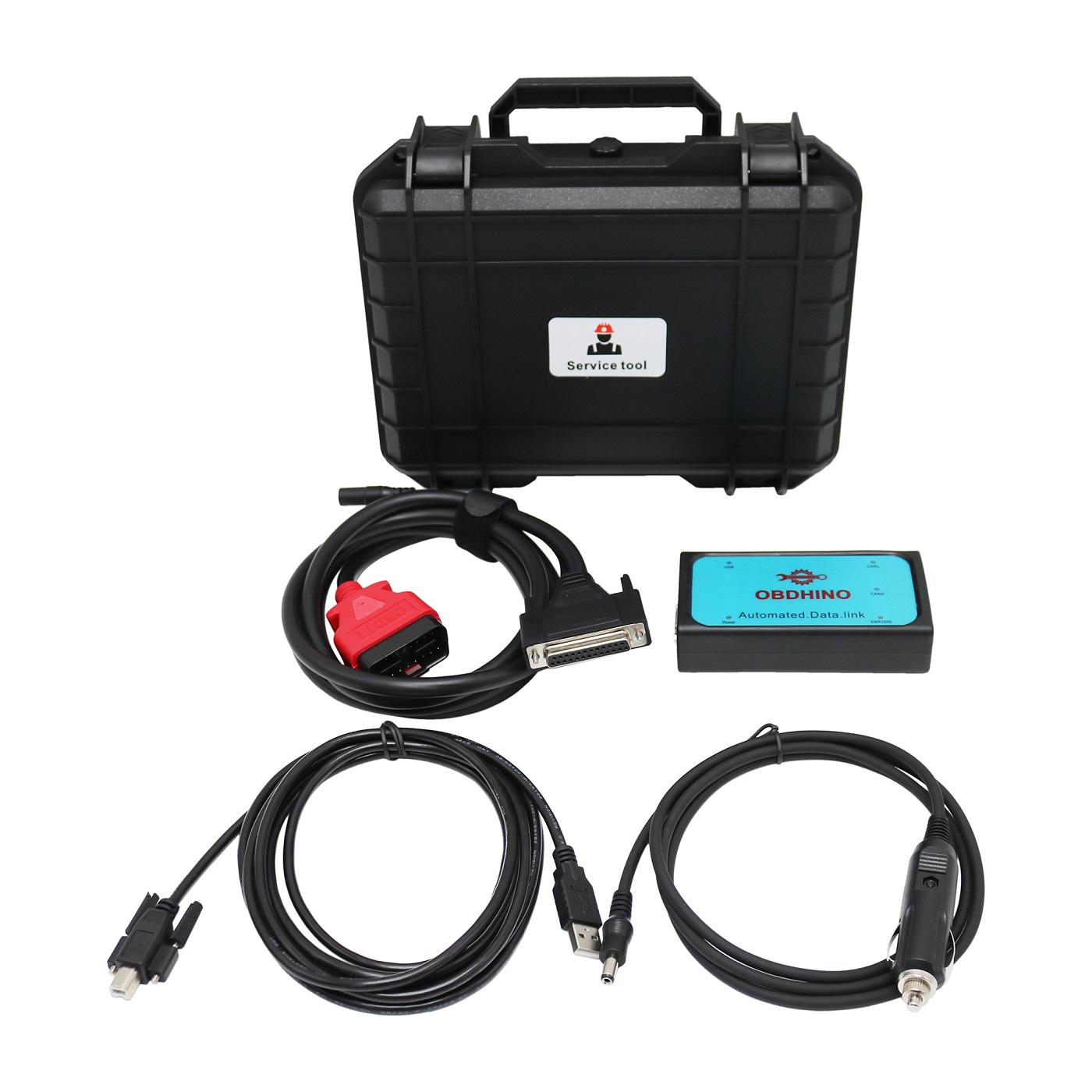

Packing list :

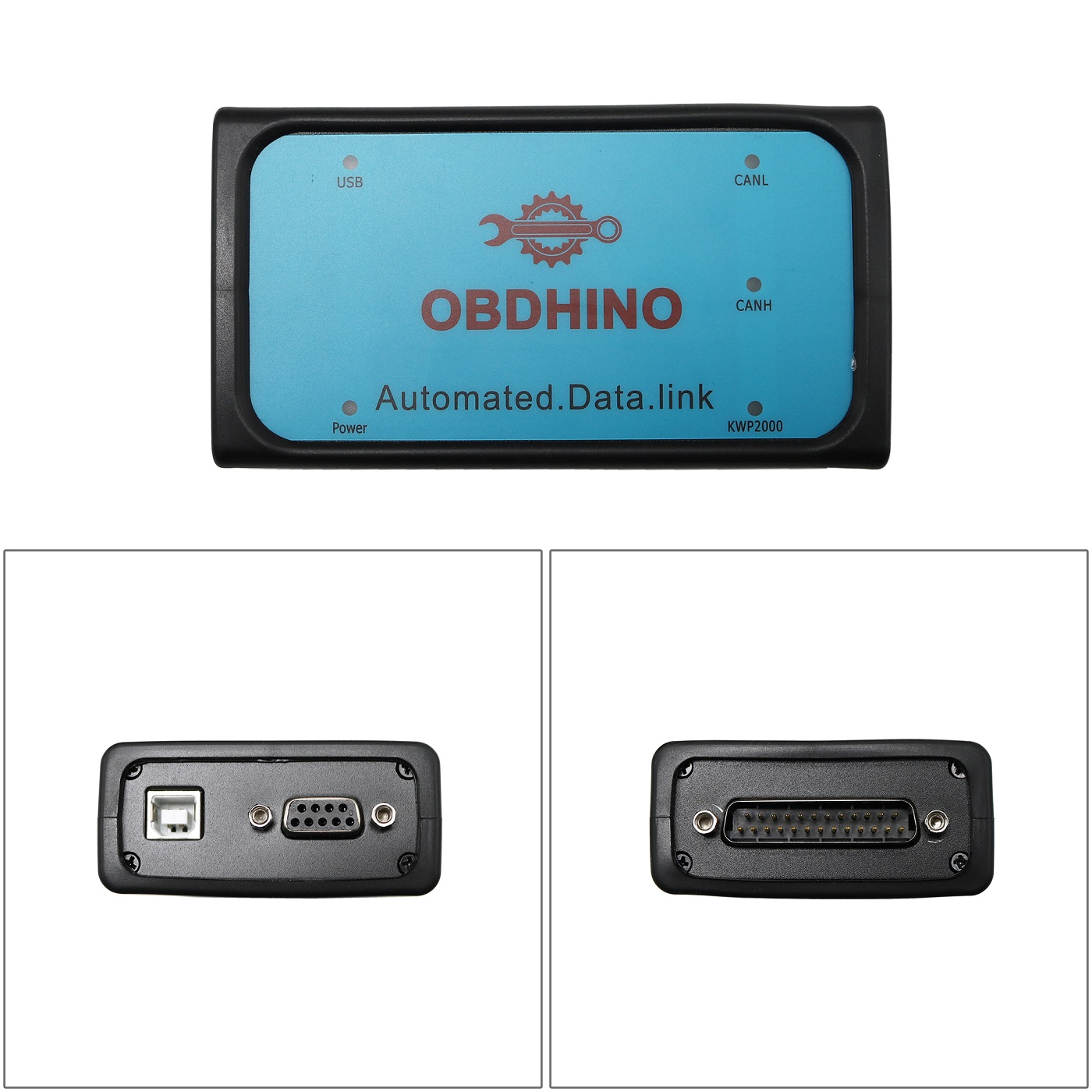

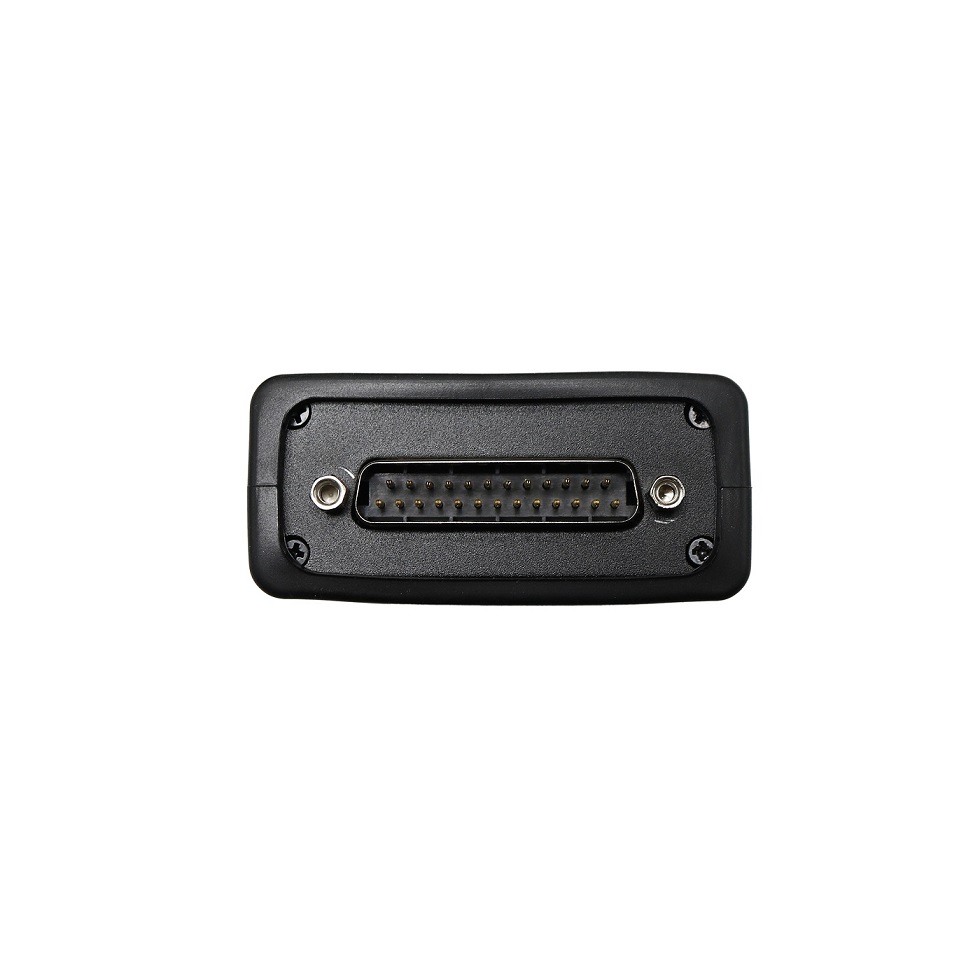

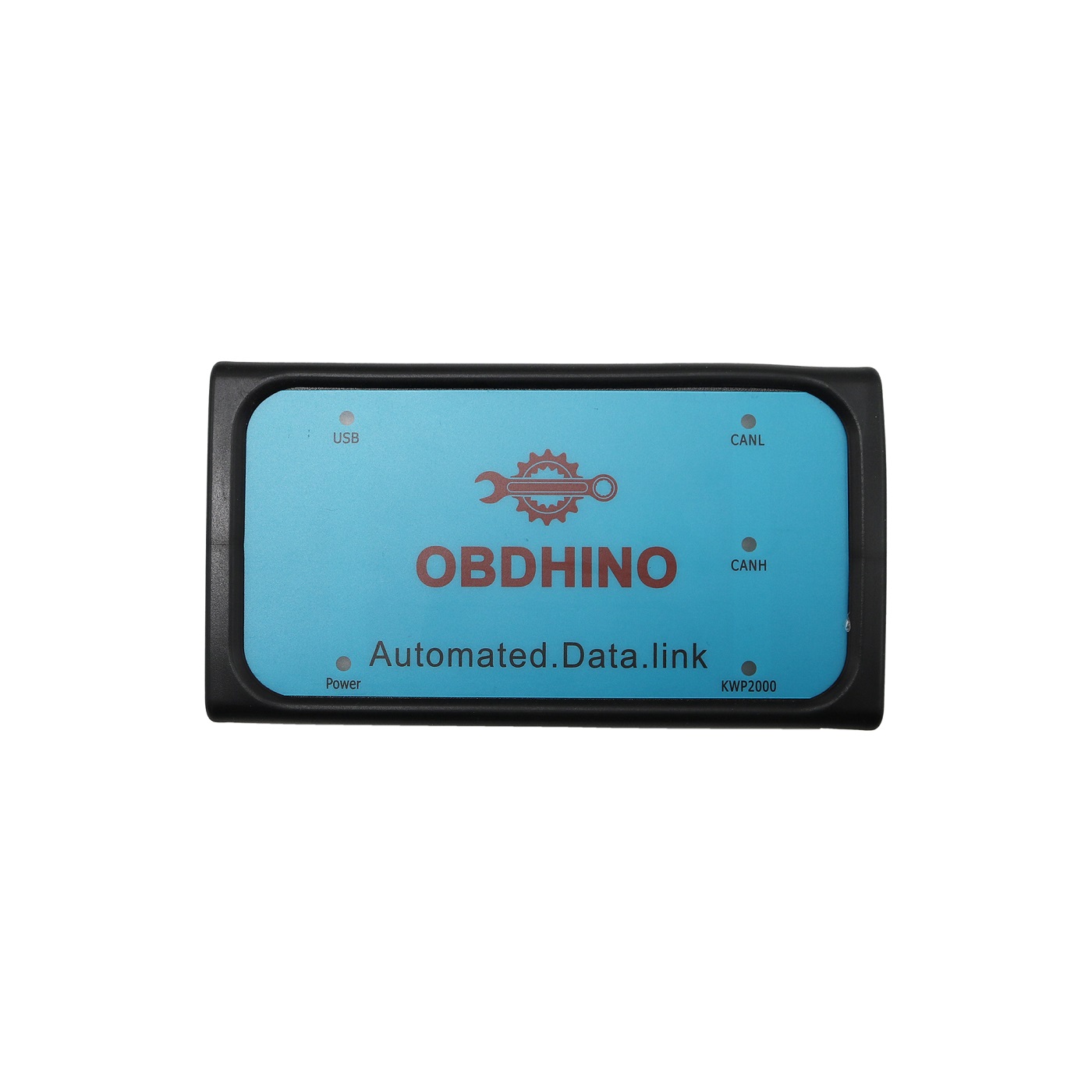

Diagnositc Interface

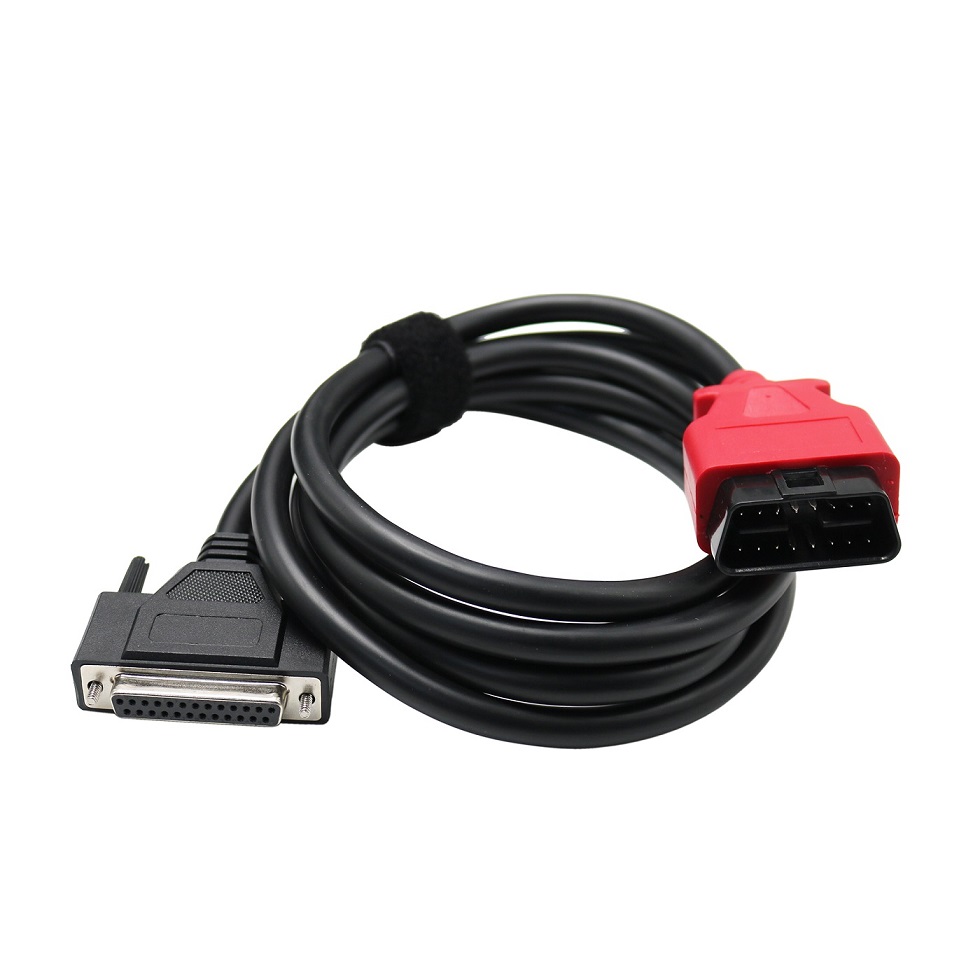

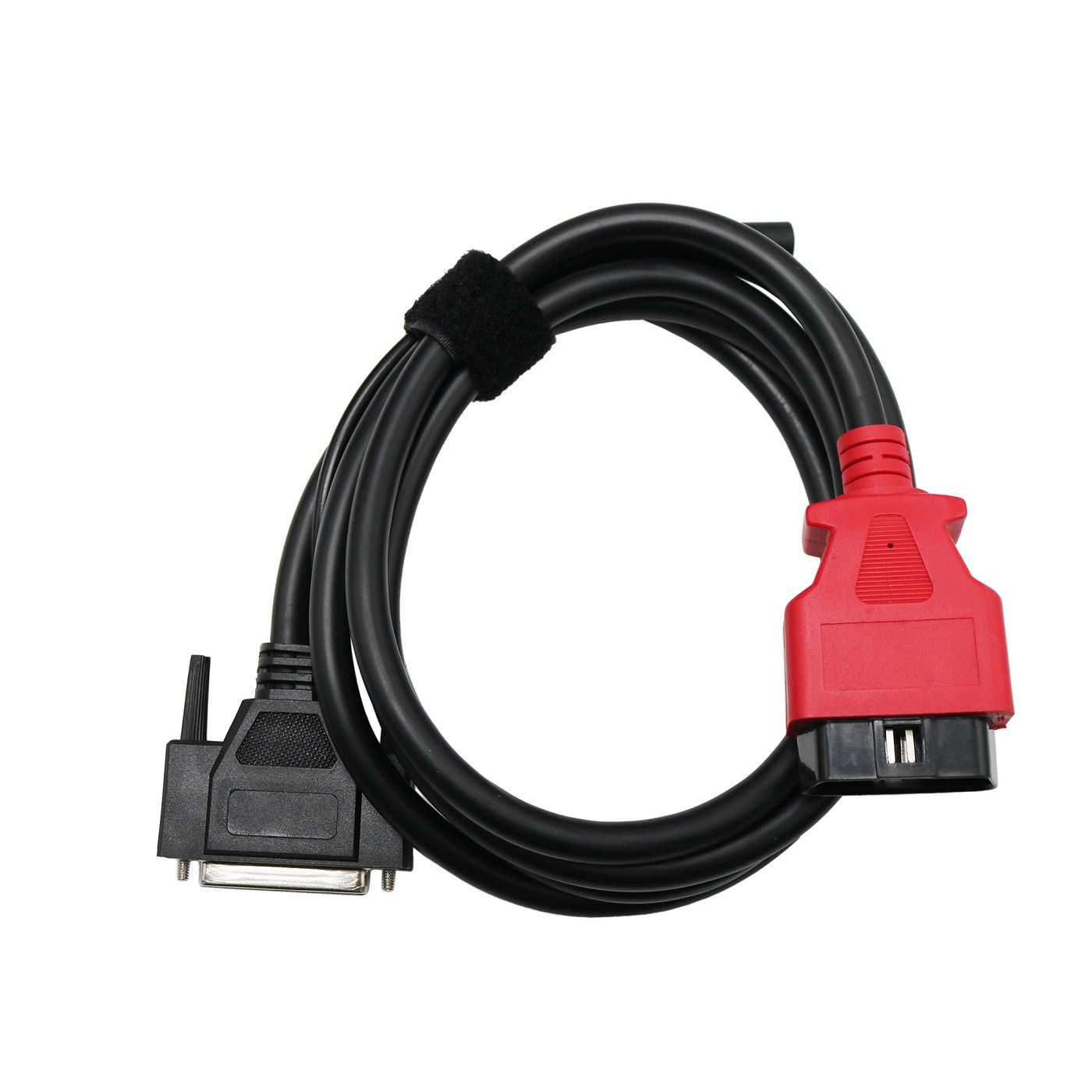

OBDII Cable

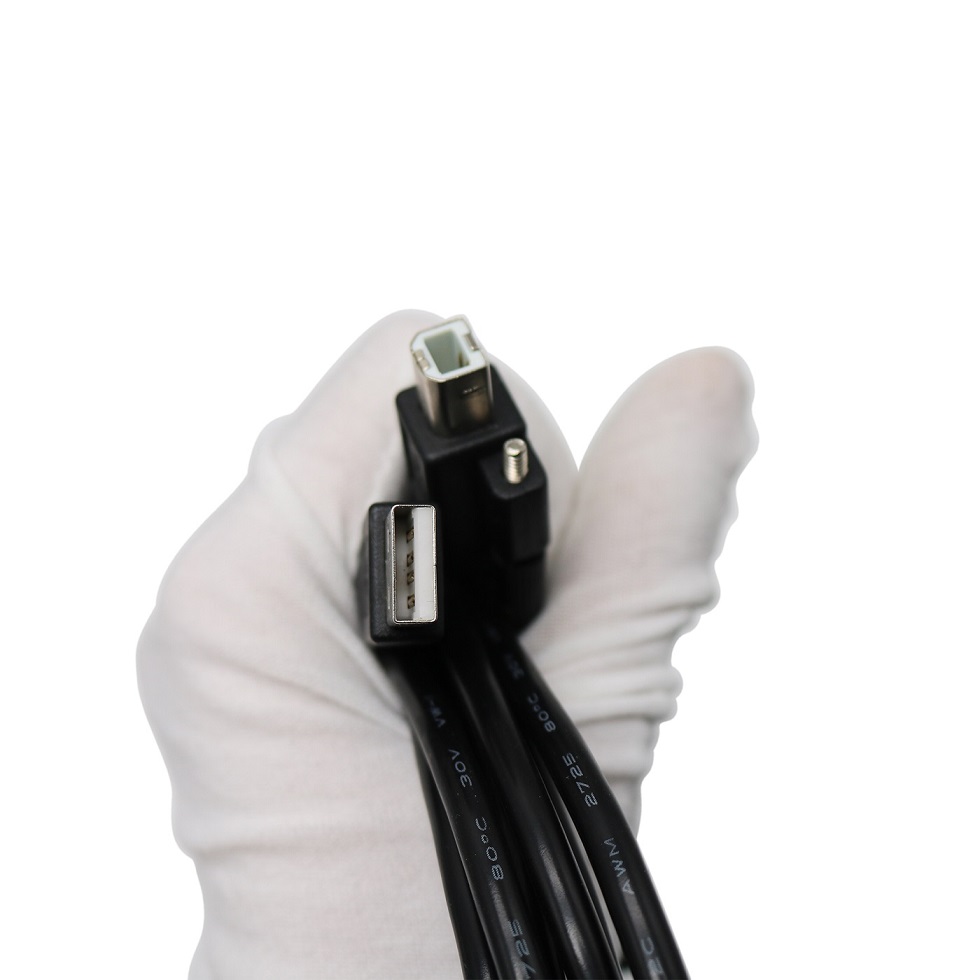

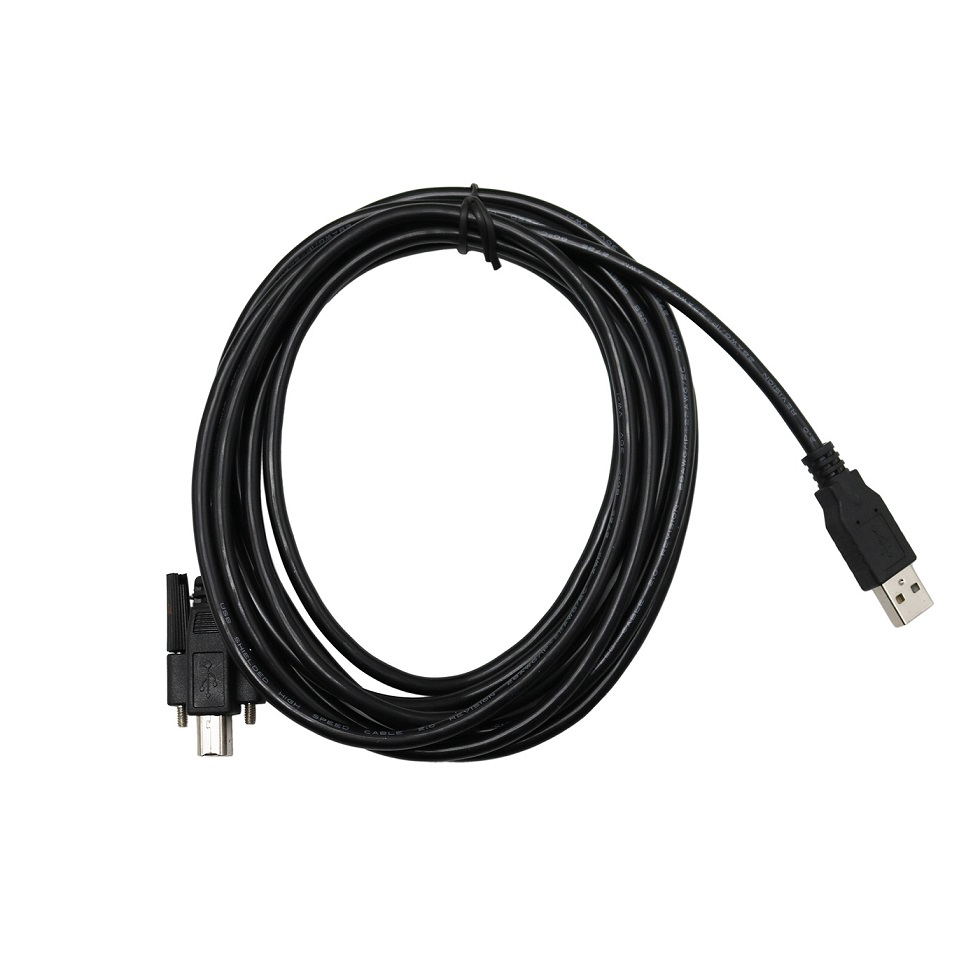

USB Cable
Diagnostic Software 2025.02 Hino DX3 V1.25.2

Second-hand Panasonic FZ-G1 I5 4rd generation Tablet(Software installed in the laptop)

Software Dispaly:
