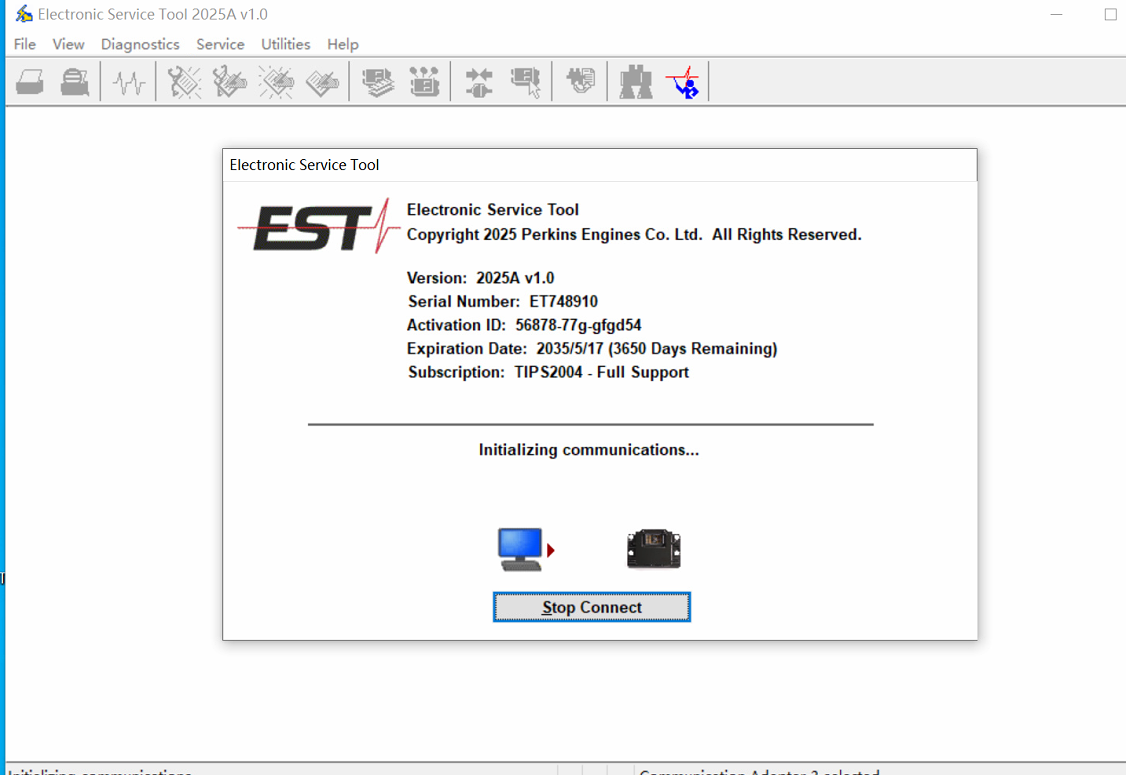

2025.03 PERKINS EST 2025A Electronic Service Software + One PC Activation

Type of catalogue: Diagnostic Software
Make: Perkins

Update: 03.2025
Size: 400 Mb
Version: 2025A v1.0
Region: WorldWide Inclusive
Languages: English
Size: 400 MB
OS: Windows 7 32 bit, Windows 7 64 bit, Windows 8/8.1 32 bit, Windows 8/8.1 64 bit, Windows 10 32 bit, Windows 10 64 bit, Windows 11 64 bit, Windows 11 Pro 64 bit

Note:

1 PC (no KG): Product activation for a single PC.

1 PC (KG Locked): Keygen with ONE PC LOCKED but to use it can make license for many PCs.

The Built-in Factory Password Generator

The experimental feature allows you to decode (18-Bit passwords not supported) factory passwords

This diagnostic app allows you to: Change vehicle’s parameters Lock / Unlock parameters Diagnose and reconfigure Reading of error codes ECM Flash

Perkins EST 2025A is a diagnostic program, which is a software part of a service system “TIPSS”. The user can use the test program Perkins EST 2020B for communicating with 2300/2800 electronic engines Perkins (FG Wilson 300 – 750 KVA range) and FG Wilson panel PowerWizard.

Available Subscriptions:

-CMFG0612-Engine Only

-PERK5008-Internal

-TIPS2004-Full Support

-JLCG2109-Genset Only

-EERE2001-Comet Factory Build for Perkins

With this service tool, users can:

See active diagnostics and registered
View events where irregularities occurred and were recorded by the ECM
see the status of a group of parameters (temperatures, pressures, etc.) simultaneously
Register and record performance data
represent a group of status parameters
view the current configuration an ECM
Change ECM settings
View the current configuration of an ECM
Change settings ECM
Perform diagnostic tests
Perform calibrations
Print reports and diagnostic results

What's New in Perkins Electronic Service Tool

2024C

Automatic Connection Preferences

Users are now able to change multiple automatic connection preferences for the service tool and WinFlash. After navigating to the Preferences dialog, users may enable the service tool to connect automatically when opened in service and/or flash mode. Both options may also be disabled if the user wishes to connect manually.

2024B

No significant new features or feature enhancements

2024A

Feature Protection System (FPS) Default Browser Update

The default browser selection options for the Feature Protection System (FPS) have been updated. After installation or upgrade, “Default Browser” will be the default browser selected, eliminating the need for technicians to manually change the setting. Internet Explorer remains a selectable option.

Trainer Update – 995 Large Wheel Loader

The 995 Large Wheel Loader has been added to the Trainer application.

What's New in Perkins Electronic Service Tool 2022A

End of Support for Windows 8

The service tool has ended support for Windows 8. If you have windows 7 or 8/8.1 we can offer you the previous version of Perkins EST 2020A, which is compatible with both versions.


Microsoft® Windows™ 11 Compatibility

Service tool testing has been performed and the service tool is compatible with Windows 11.

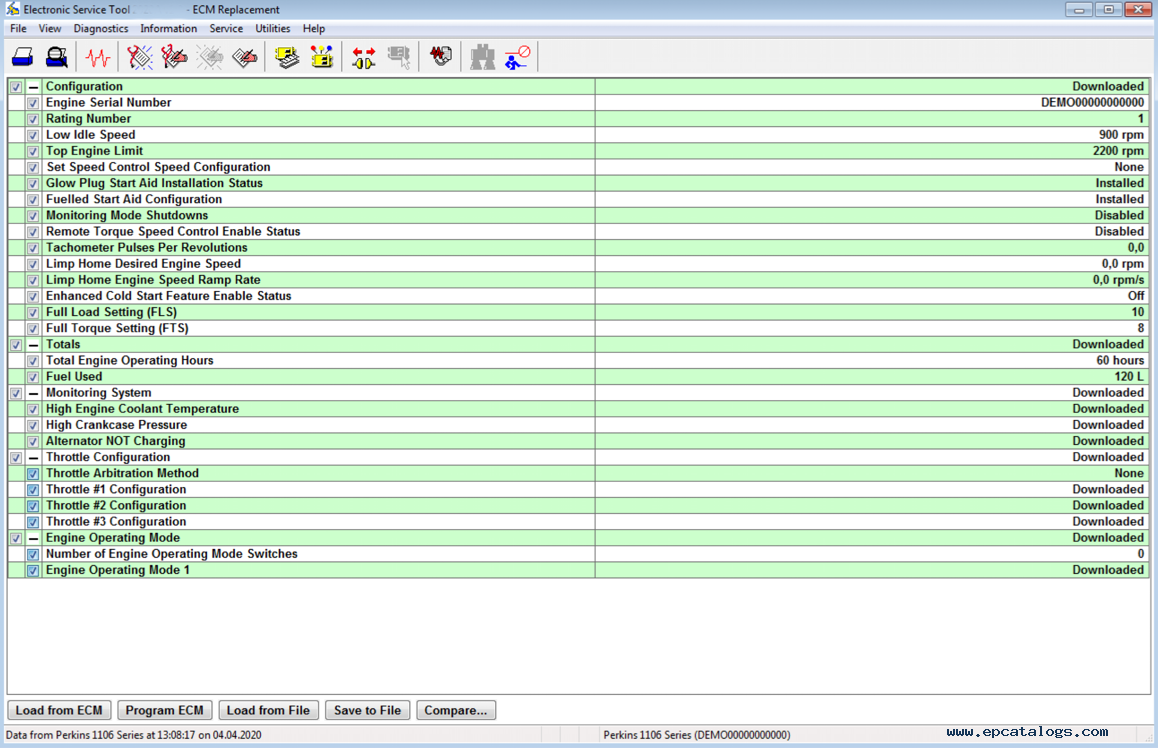

Configuration Group Headings on ECM Replacement Feature

In order to help the user find ECM replacement configuration items easier, configuration items in the ECM Replacement

Fleet Configuration and Product ECM features are now grouped under their group sub-headings,
as is done in the main configuration feature.


Calibration Images

Images attached to calibration instructions will no longer need to be opened manually to be viewed by a technician.

The service tool will now have split user interface windows for calibrations that display pictures.
This will allow the technician to see the images without having to navigate away from the instructions.
Images may be opened into individual windows and resized for better clarity.
The user interface for calibrations that do not display pictures will remain unchanged.


Available subscriptions:

CLS00001 CLAAS Standalone Comet/Flash
PERK5007 Customer
JLCG2109 - Genset Only
PERK5008 - Internal
CMFG0612 - Engine Only
TIPS2004 - Full Support
EERE2001 Comet Factory Build for Perkins

Diagnostic software Perkins EST 2022A allows users to:

Override Powerwizard level three passwords
Configure and/or change system parameters
Display, graph, and record logs of parameter status
Display the status of a group of parameters (temperatures, pressures, etc)
View and clear active and logged diagnostic codes
View and clear active and logged event codes
Display, view, or change the current Configuration File or Base level Flash File
Upload, download, and save configuration files
View a list of irregularities logged by the ECM (engine control module)
Perform diagnostic tests
Perform calibrations
Print reports and diagnostic results.

A diagnostic program Perkins EST 2022A facilitates troubleshooting electronic systems. Key replacing ECM for 2300/2800 series engines Perkins.

Essential in replacing or upgrading the FG Wilson PowerWizard control panel module - the new standard in FG Wilson control systems. The empty module can be configured using the Perkins EST 2020A (installation of the database file to an empty flash module PowerWizard).

Includes dealer to upload, download and save the client configuration. Allows bypassing PowerWizard third level passwords.

Update firmware version PowerWizard. The program allows the dealer to install additional language files PowerWizard, as required.

To work with a diagnostic program Perkins EST 2022A needs a laptop computer with any USB or serial port and Windows 2000 or XP. Program Perkins EST quite demanding on CPU; hence, the slower the processor, the slower the program will work.

Electronic service tool Perkins EST 2022A includes the following changes:

1) WinFlash Screen changes - the WinFlash screen has been updated for improved usability.

2) New Help System - in this system, existing content has been significantly updated, and new content has been added to provide information and instruction on new features.

3) Snapshot Updates – the Snapshot feature now allows users to compare data points and to change the colors on the graph.

4) Time Mode Display Options for Data Log - “Time Mode” button is now available on the Data Log screen. Clicking this button allows users to toggle the display of the graph between the PC Clock Time (HH:MM:SS) and the time that elapsed while the data was being logged.

5) Trainer Enhancements - the following change was made to coach applications: application WinFlash has been added.
