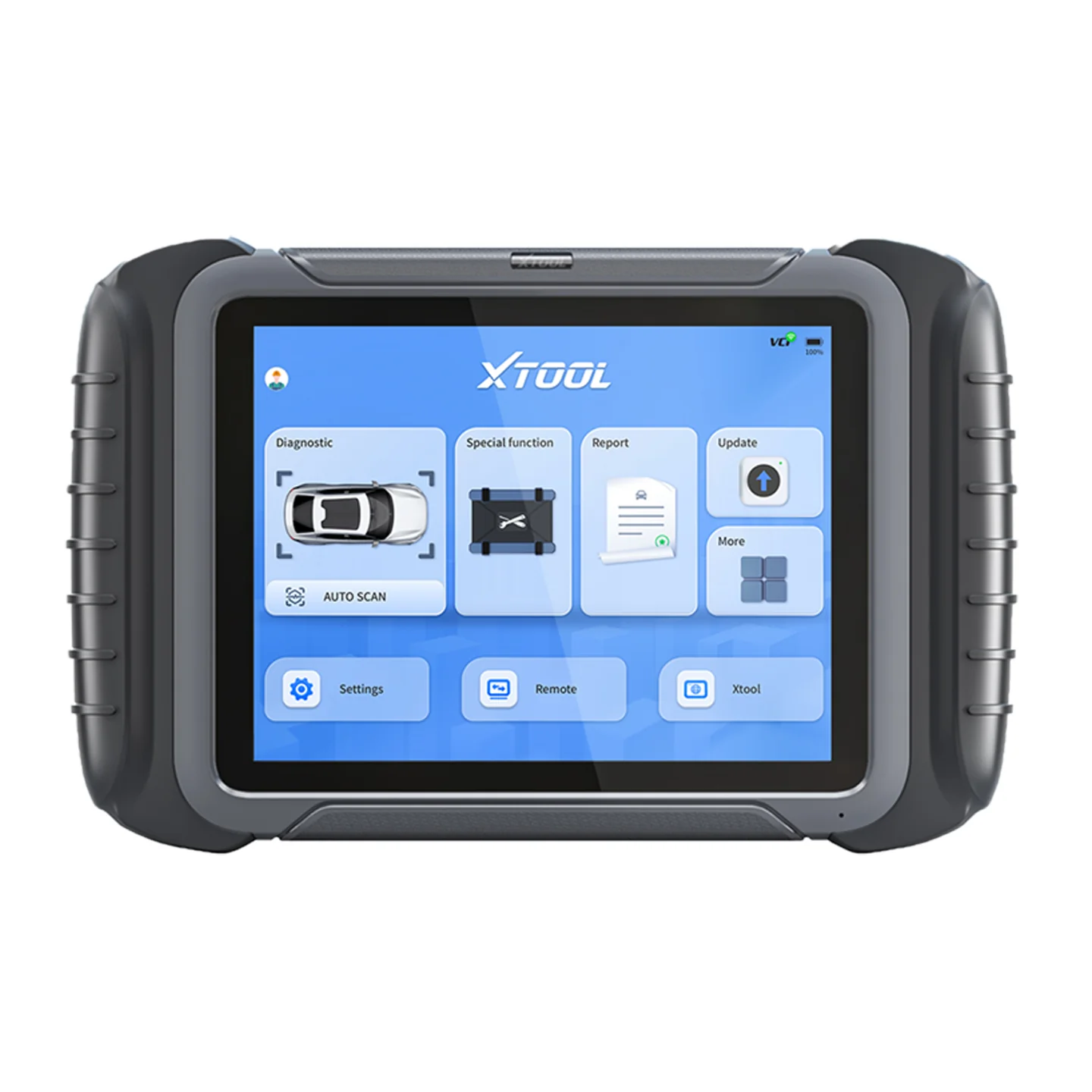

XTOOL H6E2 H6 Elite 2 Gasoline Car Diagnosis Tool Support Topology Mapping DTC Guided Function Offline Coding & Programming 38 Reset With CAN FD DOIP

H6 Elite 2 is an automotive smart diagnostic system with 8 inches LCD display, which is designed for mechanics, electricians, and car maintenance shops. Vehicles covering electric, gasoline and diesel, and hybrid vehicles in the U.S., Europe and Asia. It also supports full system diagnostics, including reading ECU version information, reading fault codes, live data, and freeze frames.

XTOOL H6E2 Highlight:

● 8-inch, 1024x768 high-resolution touchscreen tablet, 4-cores processor with 64 GB storage.
● Long-lasting 5000mAh rechargeable battery, 8 MP rear camera, equipped with the videoscope.
● Supports the latest communication protocols, including CANFD and DoIP.
● Full system diagnostics for U.S., Asian, European, and Chinese vehicles.
● Automatic detection: Scan all available systems with Topology Mapping.
● 38 popular relearn and reset services.
● Supports Read/erase codes, view freeze frame and live data.
● Perform programmable module installation (PMI) for Ford, Mazda.

Topology Mapping Supported

Provides a visual representation of the communication status of each system in the vehicle during automatic scanning.

Offline ECU Coding & Programming

DTC Guided Function

38 Special Services

XTOOL InPlus IP900BT automotive scanner With up to 38+ services, Can Easily Solve Module Reset or Maintenance Problems, Saving you a lot of Repair Costs. Specifically including Throttle Relearn, EPB, IMMO, Injector Coding, ECU Configuration, ADAS Calibration, DPF Regeneration, ABS Bleeding, Transmission Match, BMS, TPMS, HV Battery, VGT Relearn, FRM, Clutch Adaption, Speed Limit, Stop/Start Reset, Electronic Pump Activation, and etc. It Has Strong Vehicle Coverage Works on 200 Brands from 1996 to Date and all Major Brands. Note: Functions Vary by Car Models and Please Consult us Before Purchasing.

Comparison Between XTOOL H6 PRO3, H6W2 and H6E2

3 Years Free Software Update

Our XTOOL Technician Keep this XTOOL IP900BT automotive scanner diagnostic tool up-to-date with software subscriptions, free for 3 years, better than other brand support 1 or 2 year free update only! XTOOL IP900 BT with much higher update frequency than similar scanners for cars on the market. The renewal of software will bring you new features, bug corrections, wider vehicle coverage and more. If there are any issues after purchase, feel at ease to send us messages.

Parameters

Operating System:Android 10.0
Communication Method:Wired
Processor:4 Core 1.50GHz
Connectivity:Type-C
Memory:4G+64G
Working Voltage:9-36V
Display: 8-inch, 1024×768P
Battery:5000mAh, 7.3V
Camera:8.0 Megapixel, AF with Flashlight
Working Temperature:-10 to 50℃
Auto Input/Output:Microphone, Speaker
Storage Temperature:-40 to 60℃
Dimension (L×W×H)::273.0×174.0×33.7 mm
Compatible Protocol:CANFD, DoIP

Packing list

Accessories
Certificate of Quality
Tool Case
Packing List
Quick Start Guide
Color Carton

Host group
USB Cable (Type-C to Type-A)
USB Cable (Type-C to Type-C)
Power Adapter UK
Power Adapter EU
Cigarette Lighter Power Plug
Power Adapter US
Tablet

Test Connectors
AUDI-4 Connector
UNIVERSAL-3 Connector
HYUNDAIKIA-10 Connector
HONDA-3 Connector
MITSUBISHI-12+16Connector
KIA-20 Connector
FIAT-3 Connector
TOYOTA-17 Connector
BENZ-38 Connector
CITROEN-2 Comnector
SUZUKI-3 Connector
DB15 to VGA Main Cable
MAZDA-17R Connector
BMW-20 Connector
NISSAN-14 Connector
GM/DAEWOO-12 Connector
OBD2-16 Connector
