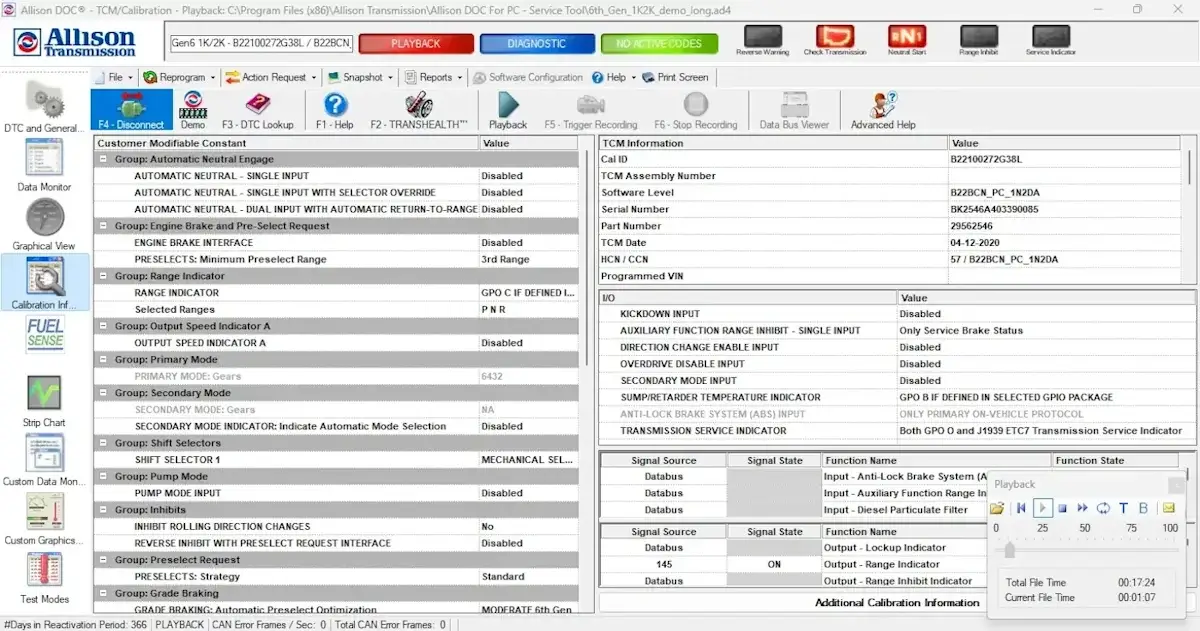

Function of Allison DOC 2024.01

*TAC Data Collection capability for WTEC III ECUs

*Display multiple transmission parameters and Diagnostic Trouble Codes.

*Display of Failure Records.

*A graphic display of limited data using analog and digital gauges.*

*Reprogramming of ECU or TCM settings**

*Ability to activate/reset tests and transmission capabilities (clutch test, solenoid test, adaptive shifts, throttle calibration, etc.)*

*Recording of vehicle data and bus information into snapshot sessions.

*Display of vehicle data bus traffic.*

*E-mailing of snapshots along with optional comments.

*Ability to Export snapshots to a comma-delimited file (4th Gen or greater Controls only).

*Ability to create/display/print diagnostic reports.

*Access to transmission Troubleshooting Manuals, including context-sensitive links.

*Integrated help with video-based training materials.

*The ability to launch TCM Reflash when installed.

*Automated application updates.

*Access to Service Information Letters via the Allison Transmission website.

*Ability to monitor TRANSHEALTH(TM) status and to generate and display TRANSHEALTH(TM) reports*, **

*Display of vehicle prognostics information when supported by a 4th Generation or greater TCM.

*Language support for English, French, Japanese, Spanish, Russian, German, Portuguese,

  Simplified Chinese, Korean, French, Canadian,Italian, Polish, Thai, Turkish, and Arabic.

*Reads engine faults.

*Displays engine data when selected and if connected to a 4th generation or greater control.

*Certain limitations apply to the Interactive FuelSense® dialog that displays an easy-to-use interface to customize fuel economy/performance settings.

Vehicle Coverage of Wabco Toolbox Plus 14.0

*1K/2K and 3K/4K 6th Generation Controls – including 9-Speed and TerraTran(TM).

*1K/2K, 3K/4K, and TC10 5th Generation Controls.

*1K/2K and 3K/4K 4th Generation Controls.

*CEC6 (Off-Highway) 6th Generation Controls – e.g., FracTran(R).

*CEC5 (Off-Highway) 5th Generation Controls.

*CEC3 (Off-Highway) 4th Generation Controls.

*CEC2 Electronic Control Unit (ECU) data.

*CEC (On-highway and Off-highway) Electronic Control Unit (ECU) data.

*World Transmission Electronic Control (WTEC) II/III Electronic Control Unit (ECU) data.

*1000/2000/2400 Series Transmission Control Module (TCM) data.

*eGen Flex(TM) Electronic Control Unit (ECU) data.

*H 40/50 EP(TM) Electronic Control Unit (ECU) data.

SUPPORT INTERFACES

* NEXIQ USB-Link 1 & 2 & 3

* DPA5

* DLA+
