Please note that the color of the product's outer ring light is blue, not green.

Recommended APP

Please download the following app to use:

1. Car Scanner
2. OBD Auto Doctor
3. 0BD JScan
4. OBD Fusion

Vgate iCar Pro 2S Bluetooth for iOS/Android/Windows

1. Automatic sleep & Wake up wirelessly
2. BatterySaver technology - low power mode
3. Fast Bluetooth OBD-II adapter (baudrate: 3Mbps)
4. Up To 208 groups pass, block, and flow control filters
5. Over-voltage, over-temperature, over-current protection
6. Superior compatibility - works with more 3rd party apps
7. Free firmware updates.

Product Introduction

Vgate iCar Pro 2S is a Bluetooth product , Transform your for iPhone, Android device, or Windows PC into a professional-grade diagnostic scan tool.

The iCar Pro 2S Bluetooth OBD-II adapter can access all legal OBD-II protocols. Connect to the vehicle diagnostic seat through a plug, install client software and diagnostic software to diagnose car faults.

For example, reading non-specific and manufacturer-specific fault codes, reading real-time ECU sensor data (engine speed, fuel system status, fuel pressure, oxygen sensor voltage and many other readable parameters on the vehicle) and more!

The iCarPro II Bluetooth OBD-II adapter provides access to all legislated OBD-II protocols. Unlike other OBD adapters, iCarPro II won't drain your battery if you leave it plugged in. Operating Current is 34 mA, automatic sleep in idle state, sleep current is as low as 3mA.

iCar Pro 2S PK iCar Pro

Bluetooth 5.3 Support Android/IOS/PC

Connection speed upgrade

Supporting new energy vehicles

Low power mode

Mainly Features

Over-voltage, over-temperature, over-current protection.

Fast Bluetooth OBD-II adapter (baudrate: 3Mbps).

Free firmware updates.

BatterySaver technology - low power mode.

Automatic sleep & Wake up wirelessly

Up To 208 groups pass, block, and flow control filters.

Superior compatibility - works with more 3rd party apps & software than any other adapter.

The iCar Pro 2S has added the automatic wake-up function of electric vehicles to the iCar Pro, providing customers with more choices!

Fully compatible with all OBD2 protocols and commands, with unique auto sleep/wake function. It operates at 34 mA and automatically sleeps in idle state at as low as 3 mA, protecting the life of the car's battery.

The ‘Auto Wake-Up Function’ can also support vehicle type: Hybrid / Pure Electric Vehicle.

Vgate iCar Pro 2S Automatic Wake-up and Sleep

Note: This function is also supported on electric vehicles

Vehicle Compatibility

Works with all OBD2/EOBD compliant vehicles. Compatible with all OBD2 communication protocols.

EOBD vehicles (Petrol from 2001 and diesel from 2003/2004 in Europe) and OBD2 vehicles (1996 onwards in USA, 1998 in Canada)

Our products are applicable to 12V petrol vehicles compatible with standard OBD2 protocols, 12V small diesel vehicles with a load of 6.5T or less supporting the OBD2 protocols.

Vgate iCar Pro 2S connection steps (Taking Car Scanner APP as an example)

Android system:

After opening the Bluetooth, search the product Bluetooth device name ‘Android-Vlink’, enter the pairing code ‘1234’ to pair successfully, then you can enter the app to set up the connection.

iOS system:

After opening the Bluetooth, there is no need to pair the product Bluetooth device name, then you can open the app to set up the connection.

Windows system: (Note: the Bluetooth device name is the same as the device name shown in Android system)

After opening Bluetooth, search for the product Bluetooth device name ‘Android-Vlink’ in the Bluetooth settings, enter the pairing code ‘1234’ to pair successfully, and then enter the app settings to connect. It can be paired successfully, then enter the app settings to connect.

Sinple to use and easy to carry

The iCarPro II is a diagnostic scan tool, trip computer, logger, and real-time performance monitor. This pocket-size adapter won't obstruct driver legroom and features unparalleled performance, intelligent sleep mode, exceptional third party app support, and free lifetime firmware updates.

Packing list

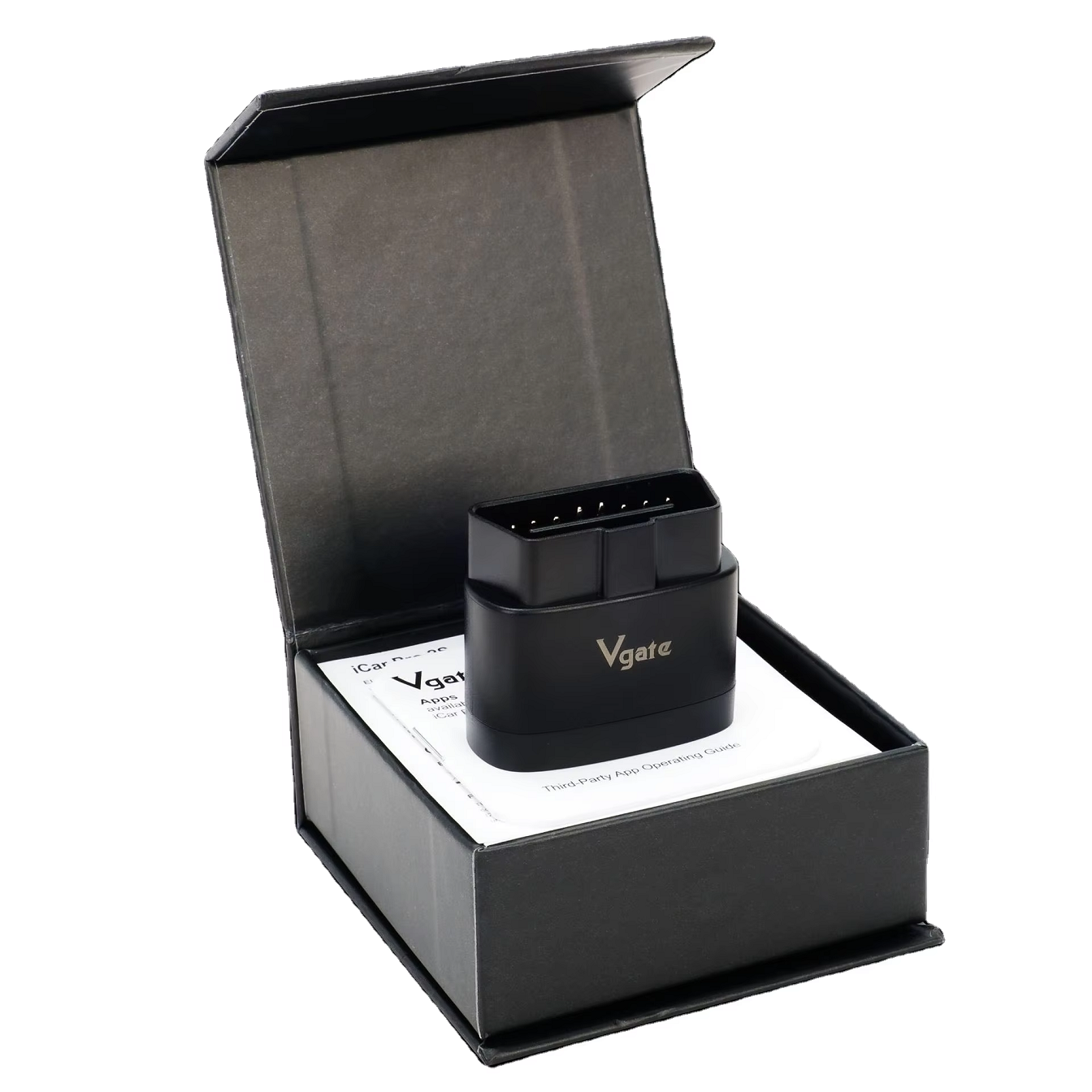

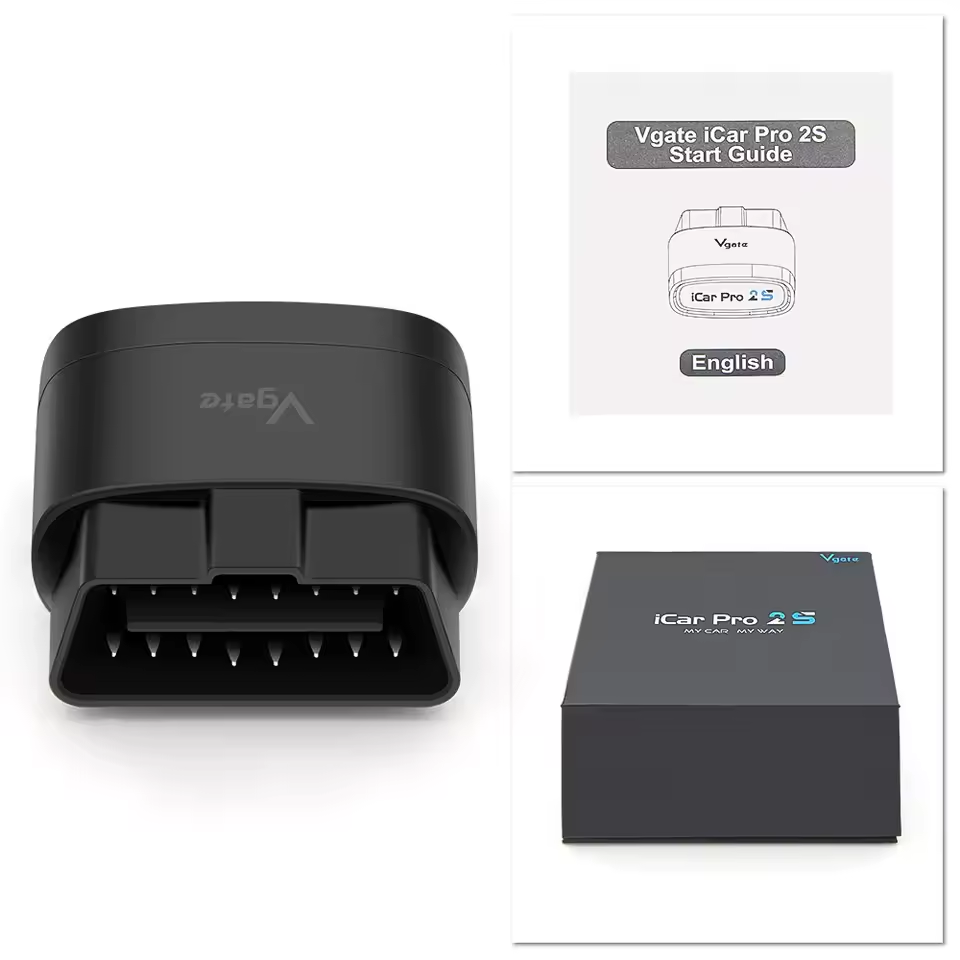

1 x Vgate iCar Pro2S OBDII

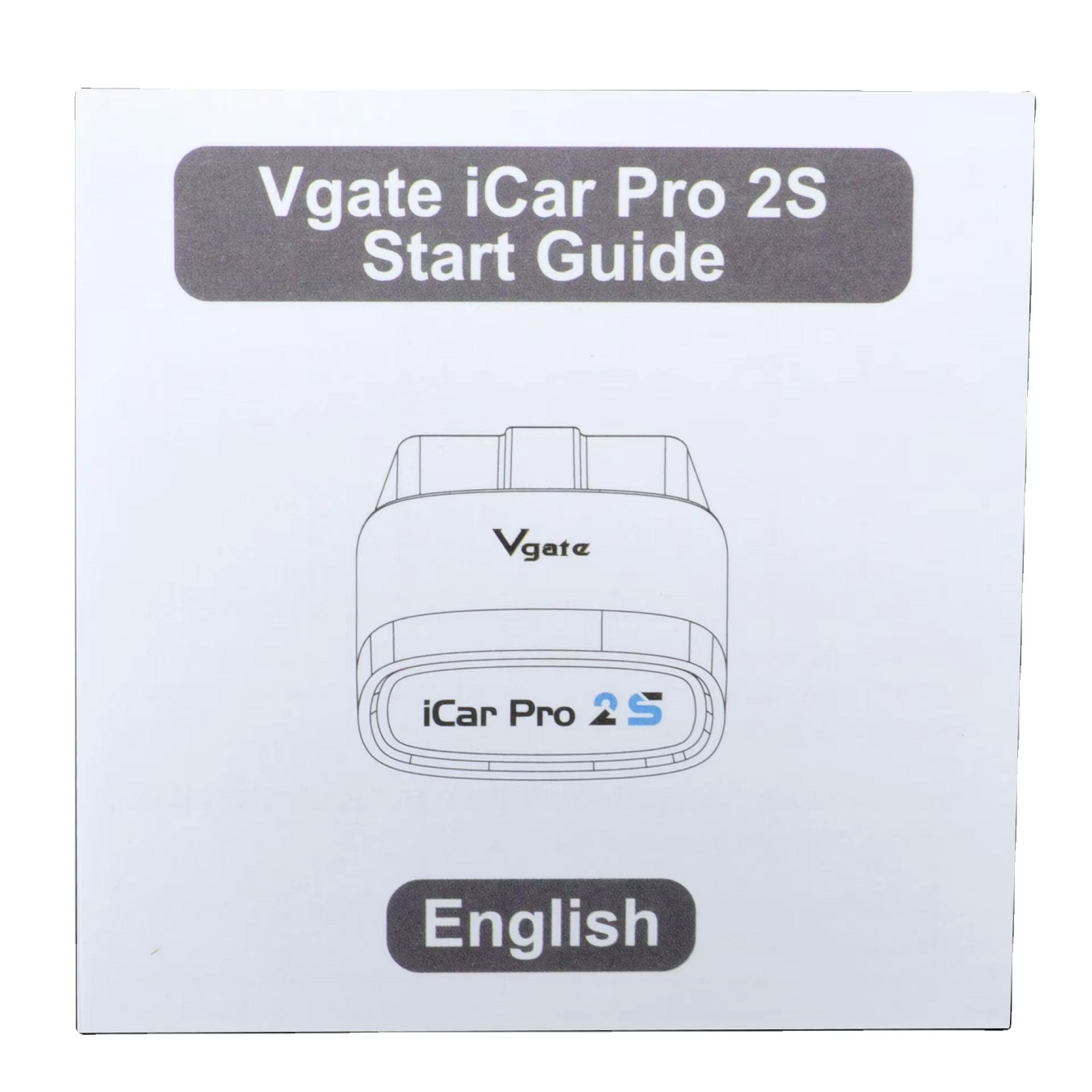

1 x User manual
