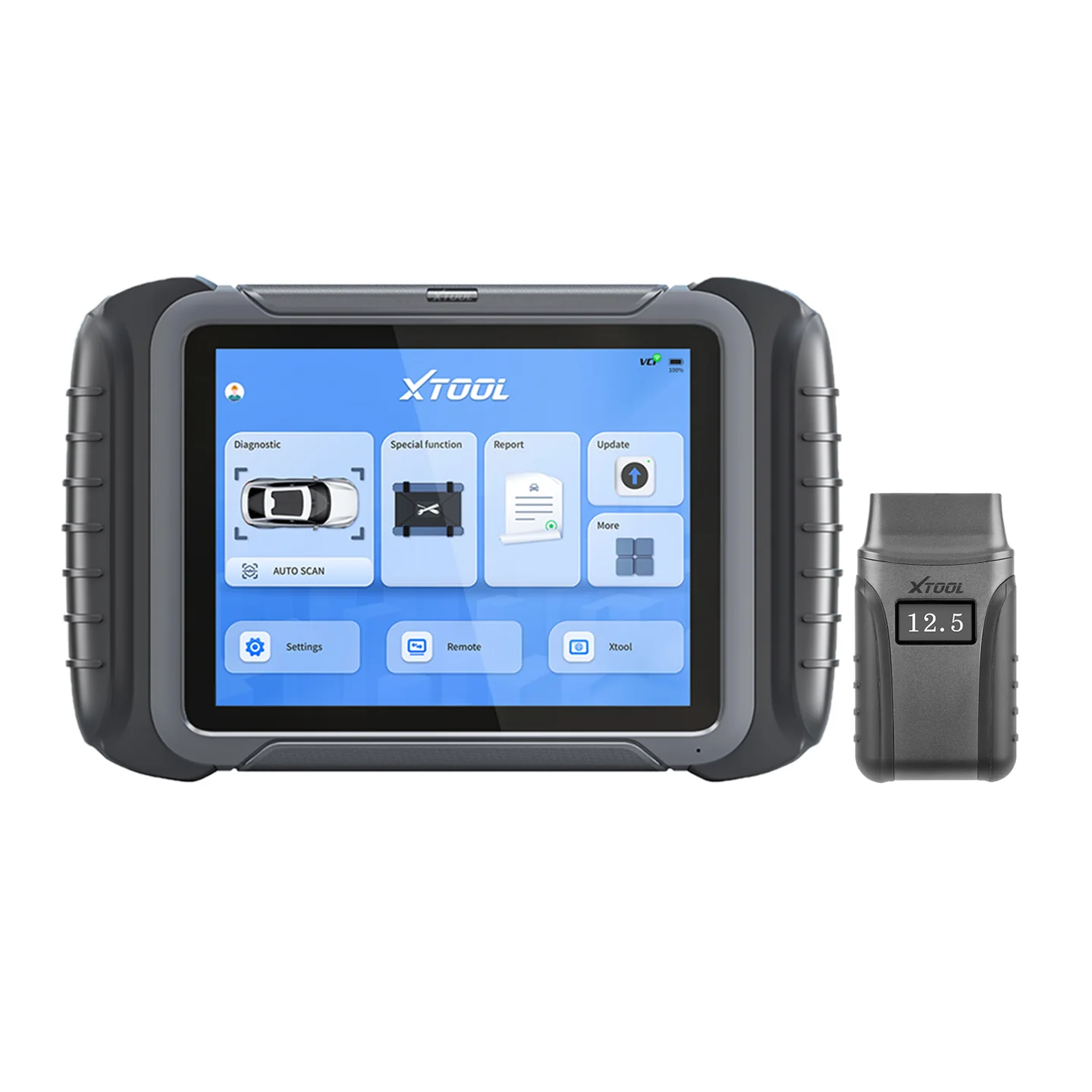

XTOOL XT80W WIFI Smart Diagnosis System 35+ Resets Bi-Directional Control 3 Years Free Online Updates

XT80W is an automotive smart diagnostic system with 8 inches LCD display, which is designed for mechanics, electricians, and car maintenance shops. It supports full OBDII function and automotive diagnostics for full-system, including reading ECU version information, reading fault codes, live data, and freeze frames. 38 common special functions are supported, such as throttle matching, ABS bleed, maintenance light reset, EPB test, SAS, BMS, injector coding, DPF regeneration, and TPMS reset. 98% vehicle coverage, work on more than 100 brands, 10000 cars.

Description

● 8-inch, 1024x768 high-resolution touchscreen tablet, 4-core processor with 64 GB storage.

● Long-lasting 5000mAh rechargeable battery, 8 MP rear camera, equipped with the videoscope.

● V113 wireless Wi-Fi vehicle communication interface supporting the latest communication protocols, including CANFD and DoIP.

● Full system diagnostics on 1996 and newer U.S., Asian and European and Chinese vehicles.

● Automatic detection: Scan all available systems with Topology Mapping.

● Read/Erase Codes, View Freeze Frame and Live Data.

● Perform Actuation Tests (bi-directional controls), Coding and Adaptations.

● AutoScan for rapid vehicle identification.

● Perform ADAS (inc. Camera/s, Radar etc.) Systems Calibrations with additional purchase.

Features

1. Bi-Directional Control

• Receive information and send the commands to the system/components to perform active tests like EVAP Test, Fuel Pump Test, Fuel Injector Test, Cycling A/C Clutch On/Off, Cooling Fan Test, etc.

2. Full-System Diagnostic

• Perform OE-Level diagnosis on all available systems. Support ECU information, read and clear DTC, live data and freeze frame and special function under system menus

3. Offline Programming Supported

• Support programmable module installation for Ford, Lincoln and Mazda

4. 35+ Maintenance Functions

• Include top popular maintenance functions, like ABS Bleeding, Key Programing, Injector Coding, Oil Reset, EPB, etc.

Comparison Detween XTOOL XT70, XT70W and XT80W:

Parameters

Operating System:Android 10
Processor:4 Core 1.5 GHz
Memory:4G RAM, 64G ROM
Display:8-inch, 1024×768P
Communication Method:Wired
Connectivity:Type-C, USB 3.0
Camera:8.0 Megapixel, AF with Flashlight
Battery:5000mAh, 7.2V
Auto Input/Output:Microphone, Speaker
Working Voltage:9-36V
Working Temperature:0 to 40℃
Storage Temperature:-40 to 60℃
Humidity:<90%
Dimension (L×W×H):274.0×175.0×33.8 mm
Protocol compatibility:CANFD, DOIP

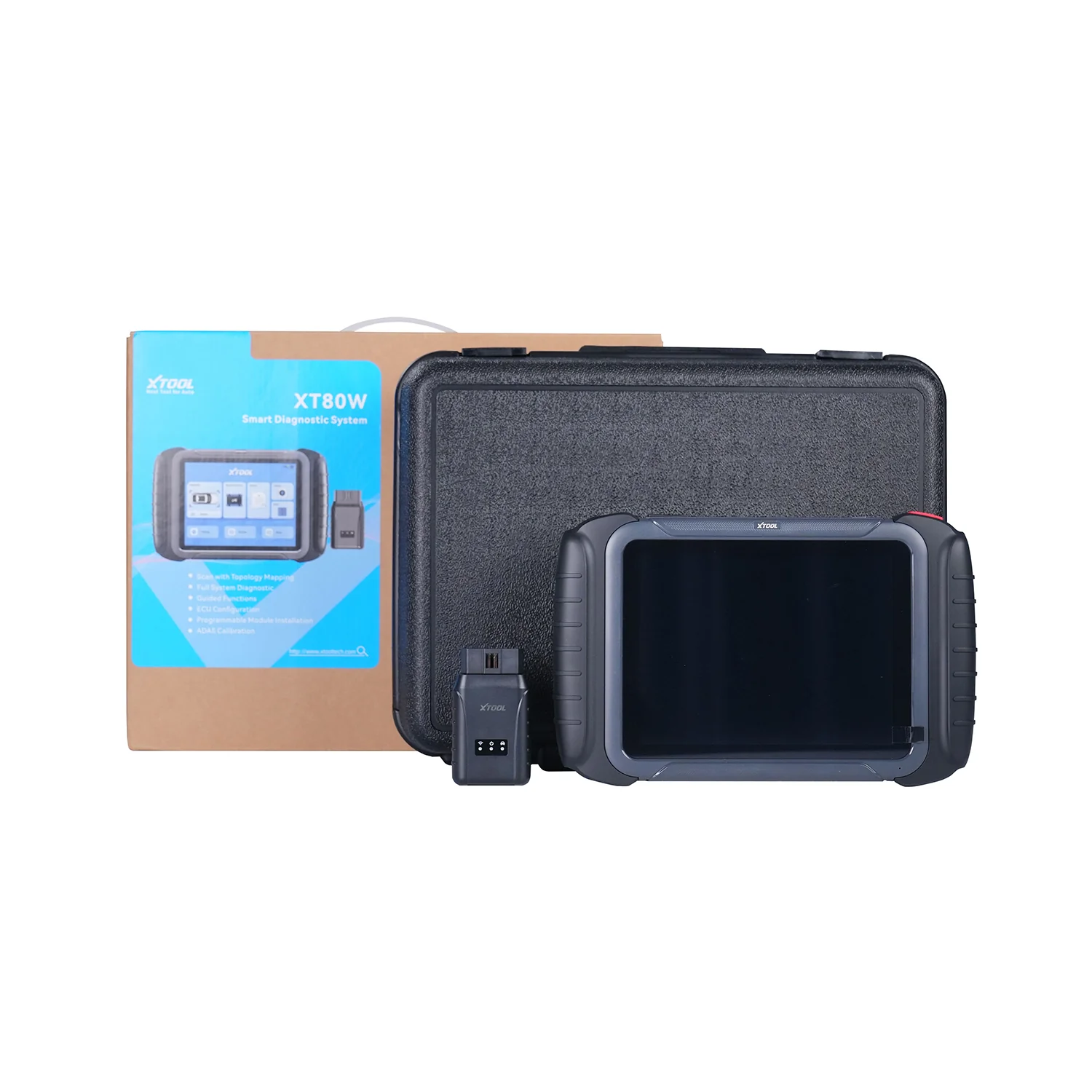

Packing List

Main Units

Power adapter
US power cable
EU power cable
UK power cable
Tablet
VCI box
USB cable

Accessories

Tool kit
Certificate of Quality
Packing List
Quick Start Guide
Carton
XV100 Endscope
