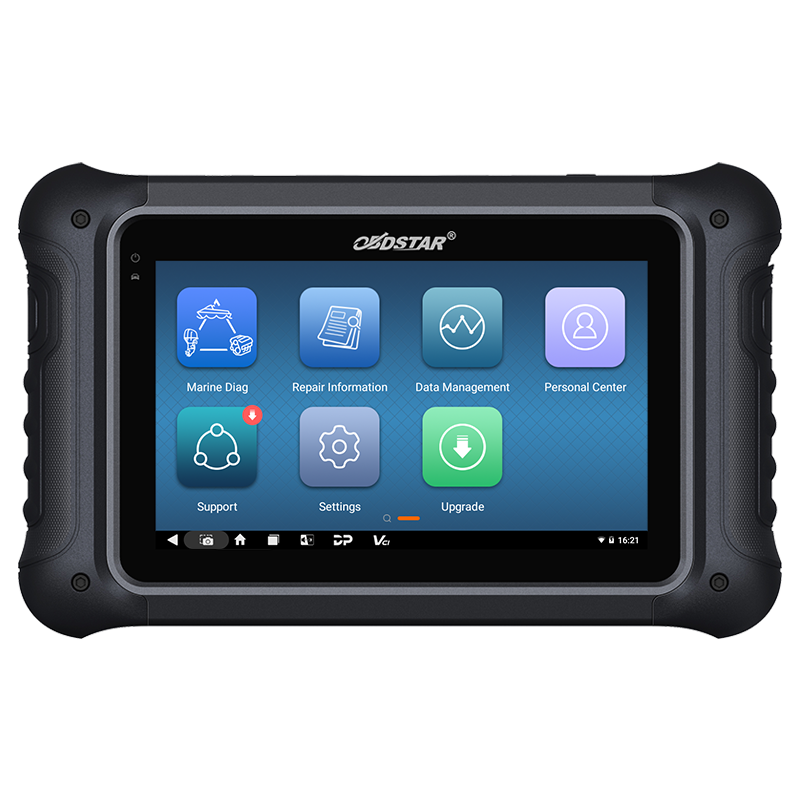

OBDSTAR ISCAN PRO SERIES YANMAR Marine Scanner

ISCAN PRO YANMAR (MARINE) COVERAGE

ISCAN PRO SERIES (MARINE) User Manual

Diagnostic support series

Support 4BY2-150/150Z, 4BY2-180/180Z, 4BY3-150/150Z, 4BY3-180/180Z, 4JH110, 4JH45, 4JH57, 4JH80, 4LV150, 4LV170, 4LV195, 4LV230, 4LV250, 6BY2-220/220Z, 6BY2-260/260Z, 6BY3-220/220Z, 6BY3-260/260Z, 6LY3_ETA, 6LY3_ETP, 6LY3_STA, 6LY3_STB, 6LY3_STP, 6LY3_UTP, 8LV-320/320Z, 8LV-350/350Z, 8LV-370/370Z and other models.

iScan Pro Marine Features:

1. Android 5.1.1 operation system;
2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;
3. Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding etc;
4. Menu arbitrary selection is more convenient and quicker;
5. Record and play back real-time data flow, quickly and accurately locate sensor and component faults;
6. Wi-Fi connection to the internet, one-click software upgrade;
7. One-click remote function, OBDSTAR technical staff remote assistance.
8. 2 Years Free Update

Advanced Function

1. The OBDSTAR mobile APP integrates functions such as diag socket location, technical bulletin etc., working with ISCAN PRO to make marine diagnosis more accurately and efficiently;
2. Various data flow display modes such as text, waveform diagram and instrument diagram allow you to analyze faults easily;
3. Support Service Reset, Idle Control and other special functions.
4. Support DC24V input.

Function Display-(From OBDSTAR Mobile App)

1) Main Page

2) Diag Socket/Diag Connector Location

3) Manual Service Function(Service Lamp Reset)

Function Display-(From ISCAN PRO)

1) Main Page/Brand Supported

2) Data Flow Text/Waveform Diagram

3) Special Functions

Specifications

Accessories
