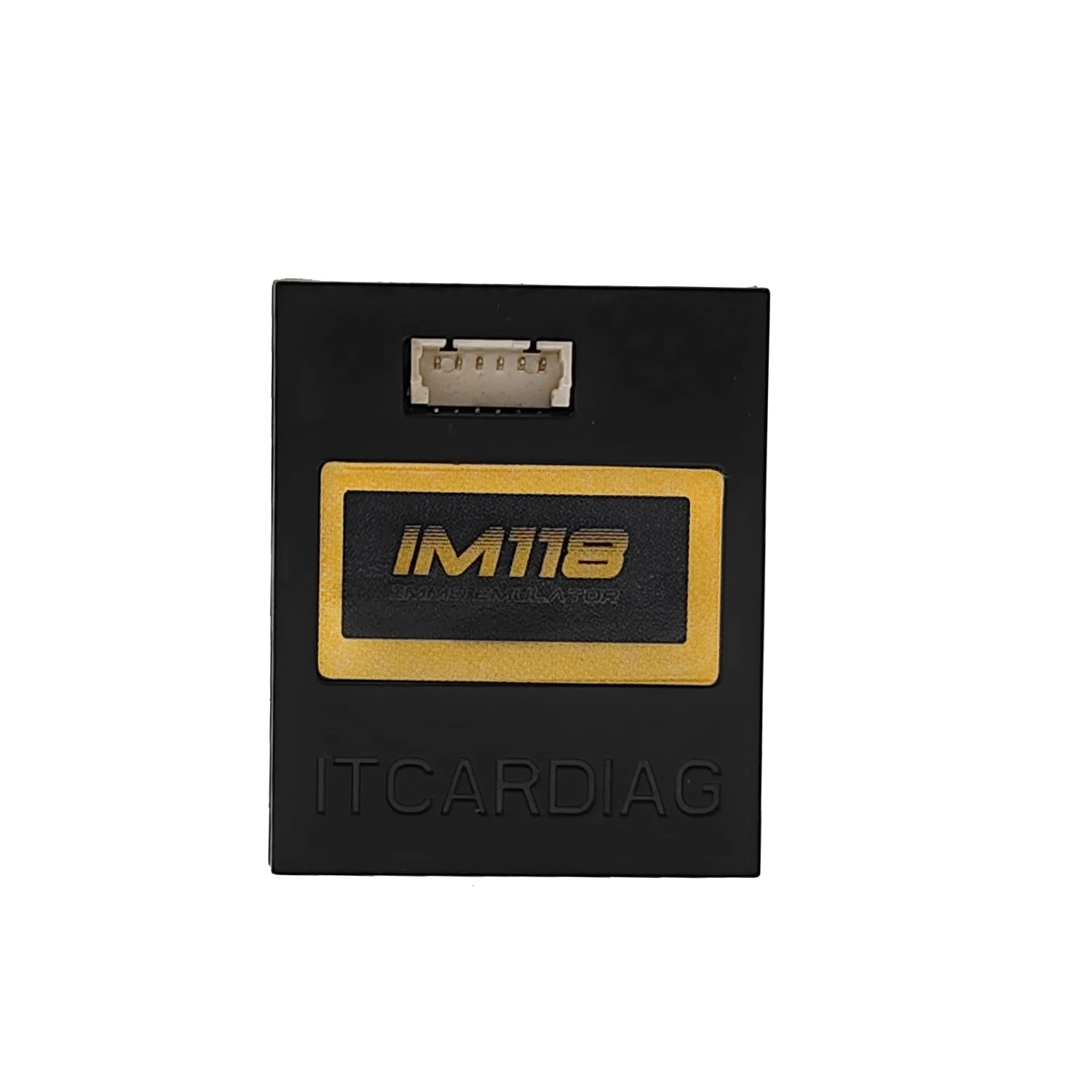

Universal IMMO Off Emulator IM118 ESL ELV Tacho Tachometer tester Program for Renault Bosch EDC15 EDC16 EDC17...Many ECUs PK V96

1. Our IM118 is Update version of V96/OF110/OF128

2. Our IM118 Add New Car model and year for IMMO OF function and Seat occupancy sensor programming function and ESL Programming functiion, but OF110 and OF128 just change Version Number, not add any car brand!!!

3. Our IM118 is more Affordable, Pay Less Money to get more Car Brands, Worth to buy!!!

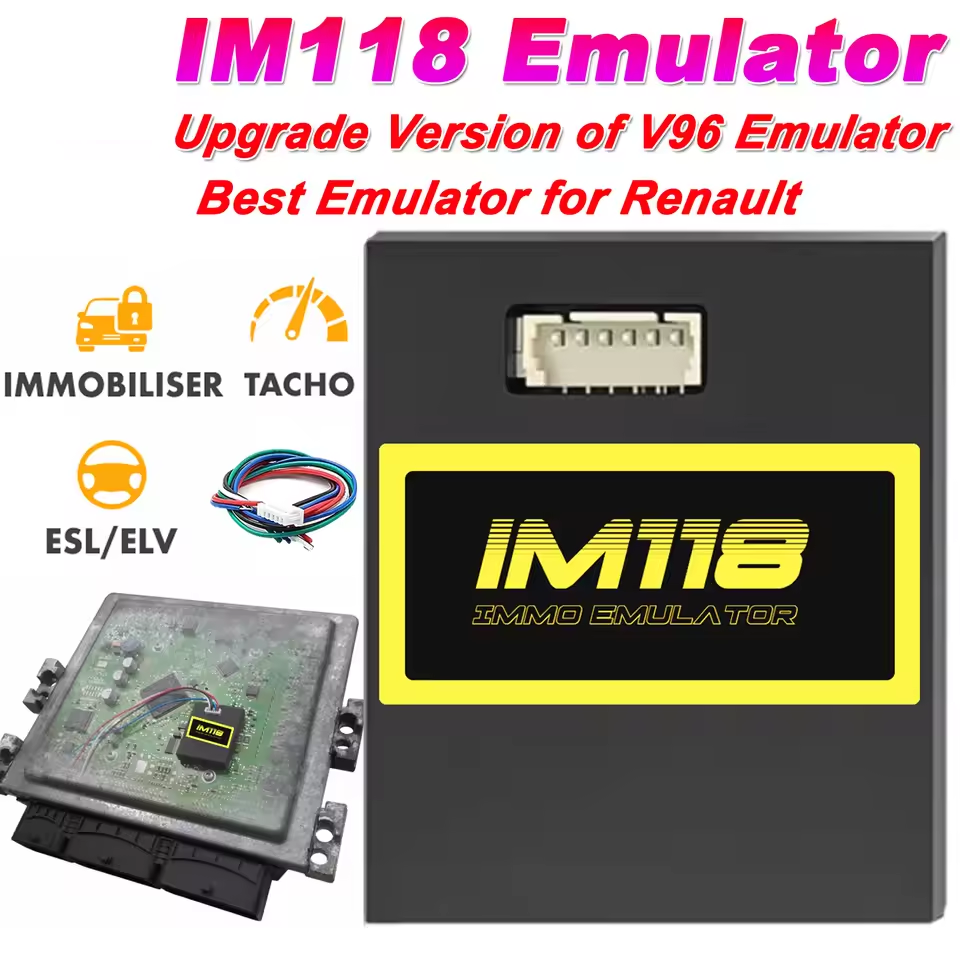

IM118 Emulator Is the update version of the emulator v96,it is more powerful!

See what's new in the latest version of your favourite Emulator

We're constantly making Emulator even better! Our Development Team has been hard at work to bring you new solutions. We want to make sure that when you use Emulator, no car that arrives at your workshop will surprise you!

Here's what's new functions in version 118 of ITCARDIAG IM118 Emulator:

1) New Program: BMW 5

The latest program is dedicated to BMW F-Series and E-Series* cars and can be used for the following purposes:

Engine + EGS Swap (8HP Automatic Transmission Gearbox)

Engine-only Swap

EGS-only Swap

*Except BMW X3 (E83)

2) New Program: BMW 4

This program is dedicated to BMW E-Series (CAS-BUS) cars and can be used for the following purposes:

Replacing a damaged ECU

Nissan - Bosch EDC16CP33 | IMMO OFF

Example cars

Nissan Qashqai 2.0 dCi 150HP 2007-2013

Nissan X-Trail 2.0 dCi 150HP 2007-2014

Tested on

0 281 014 858 (Nissan Qashqai 2.0 dCi 150HP 2010)

0 281 014 362 (Nissan X-Trail 2.0 dCI 150HP 2011)

0 281 013 874 (Nissan X-Trail 2.0 dCI 150HP 2008)

0 281 013 855 (Nissan Qashqai 2.0 dCi 150HP 2008)

Continental EMS3160 | Read values for ISK

Continental EMS3160 (Renault Group)

Use ITCARDIAG IM118 to read ECU values required to calculate ISK code

This procedure has been specifically designed for Renault Group vehicles.

It allows you to connect ITCARDIAG IM118 to the ECU and read the values that are necessary to calculate the ISK code for your ECU.

Continental VD56.1 (PSA Group)

Fully automatic procedure using ITCARDIAG IM118 Emulator!

This procedure has been specifically designed for PSA Group vehicles. It allows you to use v96 Emulator to:

Make IMMO OFF with IM118

Read ECU PIN code - for coding the keys or matching the ECU to the car

The procedure must be completed by connecting the ECU on the bench. You just need to connect the Emulator to the ECU according to the pinouts found in the instruction manual.

The Emulator will automatically determine the ECU's PIN CODE or replace immobiliser signal.

The procedure may take 3 to 90 hours. Procedure completion will be indicated by a blue LED on the Emulator.

Mercedes W176, W204, C207, W212, W246

Use IM118 to replace signal of a damaged ESL/ELV in Mercedes W176, W204, C207, W212 and W246!

A damaged to the Electronic Steering Lock (ESL/ELV) module is a common fault in Mercedes W176, W204, C207, W212 and W246 cars.

You can save time and money by replacing the original signal of the ESL/ELV using ITCARDIAG IM118 Emulator.

Solution tested on:

Mercedes W176

Mercedes W204

Mercedes C207

Mercedes W212

Mercedes W246

Continental SID807EVO - IMMO OFF with ITCARDIAG IM118:

Tested on

SID 807 - S180075002 F (Citroen DS3 1.6 HDI 110HP 2010)

SID 807 - S180075002 H (Peugeot 3008 1.6 HDI 110HP 2012)

SID 807 - S180075002 J (Peugeot 508 1.6 HDI 115HP 2014)

SID 807 - S180075002 K (Peugeot 508 1.6 HDI 115HP 2013)

SID 807 - S180075002 L (Citroen Berlingo II 1.6 HDI 110HP 2014)

SID 807 EVO - S180165002 E (Peugeot 5008 1.6 HDI 110HP 2015)

SID 807 EVO - S180165001 E (Citroen C4 1.6 HDI 115HP 2016)

SID 807 EVO - S180123008 A (Citroen DS3 1.6 HDI 110HP 2013)

SID 807 EVO - S180123008 B (Peugeot 308 1.6 HDI 115HP 2015)

SID 807 EVO - S180123008 C (Citroen C4 Picasso 1.6 HDI 2014)

SID 807 EVO - S180123007 A (Citroen C4 1.6 HDI 115HP 2014)

SID 807 EVO - S180123001 D (Citroen C4 1.6 HDI 115HP 2013)

SID 807 EVO - S180123001 E (Citroen C4 2.0 HDI 150HP 2012)

BMW F-Series and E-Series + 8HP EGS (SWAP)

We've added a brand new program to ITCARDIAG IM118 Emulator - BMW5!

The latest program is dedicated to BMW F-Series and E-Series* cars and can be used for the following purposes:

Engine + EGS Swap (8HP Automatic Transmission Gearbox)

Engine-only Swap

EGS-only Swap

Additionally, the original car (donor) must meet the following requirements:

It has to be equipped with one of the following modules: EWS4 / CAS / FEM

The ISN in the ECU content needs to have 16 bytes

The ISN in the EGS content needs to have 16 bytes (optional - only if your project requires it)

Attention:

The procedure WILL NOT WORK if the recipient vehicle is equipped with EWS4 / CAS / FEM module!

Mercedes W169, W245 ESL/ELV Replacement

Use IM118 to replace signal of a damaged ESL/ELV in Mercedes W169 and W245.

A damaged to the Electronic Steering Lock (ESL/ELV) module is a common fault in Mercedes W169 and W245 cars.

Solution tested on:

Mercedes W169

Mercedes W245

Toyota Auris 2007-2012 | IMMO OFF

Make IMMO OFF with IM118 on a Toyota equipped with Denso Diesel ECU.

Tested on

89661-12B00 / 175800-8021

(Toyota Auris D4D 2.0 126HP 2007)

TCU Component Protection Removal

It allows to remove the Component Protection from the TCU (Transmission Control Unit) in VAG Group cars.

A typical use case for such function is replacing the TCU or replacing the gearbox from manual to automatic transmission. Usually, you would get a transmission error show up on the dashboard and the gearbox wouldn't switch the gears.

After installing the emulator, the error message will no longer show up and the gearbox will switch gears.

Toyota Auris 2006-2013 | IMMO OFF

Here's our latest solution for Toyota cars. You can now use ITCARDIAG IM118 Emulator to make IMMO OFF on Toyota Auris equipped with Bosch EDC17CP37 ECU.

Solution tested on:

0 281 017 097 (Toyota Auris D-4D 1.4 90HP 2010)

Nissan Note 2006-2012 | IMMO OFF

Here's our latest solution for Nissan cars. You can now use IM118 Emulator to make IMMO OFF on Nissan Note equipped with Hitachi MEC37-650.

Solution tested on:

MEC37-650 C1 9129 (Nissan Note 1.4 88HP 2009)

Fiat 500 Abarth 2017-2018 | IMMO OFF

You can now use IM118 Emulator to make IMMO OFF on Fiat 500 Abarth equipped with Bosch ME17.3.0 ECUs.

Solution tested on:

0 261 S17 573 (Fiat 500 Abarth 695 1.4 165HP 2017)

Bentley Continental GT 2014-2016 | IMMO OFF

You can now use ITCARDIAG IM118 Emulator to make IMMO OFF on Bentley equipped with Bosch ME17.1.6 ECUs.

solution tested on:

0 261 S08 071 (Bentley Continental GT Speed 6.0 635HP 2015)

Porsche Macan 2014-2018 | IMMO OFF

You can now use IM118 Emulator to make IMMO OFF on Porsche equipped with Bosch EDC17CP44 ECUs.

Solution tested on:

0 281 030 554 (Porsche Macan 3.0 Diesel 250HP 2017)

Continental Simos 18.1 [VAG] - IMMO OFF

Here's our latest solution for VAG cars with 5-gen immobiliser system. You can now use IM118 Emulator to make IMMO OFF on VAG Group equipped with Continental SIMOS 18.1 ECUs.

Solution tested on:

06K907425B / 5WA18004 01

VAG IMMO 5 | EDC17 ME17 MED17 | TCU DQ200, DQ250

Here's our latest solution for VAG Group cars with WFS5 system / MQB Platform. You can now use IM118 Emulator to give authorization to both ECU and TCU at the same time!

Solution tested on:

0 261 S08 575 (ME17.5.24)

0 281 016 140 (EDC17CP20)

06K907425B / 5WA18004 01 (Simos 18.1)

Nissan | Hitachi MEC32-020->110

Nissan | Hitachi MEC32-210->680, MEC36, MEC37, MEC43

Hyundai |Kefico ME7.9.0| IMMO OFF

Bosch ME7.3H4 [Lancia] - IMMO OFF

Bosch ME7.3.2 / ME7.1.1 [Maserati]

Continental EMS3155 [Renault/Nissan]

Bosch EDC16C8 [Alfa Romeo/Fiat/Lancia] - IMMO OFF

Magneti Marelli IAW4CM.C1 [Maserati] - IMMO OFF

Magneti Marelli 10JA [Alfa Romeo] - IMMO OFF Bosch EDC15M1-5.x / EDC15V1-5.x [Nissan] - IMMO OFF

Bosch ME7.1.1 (CAN bus) [Ferrari / Maserati] - IMMO OFF

Bosch MED7.1.1 [Fiat Group] - IMMO OFF

Bosch EDC16C9/EDC16C8 K-Line [FIAT] - IMMO OFFosch EDC16C34 [PSA Group] - IMMO OFF

Sagem S3000 [RENAULT] - IMMO OFF

Bosch EDC17C49 [FIAT] - IMMO OFF

[VAG Group] Bosch MED17.5.5 - IMMO OFF

Bosch ME9.1.1 [Maserati]

Ferrari F430 - IMMO OFF

Bosch EDC17C69 - IMMO OFF

IMMOBILISER Support ECUs:

TMS374:

Sagem Safir 1, Sagem Safir 2, Siemens Fenix 5

For Renault 1:

Bosch EDC15

Bosch EDC15VM+2.Vx

Bosch EDC MS 6.3

Bosch EDCMSA15.5-5x

Bosch M4.4.2

Delphi DDCR

Lucas DCU3R

Siemens EMS3134

Siemens EMS3132

Siemens Sirius 34

Siemens Sirius 32

For Renault 2:

Bosch EDC15

Delphi DDCR

Magneti Marelli IAW 5NR2

Sagem S2000

Siemens EMS3134

Siemens EMS3132

Siemens / Continental SIM32

Siemens Sirius 34

Siemens Sirius 32

ITCARDIAG

For Renault 3:

Bosch EDC17

Bosch EDC16

Continental EMS3155

Continental EMS3110

ITCARDIAG

Continental SID310

Continenta SID309

Continental SID307

Continental SID306

Continental SID305

Delphi DCM3.4

Delphi DCM1.2

Sagem S3000

Siemens SID304

Siemens SID301

Siemens / Continental SIM32

Valeo V50 / V50.1

Valeo V42

Valeo V40

For Renault 4 ISK PASSWORD( We Don't Provide this Code!!!):

Bosch EDC17C84

Bosch MD1CS006

Continental EMS3161

Continental EMS3160

Continental EMS3155

Continental EMS3150

Continental EMS3141

Continental EMS3140

Continental EMS3125

Continental EMS3120

ITCARDIAG SID321

Continental SID321

Continental SID310

Continental SID309

Continental SID307

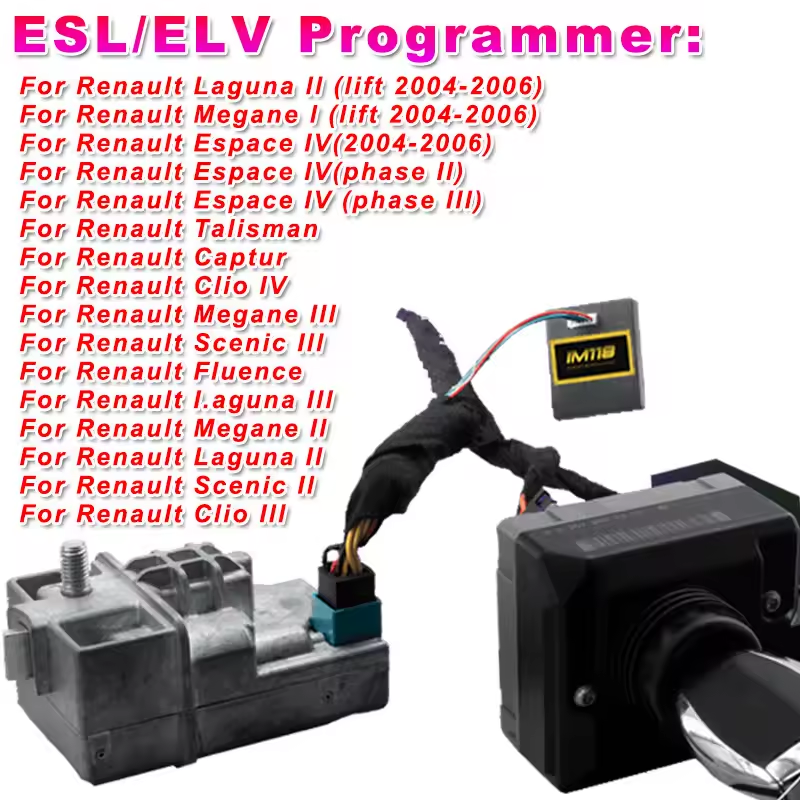

ESL/ELV REPLACING PROGRAM:

For Renault Laguna Il (lift 2004-2006)

For Renault Megane II (lift 2004-2006)

For Renault Espace IV(2004-2006)

For Renault Talisman

For Renault Captur

For Renault Clio IV

For Renault Megane IIl

For Renault Scenic IIl

For Renault Fluence

For Renault Laguna Ill

For Renault Espace IV (phase IIl)

For Renault Megane Il

For Renault Laguna Il

For Renault Scenic Il

For Renault Clio II

For Renault Espace IV (phase II)

Tachometer tester programs

For Renault Kangoo II Display

For Renault Scenic Il, Espace IV, Megane lI

For Renault Scenic Il, Espace IV Full

For Renault Scenic Il + Navi
