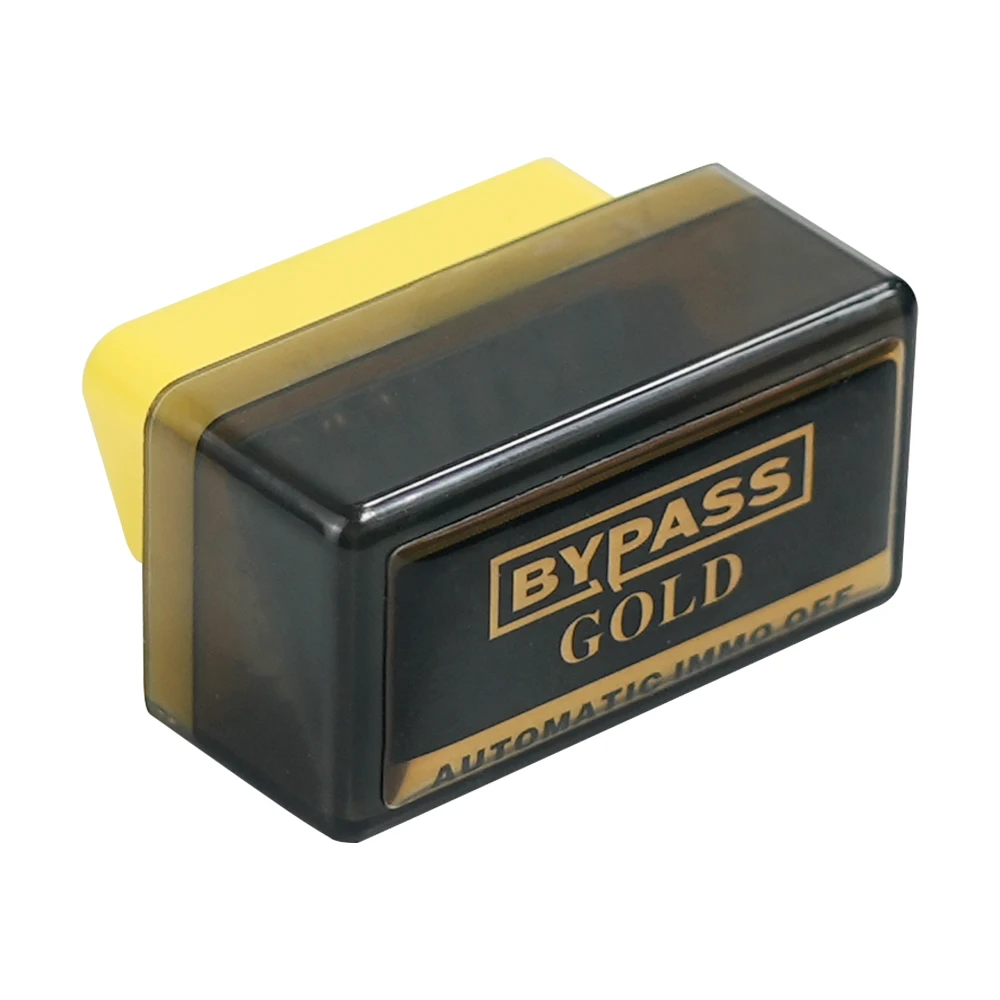

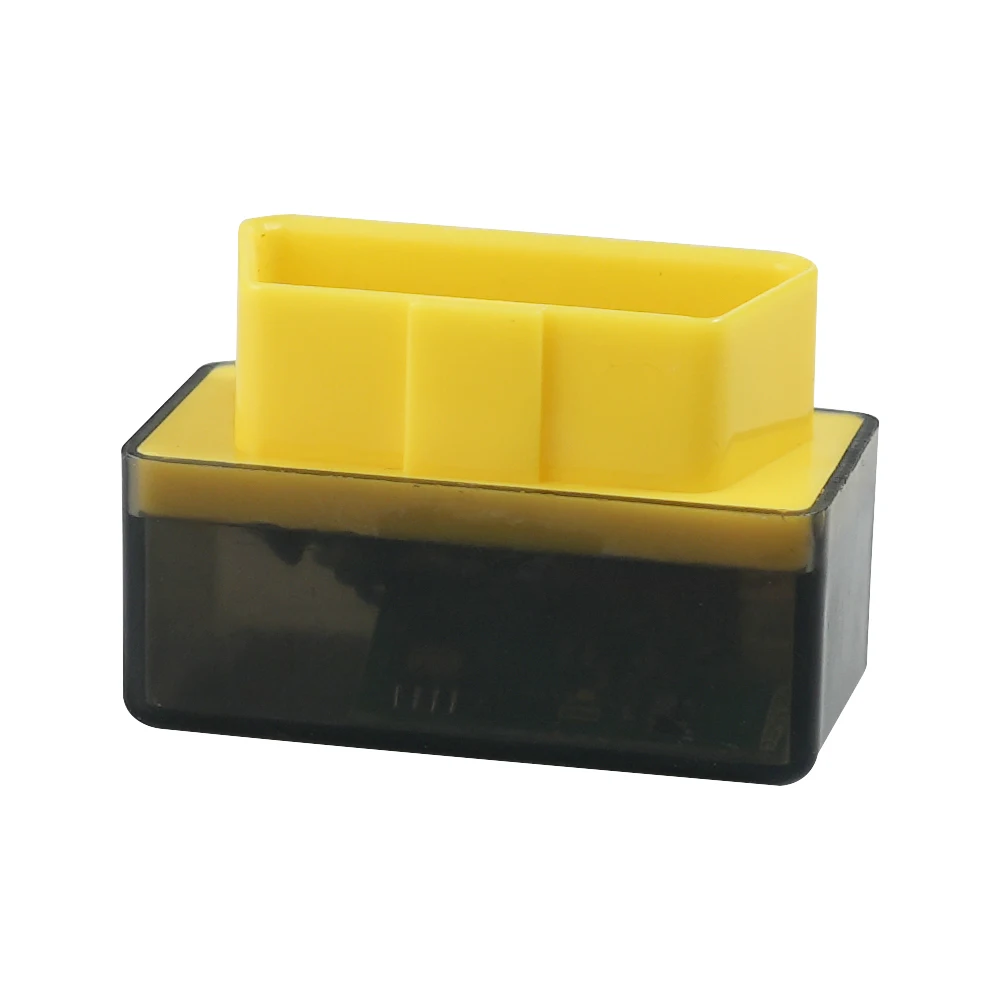

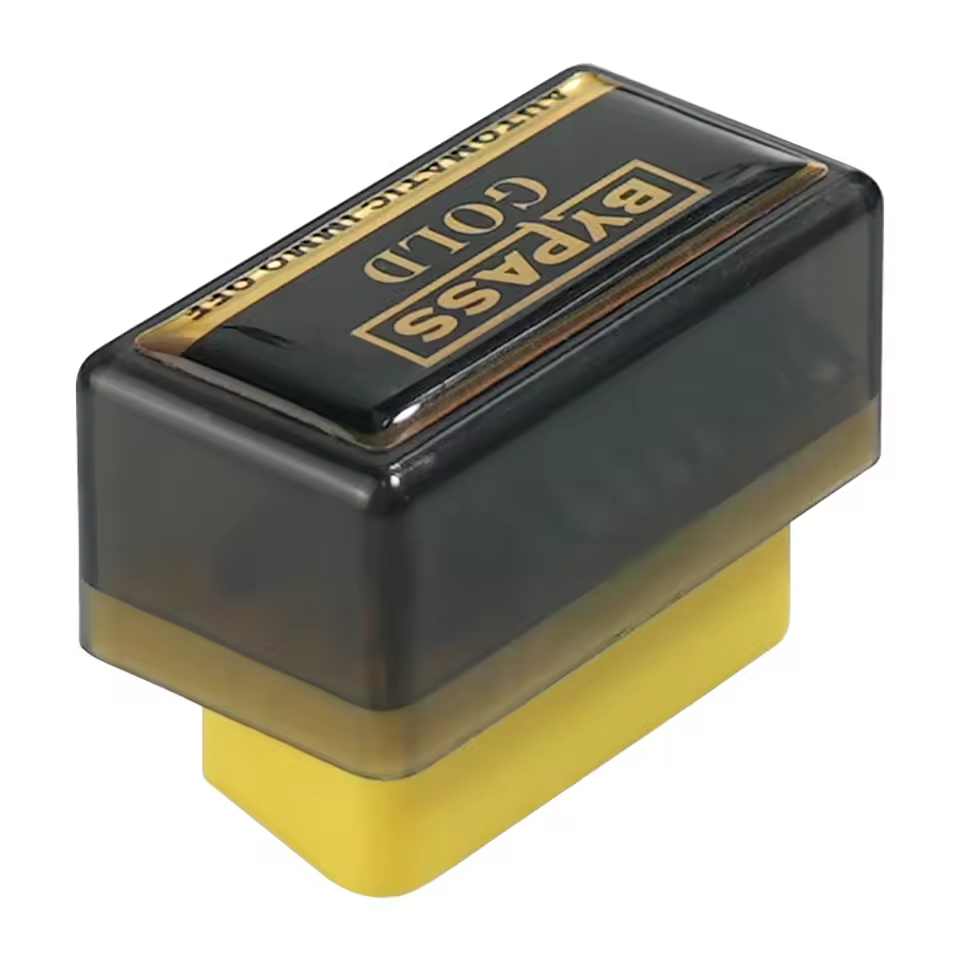

VAG Bypass Emergency Start Device Bypass Gold For AUDI For SEAT For SKODA For VW EDC15 EDC16 ME7 Automatic Remove Immo off

Function:

The fastest procedure - car is ready to start right after plugging in Intelligent recognition of the ECU and car Original CarLabImmo tool - you can trust it won't let you down

for VAG By-pass - Emergency Start Device OverviewTo use Fiat Bypass you just need to connect it to the OBD2 socket in the car. The tool bypasses the original immobiliser signal and allows you to start the car right after plugging it in.

for VAG By-pass - Emergency Start Device Usage Requirements:Car has to be equipped with mechanical key.Car has to be equipped with original parts. The device will work only in case of a lost key.If the car is equipped with an SGW Module (some models starting from 2017 year), you need to use SGW Adapter in order to bypass Security Gateway Module

How to use for VAG By-pass - Emergency Start Device :

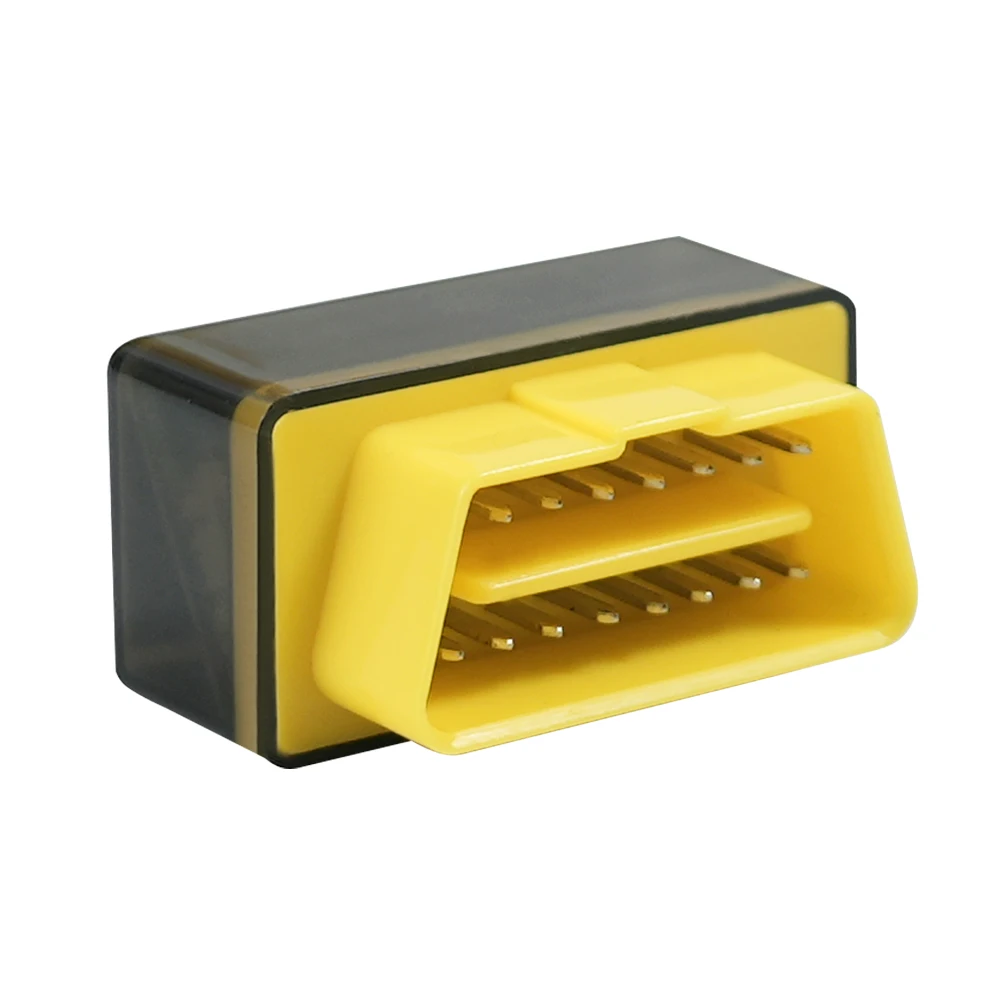

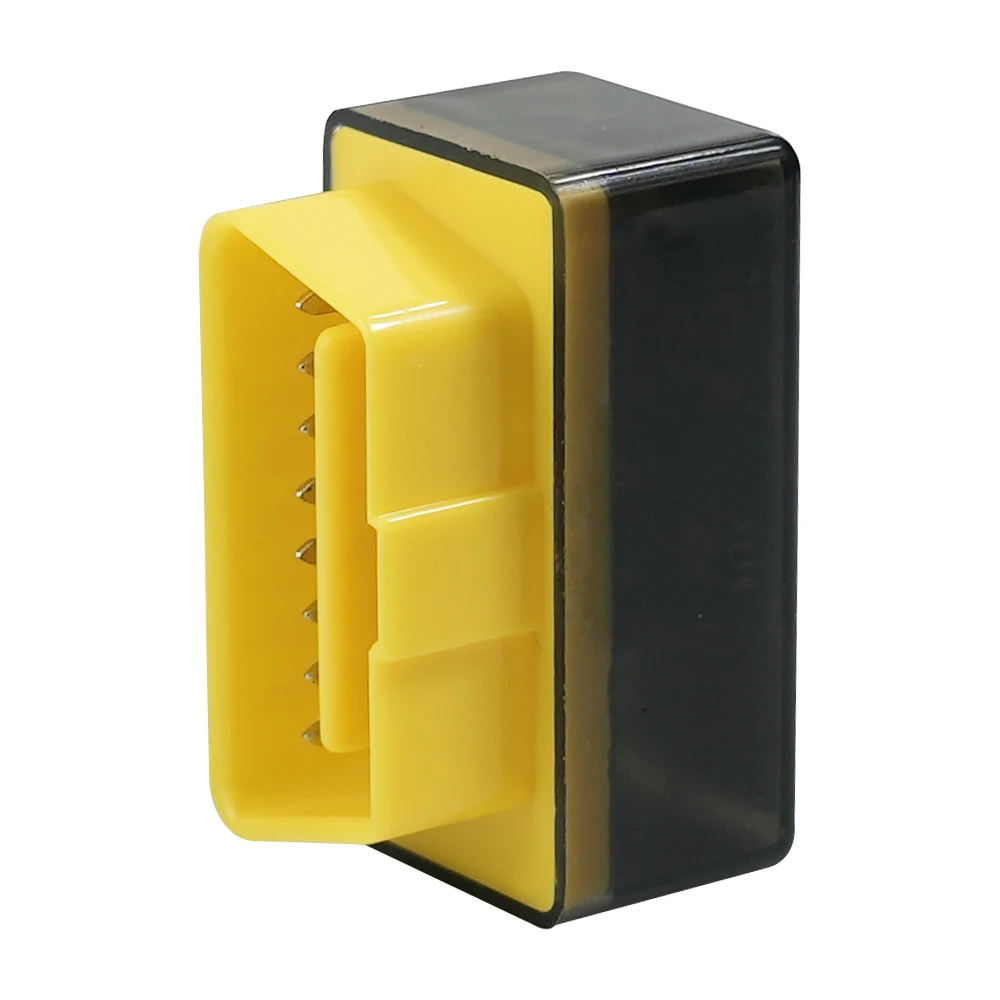

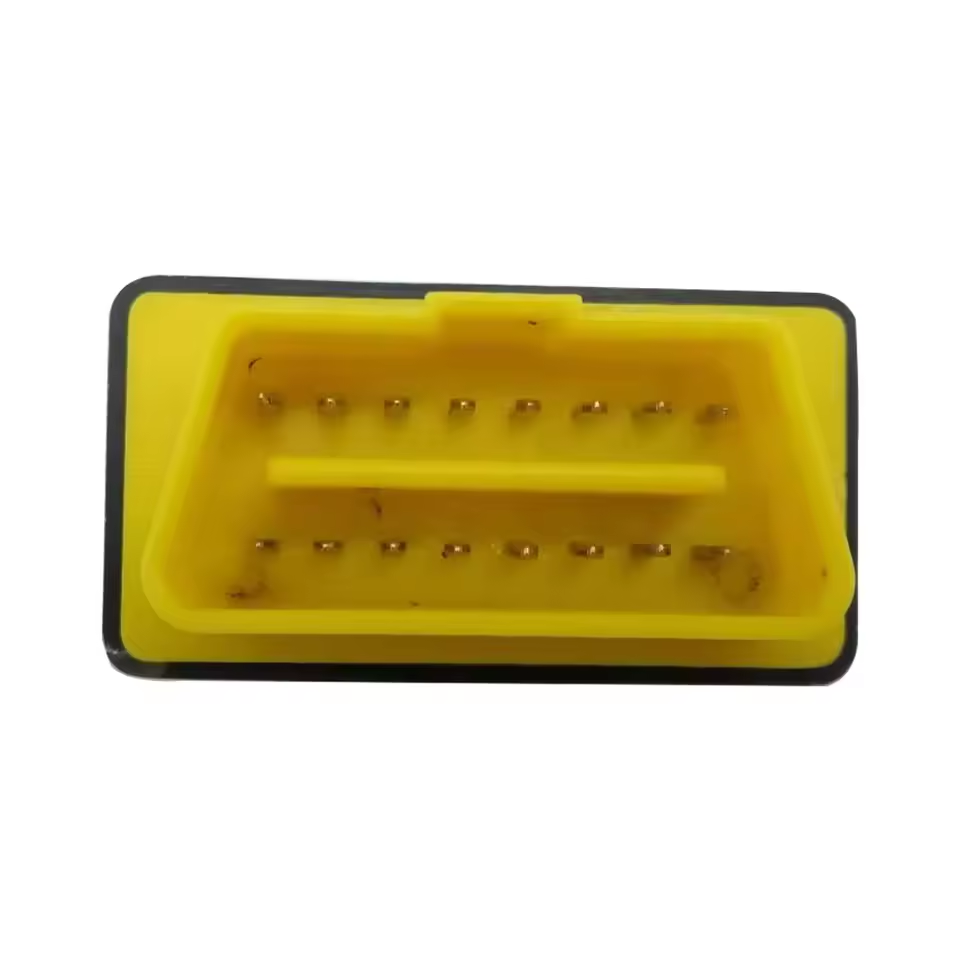

Insert the device into OBD plug(In some models produced from 2017 year, you have to use SGW Adapter), the LED will start blinking fast.Turn the ignition ON - the LED will start blinking slowly.Start the car.If the LED keeps blinking fast after turning the ignition ON, take the key out, wait 30 seconds and turn the ignition ON again. Sometimes the procedure needs to be repeated again.

Supported Car list and ECU Number:

For B-osc-h EDC16

For Au-di A6 C6 3.0 TDi 224HP 2004-2006

For Au-di A6 C6 2.7 TDi 180HP 2004-2008

For Au-di A6 C6 2.0 TDi 140HP 2004-2008

For Au-di A4 B7 3.0 TDi 204HP 2004-2005

For Au-di A4 B7 2.0 TDi 140HP 2004-2005

For Au-di A4 B6 1.9 TDi 115HP 2004-2004

For Au-di A3 8P 2.0 TDi 140HP 2003-2006

For Au-di A3 8P 1.9 TDi 105HP 2003-2009

For Au-di Q7 3.0 TDi 233HP 2005-2008

For Se-at Alt-ea 2.0 TDi 140HP 2004-2010

For Se-at Alt-ea 1.9 TDi 105HP 2004-2010

For Se-at Le-on II 1.9 TDi 105HP 2005-2010

For Sko-da Octa-via 1Z 2.0 TDi 140HP 2004-2010

For Sko-da Octa-via 1Z 1.9 TDi 105HP 4x4 2004-2010

For Sko-da Super-b I 2.0 TDi 140HP 2005-2008

For V-W Cad-dy 2.0 SDi 69HP 2003-2010

For V-W Cad-dy 1.9 TDi 105HP 2003-2010

For V-W Craf-ter 2.5 TDi 163HP 2006-2010

For V-W Craf-ter 2.5 TDi 109HP 2006-2010

For V-W Go-lf V 2.0 TDi 140HP 2003-2008

For V-W Go-lf V 1.9 TDi 105HP 2003-2009

For V-W Go-lf V 1.9 TDi 90HP 2004-2008

For V-W Je-tta V 1.9 TDi 105HP 2005-2008

For V-W Passa-t B6 2.0 TDi 140HP 2005-2008

For V-W Passa-t B6 1.9 TDi 105HP 2004-2008

For V-W Passa-t B5 2.0 TDi 136HP 2003-2005

For V-W Shara-n I 2.0 TDi 140HP 2005-2010

For V-W T5 2.5 TDi 174HP 2003-2009

For V-W T5 2.5 TDi 131HP 2003-2009

For V-W T5 1.9TDi 105HP 2003-2009

For V-W T5 1.9TDi 102HP 2003-2009

For V-W T5 1.9TDi 86HP 2003-2009

For V-W T5 1.9 TDi 84HP 2003-2009

For V-W Toua-reg 2.5TDi 174HP 2003-2009

For V-W Tou-ran I 2.0 TDi 140HP 2004-2010

For V-W Tou-ran I 1.9 TDi 105HP 2006-2010

ECU numbers

0 281 015 336 / 03G 906 056 AA (EDC16U34) (Se-at Le-on 1.9 TDi 105HP 2009)

0 281 015 175 / 03G 906 056 Q (EDC16U34) (V-W Cad-dy 2K 1.9 TDi 105HP 2010)

0 281 014 891 / 070 906 016 EA (EDC16U31) (V-W T5 2.5 TDi 2003-2015)

0 281 014 406 / 4L0 910 401 R (EDC16CP34) (Au-di Q7 3.0 TDi 233HP 2007)

0 281 014 384 / 4F5 910 401 M (EDC16CP34) (Au-di A6 C6 2.7 TDi 180HP 2008)

0 281 014 259 / 03G 906 016 MF (EDC16U31) (Au-di A6 C6 2.0 TDi 140HP 2007)

0 281 014 254 / 038 906 016 AL (EDC16U31) (V-W T5 1.9TDi 102HP 2008)

0 281 014 139 / 03G 906 021 RQ (EDC16CP34) (V-W Passa-t B6 1.9 TDi 105HP 2007)

0 281 014 136 / 03G 906 021 RH (EDC16U34) (Sko-da Octa-via 1Z 1.9 TDi 105HP 4x4 2007)

0 281 014 134 / 074 906 032 AS (EDC16CP34) (V-W Craf-ter 2.5 TDi 109HP 2008)

0 281 014 133 / 074 906 032 AT (EDC16CP34) (V-W Craf-ter 2.5 TDi 109HP 2009)

0 281 014 132 / 074 906 032 BA (EDC16CP34) (V-W Craf-ter 2.5 TDi 109HP 2010)

0 281 014 131 / 074 906 032 BB (EDC16CP34) (V-W Craf-ter 2.5 TDi 109HP 2007)

0 281 014 128 / 03G 906 021 RN (EDC16U34) (V-W Tou-ran I 1.9 TDi 105HP 2009)

0 281 014 073 / 03G 906 021 PD (EDC16U34) (V-W Cad-dy 1.9 TDi 105HP 2008)

0 281 014 064 / 03G 906 021 QJ (EDC16U34) (V-W Go-lf V 1.9 TDi 105HP 2008)

0 281 014 061 / 03G 906 021 PM (EDC16U34) (V-W Go-lf V 1.9 TDi 105HP 2009)

0 281 014 050 / 090 997 016 M (EDC16U31) (V-W T5 2.5 TDi 131HP 2007)

0 281 014 049 / 070 997 016 L (EDC16U31) (V-W T5 2.5 TDi 131HP 2009)

0 281 014 045 / 03G 906 021 MJ (EDC16U34) (V-W Tou-ran I 2.0 TDi 140HP 2009)

0 281 014 044 / 03G 906 021 MM (EDC16U34) (V-W Tou-ran I 1.9 TDi 105HP 2007)

0 281 013 887 / 03G 906 016 LQ (EDC16U31) (Au-di A4 B7 2.0 TDi 140HP 2008)

0 281 013 829 / 4F0 907 401 C (EDC16CP34) (Au-di A6 C6 2.7 TDi 180HP 2005)

0 281 013 700 / 074 906 032 AG (EDC16U34) (V-W Craf-ter 2.5 TDi 109HP 2007)

0 281 013 699 / 074 906 032 AF (EDC16U34) (V-W Craf-ter 2.5 TDi 109HP 2009)

0 281 013 691 / 4L0 910 401 K (EDC16CP34) (Au-di Q7 3.0 TDi 233HP 2006)

0 281 013 689 / 4L0 910 401 M (EDC16CP34) (Au-di Q7 3.0 TDi 233HP 2007)

0 281 013 619 / 03G 906 021 JC (EDC16U34) (Sko-da Octa-via 1Z 2.0 TDi 140HP 2007)

0 281 013 618 / 03G 906 021 HF (EDC16U34) (V-W Go-lf V 2.0 TDi 140HP 2006)

0 281 013 608 / 03G 906 021 JH (EDC16U34) (Au-di A3 8P 2.0 TDi 140HP 2006)

0 281 013 606 / 03G 906 021 HB (EDC16U34) (V-W Go-lf V 1.9 TDi 105HP 2007)

0 281 013 440 / 03G 906 021 NK (EDC16U34) (V-W Passa-t B6 2.0 TDi 140HP 2006)

0 281 013 437 / 03G 906 021 NG (EDC16U34) (V-W Passa-t B6 1.9 TDi 105HP 2007)

0 281 013 311 / 03G 906 021 MR (EDC16U34) (V-W Passa-t B6 2.0 TDi 140HP 2006)

0 281 013 302 / 070 906 016 DE (EDC16U31) (V-W Toua-reg 2.5TDi 174HP 2008)

0 281 013 299 / 03G 906 021 MC (EDC16U34) (Sko-da Octa-via 1Z 2.0 TDi 140HP 2008)

0 281 013 282 / 03G 906 021 LN (EDC16U34) (Se-at Alt-ea 1.9 TDi 105HP 2006)

0 281 013 279 / 03G 906 021 LK (EDC16U34) (Se-at Le-on II 1.9 TDi 105HP 2006)

0 281 013 266 / 03G 906 021 P (EDC16U34) (V-W Tou-ran I 2.0 TDi 140HP 2007)

0 281 013 232 / 03G 906 021 KP (EDC16U34) (V-W Go-lf V 1.9 TDi 90HP 2006)

0 281 013 200 / 03G 906 021 KG (EDC16U34) (V-W Go-lf V 1.9 TDi 90HP 2007)

0 281 013 187 / 03G 906 021 LD (EDC16U34) (Sko-da Octa-via 1Z 2.0 TDi 140HP 2007)

0 281 013 177 / 4F0 907 401 B (EDC16CP34) (Au-di A6 C6 2.7 TDi 180HP 2005)

0 281 012 762 / 038 906 016 AH (EDC16U31) (V-W T5 1.9 TDi 84HP 2009)

0 281 012 742 / 03G 906 021 DP (EDC16U34) (V-W Passa-t B6 1.9 TDi 105HP 2006)

0 281 012 698 / 03G 906 016 GT (EDC16U31) (Sko-da Super-b I 2.0 TDi 140HP 2007)

0 281 012 696 / 03G 906 016 JP (EDC16U31) (V-W Shara-n I 2.0 TDi 140HP 2008)

0 281 012 654 / 03G 906 016 JD (EDC16U31) (Au-di A4 B7 2.0 TDi 140HP 2004)

0 281 012 557 / 03G 906 016 HS (EDC16U31) (Au-di A6 C6 2.0 TDi 140HP 2006)

0 281 012 545 / 074 906 032 G (EDC16CP) (V-W Craf-ter 2.5 TDi 163HP 2008)

0 281 012 390 / 03G 906 021 AQ (EDC16U34) (V-W Cad-dy 1.9 TDi 105HP 2009)

0 281 012 288 / 03G 906 016 HB (EDC16U1) (Se-at Alt-ea 1.9 TDi 105HP 2006)

0 281 012 270 / 4F0 907 401 B (EDC16CP) (Au-di A6 C6 3.0 TDi 224HP 2005)

0 281 012 253 / 03G 906 016 HJ (EDC16U1) (V-W Go-lf V 2.0 TDi 140HP 2007)

0 281 012 246 / 8E0 907 401 AJ (EDC16CP) (Au-di A4 B7 3.0 TDi 204HP 2005)

0 281 012 245 / 8E0 907 401 K (EDC16CP) (Au-di A4 B7 3.0 TDi 205HP 2004)

0 281 012 238 / 03G 906 016 AB (EDC16U34) (V-W Je-tta V 1.9 TDi 105HP 2006)

0 281 012 237 / 03G 906 016 K (EDC16U1) (Sko-da Octa-via 1Z 1.9 TDi 105HP 2006)

0 281 012 221 / 03G 906 016 GJ (EDC16U1) (V-W Go-lf V 2.0 TDi 140HP 2005)

0 281 012 220 / 03G 906 016 R (EDC16U1) (V-W Go-lf V 1.9 TDi 105HP 2007)

0 281 012 219 / 03G 906 016 HA (EDC16U31) (Au-di A4 B6 1.9 TDi 115HP 2004)

0 281 012 168 / 03G 906 016 GP (EDC16U1) (V-W Cad-dy 2.0 SDi 69HP 2007)

0 281 012 127 / 03G 906 016 FE (EDC16U31) (Au-di A4 B6 1.9 TDi 115HP 2004)

0 281 012 119 / 03G 906 021 AB (EDC16U34) (V-W Passa-t B6 2.0 TDi 140HP 2006)

0 281 012 113 / 03G 906 016 GN (EDC16U31) (Au-di A4 B7 2.0 TDi 140HP 2005)

0 281 012 112 / 03G 906 016 GB (EDC16U31) (Au-di A6 C6 2.0 TDi 140HP 2004)

0 281 011 946 / 03G 906 016 DK (EDC16U1) (V-W Tou-ran I 1.9 TDi 105HP 2008)

0 281 011 945 / 03G 906 016 CD (EDC16U1) (V-W Tou-ran I 1.9 TDi 105HP 2006)

0 281 011 909 / 03G 906 016 FH (EDC16U1) (Se-at Alt-ea 2.0 TDi 140HP 2008)

0 281 011 907 / 03G 906 016 FK (EDC16U1) (V-W Tou-ran I 2.0 TDi 140HP 2007)

0 281 011 905 / 03G 906 016 FF (EDC16U1) (Au-di A3 8P 2.0 TDi 140HP 2004)

0 281 011 903 / 03G 906 016 FM (EDC16U1) (V-W Go-lf V 2.0 TDi 140HP 2006)

0 281 011 900 / 03G 906 016 CB (EDC16U1) (V-W Tou-ran I 1.9 TDi 105HP 2005)

0 281 011 884 / 03G 906 016 AK (EDC16U1) (Se-at Le-on II 1.9 TDi 105HP 2008)

0 281 011 883 / 03G 906 016 DJ (EDC16U1) (Sko-da Octa-via 1Z 1.9 TDi 105HP 2008)

0 281 011 882 / 03G 906 016 DM (EDC16U1) (V-W Go-lf V 1.9 TDi 105HP 2006)

0 281 011 856 / 038 906 016 M (EDC16U1) (V-W T5 1.9 TDi 86HP 2008)

0 281 011 855 / 038 906 016 N (EDC16U1) (V-W T5 1.9 TDi 86HP 2008)

0 281 011 844 / 03G 906 016 DR (EDC16U1) (V-W Tou-ran I 2.0 TDi 140HP 2007)

0 281 011 843 / 03G 906 016 ET (EDC16U1) (V-W Tou-ran I 2.0 TDi 140HP 2008)

0 281 011 835 / 070 906 016 BD (EDC16U1) (V-W T5 2.5 TDi 131HP 2006)

0 281 011 832 / 03G 906 016 CC (EDC16U1) (Au-di A3 8P 1.9 TDi 105HP 2003-2009)

0 281 011 786 / 03G 906 016 EH (EDC16U1) (V-W Tou-ran I 2.0 TDi 140HP 2006)

0 281 011 569 / 4F0 907 401 A (EDC16CP34) (Au-di A6 C6 3.0 TDi 224HP 2005)

0 281 011 568 / 070 906 016 AJ (EDC16U1) (V-W T5 2.5 TDi 131HP 2007)

0 281 011 541 / 03G 906 016 N (EDC16U1) (V-W Cad-dy 2.0 SDi 69HP 2004)

0 281 011 535 / 03G 906 016 BK (EDC16U1) (Au-di A3 8P 2.0 TDi 140HP 2005)

0 281 011 479 / 03G 906 016 BB (EDC16U1) (V-W Tou-ran I 1.9 TDi 105HP 2009)

0 281 011 478 / 03G 906 016 B (EDC16U1) (V-W Go-lf V 1.9 TDi 105HP 2006)

0 281 011 450 / 03G 906 016 AL (EDC16U1) (V-W Tou-ran I 2.0 TDi 140HP 2008)

0 281 011 383 / 03G 906 016 J (EDC16U1) (Au-di A3 8P 1.9 TDi 105HP 2007)

0 281 011 364 / 03G 906 016 G (EDC16U1) (Au-di A3 8P 2.0 TDi 140HP 2005)

0 281 011 258 / 070 906 016 F (EDC16U1) (V-W Toua-reg 2.5TDi 174HP 200)

0 281 011 145 / 038 906 016 K (EDC16U31) (V-W Passa-t B5 2.0 TDi 136HP 2004)

0 281 010 735 / 038 906 016 A (EDC16U31) (V-W T5 1.9TDi 105HP 2005)

0 281 010 734 / 038 906 016 (EDC16U1) (V-W T5 1.9TDi 86HP 2003)

0 281 010 733 / 070 906 016 A (EDCU16U1) (V-W T5 2.5 TDi 174HP 2006)

0 281 010 732 / 070 906 016 (EDC16U1) (V-W T5 2.5 TDi 131HP 2007)

0 281 010 731 / 03G 906 016 A (EDC16U1) (V-W Tou-ran I 1.9 TDi 105HP 2006)

For B-osc-h EDC15

(Except Au-di vehicles with coded injection pump)

For Au-di A6 C5 2.5 TDi 180HP 1999-2005

For Au-di A6 C5 1.9 TDi 130HP 2001-2005

For Au-di A4 B6 2.5 TDi 155HP 2001-2002

For Au-di A4 B6 1.9 TDi 130HP 2000-2004

For Au-di A4 B6 1.9 TDi 115HP 1999-2001

For Au-di A4 B5 1.9 TDi 110HP 1999-2000

For Au-di A4 B5 1.9 TDi 90HP 1997-2001

For Au-di A3 8L 1.9 TDi 130HP 2000-2003

For Au-di A3 8L 1.9 TDi 100HP 2001-2003

For Au-di A3 8L 1.9 TDi 90HP 1996-2001

For Fo-rd Gala-xy I 1.9 TDi 90HP 1999-2006

For Se-at Ibi-za 6L 1.9 TDi 130HP 2002-2008

For Se-at Ibi-za 6L 1.9 TDi 101HP 2002-2008

For Se-at Ibi-za 6L 1.9 SDi 64HP 2002-2006

For Se-at Le-on I 1.9 TDi 150HP 2000-2005

For Se-at Le-on I 1.9 TDi 110HP 1999-2005

For Se-at Le-on I 1.9 TDi 90HP 2000-2005

For Se-at Tole-do II 1.9 TDi 110HP 1998-2004

For Sko-da Fa-bia I 1.9 SDi 64HP 1999-2006

For Sko-da Fa-bia I RS 1.9 TDi 130HP 2003-2006

For Sko-da Octa-via I 1.9 TDi 110HP 1997-2006

For V-W Bo-ra 1.9 TDi 115HP 1999-2001

For V-W Go-lf IV 1.9 SDi 68HP 1997-2003

For V-W Go-lf IV 1.9 TDi 150HP 2000-2003

For V-W Go-lf IV 1.9 TDi 130HP 2001-2003

For V-W Go-lf IV 1.9 TDi 115HP 1999-2001

For V-W Go-lf IV 1.9 TDi 110HP 1997-2002

For V-W Go-lf IV 1.9 TDi 100HP 2000-2003

For V-W Go-lf IV 1.9 TDi 90HP 1997-2002

For V-W LT 2.5 TDi 110HP 1999-2006

For V-W LT 2.5 TDi 102HP 1996-1999

For V-W LT 2.5 TDi 83HP 2001-2006

For V-W New Bee-tle 1.9 TDi 90HP 1998-2004

For V-W Passa-t B5 2.5 TDi 150HP 1998-2000

For V-W Passa-t B5 1.9TDi 115HP 1999-1999

For V-W Passa-t B5 1.9 TDi 100HP 2000-2000

For V-W Passa-t B5FL 1.9 TDi 130HP 2000-2005

For V-W Po-lo 9N 1.4 TDi 75HP 2001-2005

For V-W Shara-n I 1.9 TDi 115HP 2000-2010

For V-W Shara-n I 1.9 TDi 90HP 1999-2006

For V-W T4 2.5 TDi 151HP 1998-2003

For V-W T4 2.5 TDi 102HP 1995-2003

For V-W T4 2.5 TDi 88HP 1998-2003

ECU numbers

0 281 011 413 / 038 906 019 MT (EDC15P+) (V-W New Bee-tle 1.9 TDi 90HP 2003)

0 281 011 385 / 074 906 018 BK (EDC15VM+) (V-W LT 2.5 TDi 102HP 1999)

0 281 011 321 / 038 906 012 HR (EDC15VM+) (Sko-da Fa-bia 1.9 SDi 64HP 2005)

0 281 011 312 / 038 906 012 HD (EDC15VM+) (Se-at Tole-do 1.9 TDi 110HP 2004)

0 281 011 311 / 038 906 012 HC (EDC15VM+) (Sko-da Octa-via 1.9 TDi 110HP 2004)

0 281 011 217 / 038 906 019 LA (EDC15P+) (Sko-da Fa-bia RS 1.9 TDi 130HP 2004)

0 281 011 193 / 038 906 019 KG (EDC15P+) (Se-at Le-on I 1.9 TDi 150HP 2005)

0 281 011 075 / 038 906 019 JK (EDC15P+) (V-W Po-lo 9N 1.4 TDi 75HP 2005)

0 281 010 981 / 038 906 019 FT (EDC15P+) (Au-di A3 8L 1.9 TDi 130HP 2003)

0 281 010 977 / 038 906 019 HJ (EDC15P+) (V-W Go-lf IV 1.9 TDi 130HP 2002)

0 281 010 976 / 038 906 019 HH (EDC15P+) (V-W Go-lf IV 1.9 TDi 150HP 2002)

0 281 010 974 / 038 906 019 AT (EDC15P+) (V-W Go-lf IV 1.9 TDi 100HP 2002)

0 281 010 947 / 038 906 019 HT (EDC15P+) (Se-at Ibi-za 6L 1.9 TDi 101HP 2006)

0 281 010 944 / 038 906 019 GL (EDC15P+) (V-W Passa-t B5 1.9 TDi 100HP 2000)

0 281 010 941 / 038 906 019 GQ (EDC15P+) (V-W Passa-t B5 1.9 TDi 100HP 2000)

0 281 010 940 / 038 906 019 GS (EDC15P+) (V-W Passa-t B5FL 1.9 TDi 130HP 2003)

0 281 010 892 / 038 906 019 GC (EDC15P+) (Au-di A3 8L 1.9 TDi 100HP 2002)

0 281 010 891 / 038 906 019 DQ (EDC15P+) (Se-at Ibi-za 6L 1.9 TDi 130HP 2005)

0 281 010 822 / 4B2 907 401 J (EDC15VM+) (Au-di A6 C5 2.5 TDi 180HP 2000)

0 281 010 751 / 038 906 019 FC (EDC15P+) (V-W Shara-n I 1.9 TDi 115HP 2002)

0 281 010 729 / 038 906 019 FP (EDC15P+) (Au-di A4 B6 1.9 TDi 130HP 2002)

0 281 010 701 / 038 906 019 EP (EDC15P+) (V-W Passa-t B5FL 1.9 TDi 130HP 2004)

0 281 010 697 / 045 906 019 C (EDC15P+) (V-W Po-lo 1.4 TDi 75HP 2003)

0 281 010 690 / 038 906 012 EM (EDC15VM+) (Se-at Ibi-za 6L 1.9 SDi 64HP 2003)

0 281 010 686 / 038 906 012 FN (EDC15VM+) (Se-at Le-on I 1.9 TDi 90HP 2004)

0 281 010 683 / 038 906 012 FK (EDC15VM+) (Se-at Le-on I 1.9 TDi 110HP 2003)

0 281 010 681 / 074 906 018 AH (EDC15VM+) (V-W T4 2.5 TDi 102HP 2002)

0 281 010 651 / 038 906 012 FB (EDC15VM+) (V-W Go-lf IV 1.9 TDi 110HP 2000)

0 281 010 644 / 038 906 012 ES (EDC15VM+) (V-W Go-lf IV 1.9 TDi 110HP 2002)

0 281 010 639 / 074 906 018 BC (EDC15VM+) (V-W LT 2.5 TDi 83HP 2006)

0 281 010 638 / 074 906 018 BD (EDC15VM+) (V-W LT 2.5 TDi 95HP 2004)

0 281 010 631 / 074 906 018 BG (EDC15VM+) (V-W T4 2.5 TDi 102HP 2000)

0 281 010 561 / 038 906 019EF (EDC15P+) (Au-di A3 8L 1.9 TDi 130HP 2001)

0 281 010 558 / 038 906 019 EH (EDC15P+) (V-W Passa-t B5FL 1.9 TDi 130HP 2002)

0 281 010 543 / 038 906 019 DS (EDC15P+) (V-W Passa-t B5FL 1.9 TDi 130HP 2004)

0 281 010 503 / 045 906 019 AB (EDC15P+) (V-W Po-lo 1.4 TDi 75HP 2003)

0 281 010 497 / 038 906 019 DF (EDC15P+) (V-W Go-lf IV 1.9 TDi 100HP 2001)

0 281 010 492 / 8E0 907 401 (EDC15MV+) (Au-di A4 B6 2.5 TDi 155HP 2002)

0 281 010 490 / 074 906 018 AN (EDC15VM+) (V-W T4 2.5 TDi 151HP 2002)

0 281 010 462 / 074 906 018 AK (EDC15VM+) (V-W T4 2.5 TDi 88HP 2001)

0 281 010 461 / 074 906 018 AJ (EDC15VM+) (V-W T4 2.5 TDi 151HP 2003)

0 281 010 459 / 074 906 018 AL (EDC15VM+) (V-W T4 2.5 TDi 102HP 2003)

0 281 010 458 / 074 906 018 AM (EDC15VM+) (V-W T4 2.5 TDi 102HP 2002)

0 281 010 447 / 3B1 907 401 B (EDC15VM+) (V-W Passa-t B5 2.5 TDi 150HP 1999)

0 281 010 407 / 074 906 018 H (EDC15VM+) (V-W LT 2.5 TDi 110HP 2004)

0 281 010 406 / 038 906 019 CG (EDC15P+) (Au-di A4 B6 1.9 TDi 130HP 2002)

0 281 010 405 / 038 906 019 CF (EDC15P+) (Au-di A6 C5 1.9 TDi 130HP 2003)

0 281 010 395 / 4B2 907 401 D (EDC15VM+) (Au-di A6 C5 2.5 TDi 180HP 2003)

0 281 010 393 / 4B2 907 401 B (EDC15VM+) (Au-di A6 C5 2.5 TDi 180HP 2002)

0 281 010 380 / 038 906 012 CL (EDC15VM+) (Sko-da Octa-via I 1.9 TDi 110HP 2005)

0 281 010 373 / 038 906 012 DB (EDC15VM+) (V-W Go-lf IV 1.9 SDi 68HP 1999)

0 281 010 309 / 038 906 019 CA (EDC15P+) (Fo-rd Gala-xy I 1.9 TDi 90HP 2005)

0 281 010 308 / 038 906 019 CK (EDC15P+) (Au-di A3 8L 1.9 TDi 130HP 2001)

0 281 010 303 / 038 906 019 AJ (EDC15P+) (V-W Passa-t B5 1.9 TDi 115HP 1999)

0 281 010 302 / 038 906 019 CJ (EDC15P+) (V-W Bo-ra 1.9 TDi 115HP 1999)

0 281 010 218 / 038 906 019 CD (EDC15P+) (V-W Passa-t B5 1.9 TDi 115HP 1999)

0 281 010 217 /038 906 019 CE (EDC15P+) (V-W Passa-t B5 1.9 TDi 115HP 1999)

0 281 010 216 / 038 906 019 J (EDC15P+) (V-W Shara-n I 1.9 TDi 115HP 2003)

0 281 010 215 / 038 906 019 AR (EDC15P+) (V-W Go-lf IV 1.9 TDi 115HP 1999)

0 281 010 202 / 038 906 012 AJ (EDC15VM+) (Au-di A4 B5 1.9 TDi 90HP 2001)

0 281 010 200 / 038 906 012 AH (EDC15VM+) (Au-di A4 B5 1.9 TDi 110HP 1999)

0 281 010 176 / 038 906 019 BJ (EDC15P+) (V-W Passa-t B5 1.9 TDi 115HP 1999)

0 281 010 174 / 038 906 012 BF (EDC15VM+) (V-W Go-lf IV 1.9 SDi 68HP 2000)

0 281 010 126 / 038 906 012 AP (EDC15VM+) (V-W Go-lf IV 1.9 TDi 110HP 2001)

0 281 010 122 / 038 906 012 C (EDC15VM+) (Au-di A3 8L 1.9 TDi 90HP 2000)

0 281 010 112 / 038 906 012 L (EDC15VM+) (V-W Go-lf IV 1.9 TDi 110HP 2002)

0 281 010 111 / 038 906 012 K (EDC15VM+) (V-W Go-lf IV 1.9 TDi 90HP 2001)

0 281 010 104 / 038 906 012 J (EDC15VM+) (V-W Go-lf IV 1.9 SDi 68HP 2000)

0 281 010 094 / 038 906 019 AN (EDC15P+)(Au-di A4 B6 1.9 TDi 115HP 2001)

0 281 010 091 / 038 906 019 AM (EDC15P+) (V-W Go-lf IV 1.9 TDi 115HP 2001)

0 281 010 084 / 074 906 018 B (EDC15VM+) (V-W T4 2.5 TDi 88HP 2002)

0 281 010 082 / 074 906 018 C (EDC15VM+) (V-W T4 2.5 TDi 102HP 2003)

0 281 010 079 / 074 906 018 D (EDC15VM+) (V-W T4 2.5 TDi 150HP 2002)

0 281 010 078 / 074 906 018 N (EDC15VM+) (V-W T4 2.5 TDi 150HP 2000)

0 281 001 979 / 038 906 012 M (EDC15VM+) (V-W Go-lf IV 1.9 TDi 90HP 2001)

0 281 001 914 / 038 906 018 EC (EDC15V) (V-W Go-lf IV 1.9 TDi 90HP 2000)

0 281 001 613 / 038 906 018 J (EDC15V) (V-W Go-lf IV 1.9 TDi 110HP 1998)

For B-osc-h ME7

For Au-di A8 D2 2.8 193HP 1996-2002

For Au-di A6 C5 2.4 163HP 1998-2001

For Au-di A6 C5 1.8 Turbo 150HP 1997-2001

For Au-di A4 B6 2.0 130HP 2000-2004

For Au-di A4 B6 1.8 Turbo 163HP 2002-2004

For Au-di A4 B6 1.8 Turbo 150HP 2000-2004

For Au-di A4 B5 2.8 193HP 1996-2001

For Au-di A4 B5 1.8 Turbo 180HP 1997-2001

For Au-di A4 B5 1.8 Turbo 150HP 1999-2001

For Au-di A4 B5 1.8 125HP 1994-2001

For Au-di A3 8L 1.8 Turbo 180HP 1998-2003

For Au-di A3 8L 1.8 Turbo 150HP 1996-2003

For Au-di TT 8N 1.8 Turbo 224HP 1998-2006

For Au-di TT 8N 1.8 Turbo 180HP 1998-2005

For Au-di S8 D2 4.2 V8 340HP 1996-1999

For Au-di S6 C5 4.2 V8 340HP 1999-2001

For Au-di S4 B5 2.7 BiTurbo 265HP 1997-2001

For Au-di S3 8L 1.8 Turbo 210HP 1999-2001

For Au-di RS4 B5 2.7 381HP 1999-2001

For Se-at Alham-bra 2.0 115HP 2000-2010

For Se-at Alham-bra 1.8 Turbo 150HP 2000-2010

For Se-at Aro-sa 6H1 1.4 75HP 1999-2004

For Se-at Cordo-ba 6K 1.4 75HP 1999-2002

For Se-at Ibi-za 6K 1.4 75HP 2002-2006

For Se-at Ibi-za 6K 1.4 60HP 1999-2002

For Se-at Ibi-za 6K 1.0 50HP 1999-2002

For Se-at Le-on I 1.8 Turbo 180HP 1999-2005

For Sko-da Octa-via 2.0 115HP 2002-2004

For V-W Cad-dy 9KV 1.4 60HP 1995-2003

For V-W Go-lf IV 2.8 204HP 1999-2003

For V-W Go-lf IV 2.0 115HP 2001-2003

For V-W Go-lf IV 1.8 Turbo 180HP 2001-2003

For V-W Go-lf IV 1.8 Turbo 150HP 1997-2003

For V-W Go-lf IV 1.4 75HP 1997-2003

For V-W Lup-o 1.4 75HP 1998-2005

For V-W New Bee-tle 1.8 Turbo 150HP 1999-2002

For V-W New Bee-tle 1.4 75HP 2001-2005

For V-W Passa-t B5 1.8 125HP 1997-2000

For V-W Passa-t B5 FL 2.8 193HP 2000-2005

For V-W Passa-t B5 FL 2.0 115HP 2000-2005

For V-W Po-lo 9N3 1.6 105HP 2006-2009

For V-W Po-lo 9N 1.4 75HP 2001-2005

For V-W Po-lo 6N2 1.4 60HP 1999-2001

For V-W Po-lo 6N2 1.0 50HP 1999-2001

For V-W Toua-reg 7L 3.2 220HP 2002-2010

ECU numbers

0 261 208 537 / 030 906 032 EL (V-W Po-lo 9N 1.4 75HP 2003

0 261 208 525 / 8E0 909 518 AR (Au-di A4 B6 1.8 Turbo 163HP 2004

0 261 207 936 / 8E0 909 518 AC (Au-di A4 B6 1.8 Turbo 163HP 2002

0 261 207 934 / 8E0 909 518 AA (Au-di A4 B6 1.8 Turbo 163HP 2002

0 261 207 889 / 032 906 032 E (V-W Po-lo 1.6 105HP 2005

0 261 207 818 / 06A 906 032 LB (Sko-da Octa-via 2.0 115HP 2004

0 261 207 796 / 3B0 907 557 Q (V-W Passa-t B5 FL 2.0 115HP 2004

0 261 207 753 / 8E0 909 557 D (Au-di A4 B6 2.0 130HP 2003

0 261 207 681 / 030 906 032 DQ (V-W Lup-o 1.4 75HP 2000

0 261 207 639 / 4B0 906 018 DF (V-W Passa-t B5 1.8 Turbo 150HP 2001

0 261 207 636 / 4B0 906 018 DC (V-W Passa-t B5 1.8 Turbo 150HP 2002

0 261 207 625 / 030 906 032 EB (Se-at Aro-sa 6H1 1.4 75HP 2001

0 261 207 593 / 030 906 032 DT (V-W Po-lo 6N2 1.4 60HP 2000

0 261 207 592 / 030 906 032 DS (V-W Po-lo 6N2 1.4 60HP 2001

0 261 207 566 / 022 906 032 BF (V-W Toua-reg 7L 3.2 220HP 2004

0 261 207 534 / 06A 906 032 EE (Au-di A3 8L 1.8 Turbo 150HP 1999

0 261 207 442 / 06A 906 032 HQ (V-W Go-lf IV 1.8 Turbo 180HP 2002

0 261 207 440 / 06A 906 032 HN (Se-at Le-on I 1.8 Turbo 180HP 2002

0 261 207 436 / 06A 906 032 HJ (V-W Go-lf IV 1.8 Turbo 150HP 2003

0 261 207 416 / 8N0 906 018 AQ (Au-di TT 8N 1.8 Turbo 180HP 2002

0 261 207 360 / 06A 906 032 FK (V-W Go-lf IV 2.0 115HP 2003

0 261 207 352 / 06A 906 032 GR (Se-at Alham-bra 2.0 115HP 2001

0 261 207 233 / 6K0 906 032 AH (Se-at Ibi-za 6K 1.0 50HP 1999

0 261 207 231 / 6K0 906 032 AJ (Se-at Ibi-za 6K 1.4 60HP 2001

0 261 207 230 / 6K0 906 032 AE (V-W Cad-dy 9KV 1.4 60HP 2000

0 261 207 228 / 6K0 906 032 AC (Se-at Ibi-za 6K 1.4 75HP 2006

0 261 207 215 / 4B0 906 018 CG (V-W Passa-t B5 1.8 Turbo 150HP 2001

0 261 207 204 / 06A 906 032 FC (Au-di A3 8L 1.8 Turbo 150HP 2001

0 261 207 203 / 030 906 032 R (V-W Lup-o 1.4 75HP 2001

0 261 207 190 / 036 906 032 G (V-W Go-lf IV 1.4 75HP 2003

0 261 207 189 / 036 906 032 L (V-W Go-lf IV 1.4 75HP 2000

0 261 207 178 / 030 906 032 CG (V-W Po-lo 6N2 1.4 60HP 2001

0 261 207 113 / 06A 906 032 EM (V-W New Bee-tle 1.8 Turbo 150HP 2001

0 261 207 030 / 8N0 906 018 AE (Au-di TT 1.8 Turbo 224HP 2004

0 261 207 027 / 8N0 906 018 AB (Au-di TT 1.8 Turbo 180HP 2001

0 261 207 014 / 3B0 907 551 BL (V-W Passa-t B5 FL 2.8 193HP 2003

0 261 207 001 / 8D0 907 551 K (Au-di RS4 B5 2.7 381HP 2001

0 261 206 892 / 06A 906 032 BJ (Au-di A3 8L 1.8 Turbo 180HP 2001

0 261 206 870 / 8E0 909 518 A (Au-di A4 B6 1.8 Turbo 163HP 2003

0 261 206 869 / 8E0 909 518 (Au-di A4 B6 1.8 Turbo 150HP 2001

0 261 206 852 / 036 906 032 C (V-W New Bee-tle 1.4 75HP 2001-2005

0 261 206 836 / 6K0 906 032 Q (Se-at Cordo-ba 6K 1.4 75HP 2000

0 261 206 825 / 030 906 032 BB (Au-di TT 8N 1.8 Turbo 224HP 2000

0 261 206 797 / 8L0 906 018 M (Au-di TT 8N 1.8 Turbo 224HP 1999

0 261 206 796 / 8L0 906 018 N (Au-di S3 8L 1.8 Turbo 210HP 2000

0 261 206 795 / 8N0 906 018 H (Au-di TT 8N 1.8 Turbo 224HP 2004

0 261 206 751 / 030 906 032 AP (V-W Po-lo 6N2 1.0 50HP 2000

0 261 206 599 / 06A 906 032 AH (Se-at Alham-bra 1.8 Turbo 150HP 2005

0 261 206 545 / 06A 906 032 T (Se-at Le-on 1.8 Turbo 180HP 2004

0 261 206 449 / 4B0 906 018 AA (Au-di A6 C5 1.8 Turbo 150HP 1999

0 261 206 439 / 8N0 906 018 Q (Au-di TT 1.8 Turbo 180HP 2001

0 261 206 436 / 06A 906 032 AR (V-W Go-lf IV 1.8 Turbo 150HP 2002

0 261 206 435 / 06A 906 032 AS (Au-di A3 8L 1.8 Turbo 150HP 2002

0 261 206 397 / 3B0 907 552 L (Au-di A6 C5 2.4 165HP 2000

0 261 206 387 / 3B0 907 551 Q (Au-di A4 B5 2.8 193HP 2000

0 261 206 372 / 4D0 907 558 (Au-di S6 C5 4.2 V8 340HP 1999

0 261 206 318 / 8D0 906 018 Q (Au-di A4 B5 1.8 125HP 2001

0 261 206 317 / 8D0 906 018 R (V-W Passa-t B5 1.8 125HP 1999

0 261 206 239 / 022 906 032 B (V-W Go-lf IV 2.8 204HP 2000

0 261 206 124 / 3B0 907 551 E (Au-di A8 D2 2.8 193HP 2000

0 261 206 123 / 3B0 907 551 T (Au-di A8 D2 2.8 193HP 1999

0 261 206 122 / 3B0 907 552 J (Au-di A6 C5 2.4 163HP 1999

0 261 206 108 / 8D0 907 551 C (Au-di S4 2.7 BiTurbo 265HP 1999

0 261 206 031 / 6K0 906 032 C (Se-at Ibi-za 6K 1.4 60HP 2001

0 261 206 015 / 4D0 907 558 H (Au-di S8 D2 4.2 V8 340HP 1999

0 261 204 898 / 8N0 906 018 A (Au-di TT 1.8 Turbo 180HP 2000

0 261 204 897 / 4B0 906 018 K (Au-di A4 B5 1.8 Turbo 150HP 2001

0 261 204 873 / 8D0 906 018 D (Au-di A4 B5 1.8 125HP 1999

0 261 204 778 / 8D0 907 558 D (Au-di A4 B5 1.8 Turbo 180HP 1998

0 261 201 144 / 036 906 032 BA (V-W Go-lf IV 1.4 75HP 2002

0 261 201 126 / 036 906 032 BD (V-W Cad-dy 9KV 1.4 60HP 2004
